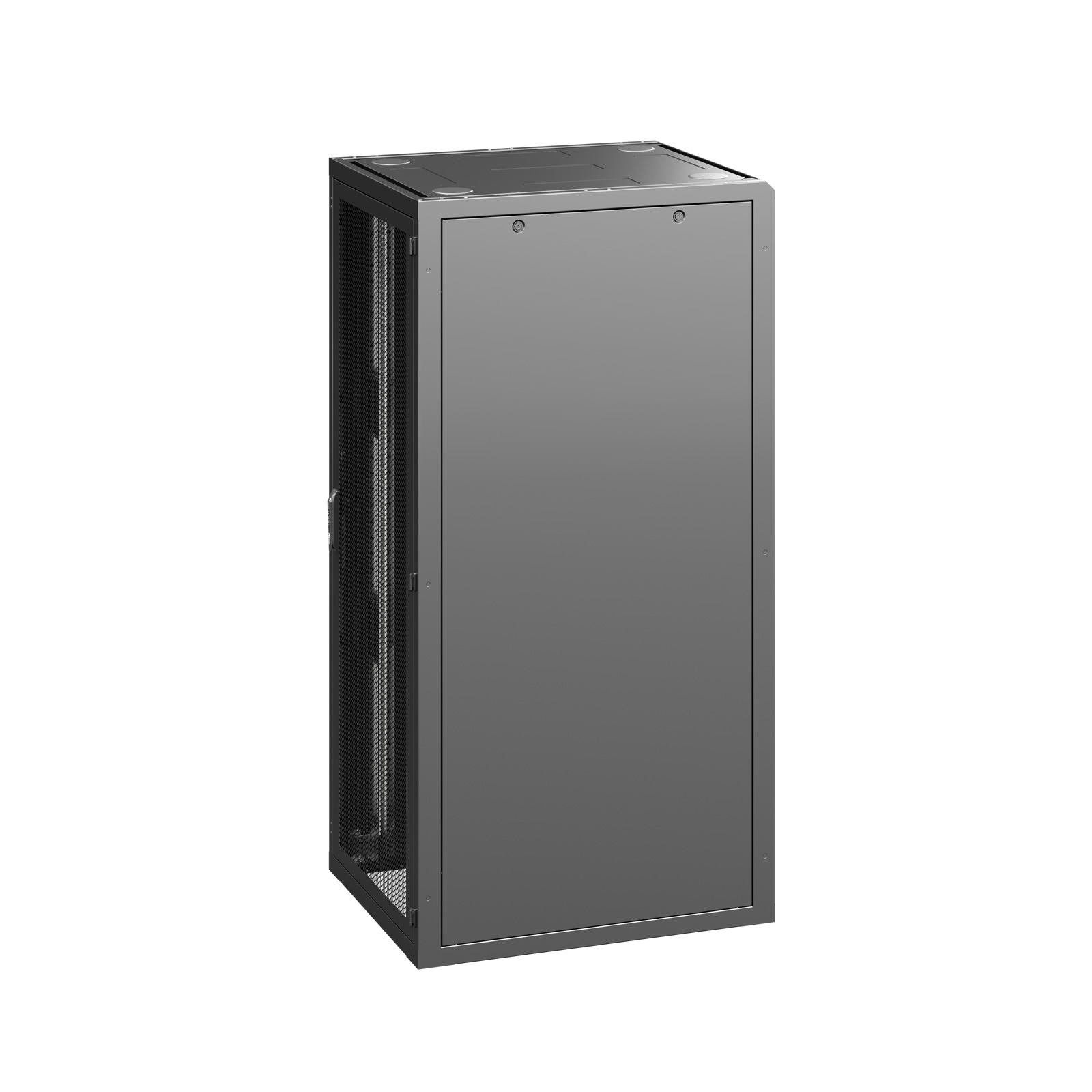

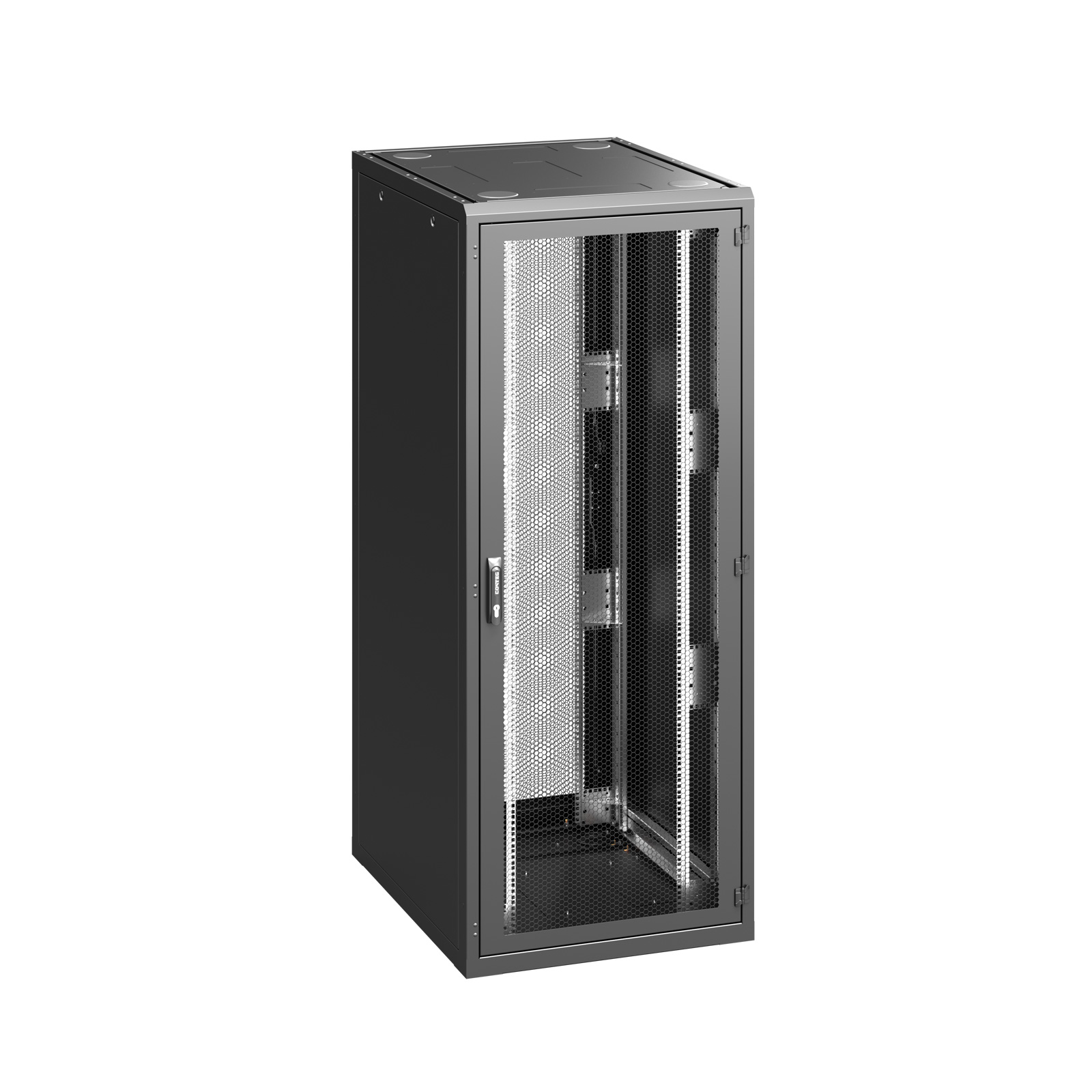

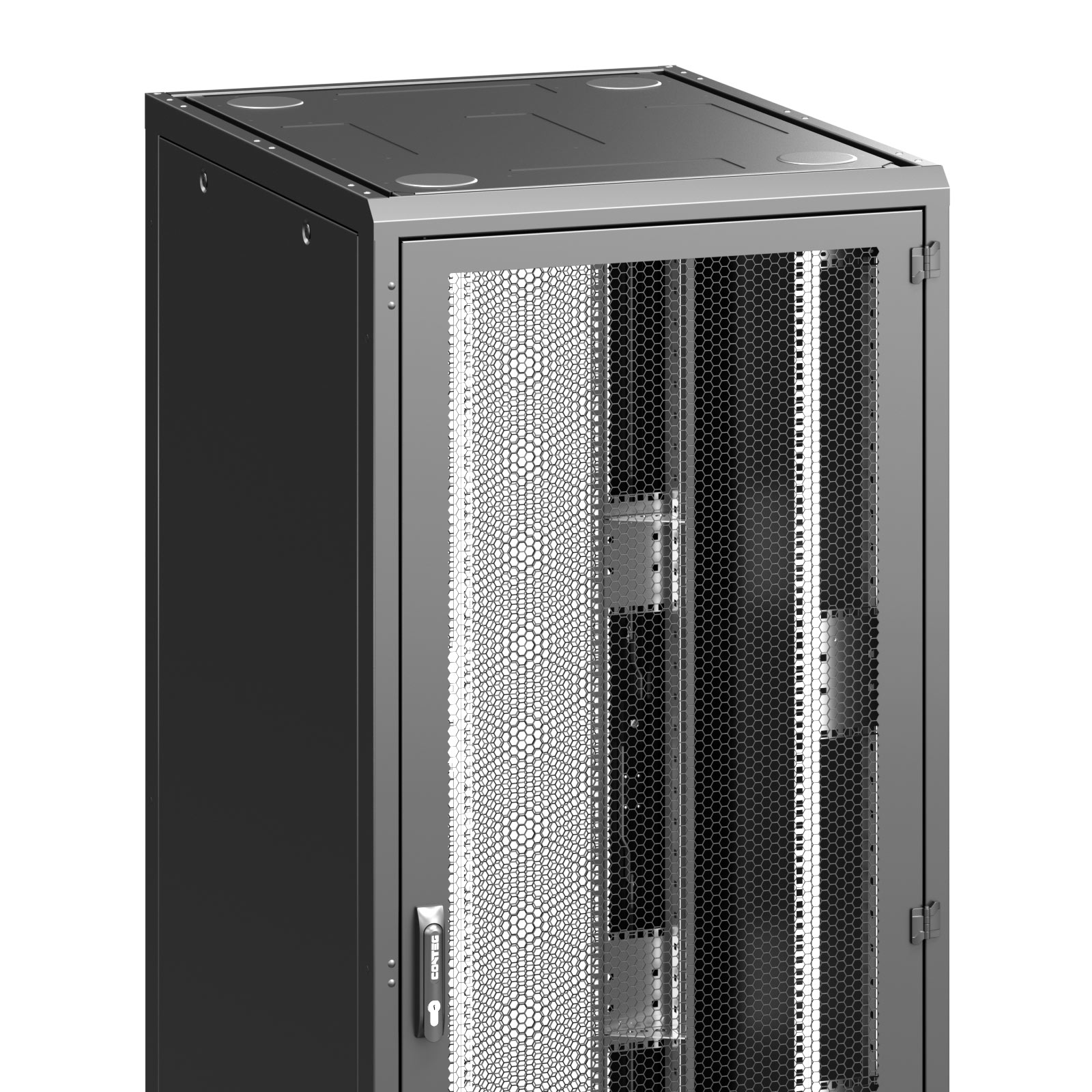

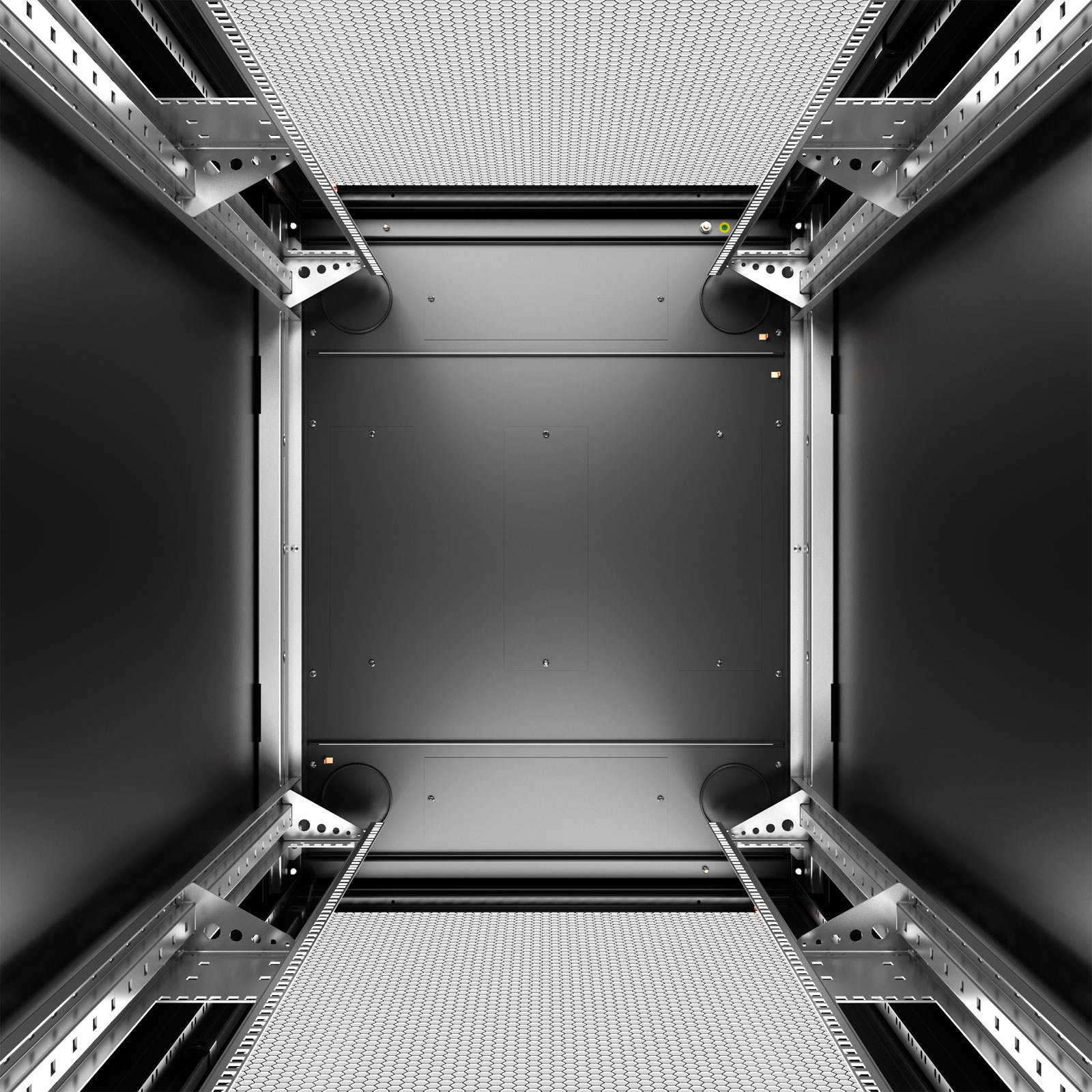

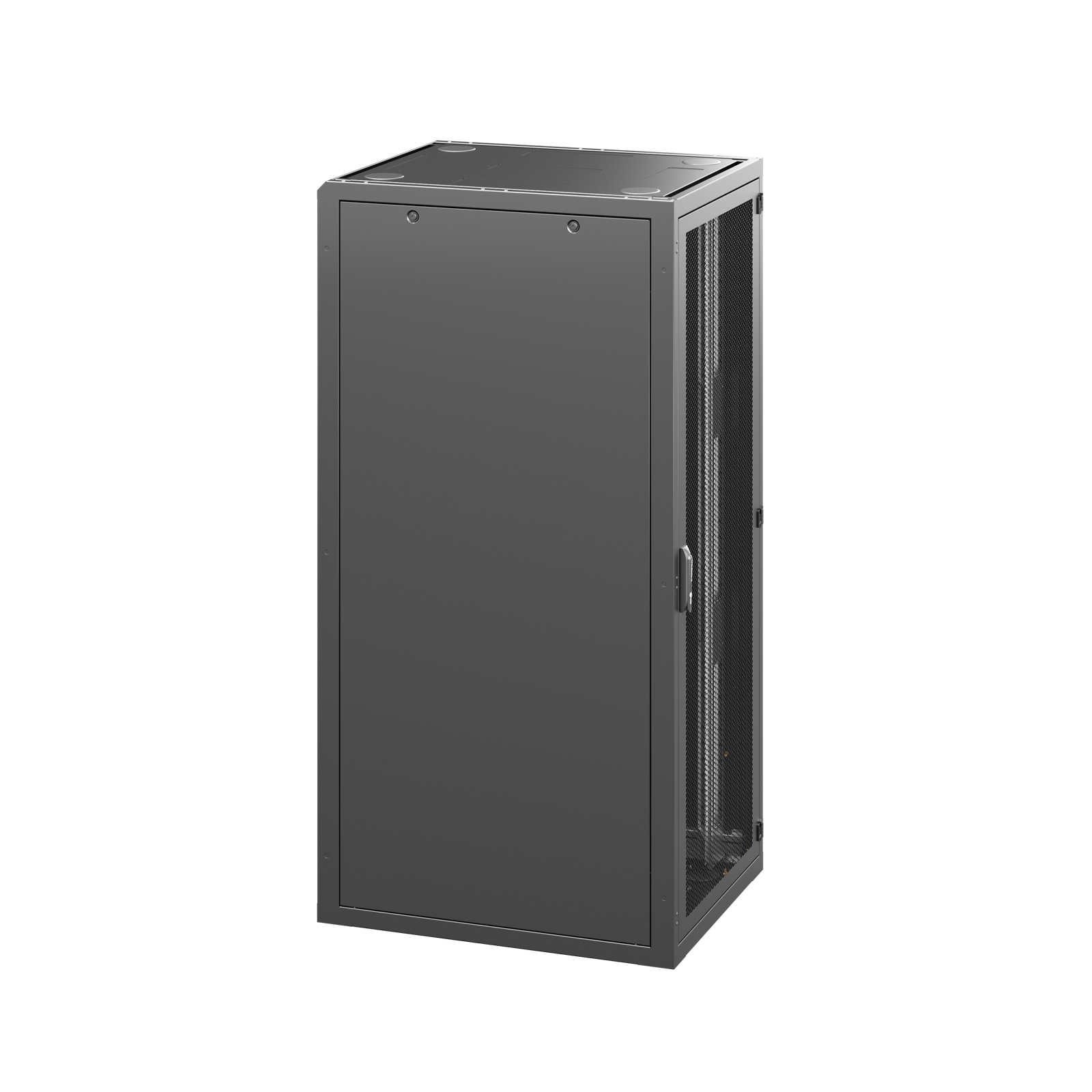

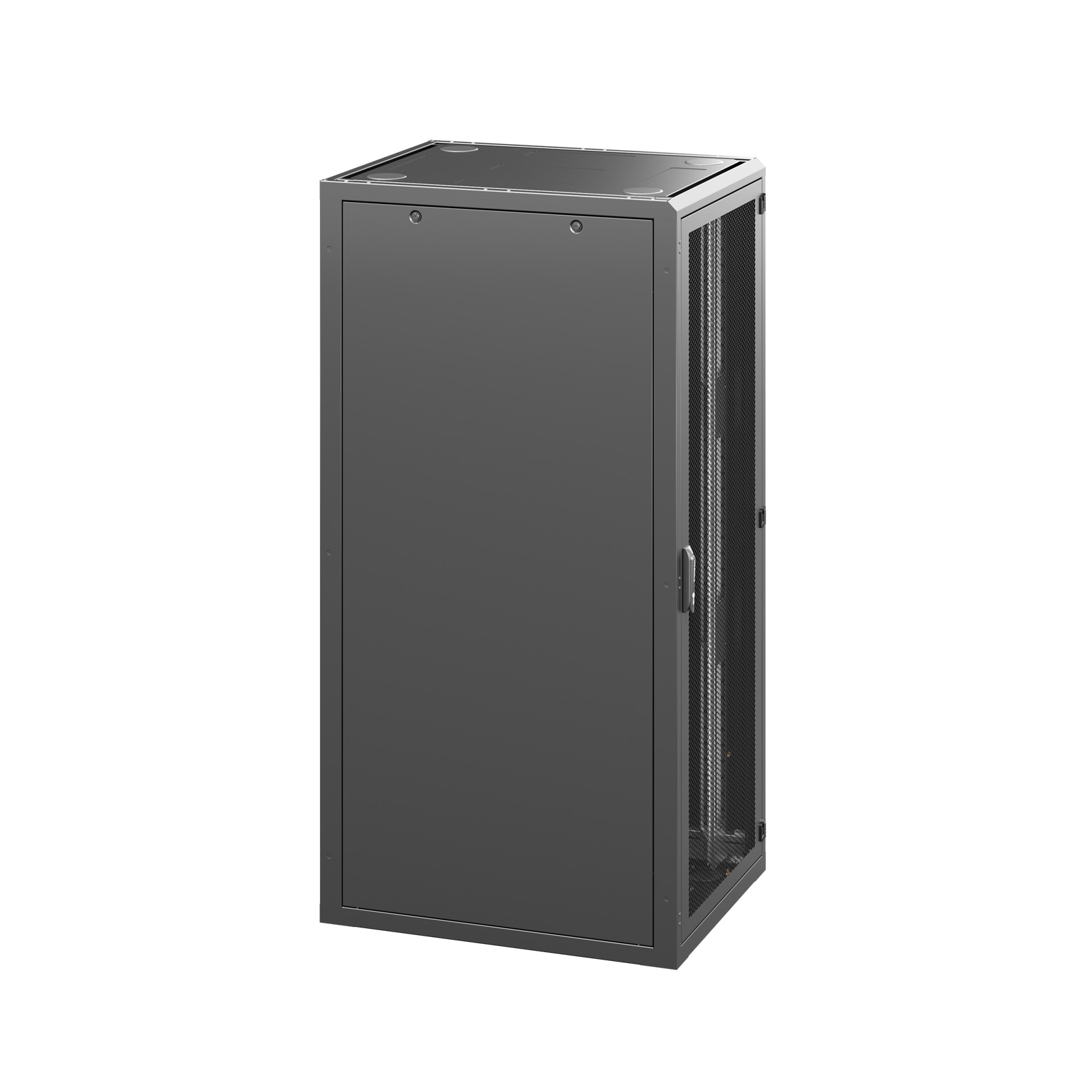

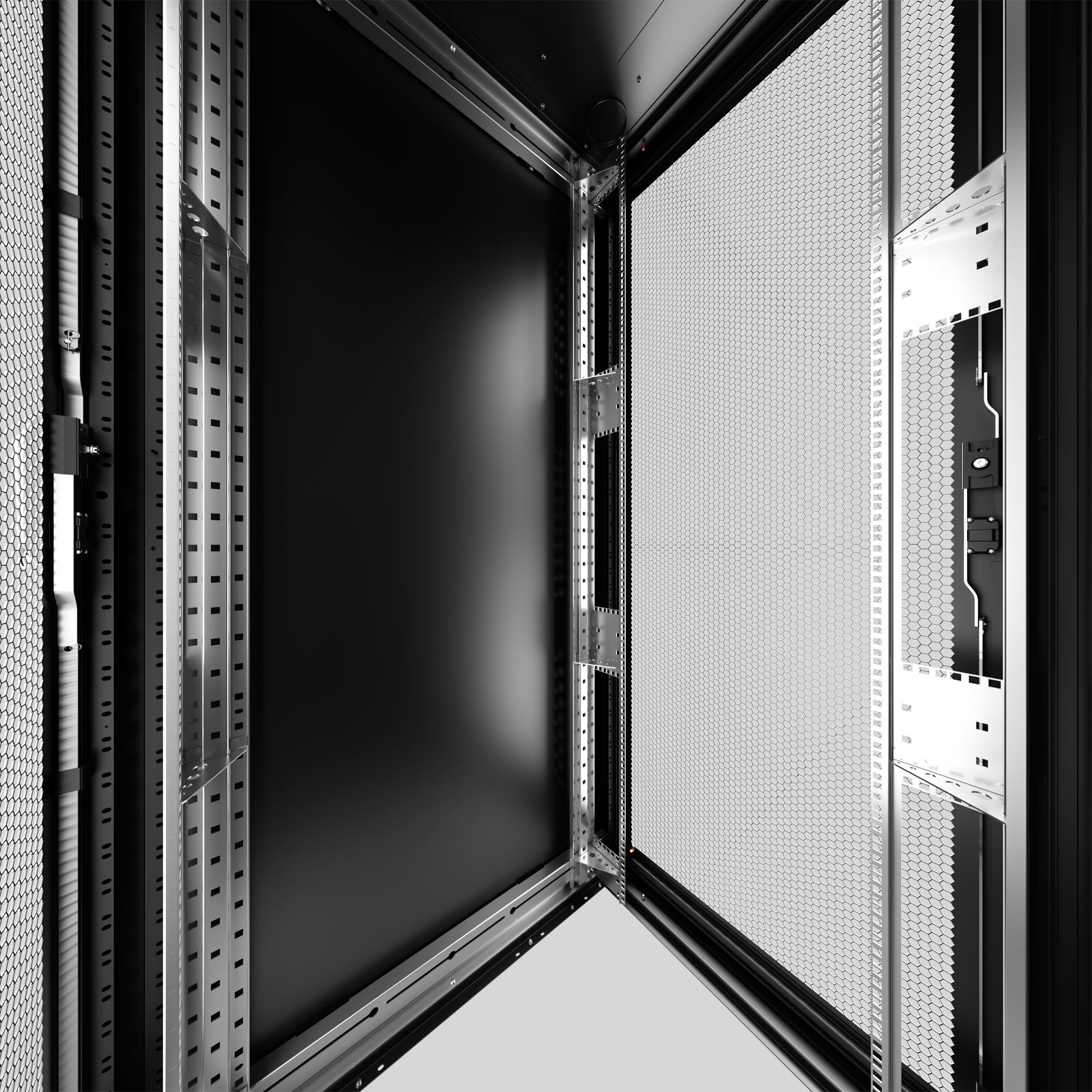

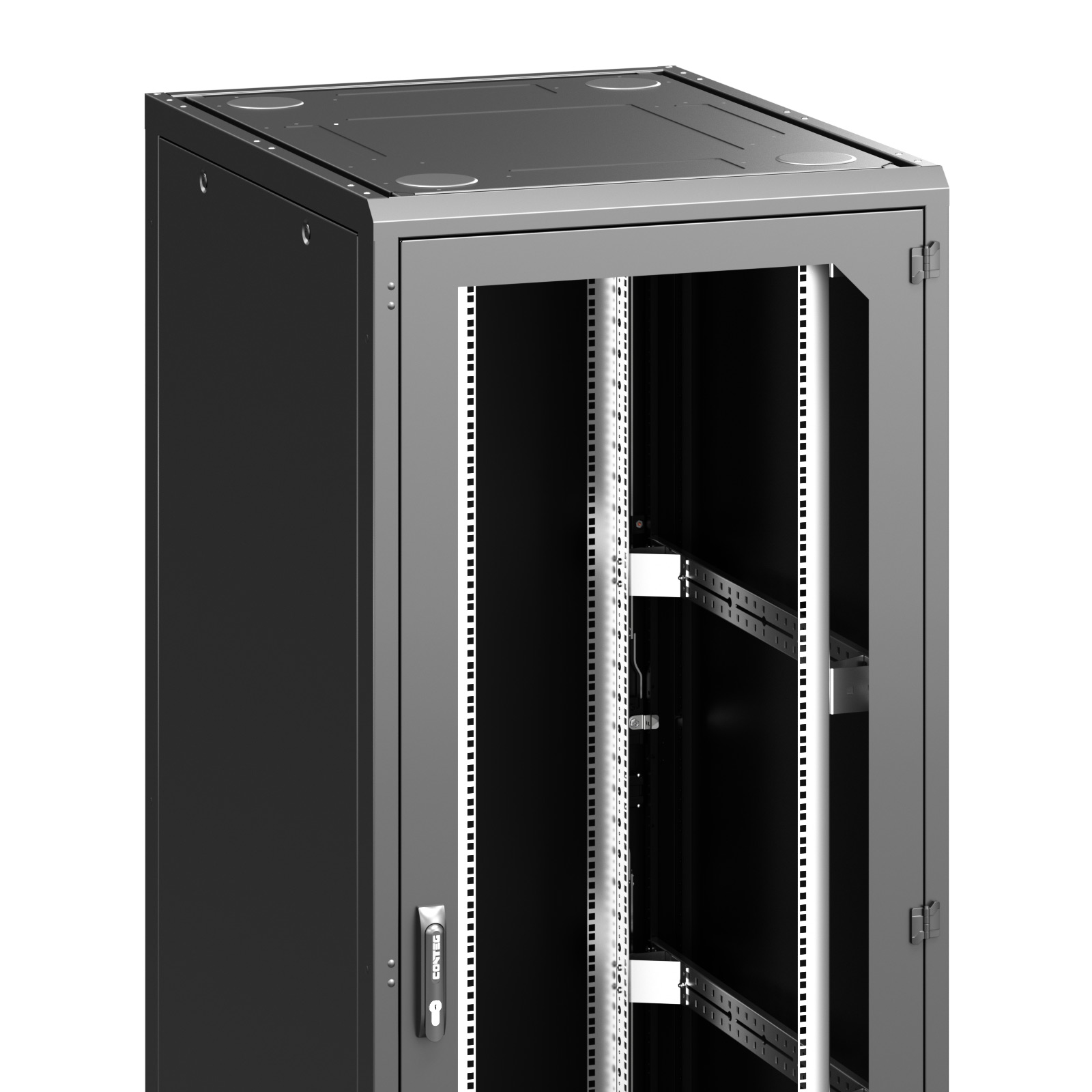

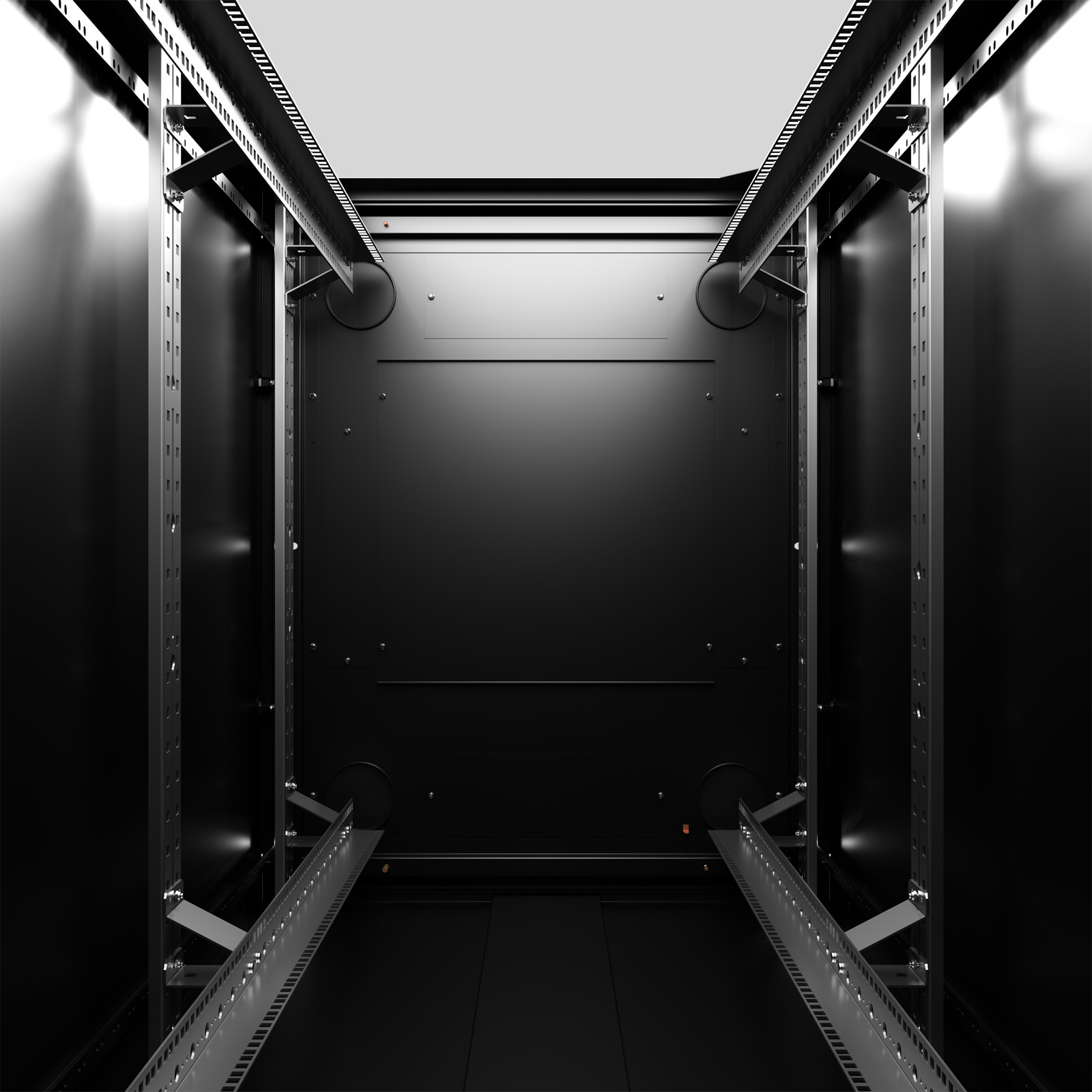

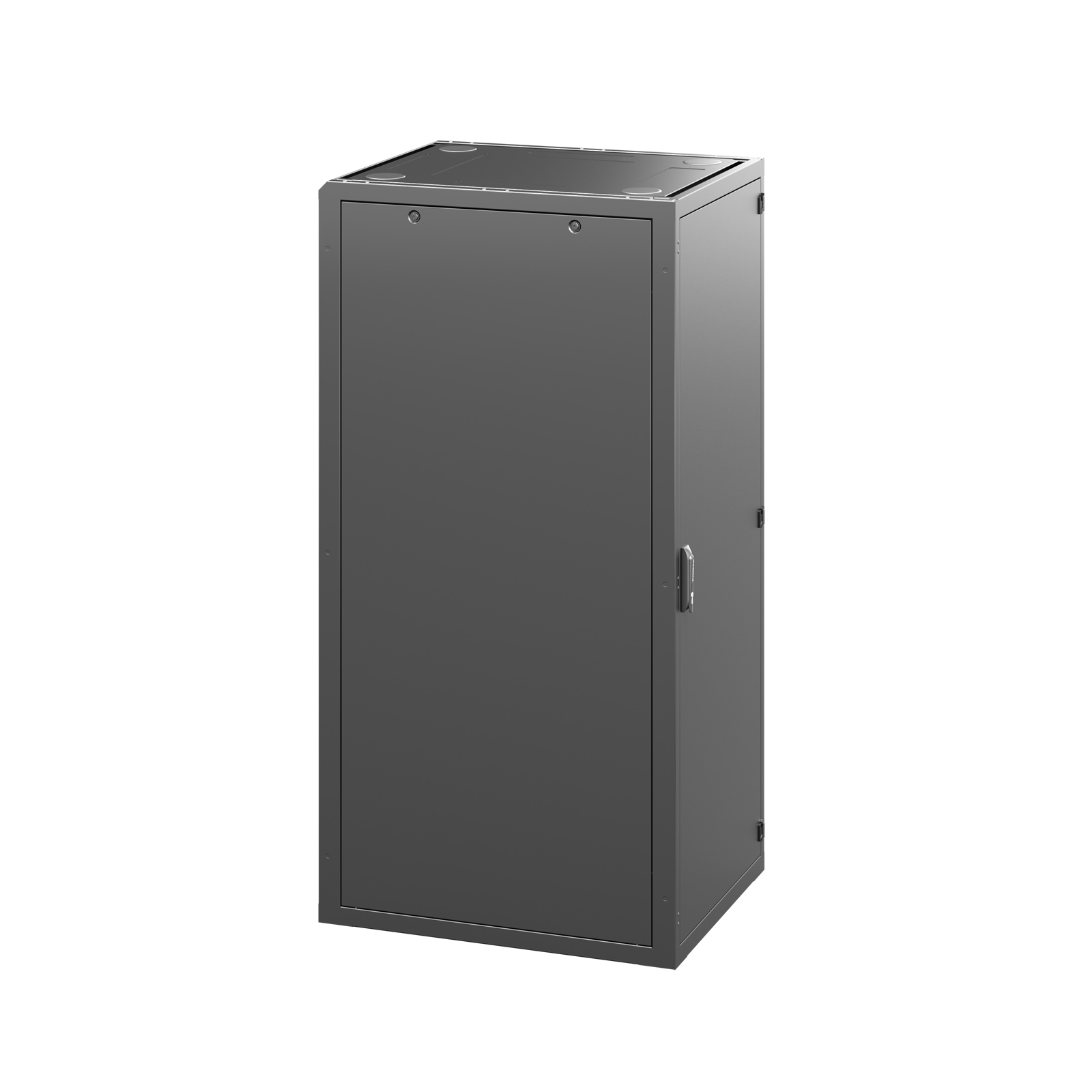

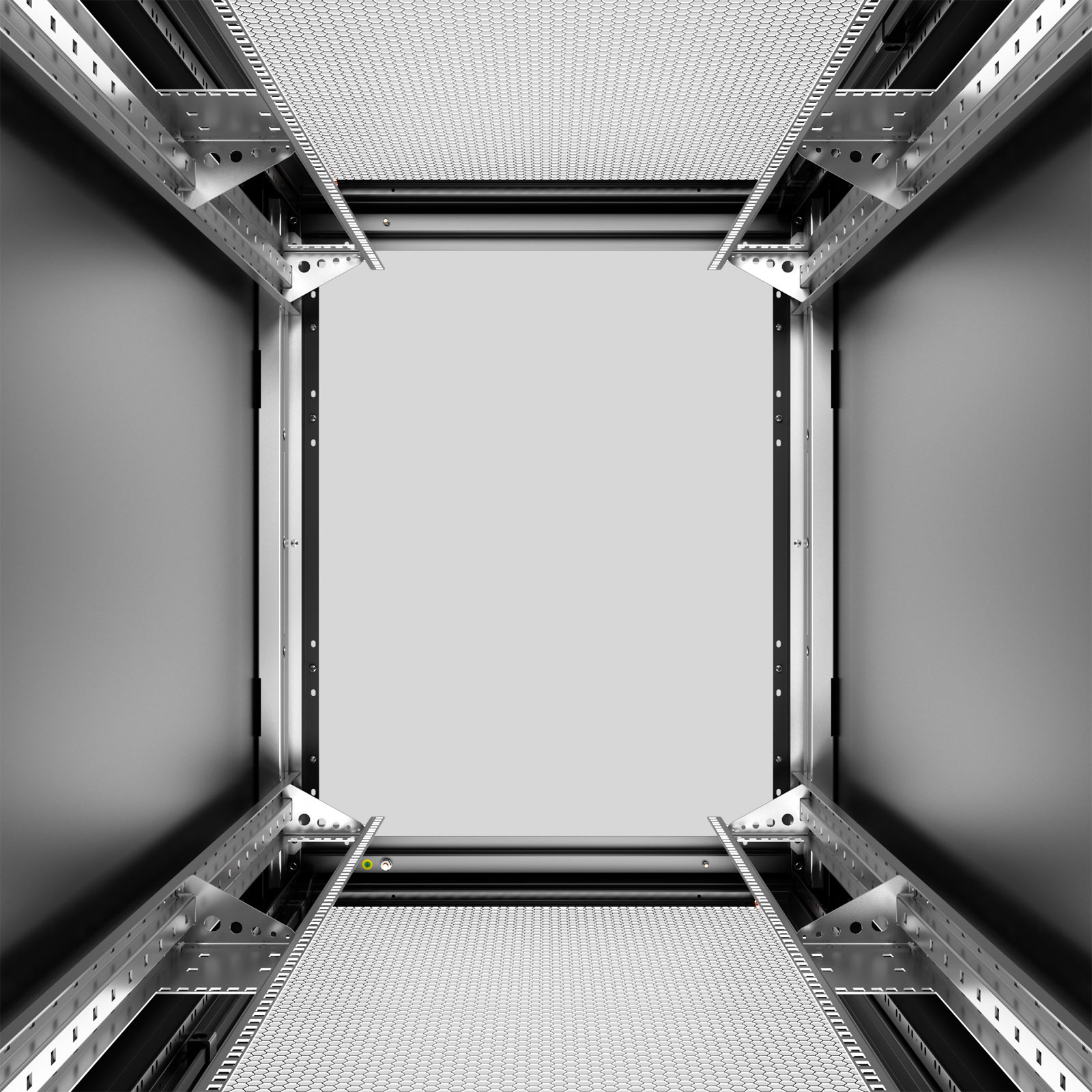

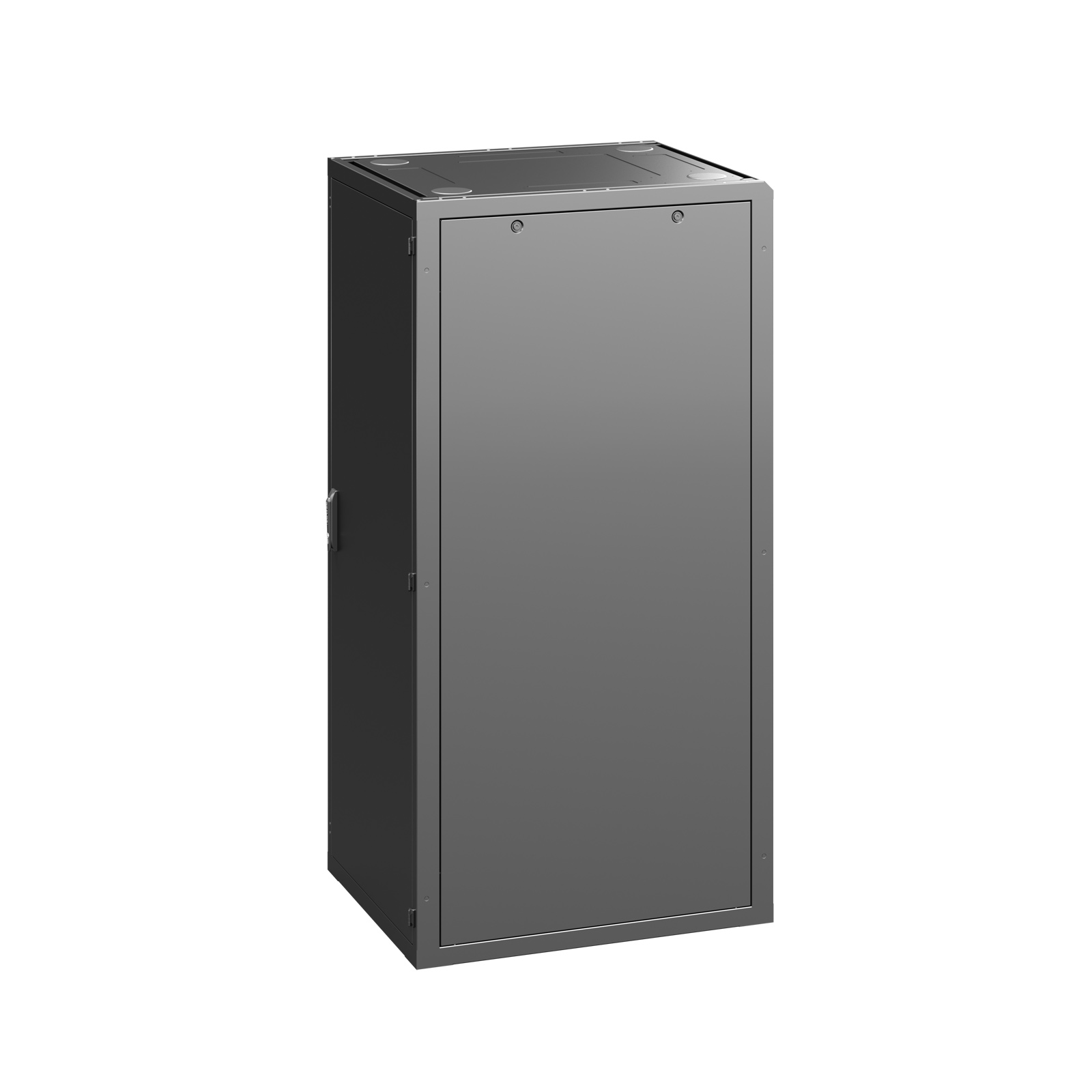

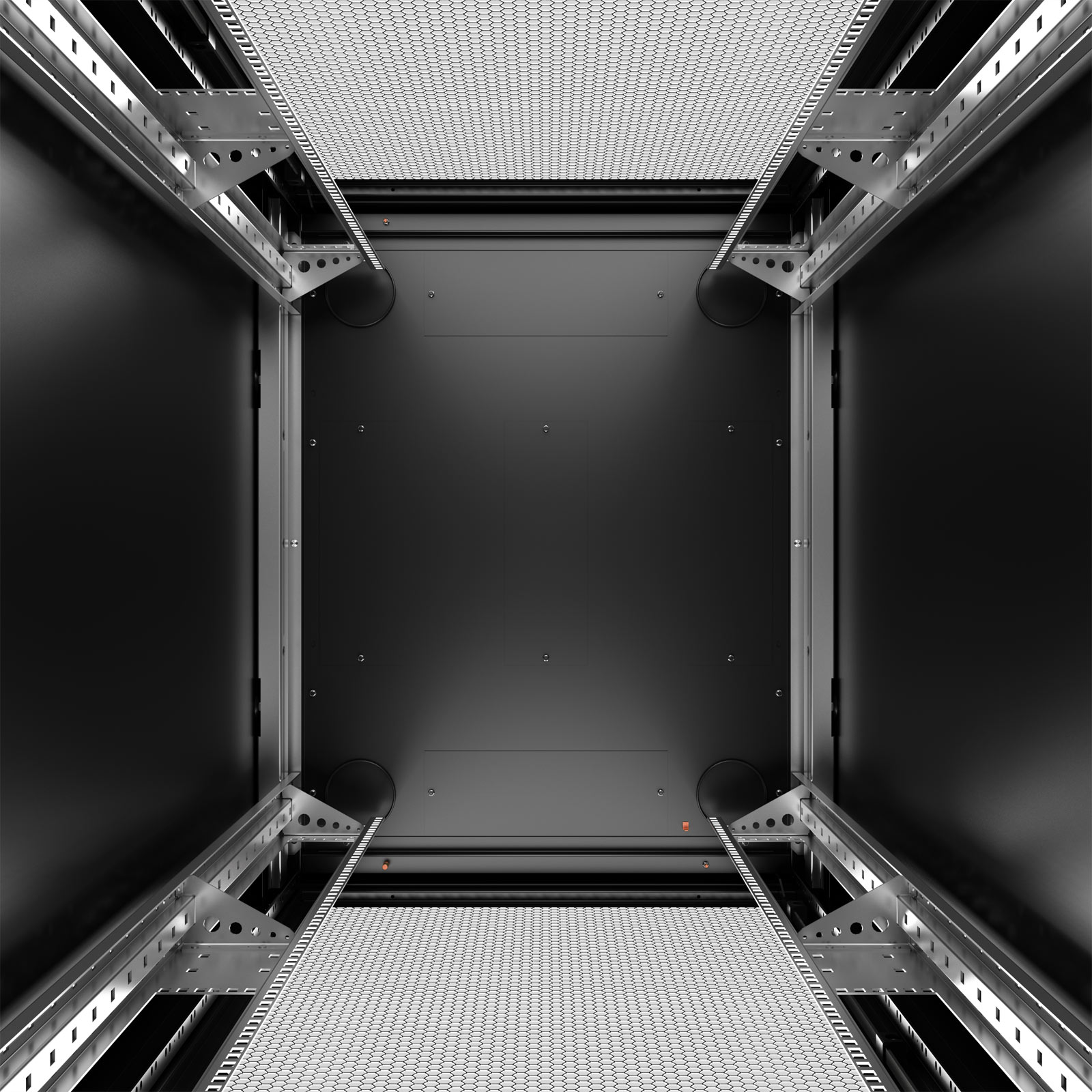

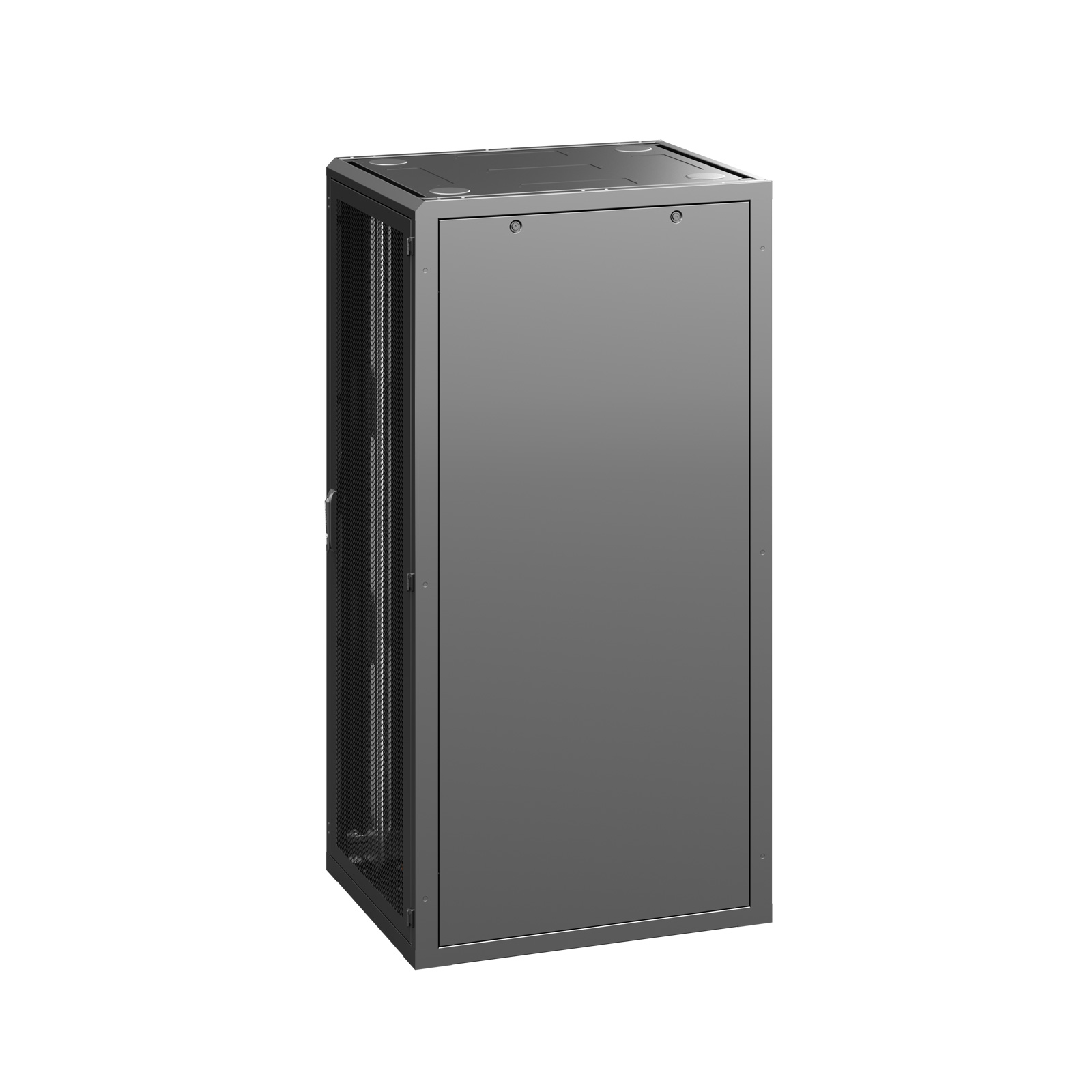

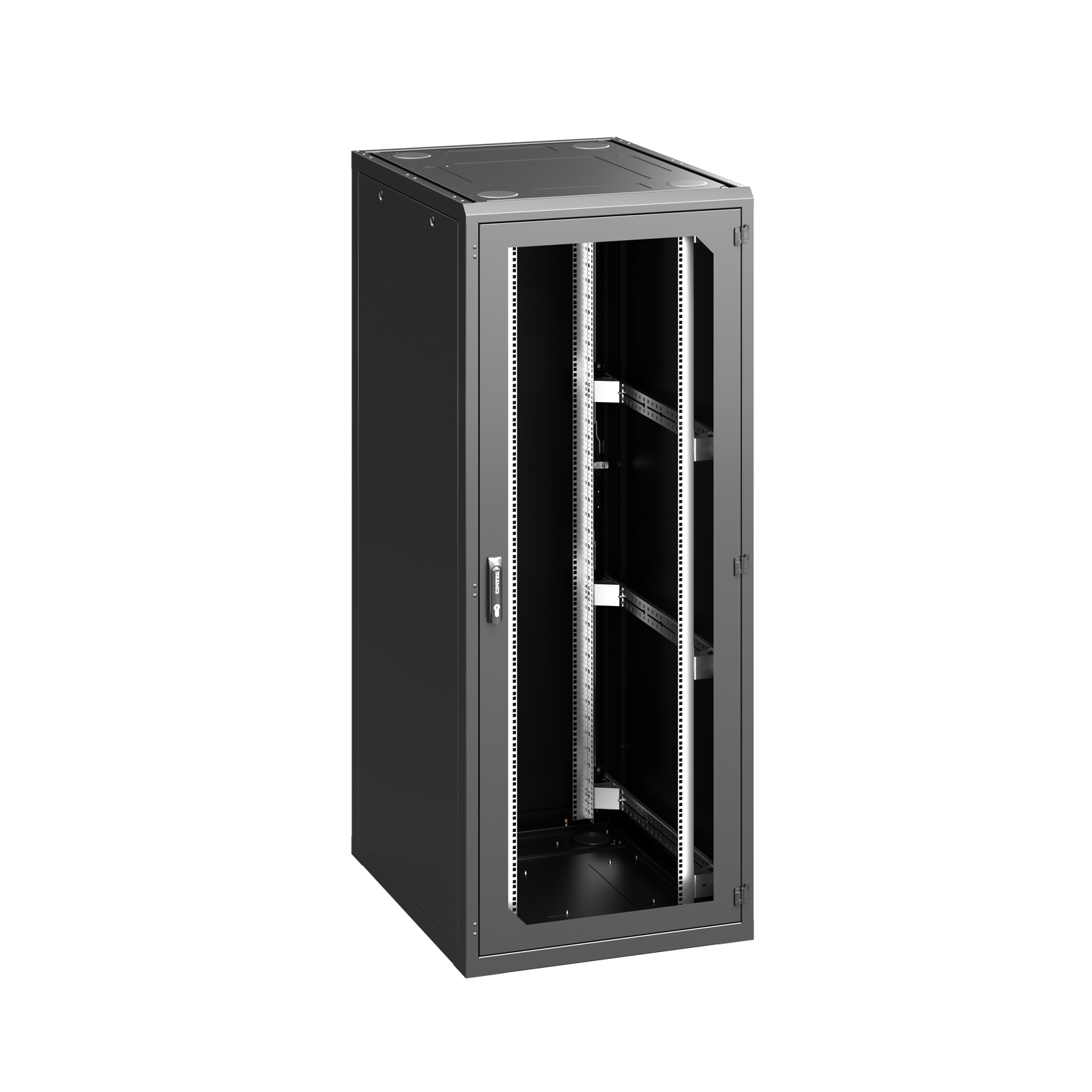

PREMIUM Server RF1 ist ein neuer und unübertroffener Verteiler der Premium-Serie, der für die anspruchsvollsten Bedingungen und Anwendungen entwickelt wurde. Die Konstruktion beruht auf einem hochfesten, lasergeschweißten Rahmen aus einem patentierten Profil, das eine maximale Steifigkeit und Tragfähigkeit von bis zu 2 000 kg gewährleistet.
Die innovativen Schienen mit U-Positionsmarkierungen sind sehr einfach zu befestigen und bieten eine außergewöhnliche Variabilität in der Innenaufteilung. Türen mit einer Perforation von 86% können bis zu einem Winkel von 190° geöffnet werden.
Der Schrank wurde konstruiert, um mit allen Kühlsystemen, optimiertem Luftstrom und den flexiblen Kabelmanagementsystemen von CONTEG sowie mit vielen zusätzlichen Systemen wie Zugangskontrollsystemen, PDU – intelligenter Stromversorgung oder Feuerlöschsystemen zu kooperieren.

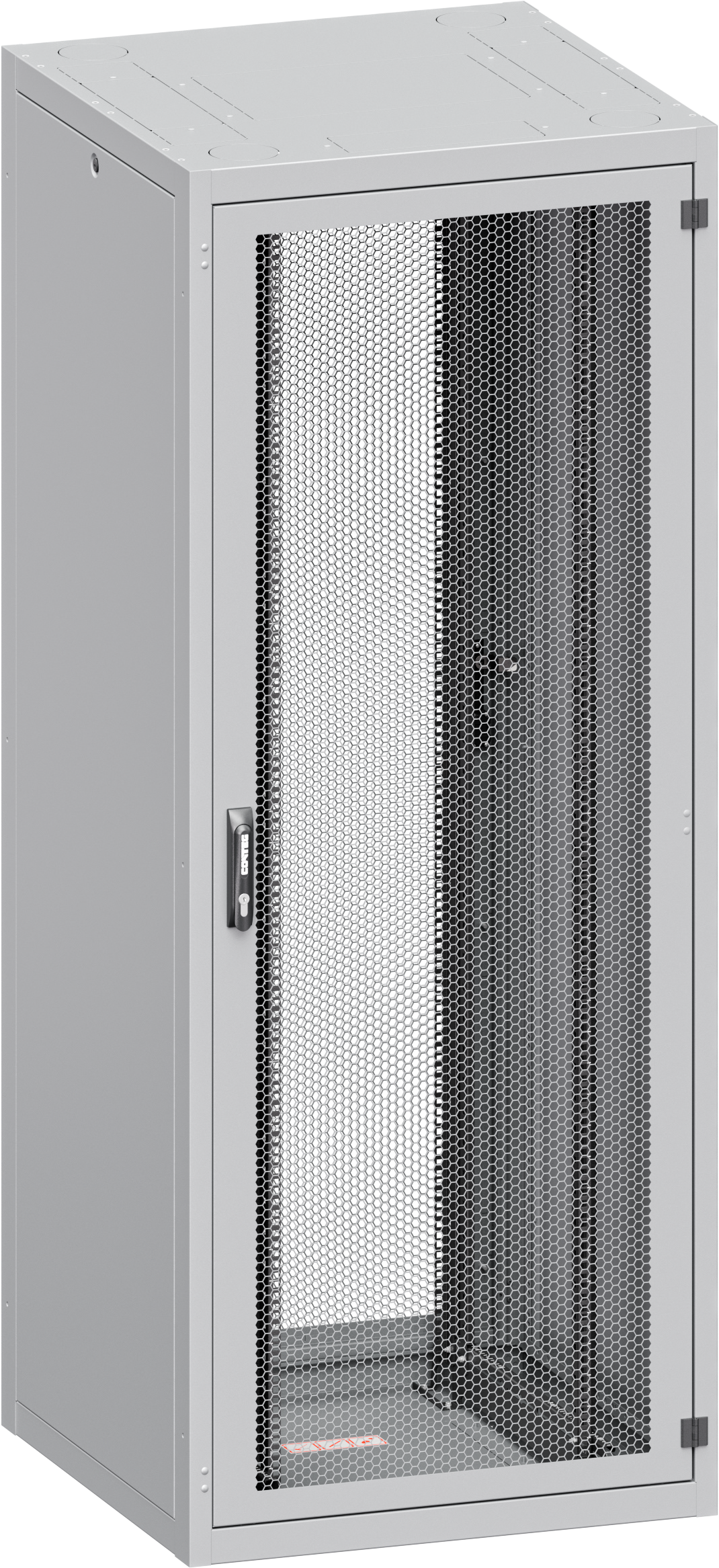

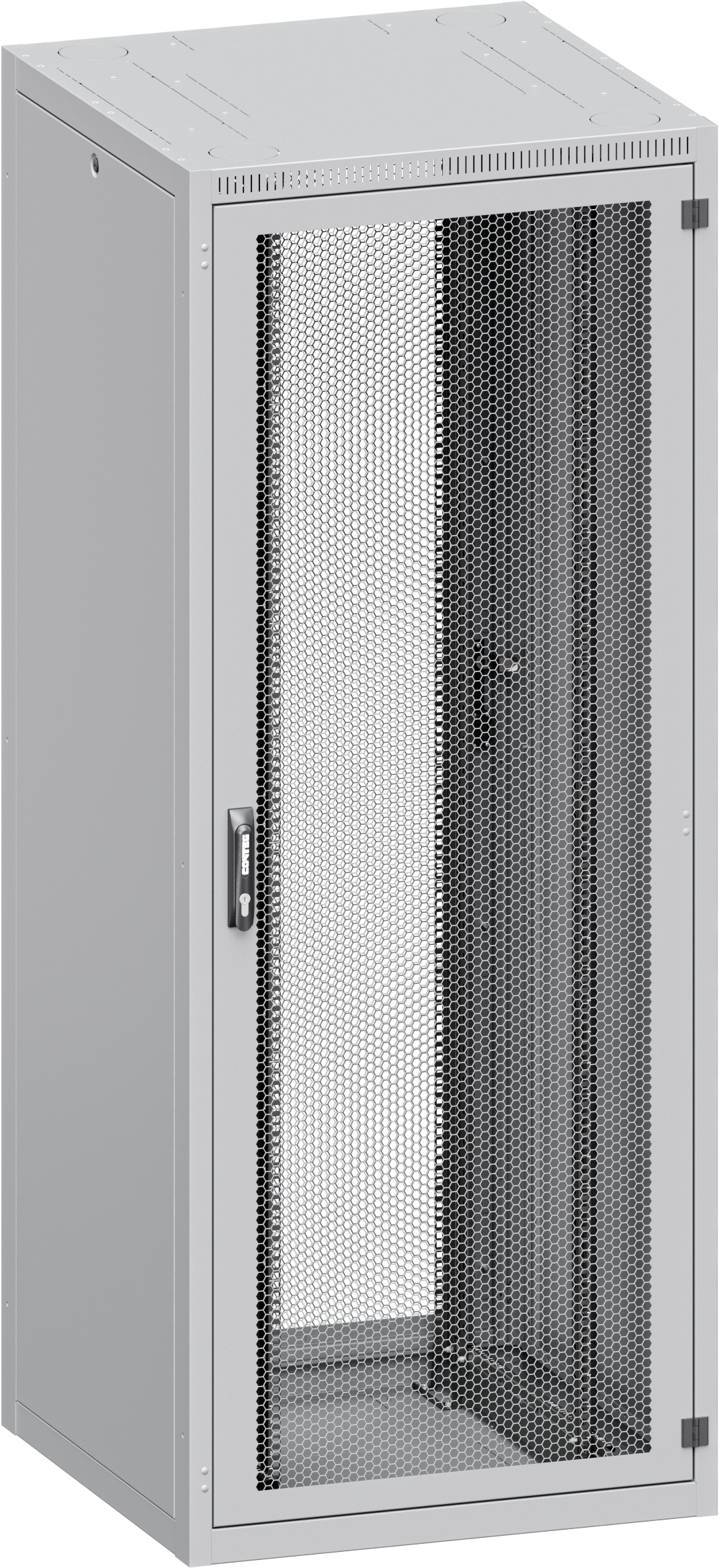

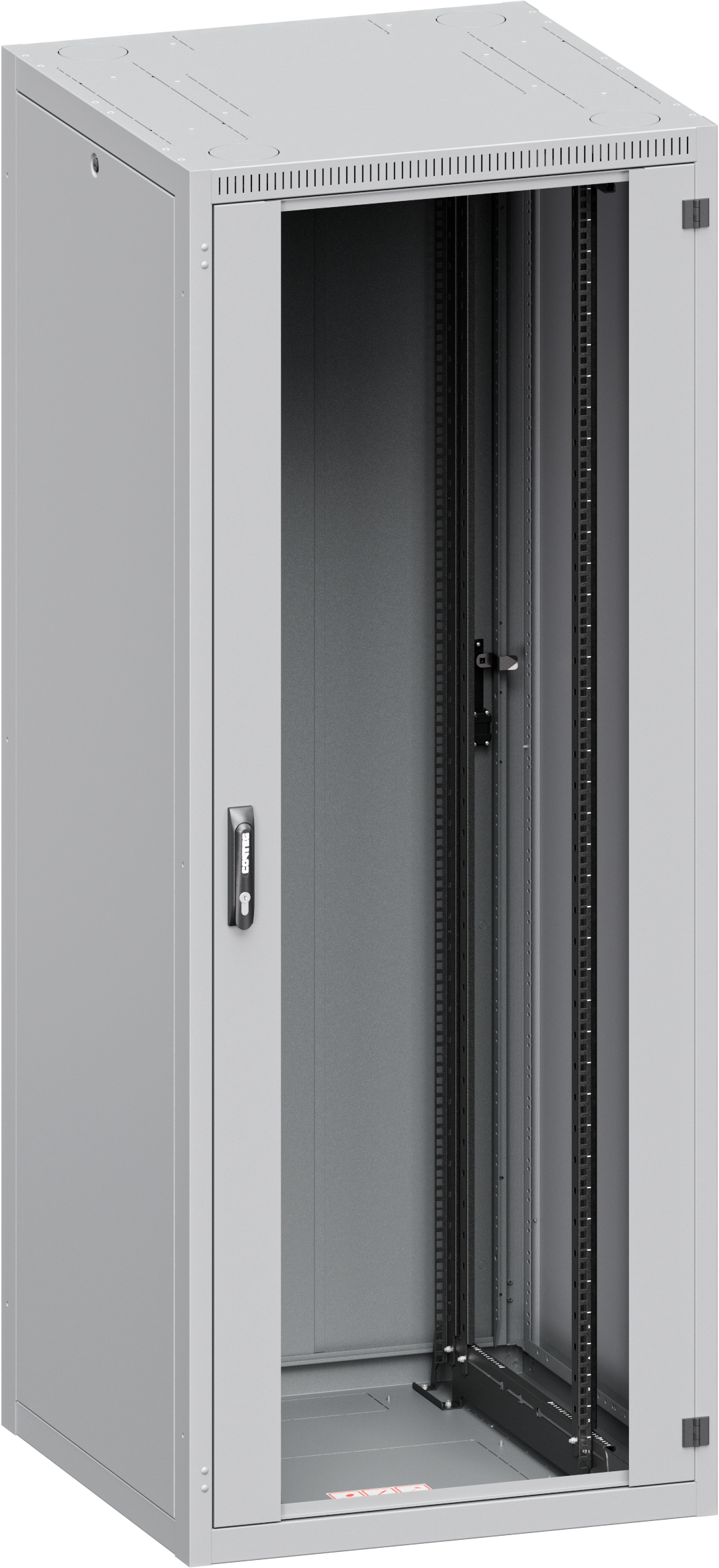

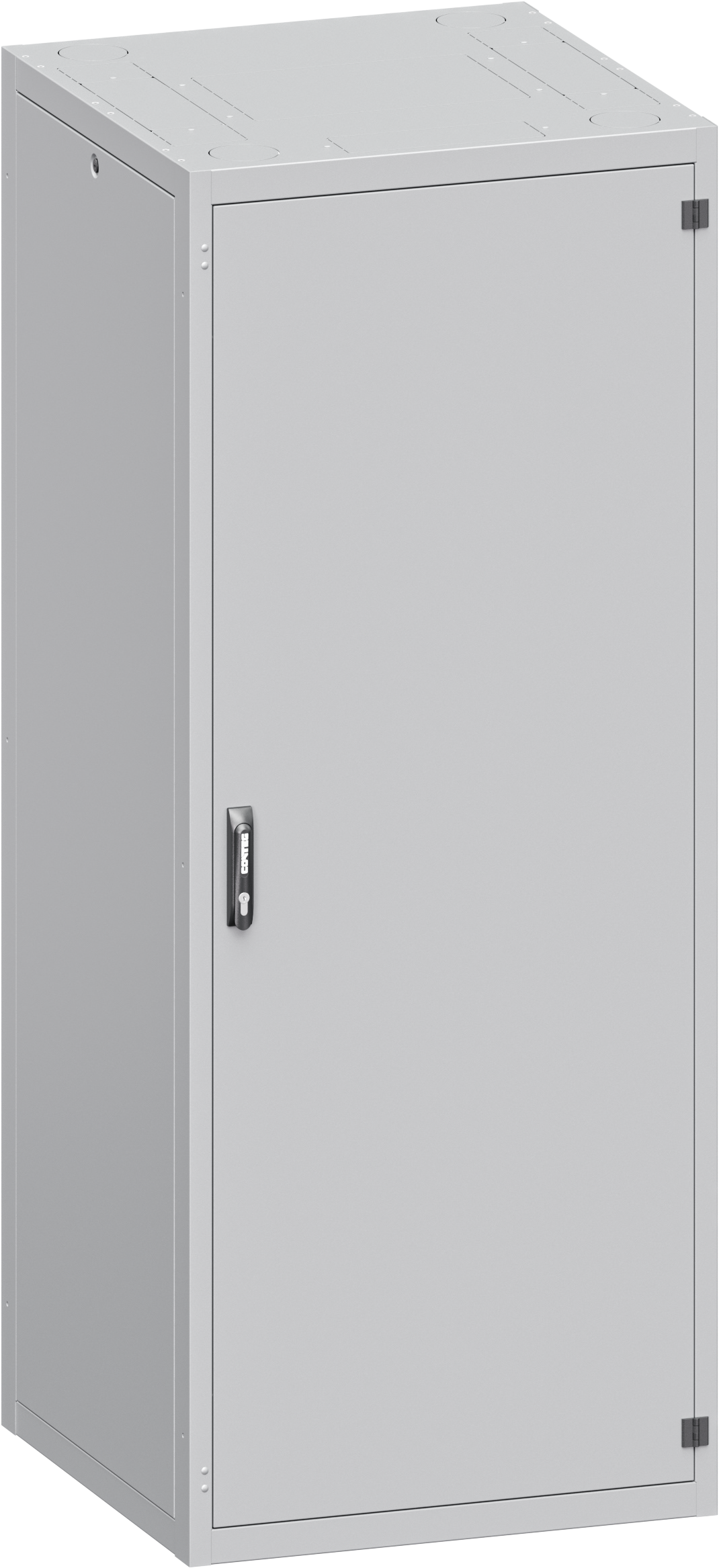

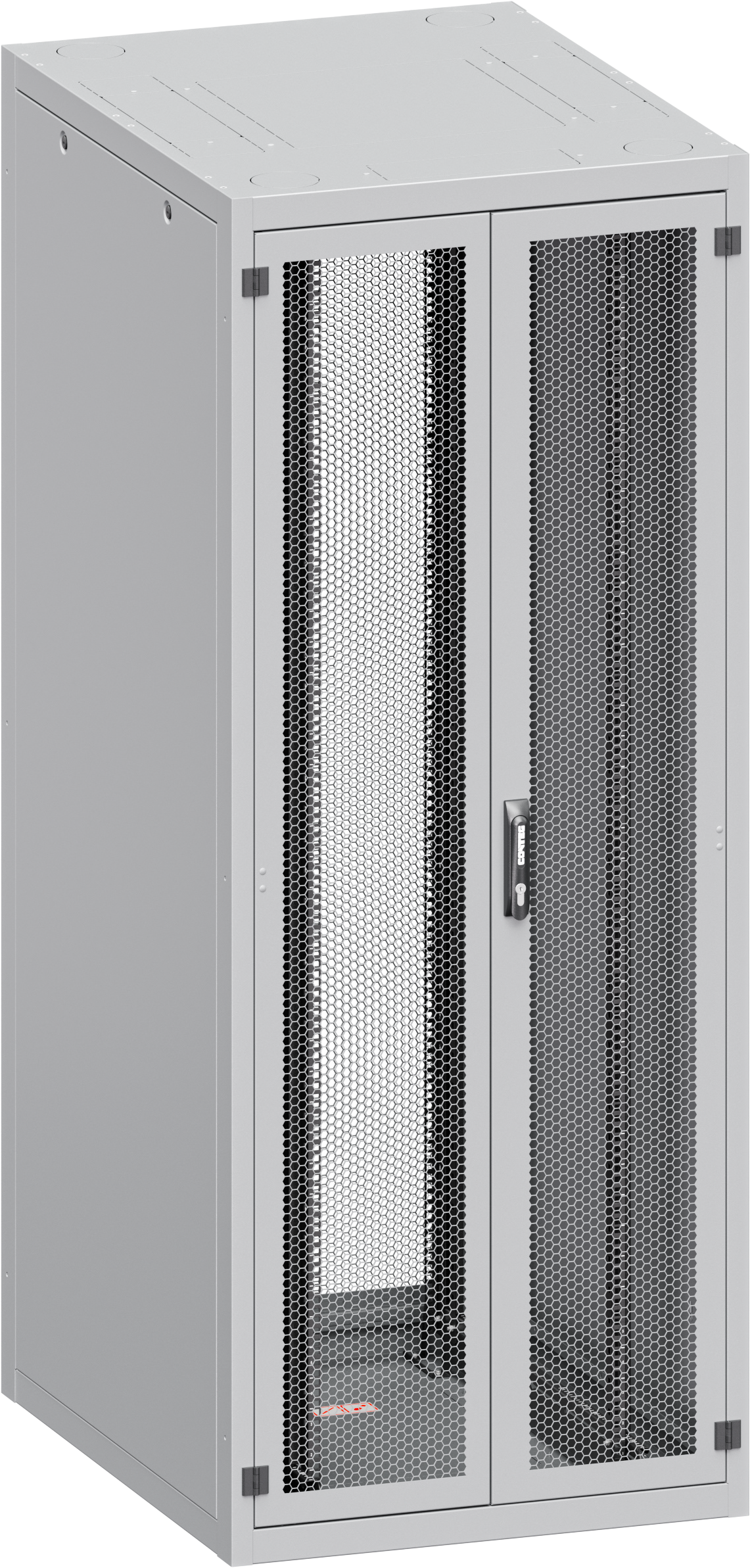

The iSEVEN Ri7 cabinet is designed to provide an unbeatable ratio between price, utility, and quality. Ideal for installers and end customers who want to spend less time choosing between different options.

After meticulous research, we have prepared a portfolio of the most requested formats with a universal design and a limited set of options. iSEVEN is intended for use in server rooms, telecommunication exchanges, as well as as a stand-alone unit. The 19"" iSEVEN Ri7 data cabinet satisfies all requirements for safe installation of active elements, cabling, air ventilation and power supplies. The set of options is reduced compared to the configurable PREMIUM cabinets.

The iSEVEN Server rack is ideal for anyone who needs to keep servers in proper conditions. iSEVEN Server combines our general purpose cabinet with the highly valued features of our RF1 dedicated server racks

The 19"" iSEVEN Flex RM7 racks were designed to provide an unbeatable value for the price even for those customers whom access path space limitations did not allow to purchase an iSEVEN (RI7) rack with a welded construction. For easier transport, the iSEVEN Flex cabinets are delivered disassembled. They come in 3-5 boxes, which makes transport to any place a breeze.

At the destination, they can be easily assembled according to the instructions into a full-fledged data cabinet. The cabinet is an ideal choice for installers and end customers who do not want to spend time navigating extensive offers of cabinet variations and configurations and corresponding product codes. After meticulous research, we have prepared a portfolio of the most requested formats with a universal design and a limited set of options.

Based on thorough research, we have prepared for you the most requested cabinet configurations for server rooms and other projects - our iSEVEN Flex SERVER rack cabinets. These selected cabinet configurations satisfy the most challenging requirements and offer an unbeatable price/performance ratio. Ideal for everyday use where a load capacity of up to 1,000 kg is required. For efficient operation of servers, the cabinets are equipped with super-perforated doors with an unrivaled 86% perforation rate.

The OPTIMAL cable management cabinet is designed to support configuration with horizontal links or consolidation point topology according to ISO/IEC 11 801, TIA-942 and TIA-568 B standards. This solution is recommended for telecommunication rooms where active components and connection panels need to be separated.

EDURACK-3 is designed for safe and convenient storage of notebooks and laptops in educational environments. It provides intelligent device charging, digital control unit, and surge protection.

RSG4’s heavy-duty four-post open frames provide unrivaled access options. With a load capacity of up to 1,500 kg under even load, they are ideal for keeping heavy servers, disk arrays, etc.

The RSG2 heavy-duty two-post open frames are designed for use with the HDWM binding system.

The frames of the RS series are ideal for in closed rooms with access control and a suitable operating environment for the installed components, or wherever it is not possible to use rack cabinets for any reason.

The PREMIUM RUN (19") series wall-mounted racks offer a universal solution for a wide range of use cases. They offer easy access to the installed technology through the front door as well as from the side thanks removable lockable side panels. The rack’s construction is not split, unlike the RUD series wall-mounted racks.

Wall-mounted 19" PREMIUM Split RUD cabinets are designed as wall-mounted with extended access.

iSEVEN RQN-Wandschränke sind die ideale Wahl für den tagtäglichen Gebrauch und bieten ein einzigartiges Verhältnis zwischen Preis, Nutzwert und Qualität.

Die wandmontierbaren iSEVEN Flex RQN Serverschränke sind für den täglichen Einsatz bereit und bieten ein hervorragendes Verhältnis von Preis, Nutzen und Qualität. Dabei handelt es sich um unmontierte Versionen — flach verpackt für einfachen Transport und Lagerung — unserer iSEVEN RQN Schränke.

The SOHO In-Wall ACP (19") series cabinets are designed for use in homes and small offices. As the only built-in option in CONTEG’s portfolio, they are installed directly into the wall, which makes them an elegant solution for the core of the home network. SOHO In-Wall cabinets are equipped with 19" 4U rails for mounting passive elements and 19" 2U rails for active elements. It can accommodate patch panels, binding panels and other 19" elements (max. depth 300 mm). Binding panels and other cable management elements ensure a clear and structured routing of all types of cabling (copper, optics) even in the limited internal space of the ACP cabinet.

19" SOHO On-Wall ACP cabinets are designed for installation directly on the wall. Suitable for a wide range of use cases, these cabinets offer a more elegant design and a cost-effective solution for developers/home owners.

Wall-mounted MiniNET cabinet designed for small households and SOHO (Small Office, Home Office) installations. Quick and easy to assemble without the use of screws and tools thanks to four convenient side stops. Comes in a flat pack.

SOHO mini REH series cabinets can hold 10" patch panels, shelves, SOHO active elements, etc. Suitable for small offices and homes. The 10" vertical rfail spacing made it possible to minimize the dimensions of the cabinet to create an elegant and inconspicuous solution. SOHO Mini RSH cabinets offer a basic level of access to the stored technology through the front door. The chassis cannot be dismantled.

Wall-mounted fiber optic cabinets and boxes are used to terminate optical fibers outside the 19" cabinets. The range includes both double and single designs and a wide range of panels to suit a large variety of use cases.

The WME-X compact stainless steel cabinets are suitable for use cases with higher requirements for resistance to the environment. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet.
WME-X19 is a special category of single-door stainless steel 19"" cabinets suitable for IT equipment installations. As a standard, these cabinets are equipped with 19"" rails. The cabinets are available in depths of 400 and 500 mm and heights of 12, 17 and 21U.
Laser welding technology gives the cabinets clean design.

The compact, single-door WME-O cabinets made of stainless steel with a surface treatment resistant to UV radiation are ideal for outdoor installations; can be combined with rain protection and other accessories. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet. Laser welding technology gives the cabinets clean design. For WME-O outdoor cabinets, we offer cooling and heating solutions which will ensure a favorable internal temperature for the installed equipment. Upon request, we will recommend the most suitable type of fan and make the necessary cutouts and threads for installation in the outdoor cabinet.

CoolTeg Plus DF is an inter-cabinet air conditioning unit based on an innovative two-liquid cooling technology combining water and compressor cooling. As such, the unit contains a unique, highly efficient heat exchanger that enables the use of free cooling. The key functional elements of the system are integrated in the indoor unit, and heat removal from the data center is realized by a hydraulic circuit. This circuit is connected to two branches within the unit – a water exchanger and a water-cooled condenser. The water exchanger is used mainly in winter at low outdoor temperatures, and the water-cooled condenser is used mainly in the summer months, when it is necessary to activate the compressor circuit. The unit operates in three different modes – free-cooling mode, compressor mode (direct vapor) and mixed (hybrid) mode, when both branches of the unit are actively involved, i.e., both the water and the compressor part.

CoolTeg Plus DF40 – this unique cooling unit with a width of mere 40 cm and a maximum power of up to 24.5 kW can be connected to a hydraulic circuit (water-glycol) with a pump and an external dry cooler. A great advantage lies in the possibility to connect a single unit or multiple units to one hydraulic circuit, or to connect a group of units to one hydraulic circuit and another group to another hydraulic circuit, or to connect all units (or groups of units) to any number of hydraulic circuits - there are countless options to save acquisition costs or to increase redundancy of the data center cooling system.

Compared to a water-based cooling system (CW unit) with chillers, the advantage of the CoolTeg plus DF system lies mainly in the redundancy at the indoor unit.

Compared to a compressor-based cooling system, the advantage of CoolTeg plus DF lies mainly in the integration of free cooling and considerable savings in operating costs (i.e., electricity costs) in the winter months.

Thanks to the extraordinarily wide range of options for connecting the units and hydraulic circuits, the CoolTeg Plus DF system is suitable for data centers of all sizes.

In addition to fans and control components, DX indoor units include a highly efficient evaporator for R410A refrigerant. Each indoor unit must be connected to a Mitsubishi outdoor compressor unit via a refrigerant pipe. This “split” system is controlled autonomously. Multiple units can be combined into groups under single control. Mitsubishi outdoor units are equipped with a frequency-controlled compressor, an electronic expansion valve and other high-end components. CONTEG offers three power types – 7 kW; 12 kW, 18 kW and 24 kW with continuous regulation. In our new CoolTeg Plus units, we leverage state-of-the-art technology and precise regulation based on our experience from data centers around the world. As the technology of fans, exchangers, compressors and control elements continues to evolve, we also innovate our products to ensure their best performance for our customers.

The units are equipped with power-efficient EC fans and an obliquely placed highly efficient heat exchanger. Temperature and humidity are measured in both the cold and warm zones, and the area for air intake and conditioned air exhaust has been maximized to optimize air distribution. The main differences can be found in the unit controller. We use a brand new controller with advanced CONTEG software and a new 4.3"" graphic color touch screen that matches the 21st-century air conditioning technology. One display can serve up to 16 air conditioning units in the data room with a maximum cable length of 500 m. The system communicates via the TCP/IP protocol, leverages an integrated web server and can be remotely controlled and supervised from a PC over the internet. CoolTeg Plus DX units are designed to be connected to selected state-of-the-art Mitsubishi Electric outdoor compressor units. CoolTeg Plus are the most modern units from the precision cooling family suitable for efficient cooling of server rooms and data centers of all types.

The refrigerant system is limited by the distance between the indoor and outdoor units (see detailed technical documents) and their height difference. Cooling operation is guaranteed in the outdoor temperature range from -15 to +46 °C. CoolTeg Plus DX with an outdoor unit is a highly efficient system with an environmentally friendly coolant, which is especially suitable for server rooms with a total output of up to 100 kW. Where a greater cooling capacity is needed, it would be more economical to use a water-based system. The cooling capacity of each unit is individually adjusted according to the immediate requirements by the power of the compressor, the opening of the electronic expansion valve and the speed of the fans of the outdoor and indoor units. When it is necessary to reduce the relative humidity of the room to a preset level, the unit automatically responds by reducing the air flow and increasing the cooling capacity. CoolTeg Plus DX units provide maximum sensible cooling capacity in relation to the latent cooling capacity thanks to an advanced humidity management logic. Year-round energy consumption compared to other air conditioning units is therefore significantly lower.

CoolTeg Plus CW are the most modern units from the precision cooling family, suitable for efficient cooling of server rooms and data centers of all types. Water-cooled units are connected to a chilled water distribution system, which is usually shared by all units in the data center. This can create a cooling system with unlimited power and scale. It requires only an appropriate design and implementation of the pipe system, pumps and sources of cold - chillers. In our new CoolTeg Plus units, we leverage state-of-the-art technology and precise regulation based on our experience from data centers around the world. As the technology of fans, exchangers and control elements continues to evolve, we also innovate our products to ensure their best performance for our customers.

The units are equipped with power-efficient EC fans and an obliquely placed highly efficient heat exchanger. Temperature and humidity are measured in both the cold and warm zones, and the area for air intake and conditioned air exhaust has been maximized to optimize air distribution. The main differences can be found in the unit controller. We use a brand new type of controller with advanced CONTEG software and a new 4.3"" graphic color touch screen. One display can serve up to 30 air conditioning units in the data room with a maximum cable length of 500 m. The system communicates via the TCP/IP protocol, leverages an integrated web server and can be remotely controlled and supervised from a PC over the internet. The temperature of the cooling water must be +4 °C or higher without an upper limit. A lower water temperature will ensure a higher cooling performance of CoolTeg units, whereas a higher temperature can significantly reduce the overall energy consumption with modern sources of cold. The cooling capacity of each unit is individually adjusted according to the immediate requirements by the position of the three-way valve. Adjustment of the speed of the fans allows to achieve constant temperature distribution in the cold and hot zones of the data center. When it is necessary to reduce the relative humidity of the room to a preset level, the unit automatically responds by reducing the air flow and opening the water valve.

CoolTeg and CoolTeg Plus CW (chilled water) units deliver maximum sensible cooling capacity in relation to the latent cooling capacity thanks to advanced humidity management logic. Year-round energy consumption compared to other air conditioning units is therefore significantly lower. CoolTeg Plus CW units are perfectly suited for cooling systems with free cooling. Solutions with CoolTeg Plus units can be used for demanding uses cases, such as computing clusters, HPC (High Performance Computing), grids, bitcoin mining, etc.

CoolTeg Plus XC is a series of in-row cooling units based on the direct refrigerant evaporation principle. The compressor is located in the indoor unit and is connected to the outdoor air cooled condenser. The distance between the indoor and outdoor unit may be no longer than 60 m. Such arrangement protects all important components from climatic phenomena (heat, frost, rain, snow, desert storms) and allows cooling to operate independently of the ambient conditions within a temperature range of -40 to + 50 °C.

CoolTeg Plus XC30 - this unique cooling unit with a width of mere 30 cm and maximum power of up to 22 kW features a two-piston rotary compressor and BLDC control, which enables smooth adjustment of cooling power in the range from 10% to 100%. This extremely versatile unit is particularly suitable for smaller data centers or any use case where powerful cooling units would be oversized in terms of performance and price.

Only 30 cm wide
Cooling capacity between 10% and 100%
Maximum power up to 22 kW
CoolTeg Plus XC40 - this cooling unit provides output up to 42 kW at a width of 40 cm. Currently the most efficient compressor is inverter-controlled and built into the indoor unit with an electronically controlled expansion valve and advanced control logic. The cooling capacity can be smoothly adjusted in the range from 20% to 100%. This powerful cooling unit is suitable for large data centers and wherever high cooling performance is required.

40 cm wide
Cooling capacity between 20% - 100%
Maximum power up to 42 kW"

CoolTop DX cooling units are designed for easy installation above IT cabinets, so they are ideal for effective targeted cooling of server rooms and large data centers.

CoolTop DX indoor units are connected to outdoor condensing units by means of a refrigerant pipe. The CoolTop DX unit includes a special exchanger with two separate refrigerant circuits.

In basic mode, one 19 kW or 24 kW outdoor unit can be connected to each CoolTop unit. If higher cooling capacity is required, a second outdoor cooling unit may be connected to increase the cooling capacity to up to 38 kW or 48 kW.

CoolTop is a solution that is not only economical, but also effective, serving to immediately increase the cooling performance without the need for structural modifications. CoolTop cooling units are suitable for closed cold aisle and closed hot aisle and can also be combined with CoolTeg units in the same zone/aisle.

CoolTop is a family of cooling units specially designed for installation on the top covers of IT cabinets in large data rooms and larger server rooms. They are ideal for use in cold aisle containments. This unique solution does not take up any floor space. The revolutionary cooling units are suitable for any type of data center, data center solutions with many racks and a lack of floor space, as well as for clients who want to save on energy.

CoolSeven is a type of direct vaporization unit for precision cooling inside cabinets. CoolSeven is a 7U high indoor unit installed on rails inside in a 19' cabinet and is based on a split cooling system, which consists of two parts - an indoor unit and an outdoor unit.

CoolSpot Top Mount (AC-TW xx) units provide appropriate cooling without taking up additional server room floor space that could be used for racks. The units are available in ratings from 2,200 to 6,700 Watts to provide the required cooling performance for each cabinet. The actual performance depends on the temperature of the cooling water and the air in the cabinet.

The air conditioning units are supplied with a special adapter – a roof plate that fits exactly to the respective CONTEG cabinet type and the size of the cooling unit. Naturally, the units require space above the cabinet for installation and service. CoolSpot AC-TW units are compatible with free-standing RSF and RDF series cabinets.

A great advantage of the Top Mount design is the option to supplement the system of the cabinet and air conditioning unit with a separation frame and plugs, which will perfectly separate the cold zone for IT components from the warm zone from which air is drawn into the CoolSpot cooler. The result is highly efficient, cost-effective cooling.

CoolSpot Wall Mount (AC-WWxx) units are a great choice for projects where there is insufficient vertical space to install Top Mount devices on top of the cabinets. Hot air is drawn into the cooler from the top of the cabinet. Cool air is blown into the lower part of the cabinet. The units are available with nominal outputs of 870 to 6,700 Watts. The actual performance depends on the temperature of the cooling water and the air in the cabinet. Two cooling units can be used for one cabinet to ensure redundant operation or to increase the cooling capacity.

The air conditioning unit is supplied with an adapter – a special side panel and base that perfectly fits the selected type of cabinet and the dimensions of the air conditioning unit. CoolSpot WW devices are compatible with free-standing cabinets of the RSF, RDF series.

CoolSpot CWs have been developed for locations where heat and noise from the compressor circuit might interfere with other operations in the room. The units require a connection to the building’s central cold water supply. The cooling capacity of each air conditioning unit is controlled by a 2-way valve according to the actual need in order to maintain the required temperature inside the CONTEG cabinet.

The CoolSpot TM-DX units are installed on the top cover of the cabinet (roof) by means of a special, precisely fitting frame. These units are compatible with rack cabinets of the PREMIUM Cabling RDF and PREMIUM Server RSF series.

The advantage of rooftop installation is the creation of a cold zone in the front part of the cabinet and a warm zone in its rear part. Such separated temperature zones are ideal for IT equipment and increase cooling efficiency. The CoolSpot TM range of air conditioning units covers uses cases with low, medium and high heat loads thanks to a cooling capacity of up to 6 kW. CoolSpot TM air conditioning units are therefore suitable for cooling of free-standing cabinets and as an additional system in data centers and server rooms with an undersized central air conditioning system.

When installing cabinets with this type of air conditioning unit in closed spaces, always make sure that there is sufficient headroom as well as sufficient heat removal capacity by ventilation or air conditioning of the room (up to 1.3x the cooling capacity of the unit).

CoolSpot WM wall-mounted air conditioning units are installed in place of one of the side panels of the cabinet. The side installation eliminates the need for overhead space. CoolSpot WM air conditioning units are compatible with PREMIUM Cabling RDF and PREMIUM Server RSF series rack cabinets.

The advantage of lateral installation is the option to fit the cabinet with two units from both sides. This ensures redundancy in the event of a failure of the cooling system. The CoolSpot WM range of air conditioning units is designed for low to medium heat loads (up to 3kW per cabinet).

CoolSpot WM wall-mounted air conditioning units use the same technology as rooftop air conditioning units. We can therefore recommend them as additional cooling for server rooms and data centers with an undersized central air conditioning system, or for standalone cabinets.

When installing in closed spaces, always make sure that there is sufficient heat removal capacity by ventilation or air conditioning of the room (up to 1.3x the cooling capacity of the unit).

The CoolRAC DF indoor cooling unit combines the advantages of CW and XC systems – Free-Cooling (free cooling) for low and medium outdoor temperatures and compressor-based cooling for high outdoor temperatures. This system therefore achieves minimal operating costs without the need for compromises.

CoolOut units are outdoor condensing units designed for precise compressor cooling. These units are equipped with an inverter-controlled rotary DC compressor with a cooling capacity of up to 8.1 kW.

Thanks to the hot gas bypass technology, the cooling output can be adjusted up from 11% of the total cooling output, regardless of the outdoor conditions. A combination of a specially designed condenser, EC fans, and an optional dynamic condensing pressure control system minimizes the power consumption of the cooling unit as well as the level of emitted noise.

A built-in controller with special CONTEG SW software takes care of the operation of the unit and the correct functionality of all its components. The controller also ensures communication with the indoor unit over the Fieldbus protocol. Basic operating parameters of the outdoor unit can be monitored on the indoor unit. The design of the condensing unit allows its attachment to the floor or the wall. The CoolOut units are extremely user-friendly and simple to set up and operate. First start and operation is very easy.

Ventilation units and fans are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19"" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 9 fans available.

Specific fan power (SFP) = 611 W / (m3/s)

Ventilation units and fans are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 9 fans available. Effective, environmentally friendly, economical! New modern ventilators are powered by electronically commutated synchronous drives commonly referred to as “EC”. A major advantage of this technology, in comparison with AC technology, is its low power consumption. For example, our new VEC ventilation units have seven times lower power consumption at the same air flow rates. In addition, VEC fans offer air output up to 60% greater than DP-VEN.

Ventilation units are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 4 fans available.

The panels mount on 19"" vertical rails and are used to cover empty positions in the cabinet (blind panels) or to pass cables through free positions in the cabinet (pass-through panels). The separation of cold and warm air in the front and back of the cabinet significantly increases the cooling efficiency of the cabinet. They cover empty positions in the cabinet to minimize air flow, increase energy efficiency and improve aesthetics.

Ordering code: DP-ZA-xU, DP-ZA-xF

The separation frame is used to create a cold zone in front of the installed equipment, which increases the cooling efficiency, as the fans of the installed equipment (e.g. servers) suck in cold air that does not mix with warm air. A modified version of the separation frames allows easier installation of cabinets in a row and their connection. This version is also compatible with the new DP-DR-UNI-Q quick-connect kit. If you use both products together, it is possible to leverage separation frames pre-installed by the manufacturer or integrator. Cabinets can be linked in a row without tools by a single person.

800mm wide ROF or RDF cabinets must be equipped with HVMP/HVMF or C or P-type rails (with plugs) for the proper functioning of the separation frame.

The frame is designed for use in ROF, RDF, RSF series cabinets with widths of 600 and 800 mm and heights of 42, 45 and 48U
Installs in the space in front of 19"" vertical rails
Frame width (zone depth) 150 mm

Ordering codes: DP-RSF-CW, DP-ROF-CW

Cold air inlet deflector for side access to network elements is a flexible deflector compatible with any network chassis where side-to-side air flow is required. It is suitable for all types of rack cabinets with a width of 800 mm with type A rails. The deflector is designed for chassis heights from 5 to 25U and depths ranging from 450 to 710 mm. 3U of space above and below the chassis is required for proper airflow. A wedge deflector located on the exhaust edge of the chassis ensures proper airflow by driving the exhaust air into two directions, up and down. The deflector can be easily adjusted during installation on site according to the size of the chassis. Compatible with both type A rails and a separation frame.
Order code: DP-AFD-STS-S5

The deflector directs the flow of cold air to the cold zone in the front part of the cabinet (provided cold air is supplied through a double floor and enters through the lower frame of the cabinet). Deflectors are available in two designs – for RSF/RDF series cabinets and for ROF. The ROF version is designed for cabinets with widths of 600 and 800 mm and depths of 800, 1000 and 1200 mm. The deflector can be equipped with a ventilation unit with three fans. This solution actively blows air into the cold zone. The version for RSF/RDF cabinets does not take up any space in 19"" rails and is easily installed in the bottom cover of RSF/RDF cabinets with a width of 600 or 800 mm.
Order code: DP-AFD-ROF, DP-AFD-RSF

The chimney solution is designed to remove hot waste air from the cabinet to the ceiling soffit. The chimney is made of 1 mm steel sheet with powder treatment; the delivery includes an upper cover for attachment to PREMIUM series cabinets, a sealing set ensuring an ideal seal between the cabinet and the ceiling soffit. The height of the chimney is variable between 750 and 1360 mm to accommodate to the local situation. A rear deflector is part of the chimney solution. It is designed to support natural flow of hot air through the chimney into the ceiling. It is designed for easy entry of cabling and a power line into the cabinet. Made of 1 and 2 mm steel sheet with powder treatment. The rear deflector requires at least 200mm offset of the rear rails in the cabinet.
Ordering code: DP-HPR

Options:
with a brush on one side, for 19" holes 2U in type A rails, 2 pcs (order code: DP-BP-04)
with brush (order code: DP-BP-03)
with brush, split (order code: DP-BO-03-D)
with brush and cable management - pass-through panel with brush and cable management (cable routing bar at the back and two cable eyelets 40 x 50 mm on the sides (order code: DP-BP-02)

The RAMOS Ultra main monitoring unit for remote surveillance of protected environments is suitable for server rooms and data centers where more than 8 sensors are required. With the use of expanders, this system can be expanded to up to 500 sensors to create a wide monitoring network.

RAMOS Ultra can record all trigger events and alarms in a database with a time stamp. Then unit features 8 intelligent ports with automatic detection that accommodate a wide range of intelligent sensors (to monitor temperature, humidity, water leakage, air flow, and access, to control relays, detect AC voltage, measure DC voltage, etc.). Sensors allow data collection and aggregation for presentation in charts to show trends in air flow, temperature, and humidity fluctuations.

Intuitive web user interface for sensor configuration, data collection, and extensive support for graphical display of values. A full set of remote management features is supported, including secure SNMP v3. The device also supports Modbus Primary/Secondary, Modbus RTU and Modbus TCP/IP protocols, creating unique, easily configurable Modbus/SNMP gateways. The web interface is written in PHP, allowing end users to adapt it to their needs, including different language versions. RAMOS Ultra has an internal battery-backed timer for accurate record keeping. RAMOS Ultra is based on a Linux operating system with a Lighttpd web server supporting TCP/IP, HTTPS (SSL), Bash, Perl, PHP, Telnet, Email and Nagios.

RAMOS Ultra can also be integrated into the CONTEG Pro Server application for central management and supervision.

Ordering code: RAMOS Ultra

The Ramos Optimax main monitoring unit provides remote monitoring capability for server rooms using sensors that measure temperature and humidity and detect intrusion, the presence of harmful gases or chemicals, or other potentially dangerous conditions.

The device features a very low profile, occupying only 1U of height in a rack cabinet when placed horizontally on rails, yet it supports up to 150 sensors. RAMOS Optimax can be expanded in 2 ways - either using basic BEX expanders (RAMOS-BEX-I8-D10) with a maximum total cable length of 10 m in one line, or using standard expansion modules (RAMOS Ultra O16, I8, D64, D128, D192, RMS-ACS-U-RDU).

Also available is a RAMOS Optimax GSM version with a built-in 4G modem and an external antenna. This version supports SMS notifications and can communicate over the GSM network. A built-in web server of the RAMOS Optimax unit (GSM) enables convenient setting, control and management from any location. In the event of an alarm, the unit sends a notification by e-mail or SMS to predefined recipients (GSM version).

RAMOS Optimax can also be integrated into the CONTEG Pro Server application for central management and supervision of the monitored environment. A wide range of accessories are available for the main monitoring unit, such as detectors, sensors, sirens, magnetic door contacts, expansion modules, etc.

The RAMOS Optimax monitoring system is suitable for multiple cabinets or server rooms.



Order code: RAMOS Optimax RAMOS Optimax GSM

The RAMOS Plus main monitoring unit is the smallest model of the RAMOS intelligent monitoring devices, designed for use in IT rack cabinets as well as in outdoor cabinets. The device is available in two versions - standard and GSM with built-in GSM modem and external antenna. This version supports SMS notifications and can communicate over the GSM network. A built-in web server of the RAMOS Plus unit (GSM) enables convenient setting, control and management from any location. In the event of an alarm, the unit sends a notification by e-mail or SMS to predefined recipients.

Then unit features 4 intelligent ports with automatic detection that accommodate a wide range of intelligent sensors (to monitor temperature, humidity, water leakage, and access, to control relays, detect AC voltage, measure DC voltage, etc.). Sensors allow data collection and aggregation for presentation in charts to show trends in air flow, temperature, and humidity fluctuations. A full set of remote management features is supported, including secure SNMP v3.

The device also supports Modbus TCP and RADIUS. RAMOS Plus can also be integrated into the CONTEG Pro Server application for central management and supervision of the monitored environment.

Order code: RAMOS Plus and RAMOS Plus GSM

Two new universal ports enable monitoring of up to 5 sensors (temperature, humidity, water, pressure, CO2, etc.) and 2 binary inputs support other types of detectors, such as door contacts, smoke, motion, water detectors, etc. Supports PoE and WiFi communication.

New universal ports support new accessories, such as point flood detection and water rope sensor, or a special sensor for measuring air pressure and CO2 concentration.

The RAMOS ACS access system comprises hardware and software - the compact RAMOS ULTRA ACS base unit including accessories and the CONTEG Pro Server application. The access system allows to control up to 5,000 doors using multiple control and monitoring units integrated into the software application. RAMOS ULTRA ACS is a versatile yet compact main control unit, powered by 12 VDC. One unit supports up to 500 sensors and can control up to 50 cabinets using expanders (RDUs). The CONTEG Pro Server application is used not only to set user access rights and manage cameras and environmental sensors, but also to monitor integrated IT devices (PDU, UPS, IP cameras...), locally and remotely. The application can send notifications about alarms and events via SMS, e-mail, MMS, etc. CONTEG Pro Server can also function as a “multi-tenant” application with specific access and administration rights defined for individual users.

The RAMOS ULTRA ACS main control and monitoring unit monitors up to 500 sensors using the RAMOS ULTRA-EX-I8 expansion module. The device controls up to 50 cabinets using door access units (RDUs) daisy-chained to 2 expansion ports.

Ordering code: RAMOS Ultra ACS

The compact stand-alone electronic locking system can be easily installed in a standard panel opening, simplifying the integration of an electronic access solution into the cabinet and eliminating the need for cables or interconnection of individual components.

Only suitable for single-point locking mechanisms.

Ordering code: DP-ZM-ES-K (with keyboard), DP-ZM-ES-C (with card reader)

LES-RACK is a self-contained, fully automatic fire detection and protection system designed for direct installation in 19"" racks with IP30 protection or higher, offering a highly effective and efficient solution for server, telecommunications and control racks/cabinets.

The LES-RACK-M1 unit offers a comprehensive fire detection, control, assessment, communication and extinguishing system. Larger server racks and adjacent cabinets can be protected with additional LES-RACK-M1 units. LES-RACK floods the protected area with clean gas until the fire is completely extinguished. The unit includes a reservoir with FK-5-1-12 agent, in compliance with TÚPO (Technical Institute of Fire Protection, authorized person 221). The non-pressurized solution enables air transport. After activation, the device can be filled with extinguishing agent at the installation site. For fire detection, each LES-RACK system is equipped with an optical fire detector connected to the assessment and control unit. The integrated control unit indicates the current status in the system, checks and assesses the operation of the fire extinguisher. The LES-RACK M1 system supports communication with the building’s fire alarm control panel (FACP).

The ideal fire protection solution for compact units completely isolated from the surrounding environment inside data halls and server rooms. More about Compact Data Centers - a scalable non-IT infrastructure solution.

Ordering code: LES-RACK-M1

A unique system that fully replaces conventional fixed fire extinguishing equipment and prevents fire with a guarantee of zero fire risk in the protected area of ??the data center. The solution is designed so that a fire cannot occur in the data center at all, thanks to the so-called hypoxic air (with reduced oxygen level). The hypoxic technology permanently maintains the oxygen level in the protected area of the data center below 16% (the usual level is 21%) for the entire life of the building. The 16% threshold is critical for the combustion process. A lower oxygen level makes it impossible for a fire to occur, but is still completely safe for human presence, as confirmed by the State Health Institute of the Czech Republic. The environment corresponds approximately to an altitude of 2,700 meters.

How does the system work? Ambient air (with a 21% oxygen content) is sucked into air pipes with a compressor and travels to a hypoxic generator which removes impurities and makes the air hypoxic (with an oxygen level below 16%). The hypoxic air is pumped into the data center room to prevent fire. Low-oxygen air escapes from the room, ensuring flow and ventilation of the space. The monitoring and control unit automatically monitors the room with oxygen sensors and ensures a stable and healthy environment with reduced oxygen level.

KVM consoles are designed for deployment in server rooms and large data centers. Consoles allow direct or remote access to individual servers or their stacks. Conteg KVM consoles enable easy configuration and management of servers from all major vendors (IBM, HP, DELL, SUN, and others). Their advantage is the integration of a KVM switch and a LCD console with a keyboard and touchpad into a compact unit with a height of 1U.

LCD holders are fitted with high-quality 17"" or 19"" SAMSUNG monitors. The design of the holder allows it to be folded so that the total height of the console with the LCD monitor does not exceed 1U. The holder also includes brackets for easy installation and extension of the KVM/LCD console. A major advantage of CONTEG holders is a full-sized keyboard (incl. numeric keypad and a touchpad) with 104 keys and a different language versions available. LCD holders can be combined with KVM consoles from the Conteg portfolio. If you cannot find the LCD holder or KVM console you need, contact us to find a solution. Some special consoles and holders are not included in the standard offer.

PS/2 or USB input to the LCD holder (depending on the type of cabling)
Keyboards include a touchpad (optionally a trackball)
Available keyboard language settings - USA, GBR, JPN, DEU, FRA, ITA, RUS, ESP, CHN, KOR, DNK, CHE, NOR and European keyboard layout as a standard
Multilingual “on screen” menu
Sliding rails with position fixation to prevent movement while typing
Simple KVM console connection
Standard power supply 230V; 12 / 24 / 48V optional

21.5"" touch display with built-in PC. It can serve for remote access to CONTEG Pro Server (CPS) and other applications, or as a web kiosk. The display enables you to monitor the situation in the data hall in real time, whether individual aisles or the entire data center.

The display can also be mounted on a VESA holder/stand and connected to the CPS application in the control room. Cable outlets are available on 4 sides (top, bottom, left and right) for easy cable routing. There are also 4 holes in the corners of the display for mounting on the wall or the side panel of the cabinet.

The touch display with built-in SBC computer is very quiet thanks to passive cooling. Display setting buttons are located at the bottom.

The VNC application enables remote access to the touchscreens of the CONTEG cooling units.

CONTEG Pro Server (CPS) software application for central management and supervision of the monitored environment and access using RAMOS hardware. It provides a real-time overview of the environment and security of the data center/server room at any time from anywhere.

The application is designed for the management of physical infrastructure - to control user access rights, CCTV cameras and environmental sensors, and for local or remote monitoring of integrated IT devices (PDU, UPS, IP cameras...). When an alarm is triggered, CPS can send notifications via SMS, MMS, and e-mail or perform various actions.

The application can also work in a “multi-tenant” mode, which allows to define specific administration and access rights for different users.

CONTEG’s Aegis DCIM is a comprehensive monitoring system for data center infrastructure management.

Helps increase data center efficiency. Generally, PUE calculations with manually collected information are done on a monthly basis. Manually collected information is only suitable for reporting. If you wish to improve the operation of the data center and make it more efficient, you need real-time information. CONTEG Aegis DCIM collects, analyzes and reports all the required information about the operation of the data center in real time using standardized data communication protocols.

Integration of third-party applications. The system is designed to be compatible with other types of third-party devices, equipment and software to the maximum possible extent. It supports integration with databases such as SAP BAPI, MsSQL server 2005, MySQL, Oracle, MS Access, ODBC, OLEDB, Data-mining grid control, OPC, SNMP and real-time data-mining. CONTEG Aegis DCIM is designed individually for each customer for maximum user-friendliness.

We offer three versions of the DCIM solution:

SERVER ROOM – limited to 500 data points* with the use of CONTEG products only. Suitable for up to 10 cabinets, 5 coolTEG units, 2 chillers, 20 PDUs, 20 door contacts, 20 temperature1 and 10 humidity sensors, using the RAMOS monitoring system.
ENTERPRISE DC – limited to 1,500 data points * with the use of CONTEG products only. Suitable for up to 32 cabinets, 16 CoolTEG units, 6 chillers, 64 PDUs, 64 door contacts, 64 temperature and 32 humidity sensors.
GLOBAL – has no restrictions and is suitable for environments with 1,500 data points or more*
1 using the RAMOS monitoring system.
* Data point = one piece of information or value (e.g., 5 temperature sensors = 5 data points)

The Optiway system defines the safe radii of the cables and is fully scalable and configurable for fully customized routing. Components with a width of 160 mm can be combined and adjusted to the 300 mm width.

The Optiway system defines safe radii for cables. The system is fully scalable and configurable for any route. Components with a width of 300 mm can be combined and adjusted to the 160 mm width.

Single-sided brackets can be mounted on 16mm threaded rods to allow for easy installation of patch cords and cables.

The OptiWay system enables optical cabling between devices, provides physical protection and ensures a favorable bend radius, which is essential for the performance of optical paths.

The OptiWay system enables optical cabling between devices, provides physical protection and ensures a favorable bend radius, which is essential for the performance of optical paths.

Top Duct Light is easy to install and provides simple handling and switching of copper cables between server and network cabinets and UPS cabinets. The system also allows for easy interconnection of cabinet rows without the need for suspension from the ceiling or the use of other external support structures, reducing installation time and facilitating layout changes.

The panels are attached to 19" vertical rails.

They are used for horizontal routing of cables in the cabinet and are designed to be attached to a 19" platform

Metal loops are mounted on 19" vertical bars.

Binding channels are used for vertical cable routing in PREMIUM and iSEVEN series rack cabinets with a width of 800 mm.

The bracket can be used as a cable holder.

Wired cable channels are used for routing cables in PREMIUM and iSEVEN series rack cabinets in the space between the front and rear 19" rails. Two types available - 30 mm and 60 mm of depth. Please pay attention to the method of attachment of different types of channels (see details in downloadable documentation).

Perforated side binding panels are used for vertical cable routing in PREMIUM and iSEVEN cabinets series in the space between the front and rear 19" rails. The method of attachment of each type differs - please see details in the downloadable documentation.

Managed power panels ensure not only the supply of electricity and its distribution to IT devices in the cabinet, but also enable remote control of individual sockets (switching on/off) and monitoring of power consumption at individual sockets (PDU versions with POM code).

• Managed PDUs measure voltage and frequency, enable reporting of load power factor, active and apparent power and consumed energy from the mains (in kWh).
• The device has a built-in backlit display. An external off-panel display is also available, suitable for powering critical IT equipment requiring uninterrupted power.
• A built-in web server allows you to remotely set up the panel, read information and control individual sockets of a particular PDU in a user-friendly web interface.
• The PDU can be integrated into the CONTEG Pro Server control system for central administration, or into third-party systems (MIB table available).
• Hybrid access technology - Ethernet connection and serial communication, both interfaces can be accessed simultaneously and independently.
• Compatible with 19"" rack cabinets.
• Installation inside the cabinet – versions for horizontal and vertical mounting.

Monitored power panels ensure not only the supply of electricity and its distribution to IT equipment in the cabinet, but also enable monitoring of power consumption at the input and at individual sockets (PDU versions with POM code).

Monitored PDUs measure voltages and frequencies, allow reporting of load power factor, active and apparent power and consumed energy from the mains (in kWh).
The device has a built-in backlit display. An external off-panel display is also available, suitable for powering critical IT equipment requiring uninterrupted power.
A built-in web server allows you to remotely set up the panel, read information and control individual sockets of a particular PDU in a user-friendly web interface.
The PDU can be integrated into the CONTEG Pro Server control system for central administration, or into third-party systems (MIB table available).
Hybrid access technology - Ethernet connection and serial communication, both interfaces can be accessed simultaneously and independently.
Compatible with 19"" rack cabinets.
Installation inside the cabinet – versions for horizontal and vertical mounting.

Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.

The power supply panels are placed in the cabinet either in a horizontal position on 19""/10"" rails, or in a vertical position. For vertical installations, we recommend ordering a universal holder (code DP-RP-VM-12).

The installed equipment is accessible through doors, side or rear panels. These serve as protection against unauthorized access while helping to ensure suitable operating conditions for the installed equipment.

DOORS

A basic element of the cabinet enclosure. They can be mounted at the front or the back of the cabinet, depending on the specific type of cabinet. The offer includes 10 types of doors with different characteristics. All doors are fitted with locks.

The installed equipment is accessible through doors, side or rear panels. These serve as protection against unauthorized access while helping to ensure suitable operating conditions for the installed equipment.

SIDE PANELS
Side panels restrict access from the sides of the cabinets. At the same time, they will allow access for infrastructure cabling installations, if rear access is limited. There are two types of side panels on offer.

REAR PANELS
The rear panel is used in cabinets where it is assumed that there will be no need to access the back of the cabinet frequently, or where the location of the cabinet makes it impossible to use the door. There are 3 types of rear panels on offer.

The PREMIUM series racks provide unlimited flexibility in planning their final appearance - mainly thanks to the exchangeability of the top and bottom cover. The portfolio includes 3 types of top covers and 9 types of partial bottom covers. This makes it possible to customize the location and types of openings for the entry of cabling into the cabinet. The covers create a unique interface between the cable routing and management systems outside and inside the cabinet. All the covers can be used for PREMIUM Cabling RDF and PREMIUM Server RSF series cabinets. They can be delivered installed on the cabinet or as a separate item (supplied in a cardboard box).

TOP COVERS

The top covers are undivided, in three different designs. They are delivered either installed on the cabinet or separately in a cardboard box. Covers are delivered complete with plugs for the cable inputs.

BOTTOM COVERS

The bottom covers are designed as multi-part. The complete bottom cover of the cabinet consists of 3 or 4 covers (parts). They are delivered either as installed in the cabinet or separately (individual parts) in a box. Covers are delivered complete with plugs for the cable inputs.

Standard L, A and P type rails.

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color.

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color.

Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color.

Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color.

The holders are designed to hold a keyboard. A drawer is designed to store drawings, technical documentation, etc. directly in the cabinet.

Load supports are used to stabilize equipment in PREMIUM, OPTIMAL and iSEVEN series rack cabinets. The adapters allow the installation of 19" equipment in a cabinet with a 21" rail spacing.

Optical trays are used to terminate optical cables in the cabinet. In addition to fixed and extendable optical trays, the portfolio includes also a full range of modular panels and other optical accessories.

Cabinets equipped with doors must be fitted with a suitable locking system. You can choose the type of lock depending on the product line. Some types of locks can be fitted with a semi-cylindrical insert with a different key combination to meet user requirements. Back panels can be used instead of doors. The type of lock can be specified for these panels as well. The types are identical with the side panel locks.

Modular plinths are used as an aesthetic and stabilizing element instead of feet or castors. If a filter is used, the plinth ensures a sufficient flow of filtered air. Can also be used to lay cables.

Applicable for the PREMIUM and iSEVEN cabinet series (RDF, RSF, RSB, RI7 and RM7)
Height: 100 mm
Comes unassembled; fasteners and instructions are part of the delivery
Includes: set of corners, front and back panels, and a set of side panels
Color: RAL 9005, RAL 7035

Load supports are used to stabilize equipment in PREMIUM, OPTIMAL and iSEVEN series rack cabinets. The adapters allow the installation of 19" equipment in a cabinet with a 21" rail spacing.

CONTEG rack cabinets are supplied with height-adjustable feet in the standard configuration.

The lighting unit with a motion sensor is equipped with a magnet and can therefore be easily placed anywhere in the cabinet. It is used for illuminating the equipment installed in the cabinet.

Includes one pair of 19" vertical rails; an L-profile rail needs to be located opposite.

Connection sets are used to connect rack cabinets of the same height and depth into one row.

Strengthens the four-post frame.

For routing and securing cables between two pairs of 19" vertical rails (four-post frame)

Improves strength and stability of open RS frames.

REH type patch panels - used with Keystone, Panduit and LSA-PLUS modules.

Accessories for SOHO Mini REH - shelf 150 mm width.

Accessories for SOHO Mini REH 10" – blanking panel.

Accessories for SOHO Mini REH - pass-through panel.

Accessories for SOHO Mini REH - binding panel with plastic loops (1U).

Wall mounts are intended for installing 19" devices on the wall.

RAMOS ULTRA EX-O16 is an expansion module with 16 optically isolated inputs. Can be connected to any of the expansion ports located on the front panel of the RAMOS ULTRA, RAMOS ULTRA ACS or RAMOS Optimax main monitoring units. Connects with a standard CAT5/6 patch cable.

The expander can also be linked using the E-Out/E-In ports on other expanders. The maximum length of expansion cable between units is 300 m.

A wide range of devices that generate an output signal or voltage can be connected to each 2-wire input located on the back of the module.

Compatible with standard Ramos Ultra, Ramos Ultra ACS E* expansion ports and Ramos Optimax EXP/MOD port.

Two LEDs at each of the 16 inputs indicate the status of the respective connected devices.

Order code: RAMOS Ultra-EX-O16

RAMOS ULTRA-EX-I8 is an expansion module with 8 intelligent accessory ports. Can be connected to any of the expansion ports located on the front panel of the RAMOS ULTRA, RAMOS ULTRA ACS or RAMOS Optimax main monitoring units. Connects with a standard CAT5/6 patch cable.

The expander can also be linked using the E-Out/E-In ports on other expanders. The maximum length of expansion cable between units is 300 m.

Compatible with RAMOS Ultra, RAMOS Ultra ACS E* standard expansion ports and RAMOS Optimax EXP/MOD port.

Two LEDs at each of the 8 smart ports indicate the status of the respective connected devices.

Order code: RAMOS Ultra-EX-I8

The USB modem is used for SMS messages, voice calls and MMS notifications directly from the device to a mobile phone or to a list of preset mobile numbers. This modem with RAMOS Ultra is a standalone solution and does not require additional applications.

Discontinued product Temperature sensor for placement inside cabinets measures temperature within the -55 °C to +75 °C range. Up to 8 sensors can be chained to a single smart port. The sensor is powered by the main device. Extensible with a standard CAT5/6 patch cable. The maximum cable extension length is 150 m for 8 sensors.

The sensor is compatible with RAMOS Ultra, RAMOS Ultra ACS, RAMOS Plus and RAMOS Optimax devices.

The D8-8 expander makes it possible to create 8 potential-free inputs / outputs on a single intelligent port of the control and monitoring unit. Each can be set as input or output (output up to 20 mA). Any type of switching door contact (e.g. RMS - MK -01) can be connected to the input of this expander.

The device can be used with RAMOS Ultra, RAMOS Plus, EX-I8 expander, RAMOS Ultra ACS, RAMOS Optimax.

Relay Box 8 is a multi-port relay designed specially for advanced process control with 8 changeover relay contacts for manual control or control through notifications. Relay Box 8 is easy to control using sensors or detectors. The relay can respond automatically to changes of the sensor state. Relay Box 8 is simple to set up with built-in auto detection capability and a user-friendly web interface.

Automatic response to sensor signals gives users more flexibility in responding to changes in the environment. Automatic response eliminates the need for user intervention in emergency, as it can prevent damage, e.g., by activating relevant safety devices.

Power control
On/Off control of cooling devices
Alarm activation
Process management
Power management systems
The device is suitable for RAMOS Ultra, RAMOS Plus and RAMOS Optimax.

Requires external 7.5 VDC (RMS-UPW) power supply.

The sensor detects the presence or absence of flowing air inside the cabinet. The sensor works on the principle of differential measurement, comparing the resistance of the external and internal thermistor.

Order code: RMS-I-AF

A siren with a flashing light serves as a visual and acoustic alarm for the operator. It emits a volume of up to 100 dB at a distance of 1 m from the device and flashes at a rate of 400 per minute.

The device has extensive settings, such as an option to turn off signaling or notification receipt confirmation.

Order code: RMS-I-AS

A smoke detector as an essential security element in data centers and server rooms should be mounted on the ceiling for the best possible smoke detection.

The detector emits a two-state alarm signal with 85db at a distance of 3 m from the device and is also equipped with an LED indicator.

The detector is powered by the main device with an optional 9V battery as a backup. Connects with a standard CAT5/6 patch cable, maximum length 90 m

The device is not automatically recognized.


Order code: RMS-I-DE-01

The flooding detector is able to detect water at the installation site. Includes LED indication on the device. The maximum cable length is 60 m


Order code: RMS-I-DE-04

The input/output contact is used to connect external devices, such as security or fire systems, or any application that requires control from the unit. It can supply up to 20mA when used as an output. The input power range is 0 to 5 V.

The contact is powered from the main device.

Connection extensible with a standard CAT 5/6 patch cable and a RJ45-RJ45 (CAT 5e) connector RMS-I-CON

The maximum length of the extension cable is 300 m



Order code: RMS-I-DRS

It can also detect battery acid for a short time.

The detection cable can be extended with 3 m long extension detection cables up to a total length of 50 m.

The detector is powered by the main device and automatically recognized

Connects with a CAT 5/6 patch cable with a maximum length of 30 m. The sensor is fitted with a 3 m long detection rope and a 6 m long rugged connecting cable.



Order code:
RMS-I-DE-06 (flooding detector)
RMS-I-DE-06-EXT3 (extension of the detection part by another 3 m)

Order code: RMS-I-MK

Controlled output allows the user to remotely control electrical equipment over the Internet. It monitors the power load and receives a control signal transmitted from the device. The relay can be controlled using an alarm signal from a sensor.



Order code: RMS-I-PWR-NO

The 4-20 mA signal converter is used to integrate sensors with 4-20 mA output. The 4-20 mA technology is used to transmit analog signals over long distances where electrical interference may cause problems. This solution is often used in industry to control and acquire analog values from a wide range of remote sensors. Current-based signals are much less prone to noise than voltage-based signals. A voltage signal can be converted to current and then transmitted over a greater distance before it is converted back to voltage and processed by the unit.

4-20 mA transmitters are common in the industry for use with high quality sensors. With a 4-20mA signal converter, these sensors can now be integrated into the unit with added benefits of charts, web interface, e-mail interface, alarm triggers and limit values.



Order code: RMS-I-VC

Temperature sensors are essential in environments where optimal temperature needs to be maintained. A cooling failure or extraordinary fluctuations of physical conditions may cause damage to data, delicate electronic equipment or damage to stock.

Order code: RMS-I-ST

Temperature and humidity sensors are essential in environments where optimal temperature and humidity needs to be maintained. A cooling failure or extraordinary fluctuations of physical conditions may cause damage to data, delicate electronic equipment or damage to stock. Up to 8 of these sensors can be connected to RAMOS Optimax.
Order code: RMS-I-STH

The expansion unit for the main Ramos Optimax monitoring unit allows daisy-chaining via the BEX port (RJ12 plug) and adds 8 more intelligent ports and 10 digital inputs to the main monitoring unit.

The maximum total length of connecting cables must not exceed 10 m.



Order code: RAMOS-BEX-I8-D10

Cabinet mapping sensors are ideal for comprehensive environmental monitoring inside cabinets. With the help of sensors, it is possible to determine hotspots and adjust the arrangement of IT hardware in the cabinet or the performance of the cooling unit.

Sensors, connected in one cable line, measure in 3 levels. They monitor the temperature in the upper, middle and lower part of cabinets in the front, rear or on both sides - as well as the temperature differential at individual levels (? T value).

A combined version with humidity sensors is also available.

Ordering codes:
RMS-P-ST3H
RMS-P-ST6
RMS-P-ST6H2

The adapter enables connection of external analog sensors with an output signal of 0-10V DC. A switch on the side of the adapter allows switching to an input/output contact that maintains a 5V DC output to power the sensor while monitoring the input contact at all times.

This device connects to the RAMOS Optimax main monitoring unit.



Order code: RMS-P-SENS

The display can be programmed to display data from any intelligent or virtual sensor and display up to 8 parameters. LED indicators notify of the status of the sensor, with warnings and critical alerts showed on the display. The sensor display is powered from the smart port and measures 1 temperature point.

The display is designed to be mounted on the cabinet door, on the aisle wall, or on the datacenter room wall.

The display with the temperature sensor connects to the RAMOS Optimax or RAMOS Plus main monitoring unit.



Order code: RMS-P-ST-DSPL

The motion detector, with a detection angle of 60° and a detection distance of 3 m, is used to secure rooms or objects and notify of intrusions into the monitored zone.

LED indication of the device’s status. Up to 10 sensors can be daisy-chained to a single smart port. The maximum total cable length for 10 sensors is 46 m. The maximum cable length between sensors is 6 m. The maximum cable length for a single sensor is 300 m.

The detector is automatically recognized and powered by the main unit.

Included: 1.5 m patch cable.



Order code: RMS-I-DE-02

RAMOS Optimax main monitoring unit is equipped with RS485 Modbus and expansion port in one. When using this RJ45 port to connect a Modbus device, the Modbus RTU adapter allows to connect a 2-wire serial bus cable to the RJ45 port, converting the RJ45 connector to a 3-wire terminal.



Order code: RMS-P-MODBUS

The mini relay box with selectable voltage output can be connected to the RAMOS Optimax or RAMOS Optima main monitoring units. This device can adjust the voltage level of the signal; for example, a device with a relay can be switched based on the sensor input, in such case, sensor output will be 200mA - 5V DC.

Order code: RMS-P-RB

The electronic handle with a built-in reader including a door contact enables connection directly to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit. This handle is intended for CONTEG cabinets with a 25x150mm handle cut-out. It is possible to control up to 8 handles with RAMOS Optimax and up to 4 handles with RAMOS Plus without the need for additional hardware.

The electronic handle is also compatible with doors equipped with a multi-point locking mechanism. 2 EM cards are included with each handle.



Order code: RMS-ACS-EL1

This expander (so-called RDU) is connected in a chain to the expansion ports of the RAMOS Ultra ACS or RAMOS Ultra main control and monitoring unit. It allows full access to cabinets while displaying information about people and time of access.

One reader and one electromagnetic lock or two electronic handles can be connected to each RDU door access unit using a hub (RMS-CON-ACS)

25 RDUs in a line can be connected to each expansion port of the main control and monitoring unit. The length of the connecting cable (LAN category 5/6) for communication between the door access units and the main control and monitoring unit must not exceed 300 meters.



Ordering code: RMS-ACS-U-RDU

The door-mounted biometric face reader with multi-format RFID reader can perform authentication in three different ways: using facial geometry recognition, or face recognition in combination with an RFID medium, or RFID medium only.

The integrated multi-format RFID reader supports RFID media at both 125 kHz and 13.56 MHz bands (e.g. MIFARE® media).

Operating lighting of the terminal with a range from 0 lx to 25,000 lx allows the device to work reliably even in total darkness in the installation area.

An IR camera for face detection prevents fake identity (printed photos or image on a LCD display). The device is connected to the RAMOS ACS access system over the Wiegand protocol.



Ordering code: RMS-ACS-U-FACE

Dual contactless readers support RFID media at both 125 kHz and 13.56 MHz (e.g. MIFARE® or NFC).

In addition to standard RFID cards or key tags, the reader is compatible with mobile phones equipped with NFC technology with OS Android® 4.4 Kit Kat (or higher) and the appropriate application. Such mobile phone can be used for identification (in card emulation mode) instead of physical cards/chips.

The standard color of the reader is black, the front part is covered with tempered glass. Designed for installation in an unprotected indoor or outdoor environment (protection IP 55).

Order code: RMS-ACS-U-MCR

The backlit keyboard with a built-in card reader (EM format) enables authorization using the card at 125 kHz or a combination of a card and a 4-digit PIN code.

Easy connection to the RDU door access unit with a cable with a color-coded RJ-45 connector. The reader is equipped with a buzzer and LED for status indication.

Suitable for indoor installation.

Ordering code: RMS-ACS-U-KER

The dual desktop reader for PC is a useful accessory for the administration of user cards in the CONTEG Pro Server application. Supports 125 kHz and 13.56 MHz bands. SUpports 125 kHz access ID media. Features a LED indicator and a buzzer. Connects to a USB port in a PC, from which it is also powered.



Ordering code: RMS-ACS-DCR

The electronic handle is to be fixed to the cabinet door with a standard 25 x 150 mm mounting hole. The handle with a semi-cylindrical lock insert can be opened with a key. Can be mounted on doors with a multi-point or single-point locking mechanism.

LED indicator on the body of the handle shows the status - unlocked / locked / open / intrusion. The handle has low power consumption - less than 50mA in standby and less than 250mA in operation - and is powered by the door access unit RDU (12V DC).



Ordering code: DP-ZM-E1

The electronic handle with card reader is to be fixed to the cabinet door with a standard 25 x 150 mm mounting hole. The handle with semi-cylindrical insert can be opened with a key, can be mounted on doors with multi-point or single-point locking mechanism. LED indicator on the body of the handle shows the status - unlocked / locked / open / intrusion.

The miniature built-in reader with a reading distance of 3 cm is located in the upper part of the handle body. Reads EM and HID Prox 125kHz cards, communicates over Wiegand 26b protocol The handle has low power consumption - less than 50mA in standby and less than 250mA in operation - and is powered by the door access unit RDU.



Ordering code: DP-ZM-E2

The hub for connecting two door handles to one RDU door access unit allows the output to be split for the control of two CONTEG door handles in one cabinet. Three RJ-45 ports (1 input and 2 outputs).

With the RDU hub, it is impossible to distinguished the handles in the system as they appear as one. If any of the handles is opened or unlocked with a key, the system displays the status for both handles. Using the hub with RDU door access units, up to 100 cabinets (200 handles) can be connected to a single RAMOS Ultra control and monitoring unit or up to 50 cabinets (100 handles) to RAMOS Ultra ACS.

The hub cannot be used with electromagnetic locks.



Order code: RMS-CON-ACS

The small electromagnetic door lock with a holding force of 700 N, which corresponds to 70 kg, is suitable for cabinets where a CONTEG electronic handle cannot be installed.

A LED indicator shows the status - unlocked / locked / open / intrusion.

Powered by the main unit.



Order code: DP-ZM-EML-S

The waterproof electromagnetic door lock with a holding force of 3500 N, an equivalent of 350 kg, is suitable for installation on the entrance door.

A LED indicator shows the status - unlocked / locked / open / intrusion. Powered by the main unit.



Order code: DP-ZM-EML-LW

Identification cards and tags exist in many variants, with low-frequency technology (LF, 125 kHz) being the most common. We offer also high-frequency models (HF, 13.56 MHz). These types of cards and tags are supported in the RAMOS ACS access system. All access media supplied by CONTEG are of high-quality build.

The magnetic door contact with a fixing bracket serves as a monitoring element that detects the opening of the cabinet.



Order code: RMS-MK-01

Order code: RMS-ST-02

Ordering code: RMS-SH-02

Ordering code: RMS-ST-05

Ordering code: RMS-PWR-01

Ordering code: RMS-DE-02

Order code: RMS-DE-04

Order code: RMS-PW-05

Ordering code: RMS-CON-04

The 1-phase or 3-phase inline power meter with backlit display is suitable for measuring parameters at the input of the basic power panel. Easily plugs into existing circuits.

A built-in web server allows to remotely monitor real-time output, current (A), voltage (V), power consumption (kWh) and load power factor.

In addition, the device can connect a temperature and humidity sensor (IP-S-PDU-SENSOR).

The sensor detects the temperature and humidity inside the cabinet. Connects using a 2.5 m cable directly to a monitored or managed power panel.

Upon connection to the power panel (RJ12 connector), the sensor is automatically detected and the measured environmental parameters are available on the web server and via SNMP.

Output power cables are used to transmit electrical energy between the power panel and the IT equipment located inside the cabinet.

They are available in different lengths, input/output types, as well as with pull-out protection (P-Lock). IEC Lock™ available upon request.

1-phase 16A monitored and managed power panels are supplied without an input power cable, which must be ordered separately.

Cables are available in black color, length 2.5 m, and with various types of plugs.

The retention sleeve reduces the risk of the power cord being accidentally pulled out. Available for C13, C19 sockets and for C20 device input. Locking clips for C13 sockets are suitable for some types of basic PDUs.

For vertical installations of power panels in cabinets, it is necessary to order the appropriate brackets for the basic, monitored or managed PDU, which is not included in the package.

The DP-RP-VM-12 universal bracket can be used to install all types of power panels in a cabinet with L, P and A rails.

The black holder DP-RP-VM-15/xx is designed for vertical mounting of up to two basic, monitored or managed PDUs next to each other in a cabinet with 19"" type A rails. To install the basic PDU, it is necessary to order an adapter DP-RP-VM-BA. In addition, perforation on the bracket can be used for cable binding. Bracket position can be adjusted to minimize the occupied space. Easy installation with just two screws.

Series 70 universal electronics boxes with a highly resistant design meet various requirements for use in industry, electronics and office automation. Made of high-quality, highly resistant ABS, they withstand mechanical strain and temperatures up to 85 °C. EPDM O-ring seal provides IP65 protection against dust and moisture.

Series 70 universal electronics boxes with a highly resistant design meet various requirements for use in industry, electronics and office automation. Made of high-quality, highly resistant ABS, they withstand mechanical strain and temperatures up to 85 °C. EPDM O-ring seal provides IP65 protection against dust and moisture.

Serie 101 universal electronics box for standard use cases with light gray or black ABS plastic lid. Suitable for membrane keyboards up to 1.2 mm.

Series 102 Universal Electronics Boxes are suitable for use cases where a transparent lid is required, such as installations with LCD displays or counters requiring visual supervision. Lid made of highly resistant polycarbonate plastic, bronze color. Allows for the use of 1.2 mm membrane keyboards.

The Serie 103 universal electronics boxes are suitable for uses cases where a metal lid is required, allowing for custom CNC machining. Lid made of high-grade aluminum.

Serie 180 sub-rack and 19" electronics boxes designed for electronic devices and telecommunication equipment that can be installed in 19" racks. Manufactured according to IEC 297-2 (DIN 41 494). Their easy assembly, optimal accessibility and robust construction enable efficient installation of the equipment in a rack. Allows mounting in a 19" rack with standard telescopic guides (100% extension).

Robust and lightweight Sub-rack and 19" electronics box Serie EP. They are designed to meet IEC 60 297 and DIN 41 494 standards and can accommodate sub-cabinets and 84E full-width cabinets.

Minibox+ basic and multifunctional universal aluminum boxes for electronics. Suitable for use cases ranging from small test equipment to heavy duty installations, such as machine/motor control or automatic passage control.

The Series 31 range of small-capacity boxes for hand-held electronics is suitable for pocket use or for situations where a small, robust box with protection up to IP65 is required.

The Series 32 range of portable electronics boxes in four sizes is suitable as control boxes for medium-sized control solutions with IP65 protection.

The Series 33 range of hand-held electronics boxes in six sizes is suitable for various control solutions requiring large volume.

The Serie 50 range of high-quality portable aluminum electronics boxes with IP65 protection is suitable for a wide range of indoor and outdoor use cases. Hand-held, mounted on the wall or a fixed/removable support, use as machinery RF/wire activated control.

Betabox small portable electronics boxes are suitable for various portable or handheld devices.

The Series 110 electronics desktop boxes are suitable for command, control or testing devices with a front display.

Abox tabletop electronics boxes are suitable as consoles for control and visualization. Designed specially for devices such as intercoms, displays, testing or control units. Available in two configurations. One of them is designed as an inclined unit - see types 1, 2 and 4. The other configuration is designed as an inclined unit with an angled panel for display purposes - see types 3 and 5.

Elbox electronics desktop boxes are suitable for control, testing or inspection applications with front/rear display.

Solbox robust desktop boxes for electronics are made of steel with aluminum front and back panels.

WME’s compact sheet steel enclosures are suitable for a wide range of indoor use cases in industry and electrical engineering.

Our extensive offer of cabinet sizes, both with solid doors and glass doors, in single and double-door designs, is complemented by a wide range of accessories. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet. Laser welding technology gives the cabinets clean design.

Upon request, we will make cutouts and threads in WME-X cabinets for your installations.

Compact WME-G cabinets made of sheet steel are suitable for a variety of indoor use cases in industry and electrical engineering.

Our extensive offer of cabinet sizes, both with solid doors and glass doors, in single and double-door designs, is complemented by a wide range of accessories. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet. Laser welding technology gives the cabinets clean design.

Upon request, we will make cutouts and threads in WME-X cabinets for your installations.

The WME-X compact stainless steel cabinets are suitable for use cases with higher requirements for resistance to the environment. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet.

Laser welding technology gives the cabinets clean design.

Free-standing FSE cabinets made of sheet steel, suitable for arrangement in rows, can withstand even the harshest industrial environments.

The welded frame of the FSE cabinet is made of a special cold-rolled profile. This production technology, together with the patented shape of the profile, meets the highest requirements for rigidity and load-bearing capacity. The design of the lower frame makes it possible to use FSE cabinets without an additional plinth; this solution does not reduce the space for internal installations. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile.

Our offer also includes thermal management solutions for the internal environment of the cabinets, from heating units to fans with filters to active cooling units.

Free-standing FSM cabinets made of sheet steel with integrated side panels in the frame withstand even the harshest conditions in industrial environments.

The welded cabinet chassis is made of profiled side panels joined with cross profiles. This production technology meets the highest requirements for rigidity and 700 kg load capacity of the cabinet. The design of the lower frame makes it possible to use FSM without an additional plinth.

To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile. We also supply components for controlling the internal environment of cabinets, such as heating units, fans with filters, and active cooling units.

They are suitable for both indoor and outdoor installations and can satisfy even the most stringent demands in industrial operations, including both clean and harsh environments. The welded cabinet chassis with integrated side panels is made of profiled side panels joined with cross profiles. This production technology meets the highest requirements for rigidity and 700 kg load capacity of the cabinet.

The design of the lower frame makes it possible to use FSM-X without an additional plinth. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile. We also supply components for controlling the internal environment of cabinets, such as heating units, fans with filters, and active cooling units.

Cooling units of the SLIM series are available in two versions - external side-mounted or fully recessed. Effective cooling capacity from 320 W to 1500 W.

The COMPACT series cooling units are available in a side-mounted external version. Effective cooling capacity from 320 W to 4000 W.

TOP series cooling units are designed for roof mounting. Effective cooling capacity from 450 W to 2000 W.

Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.

Resistance heating units can be mounted in a horizontal or vertical position. The ribbed profile of the units ensures optimal heat transfer inside the cabinet. For larger cabinets, it is recommended to deploy multiple units with a lower heating output. We recommend installation of heating units to prevent moisture condensation inside the cabinet and ensure the required temperatures.

The thermoelectric unit is based on the Peltier phenomenon, where current passes through a circuit with two different conductors connected in series. As a result, one of the surfaces cools down while the other heats up. Suitable for outTEG OMR and outTEG OMR LITE double-shell outdoor cabinets

4 pcs of brackets including mounting accessories

Inner door including mounting accessories

Outer transparent door including mounting accessories

The plinth assembly for WME series compact cabinets consists of front and rear sets and side sets. The plinths are made of either sheet steel or stainless steel.
Sheet-steel ID-W-PFxx and ID-W-PSxx assemblies are designed for WME and WME-G cabinets. Stainless ID-W-SPFxx and ID-W-SPSxx assemblies are suitable for WME-X and WME-O cabinets.

Door stop including mounting accessories

Kapsy na uložení dokumentace uvnitř rozvaděčové skříně FSE a FSM

Including power cable and linking cable

Bracket for the mounting plate to position the lamp at the ceiling as required

Glands ensure secure cable passage where high IP protection level and mechanical resistance are required.

Perforated cable tray with pass-through frame.

Roof including mounting accessories

A complete set for connecting WME series cabinets into rows without compromizing the IP55 level protection.

Order code:
D-W-ROW xxxx

Perforated cable tray with round frame.

4x mount including fastening material for installation on the cabinet.

A complete set of grounding cables for cabinets.

Door switch including mounting accessories for cabinets.

Order code: ID-F-DC

Side panels for free-standing FSE series cabinets.

Central mounting plate for freestanding FSE series cabinets.

The wall is suitable for separating individual fields of free-standing FSE cabinet rows.

100 mm or 200 mm plinth as a fixed base for free-standing FSE cabinets

Perforated mounting rails to create additional mounting planes in free-standing cabinets.

Heavy duty accessory mounting rails for FSE and FSM, FSM-X and FSM-O cabinets

Bars for mounting components on the inside of the doors of FSE and FSM, FSM-X and FSM-O cabinets

Cable channels for free-standing cabinets of the FSE, FSM, FSM-X and FSM-O series are mounted on the side profiles, the mounting plate or between the side profiles of the frames (recessed mounting).

Brackets for 19" vertical rails including mounting hardware for free-standing cabinets of the FSE, FSM, FSM-X and FSM-O series with a width of 600 and 800 mm

The frame is suitable for creating a tilting 19" plane and access to the rear part of the 800 mm wide cabinet

Cable trays for cable routing with two brushes or PU seal, including mounting hardware

Special 100% waterproof sealing ionomer tape for free-standing cabinets of the FSE and FSM series

Mounting plate with 50x50 grid marking

The brackets are used for additional fixation of the mounting plate and vibration reduction in free-standing cabinets of the FSE, FSM, FSM-X and FSM-O series.

Storage shelves for FSE, FSM, FSM-O, FSM-X free-standing cabinets

The plates are suitable for creating additional front and side mounting planes in the FSE, FSM, FSM-X and FSM-O series cabinets, either in a horizontal or vertical position with respect to the width or depth of the respective cabinet.
