Überwachte PDUs

Überwachte PDUs

Monitored power distribution units enable remote monitoring of power consumption at the input as well as at individual sockets.

Datenblatt Mehr erfahren

Wo kaufen?

Produkteinführung

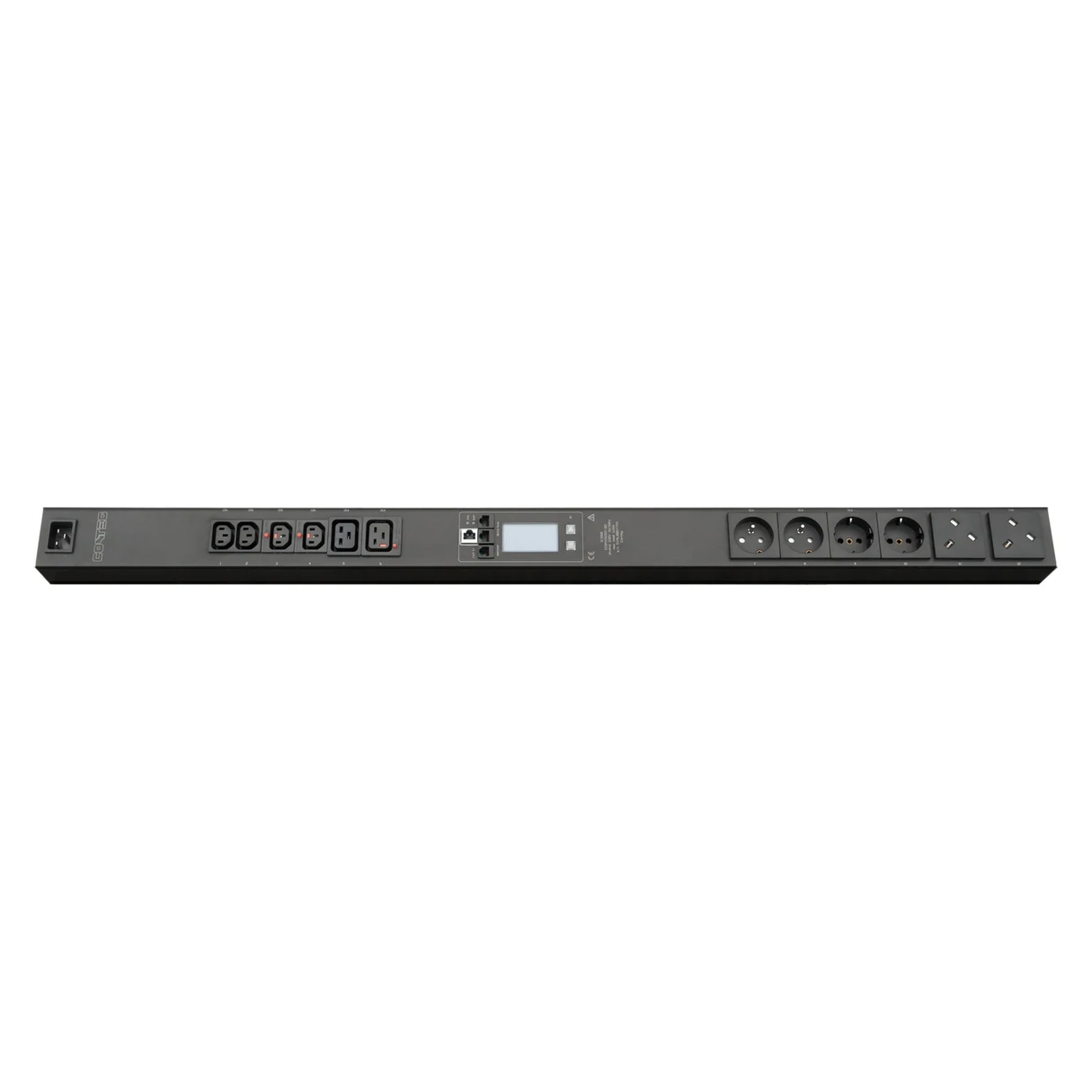

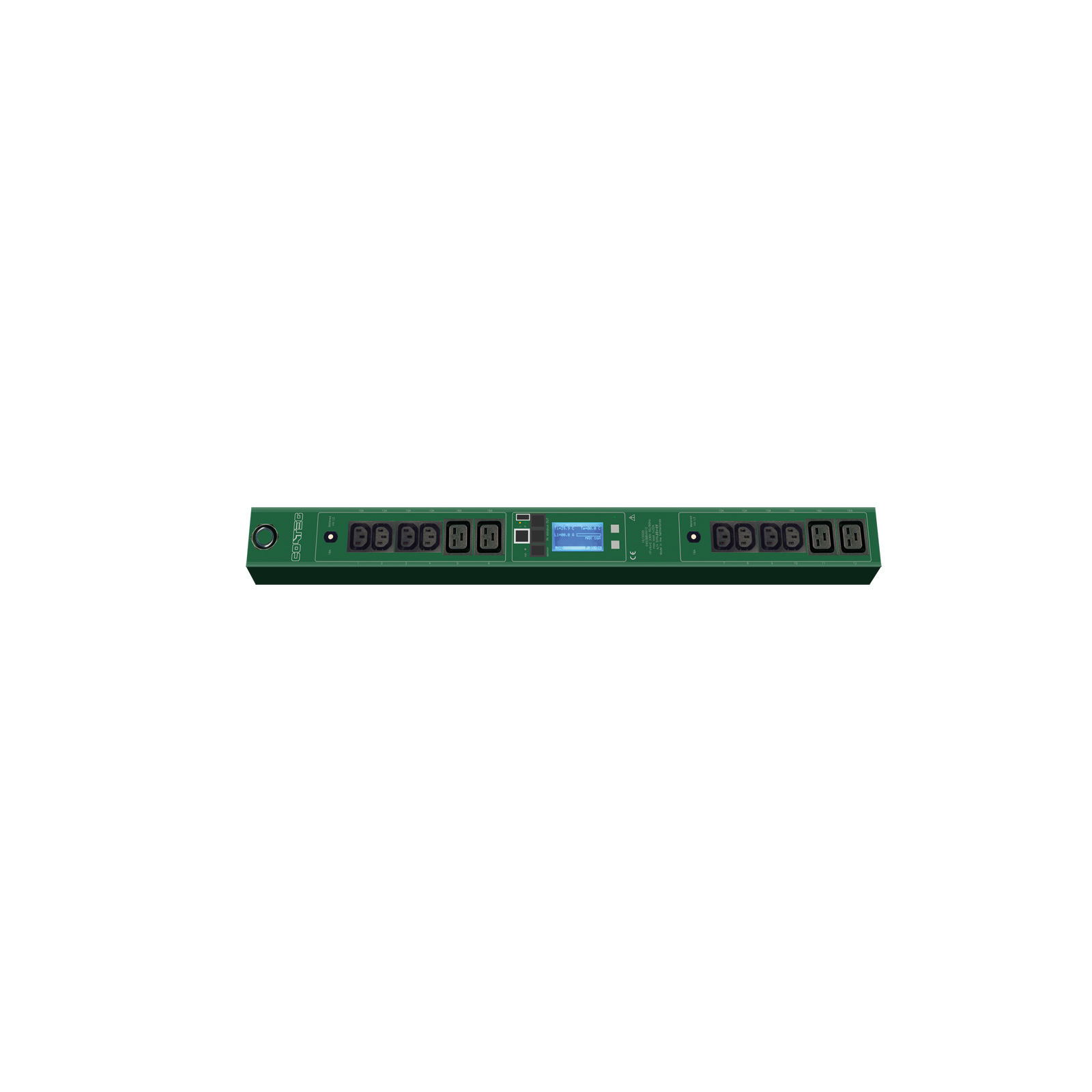

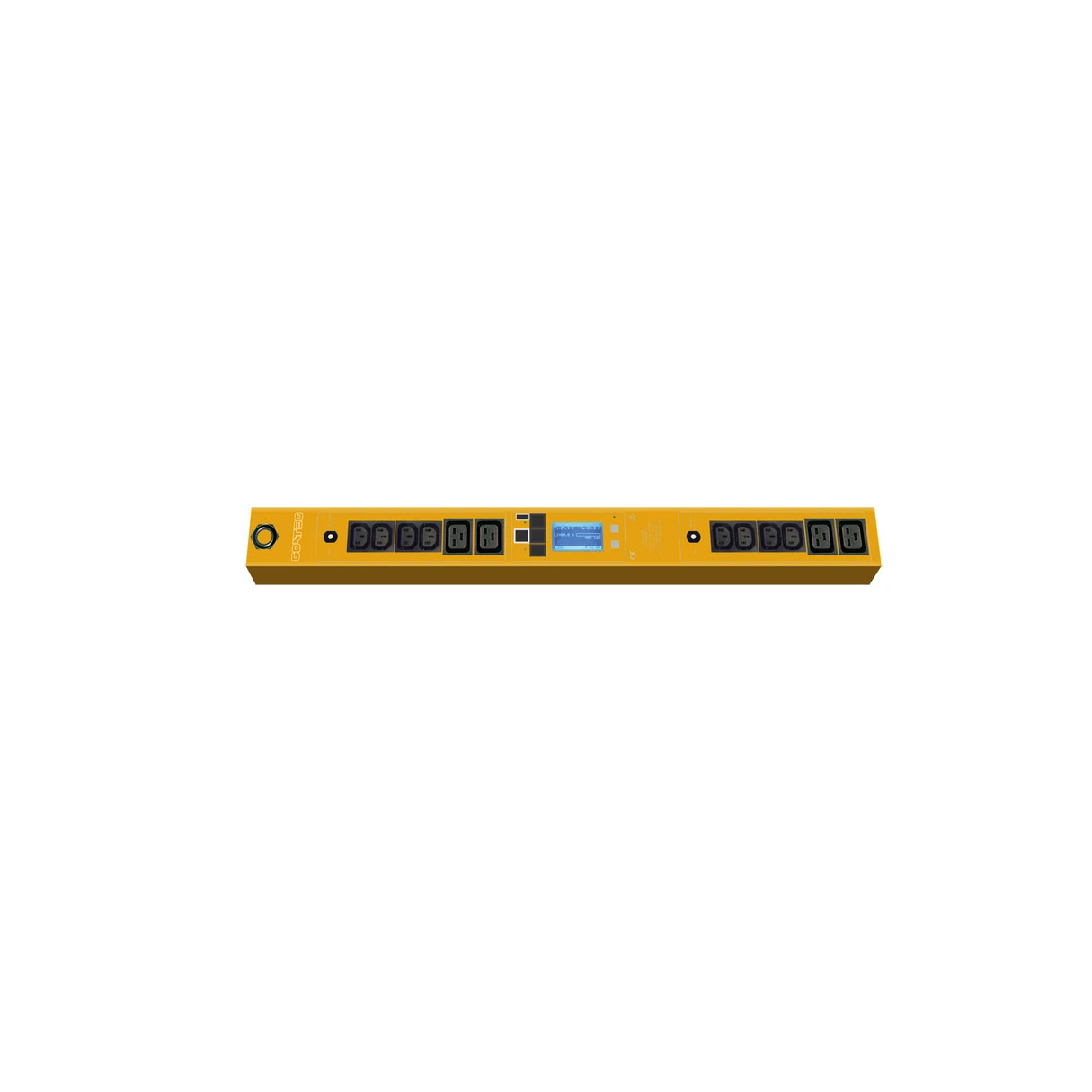

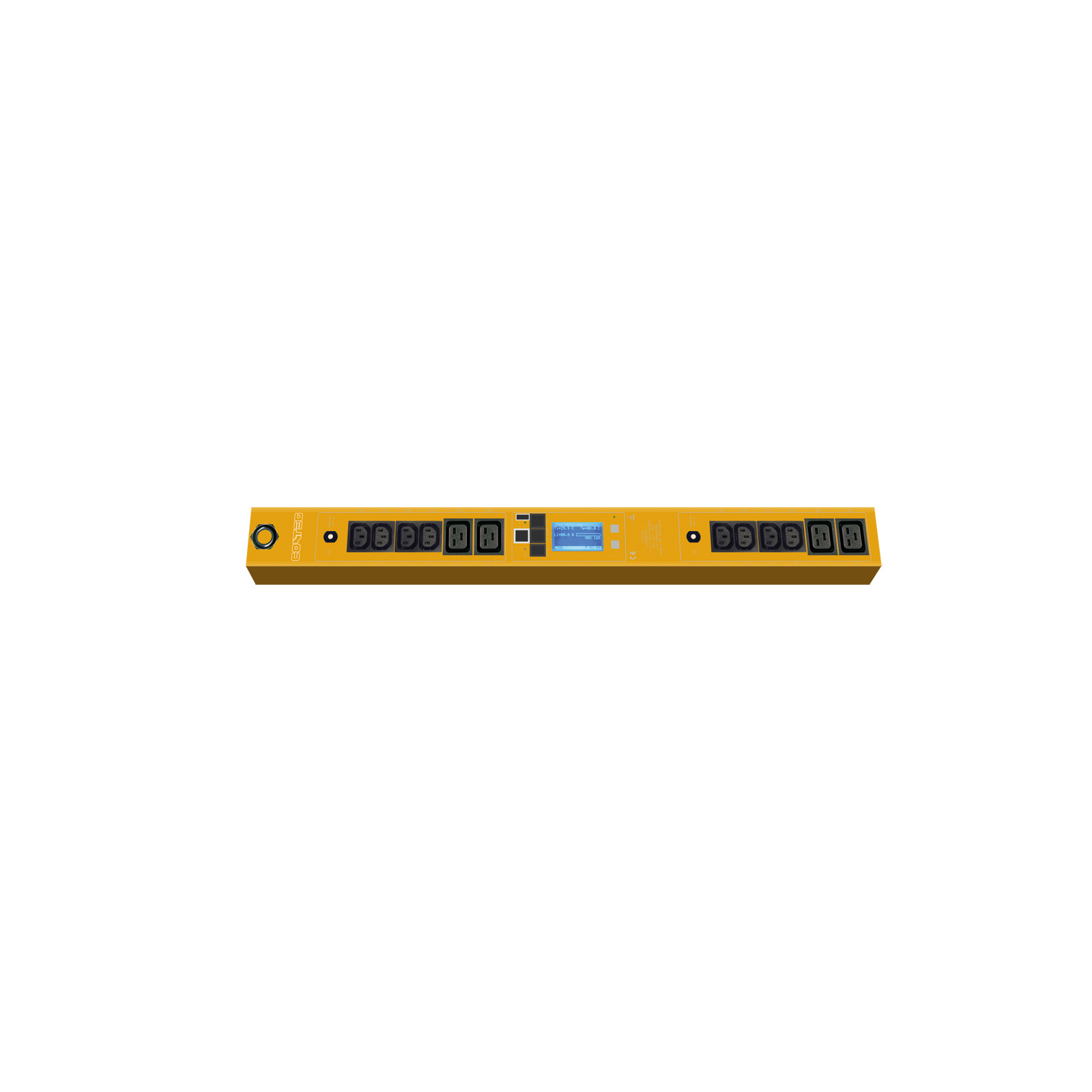

Monitored power panels ensure not only the supply of electricity and its distribution to IT equipment in the cabinet, but also enable monitoring of power consumption at the input and at individual sockets (PDU versions with POM code).

Monitored PDUs measure voltages and frequencies, allow reporting of load power factor, active and apparent power and consumed energy from the mains (in kWh).
The device has a built-in backlit display. An external off-panel display is also available, suitable for powering critical IT equipment requiring uninterrupted power.

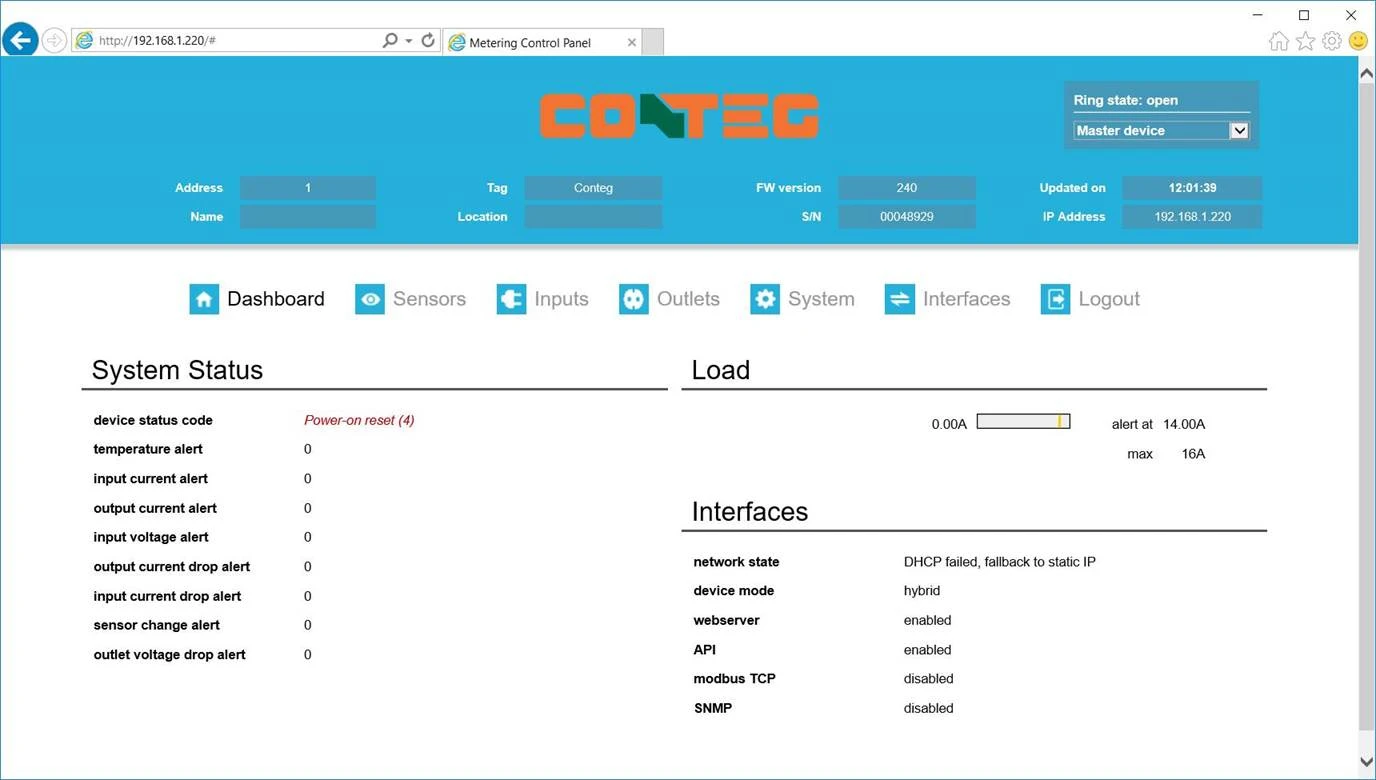

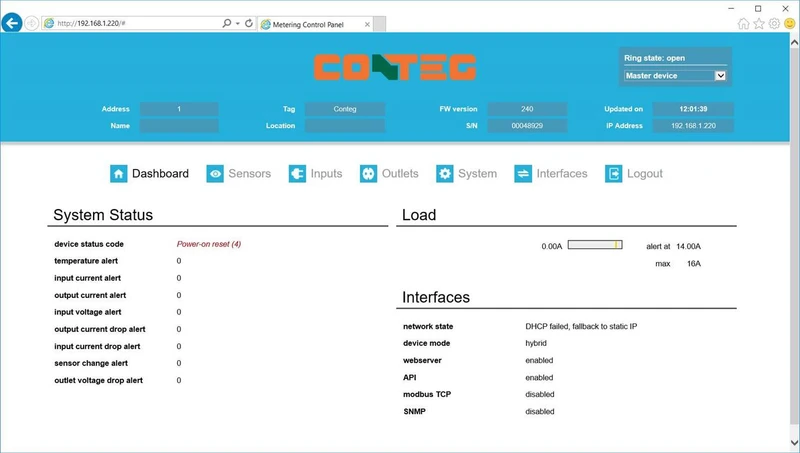

A built-in web server allows you to remotely set up the panel, read information and control individual sockets of a particular PDU in a user-friendly web interface.

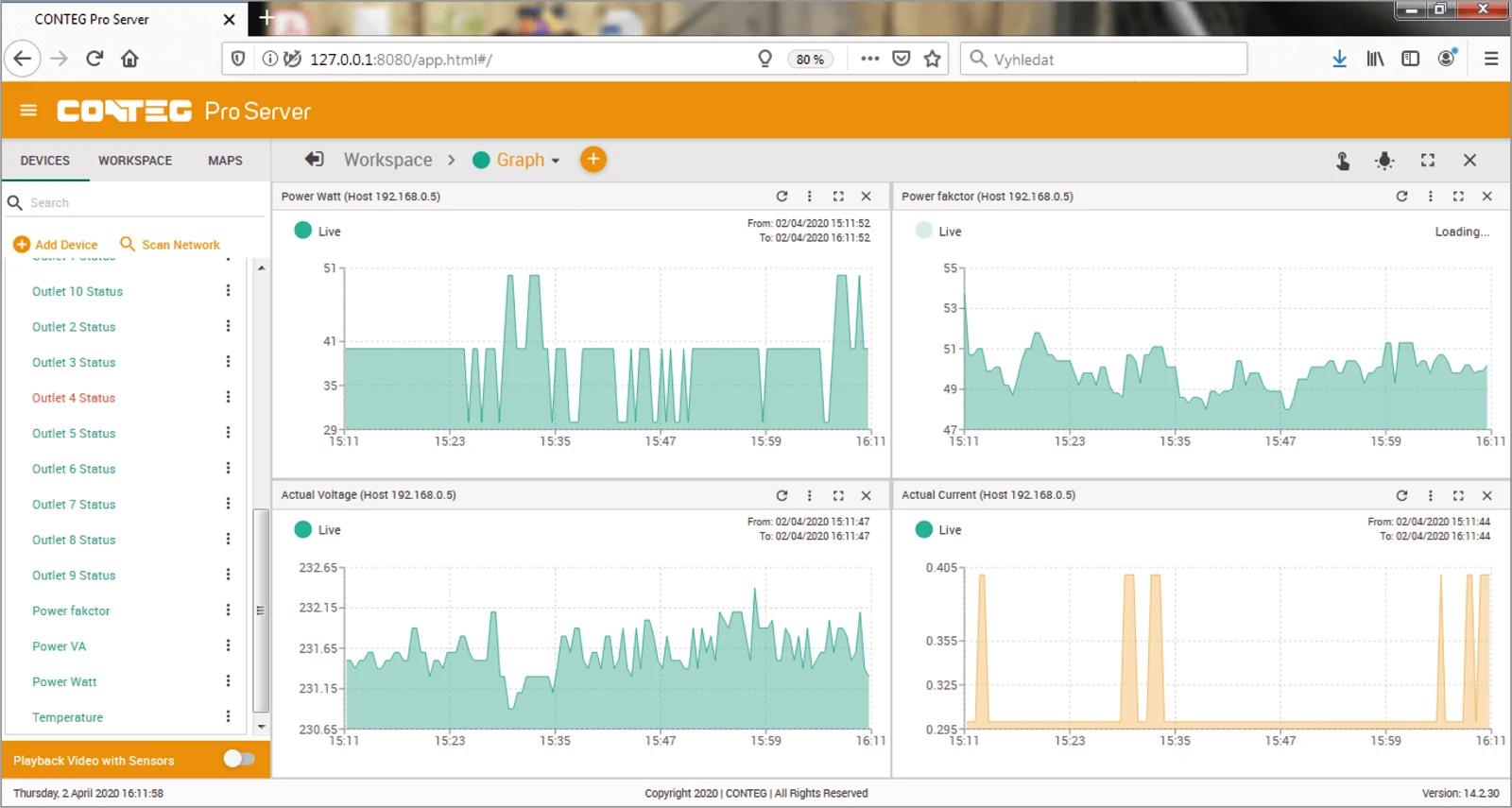

The PDU can be integrated into the CONTEG Pro Server control system for central administration, or into third-party systems (MIB table available).
Hybrid access technology - Ethernet connection and serial communication, both interfaces can be accessed simultaneously and independently.
Compatible with 19"" rack cabinets.

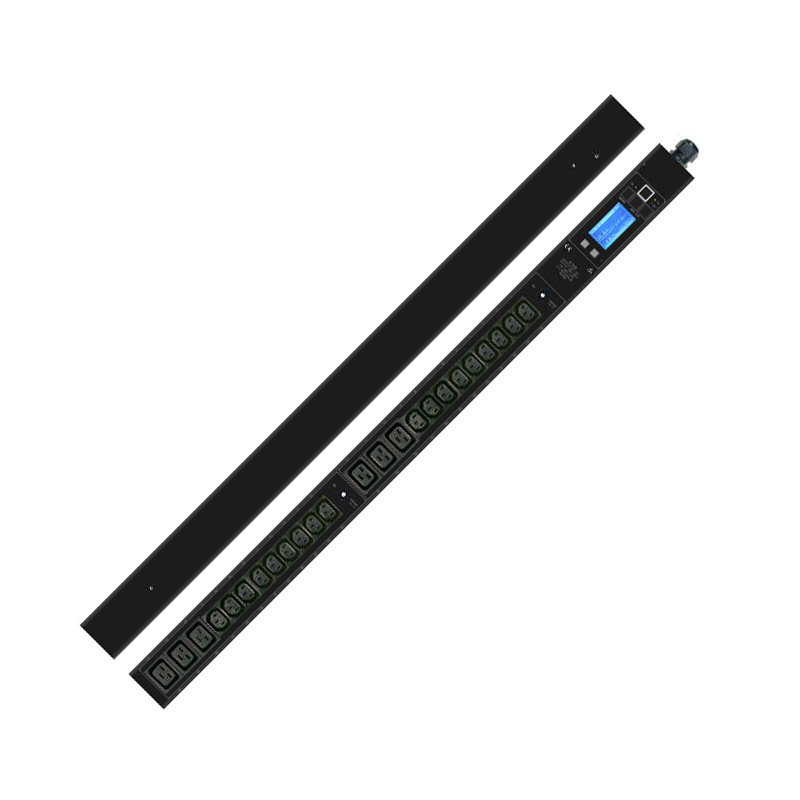

Installation inside the cabinet – versions for horizontal and vertical mounting.

Information Video zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Monitored PDU
Stromversorgung (V/Ph/Hz)	1-phase 230V AC, or 3-phase 230/400V AC; 16A or 32A
Höhe (mm)	65
Tiefe (mm)	56
Sensoranschlüsse	Ready for thermal and humidity sensors
Länge (mm)	preset by type or configurable
Betriebstemperatur	0-60 °C
Material	1.5mm anodized aluminum with anti-oxidation coating with stainless steel brackets

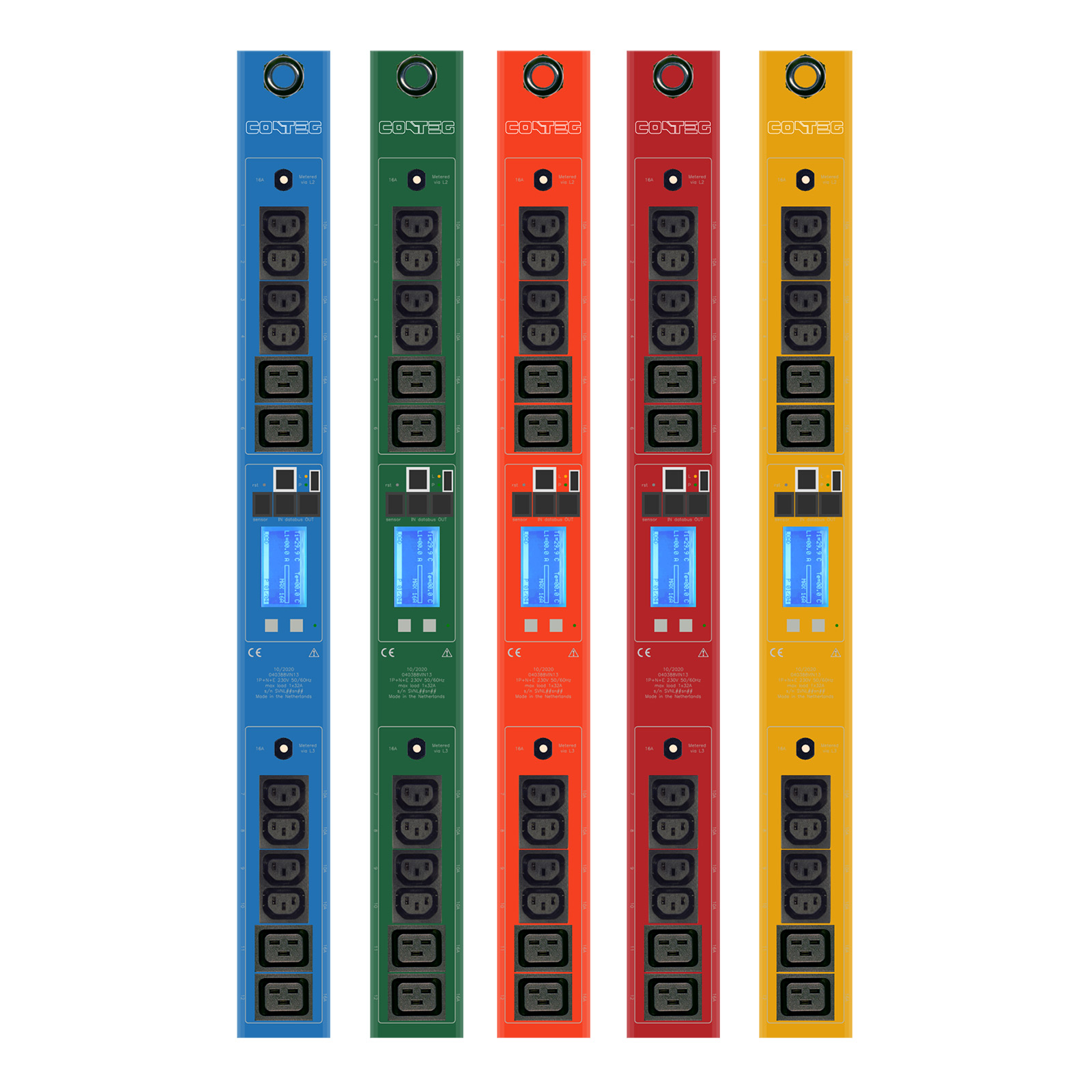

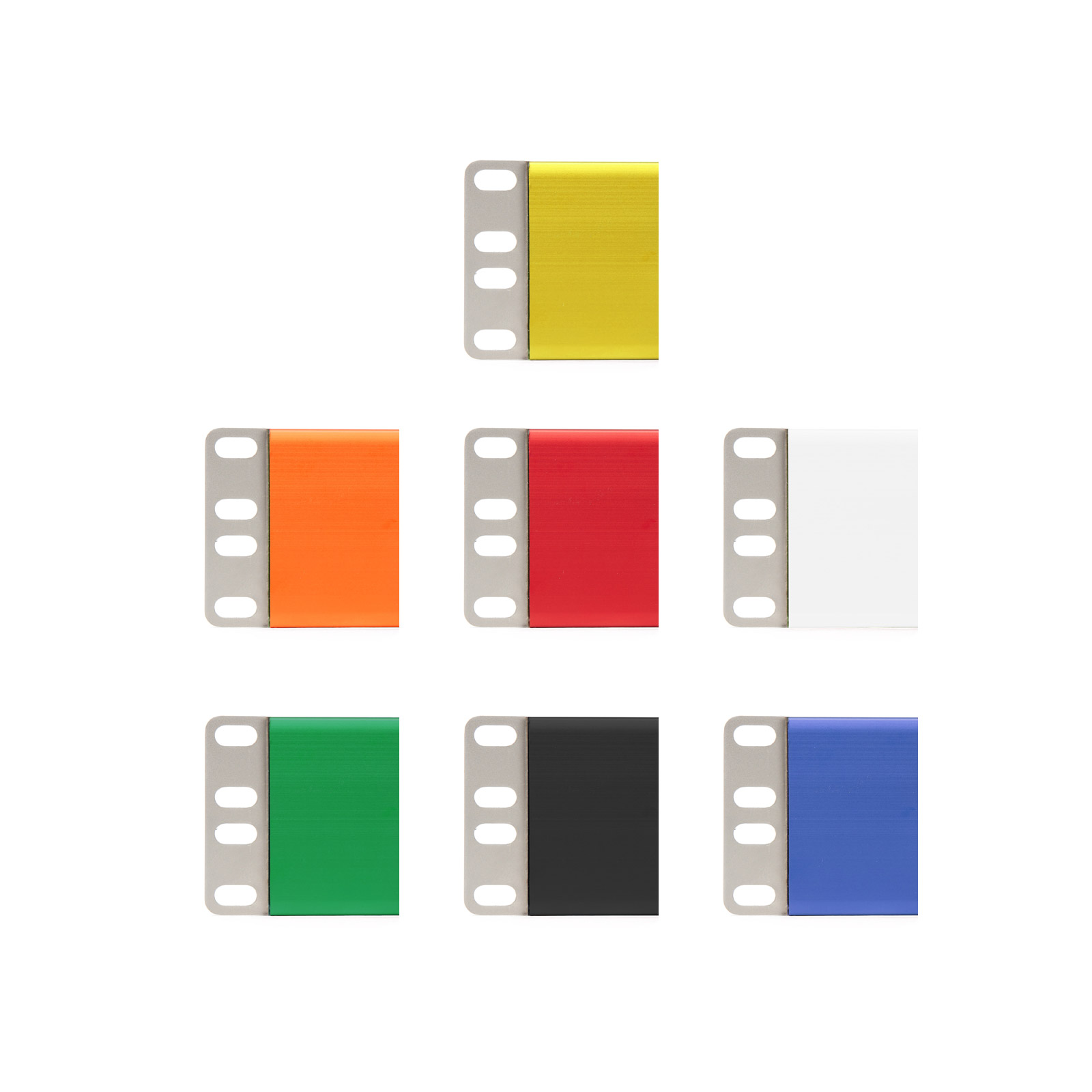

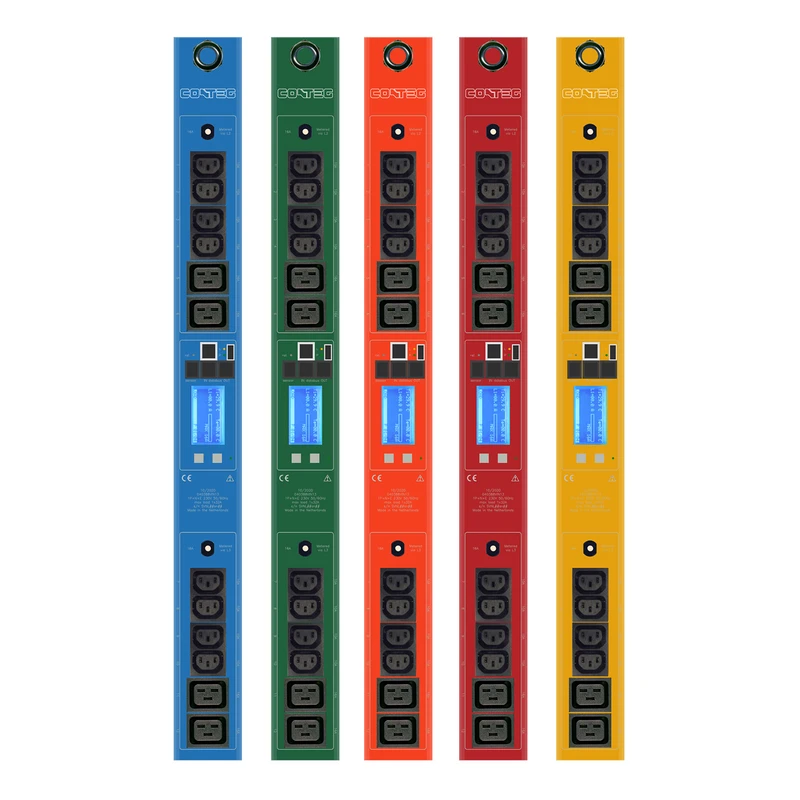

Farbe	Black, red, blue, green, yellow, orange, white
Stromverbrauch (W)	< 3 W basic - black
Überspannungsschutz	Optionally as a replaceable module (Hot Swap)
Sicherung	Unlimited choice of fuse types, e.g.: Miniature Circuit Breaker (MCB) Thermal fuse Glass fuse holder D2 fuse holder (PASCO cartridge)
Ethernet	RS-45 connector TCP/IP 10/100 Mb/s, DHCP with backup static IP, SNMP, Modbus, API
Datenbus	2x RJ45 data bus connectors RS-485
Anzeige	Backlit LCD
Messung	RMS value of the current Voltage (V) and frequency Power factor Total power consumption Active (W) and Apparent Power (VA) Measurement error <1%

Accessories

Inline-Messgerät

A 1-phase or 3-phase inline power meter with a backlit display is suitable for measuring parameters at the input of the basic power supply panel.

Produktdetails

Temperatur- und Feuchtigkeitssensor (PDU)

The sensor detects the temperature and humidity inside the cabinet. It connects using a 2.5 m cable directly to a monitored or managed PDU.

Produktdetails

Ausgangsstromkabeln

Output power cables are used to transmit electrical energy between the power panel and the IT equipment located inside the cabinet.

Produktdetails

Stromversorgungskabeln

1-phase 16A monitored and managed power panels are supplied without an input power cable.

Produktdetails

Kabelabzugssicherung

The retention sleeve reduces the risk of the power cord being accidentally pulled out.

Produktdetails

Halterungen für die vertikale Installation von PDUs

For vertical installations of power panels in cabinets, it is necessary to order the appropriate brackets for the basic, monitored or managed PDU, which is not included in the package.

Produktdetails
