RAMOS Ultra

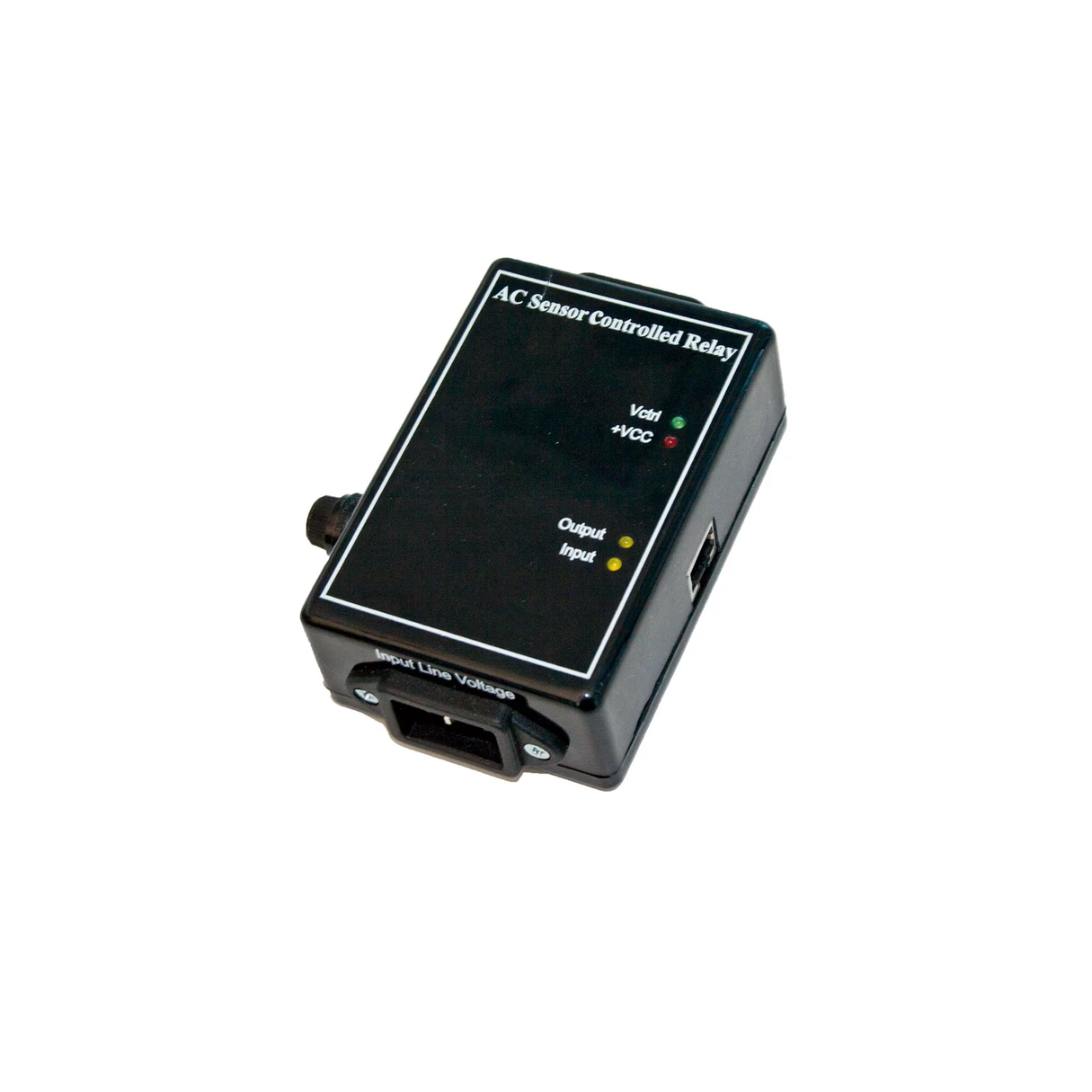

AC-sensorgesteuertes Relais – Schließer (110V/220V)

Controlled output is used to control the supply of power to external devices.

Produkteinführung

Controlled output allows the user to remotely control electrical equipment over the Internet. It monitors the power load and receives a control signal transmitted from the device. The relay can be controlled using an alarm signal from a sensor.

Order code: RMS-I-PWR-NO

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Sensor controlled relay, AC (110V/220V)
Technische Informationen	4 LEDs indicating relay status, presence of voltage, AC voltage and AC voltage at no load IEC connectors for 230VAC/10 A Controlled with +5 V DC voltage from an intelligent port The maximum load of the supplied cables is 6 A Automatic device recognition The detector is powered by the main device A 1.5 m patch cable for connecting the sensor is included Connection with a standard CAT 5/6 patch cable The maximum length of the connection cable is 30 m

Name der Produktlinie

Sensor controlled relay, AC (110V/220V)

Technische Informationen

4 LEDs indicating relay status, presence of voltage, AC voltage and AC voltage at no load
IEC connectors for 230VAC/10 A
Controlled with +5 V DC voltage from an intelligent port
The maximum load of the supplied cables is 6 A
Automatic device recognition
The detector is powered by the main device
A 1.5 m patch cable for connecting the sensor is included
Connection with a standard CAT 5/6 patch cable
The maximum length of the connection cable is 30 m
