Elektronischer Türgriff mit Kartenleser EM und HID Prox 125 kHz

Electronic handle with built-in card reader for RAMOS ACS access and monitoring system.

Mehr erfahren

Wo kaufen?

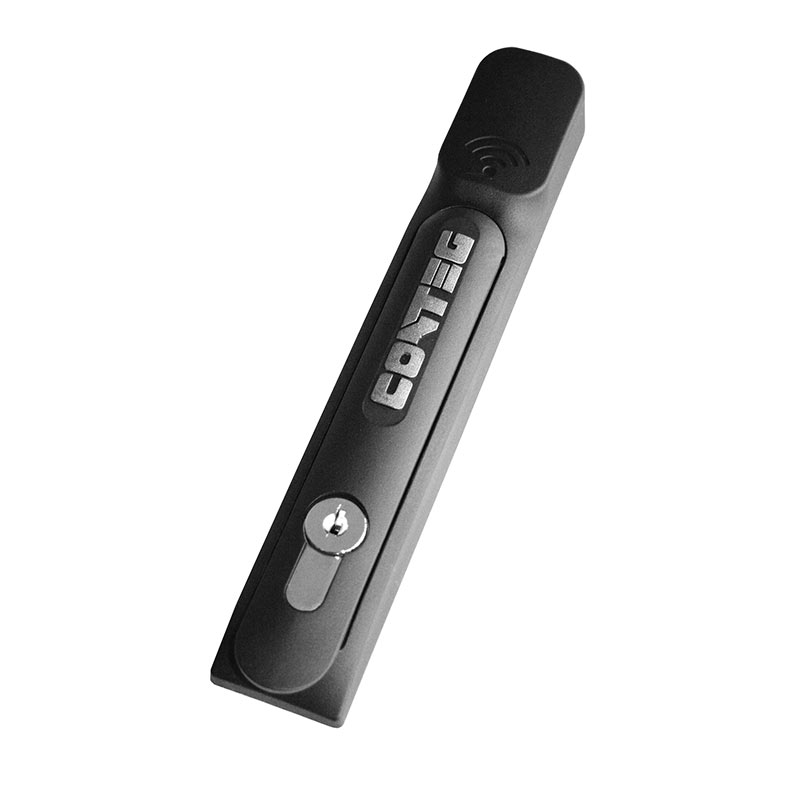

Electronic-handle-with-card-reader_DP-ZM-E2

Electronic-handle-with-card-reader_DP-ZM-E2_2

Electronic-handle-with-card-reader_DP-ZM-E2_3

Produkteinführung

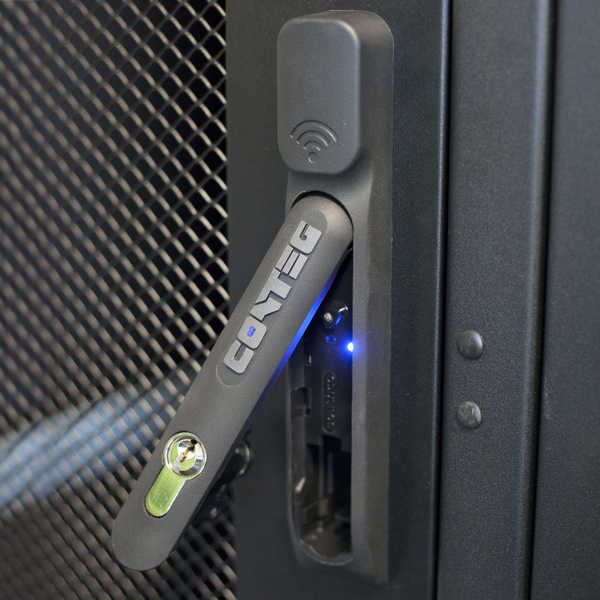

The electronic handle with card reader is to be fixed to the cabinet door with a standard 25 x 150 mm mounting hole. The handle with semi-cylindrical insert can be opened with a key, can be mounted on doors with multi-point or single-point locking mechanism. LED indicator on the body of the handle shows the status - unlocked / locked / open / intrusion.

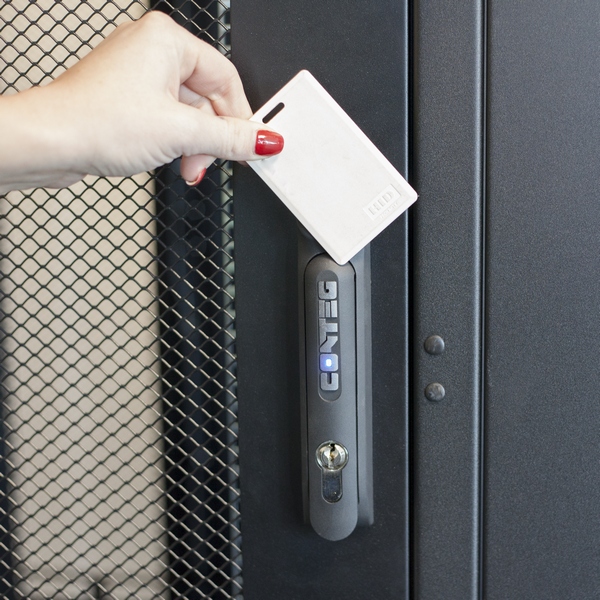

The miniature built-in reader with a reading distance of 3 cm is located in the upper part of the handle body. Reads EM and HID Prox 125kHz cards, communicates over Wiegand 26b protocol The handle has low power consumption - less than 50mA in standby and less than 250mA in operation - and is powered by the door access unit RDU.

Ordering code: DP-ZM-E2

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Electronic handle with card reader
Im Paket enthalten	Cable 4.5 m long with a green cap on the RJ-45 connector for correct connection
Andere	Standard mounting hole 25x150mm Can be mounted on doors with a multi-point or single-point locking mechanism
Technische Informationen	Handle There is an LED status indicator on the body of the handle It shows the status of the handle - unlocked / locked / open / intrusion Low consumption (less than 50mA in standby mode and less than 200mA in working mode) Powered from the control unit (12V DC) The handle can be opened with a key A 4.5 m long cable with a black cap on the RJ-45 connector is included for correct connection Card reader Reads EM and HID Prox 125kHz cards Low consumption (less than 80mA in standby mode) Powered from the control unit (12V DC) Communicates via the Wiegand 26b protocol Reading distance from 3 cm
