Kamin für die Ableitung von Warmluft
Passive air flow control elements direct the air flow inside the cabinet and create separate zones. Their application is a prerequisite for effective cooling.
Produkteinführung

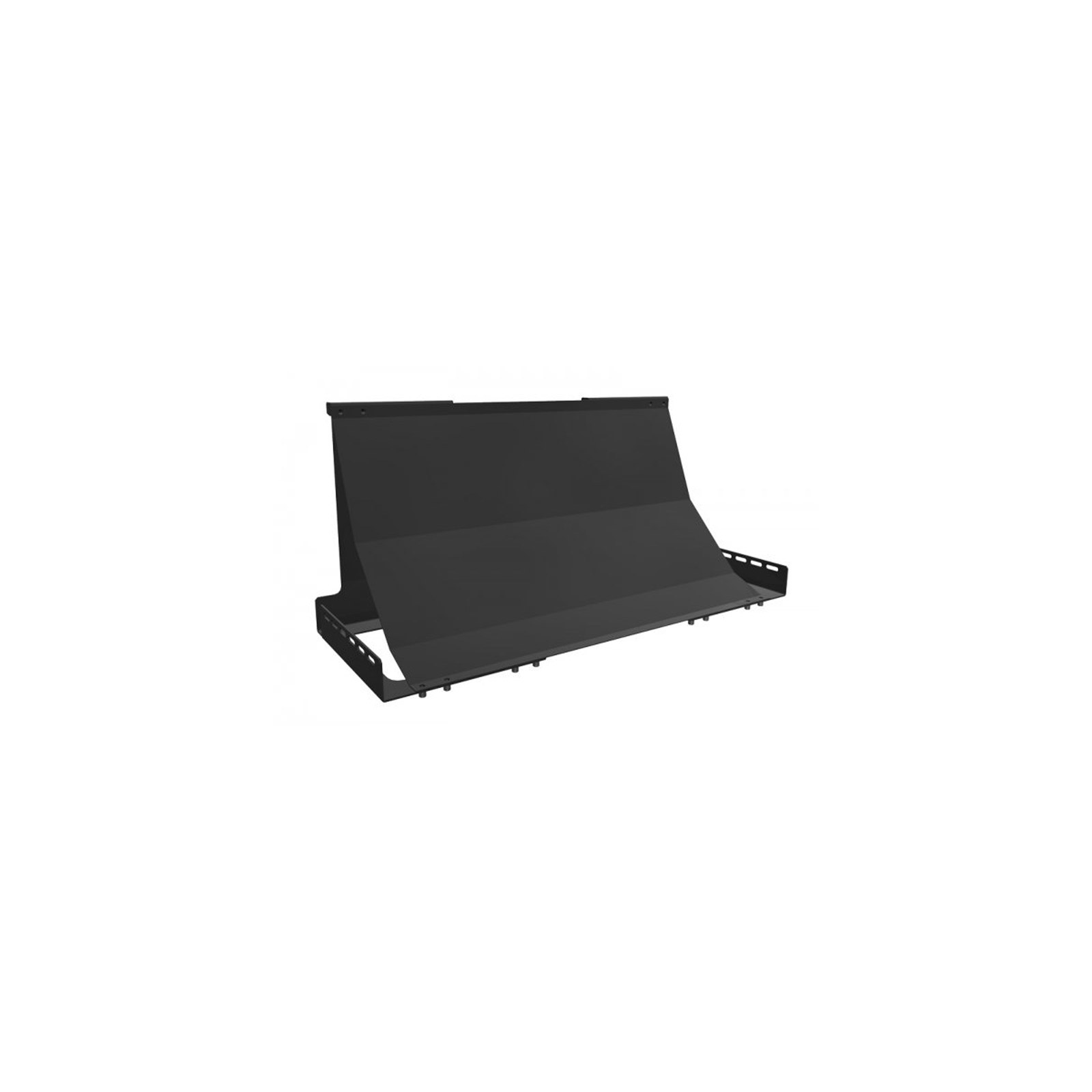

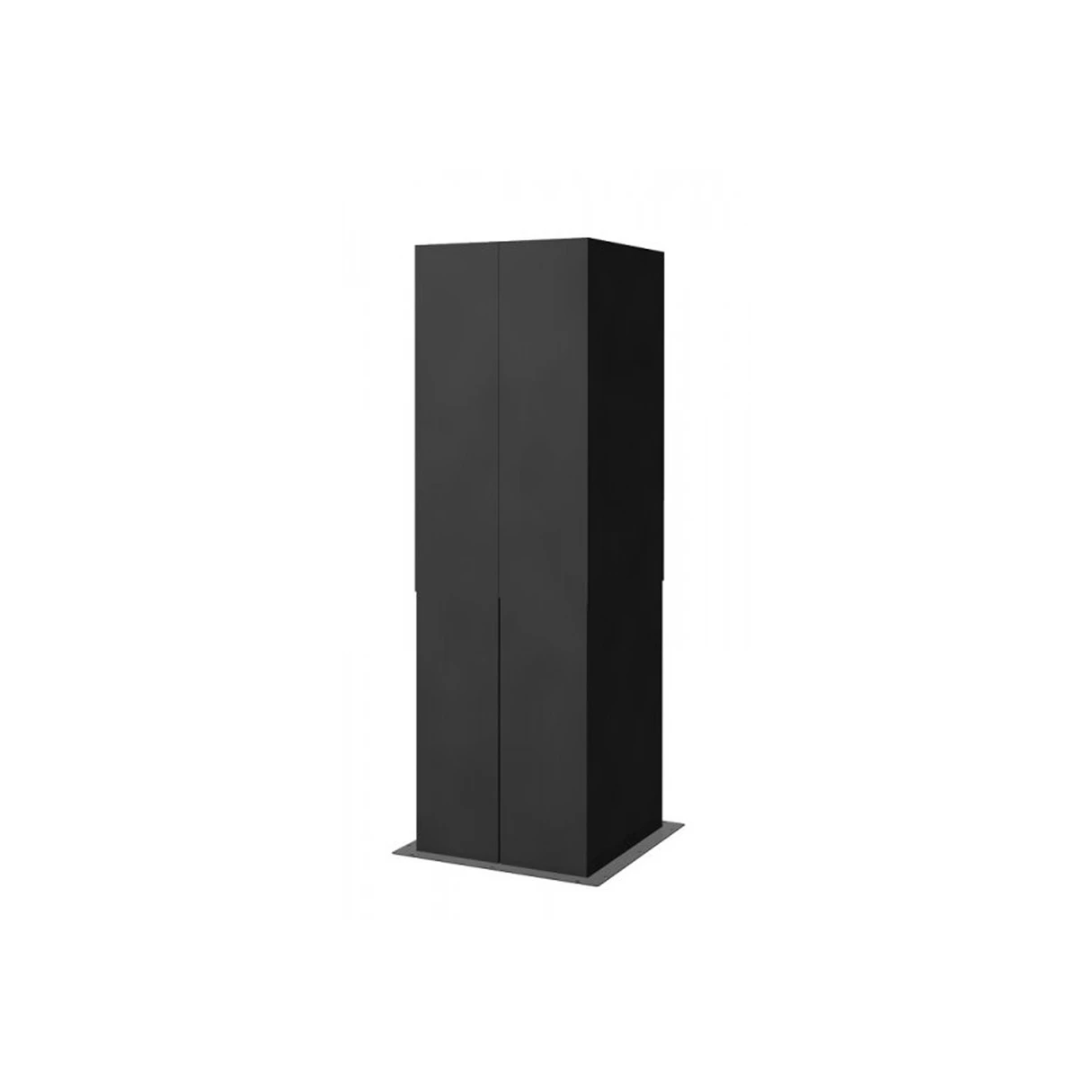

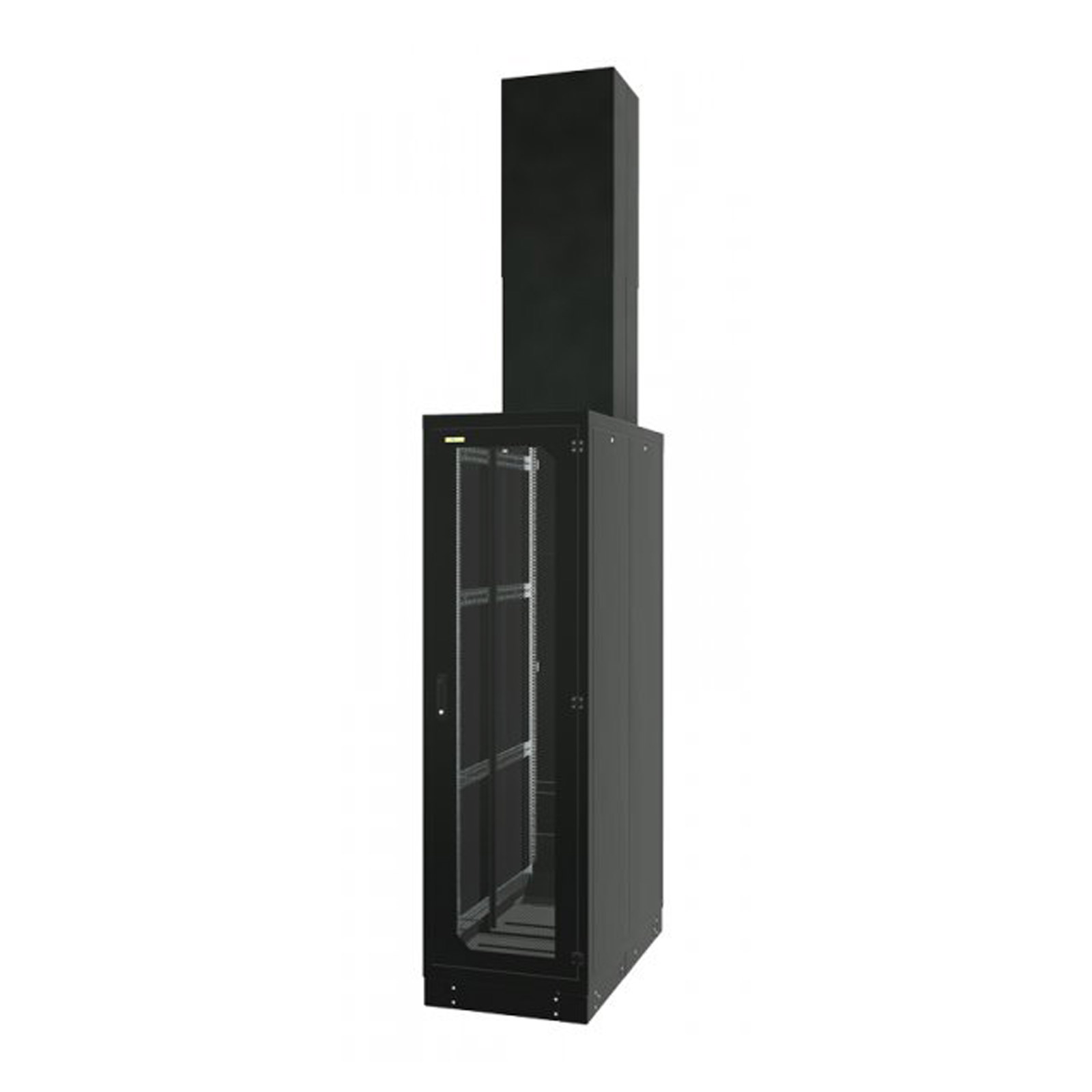

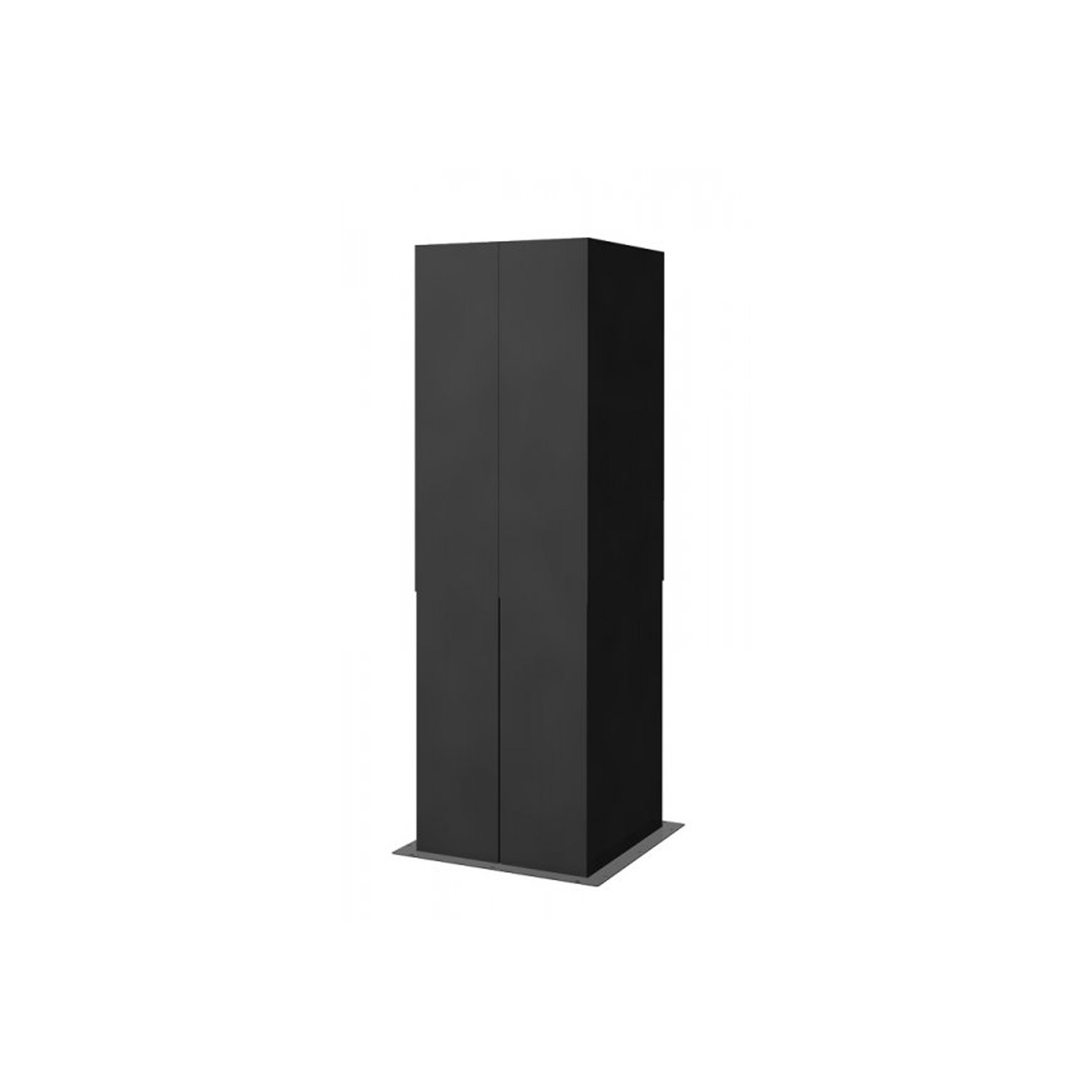

The chimney solution is designed to remove hot waste air from the cabinet to the ceiling soffit. The chimney is made of 1 mm steel sheet with powder treatment; the delivery includes an upper cover for attachment to PREMIUM series cabinets, a sealing set ensuring an ideal seal between the cabinet and the ceiling soffit. The height of the chimney is variable between 750 and 1360 mm to accommodate to the local situation. A rear deflector is part of the chimney solution. It is designed to support natural flow of hot air through the chimney into the ceiling. It is designed for easy entry of cabling and a power line into the cabinet. Made of 1 and 2 mm steel sheet with powder treatment. The rear deflector requires at least 200mm offset of the rear rails in the cabinet.
Ordering code: DP-HPR
Information
Hauptmerkmale
| Product line name |
Hot air exhaust pipe |
|---|---|
| Included in the package |
top cover, pipe, rear deflector |
