Universelle Gehäuse für Elektronik

Serie 101

Suitable for membrane keyboards up to 1.2 mm.

Mehr erfahren

Wo kaufen?

Produkteinführung

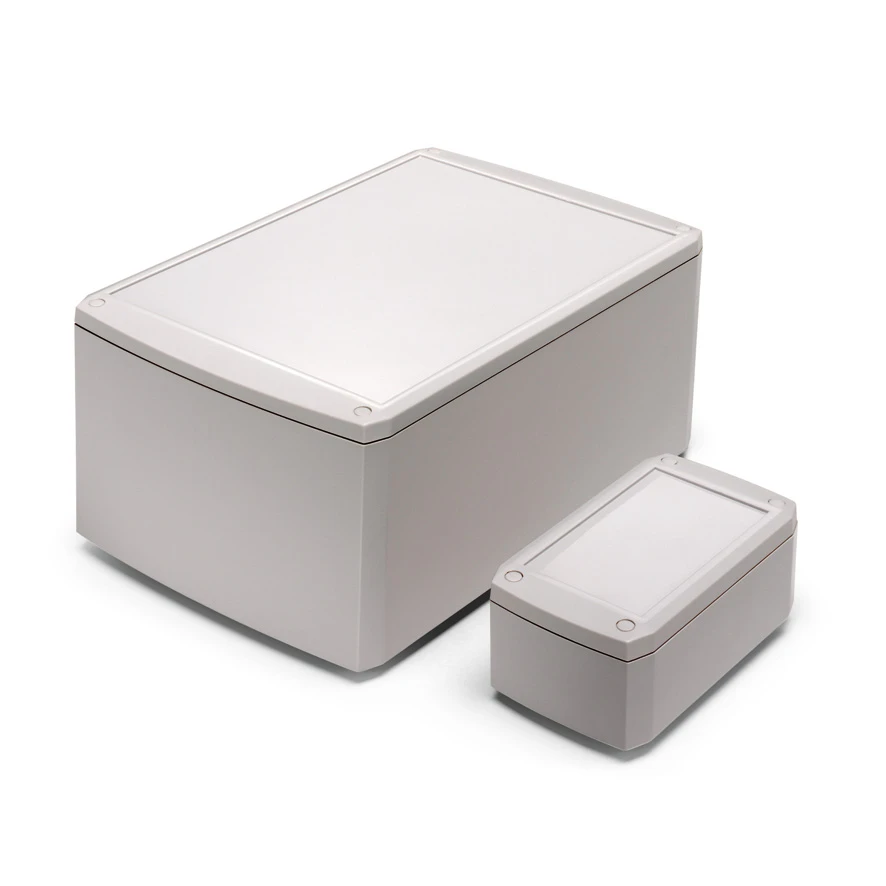

Serie 101 universal electronics box for standard use cases with light gray or black ABS plastic lid. Suitable for membrane keyboards up to 1.2 mm.

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Serie 101
Technische Informationen	DESCRIPTION Modern design with square edges and rounded sides The lid is fixed with four M3 screws masked with self-adjusting rubber plugs Double, top and bottom, an embedded tray allows for the use of membrane keyboards Polished, easy to clean surface Maximum internal volume Protrusions in the base for mounting a printed circuit board Resistance to temperatures up to 85 °C Basic unit includes: lid, base, 4 screws and 4 plugs MATERIALS AND SURFACE TREATMENT Lid and bottom made of highly resistant ABS plastic, excellent for machining Plugs - rubber Standard color: light gray - similar to RAL 7035 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Name der Produktlinie

Serie 101

Technische Informationen

DESCRIPTION

Modern design with square edges and rounded sides
The lid is fixed with four M3 screws masked with self-adjusting rubber plugs
Double, top and bottom, an embedded tray allows for the use of membrane keyboards
Polished, easy to clean surface
Maximum internal volume Protrusions in the base for mounting a printed circuit board
Resistance to temperatures up to 85 °C

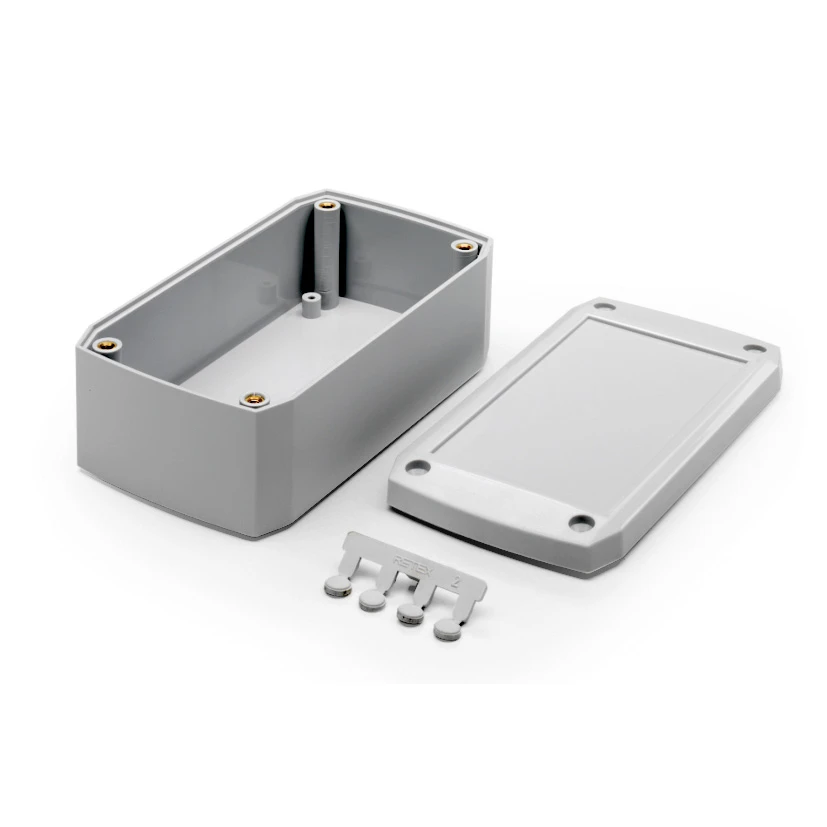

Basic unit includes: lid, base, 4 screws and 4 plugs

MATERIALS AND SURFACE TREATMENT

Lid and bottom made of highly resistant ABS plastic, excellent for machining
Plugs - rubber
Standard color: light gray - similar to RAL 7035

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
