The monitoring device with expanders supports the connection of up to 500 intelligent sensors, which can be arranged on an uploaded graphical background for better clarity. Supports direct connection of a GSM modem, Modbus, and many other features.

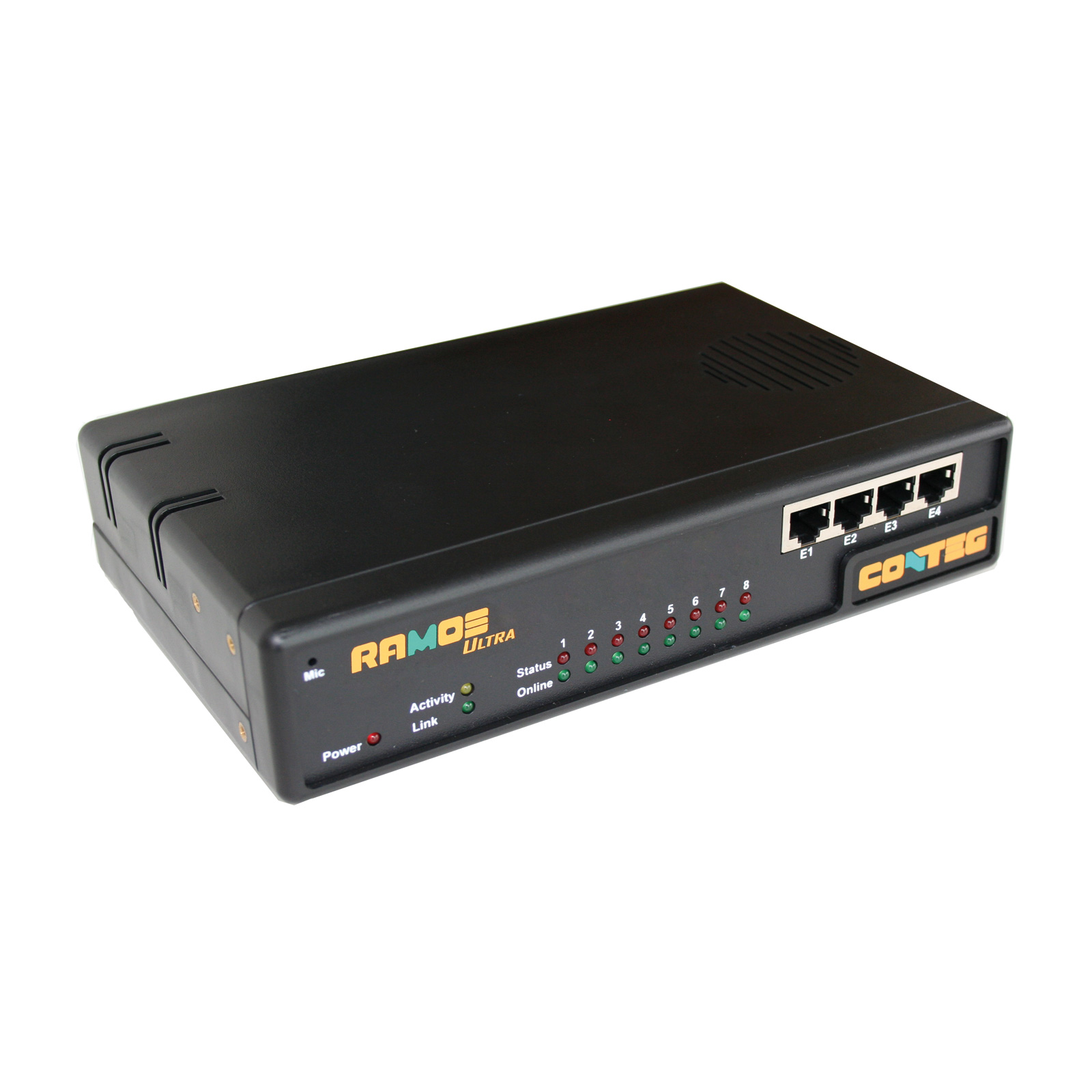

The RAMOS Ultra main monitoring unit for remote surveillance of protected environments is suitable for server rooms and data centers where more than 8 sensors are required. With the use of expanders, this system can be expanded to up to 500 sensors to create a wide monitoring network.

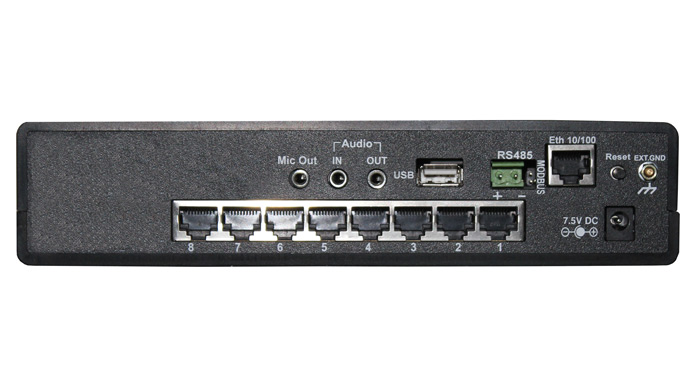

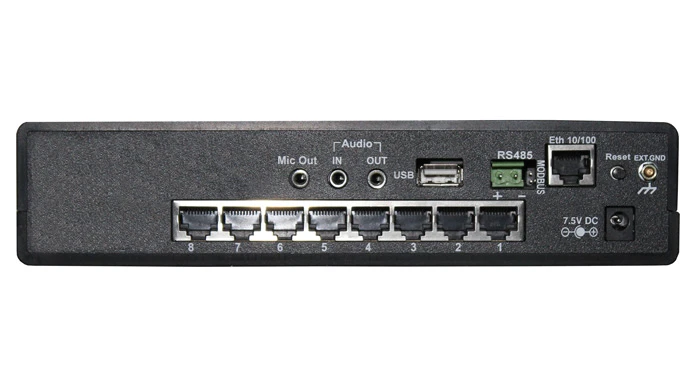

RAMOS Ultra can record all trigger events and alarms in a database with a time stamp. Then unit features 8 intelligent ports with automatic detection that accommodate a wide range of intelligent sensors (to monitor temperature, humidity, water leakage, air flow, and access, to control relays, detect AC voltage, measure DC voltage, etc.). Sensors allow data collection and aggregation for presentation in charts to show trends in air flow, temperature, and humidity fluctuations.
Intuitive web user interface for sensor configuration, data collection, and extensive support for graphical display of values. A full set of remote management features is supported, including secure SNMP v3. The device also supports Modbus Primary/Secondary, Modbus RTU and Modbus TCP/IP protocols, creating unique, easily configurable Modbus/SNMP gateways. The web interface is written in PHP, allowing end users to adapt it to their needs, including different language versions. RAMOS Ultra has an internal battery-backed timer for accurate record keeping. RAMOS Ultra is based on a Linux operating system with a Lighttpd web server supporting TCP/IP, HTTPS (SSL), Bash, Perl, PHP, Telnet, Email and Nagios.
RAMOS Ultra can also be integrated into the CONTEG Pro Server application for central management and supervision.
Ordering code: RAMOS Ultra
| Product line name |
Ramos Ultra |
|---|---|
| Průměrná spotřeba energie |
5.025 W; 0,67 A |
| Weight (kg) |
1 |
| Dimensions |
216x138x46 mm |
| Power |
7-9 VDC, 3Amp |
| Ostatní |

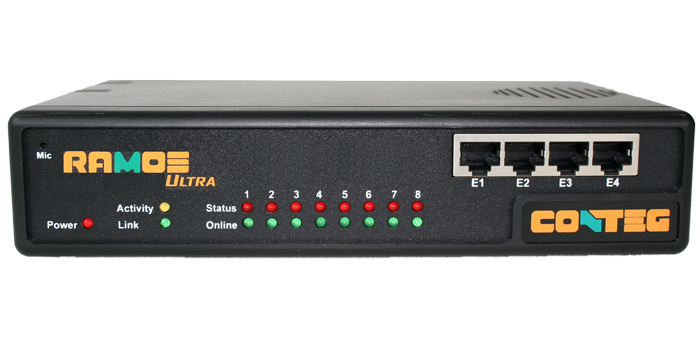

8 auto-detect intelligent ports, selectable as input or output, and 4 expansion ports on the front panel for expanders (RAMOS ULTRA-EX-O16, RAMOS ULTRA-EX-I8, RMS-ACS-U-RDU) that enable monitoring of up to 500 intelligent sensors. |
| Included in the package |
7.5V DC 3A power supply with replaceable power cable, crossover patch cable 1.5m, 1U mounting brackets and installation CD |
Expander enabling easy addition of 16 optically isolated inputs to the RAMOS Ultra, RAMOS ACS and RAMOS Optimax monitoring solutions.
Expander enabling an easy addition of 8 intelligent ports to the RAMOS Ultra, RAMOS ACS and RAMOS Optimax monitoring solutions.
USB Modem including audio cable (4-band GSM)
