SOHO wall cabinets of the REH series are suitable for storing 10" patch panels, shelves, active SOHO elements.

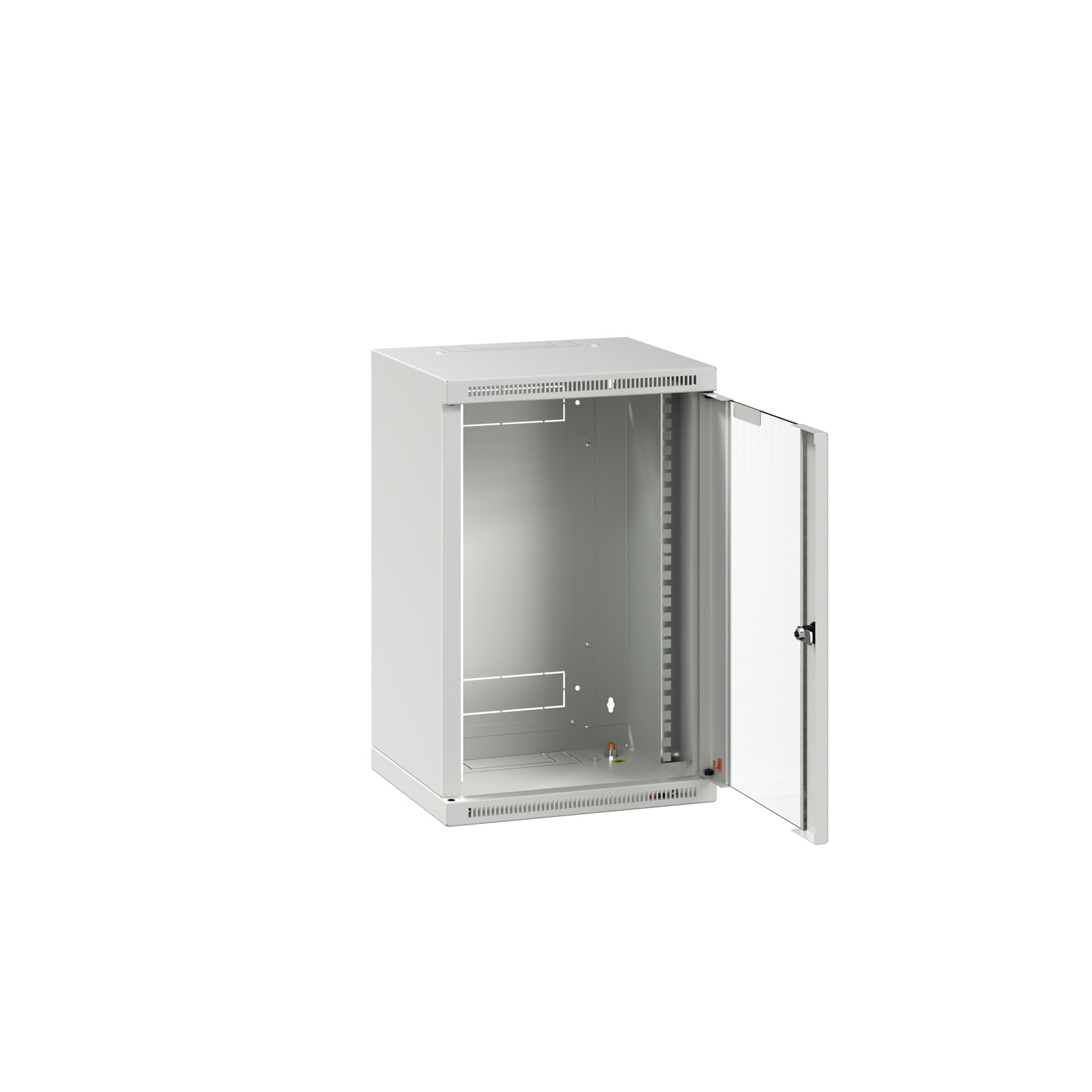

SOHO mini REH series cabinets can hold 10" patch panels, shelves, SOHO active elements, etc. Suitable for small offices and homes. The 10" vertical rfail spacing made it possible to minimize the dimensions of the cabinet to create an elegant and inconspicuous solution. SOHO Mini RSH cabinets offer a basic level of access to the stored technology through the front door. The chassis cannot be dismantled.
| Product line name |
SOHO Mini REH 10" |
|---|---|
| Height (U) |
6, 9, 4
|
| Height (mm) |
237, 326, 459
|
| Výška s obalem (mm) |
257, 346, 477 |
| Width (mm) |
300
|
| Šířka s obalem (mm) |
317 |
| Tiefe (mm) |
260
|
| Tiefe verpackt (mm) |
287 |
| Load capacity (kg) |
Max. 20 (even load) |
| IP rating |
Standard IP30 |
| Color design |
Powder color RAL 7035 |
| Standard configuration |
1 pair of fixed 10" vertical rails, 1 door with a lock and a safety glass pane (EN 12150-1), 8 installation kits |
| Technical information |
The spacing of the vertical rails of the cabinet is 10" |
For use with modular front panel (ORS-08ST, ORS-08SC, ORS-04DSC, ORS-08FC, ORS-04FCD).
