SOHO wall cabinets of the ACP series are intended for use in homes and small offices.

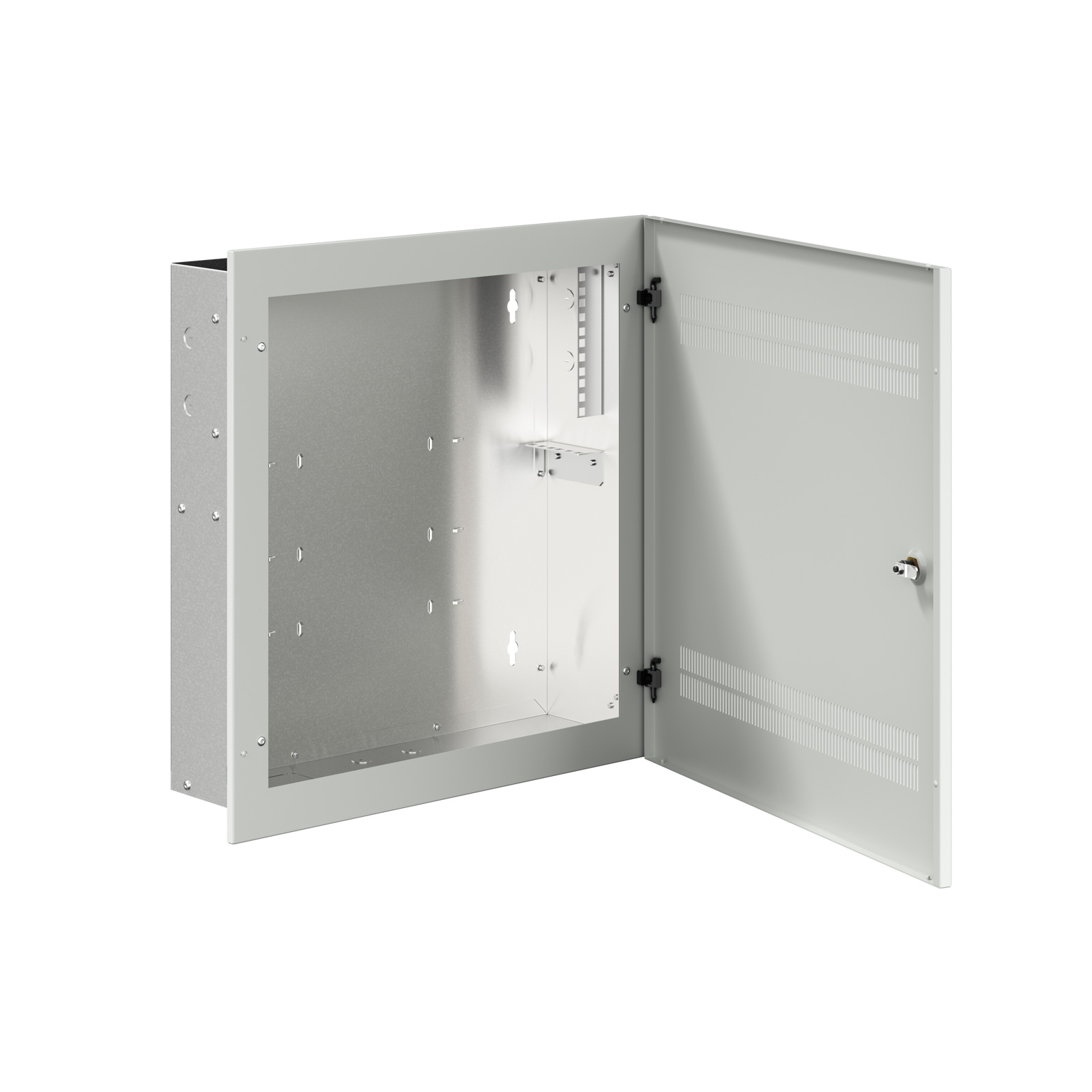

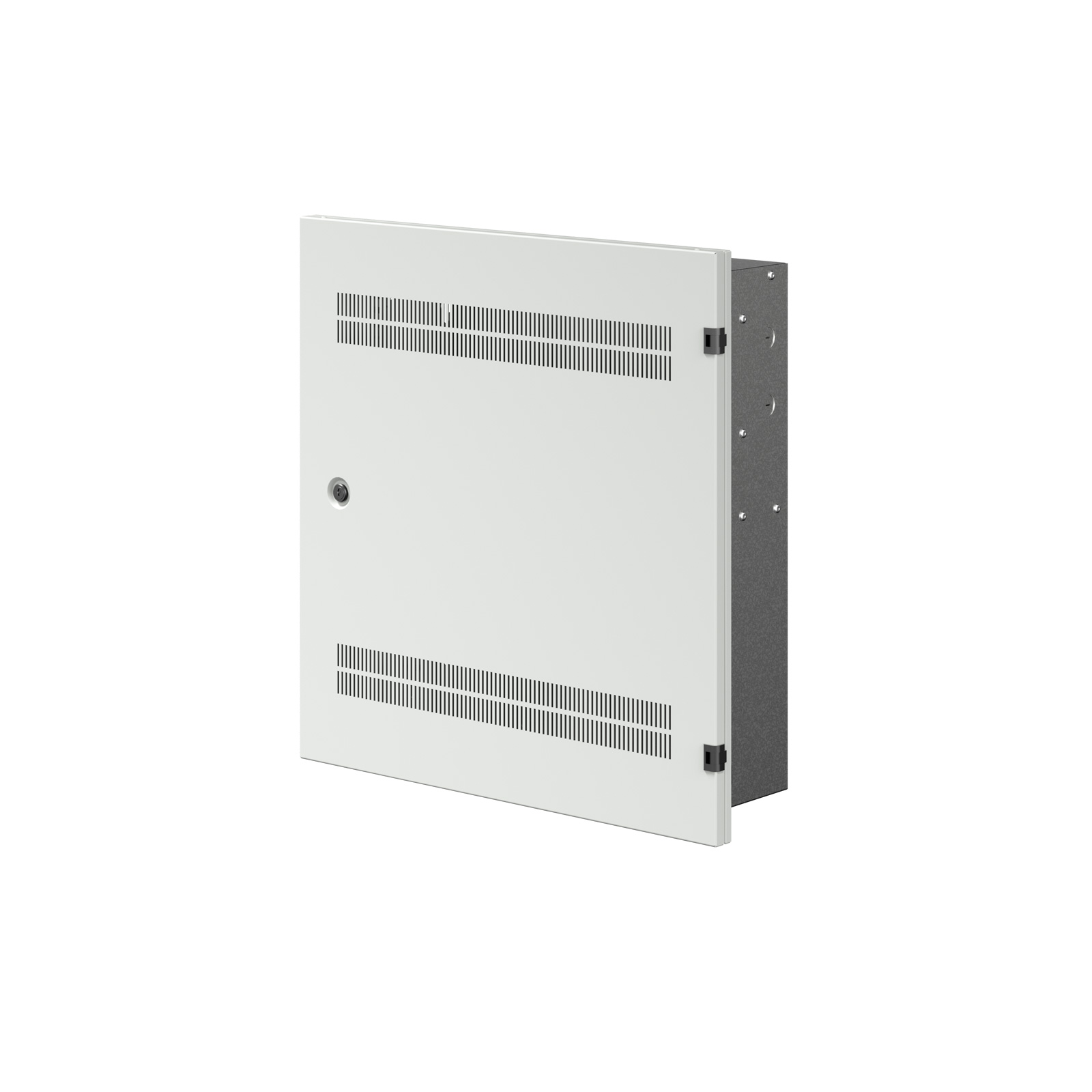

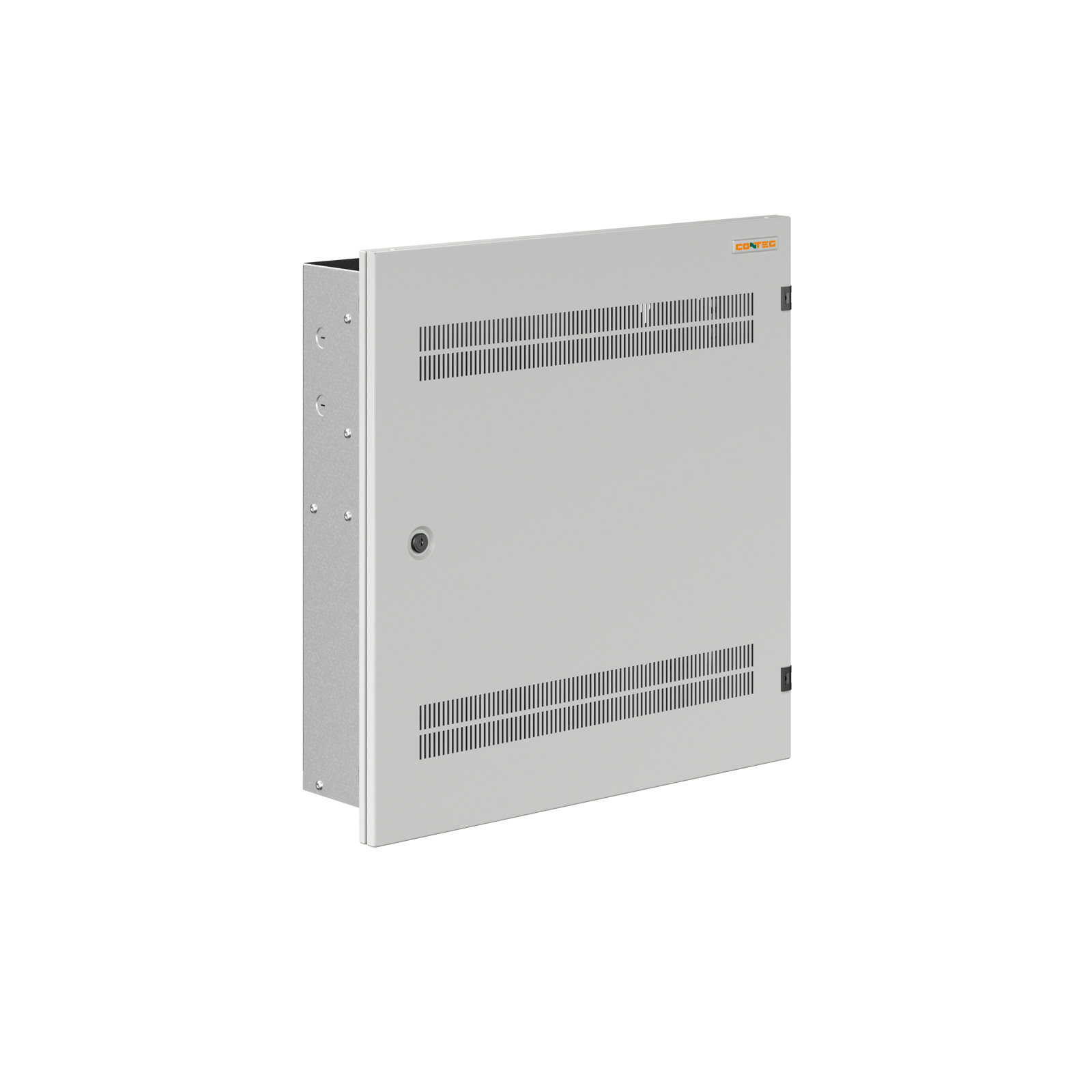

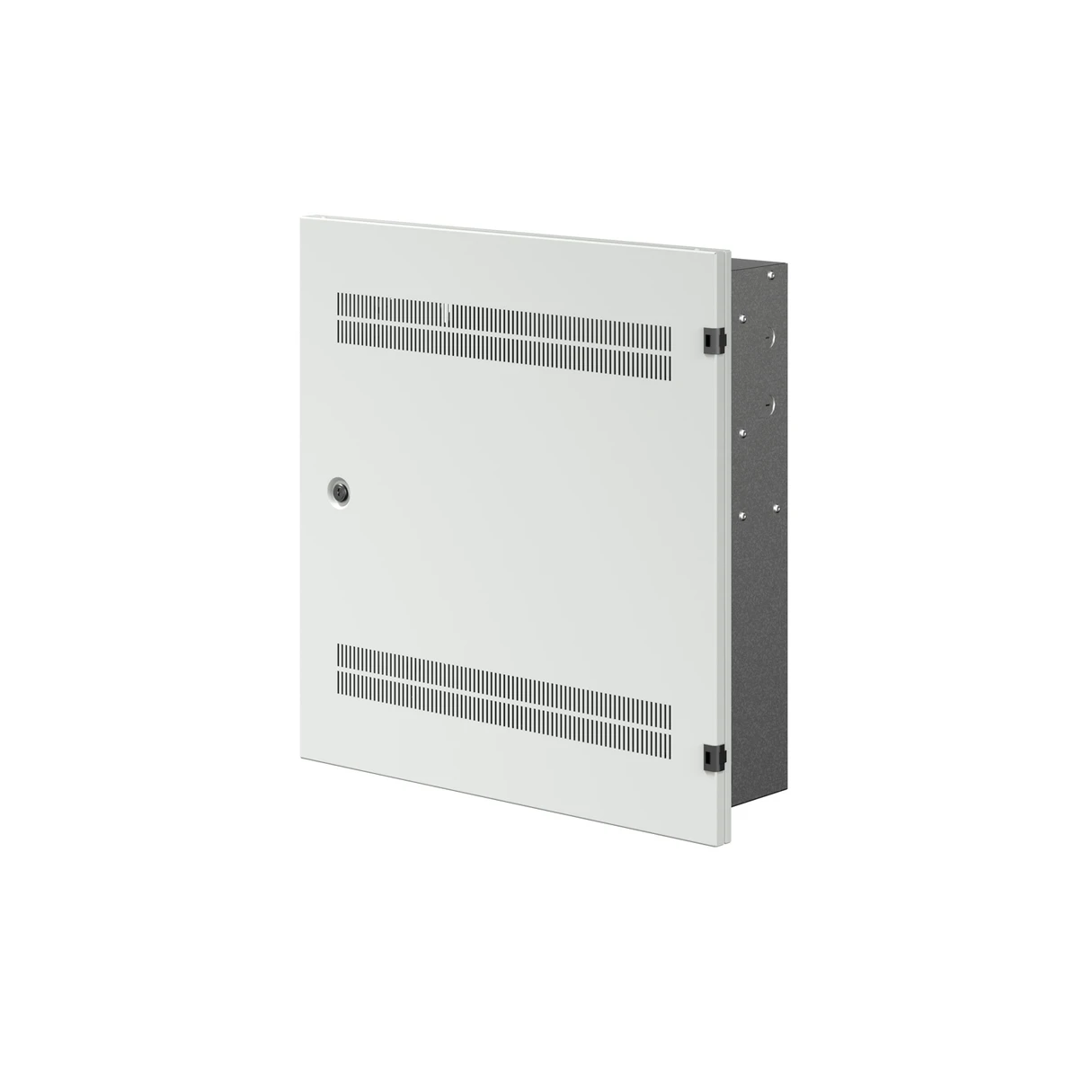

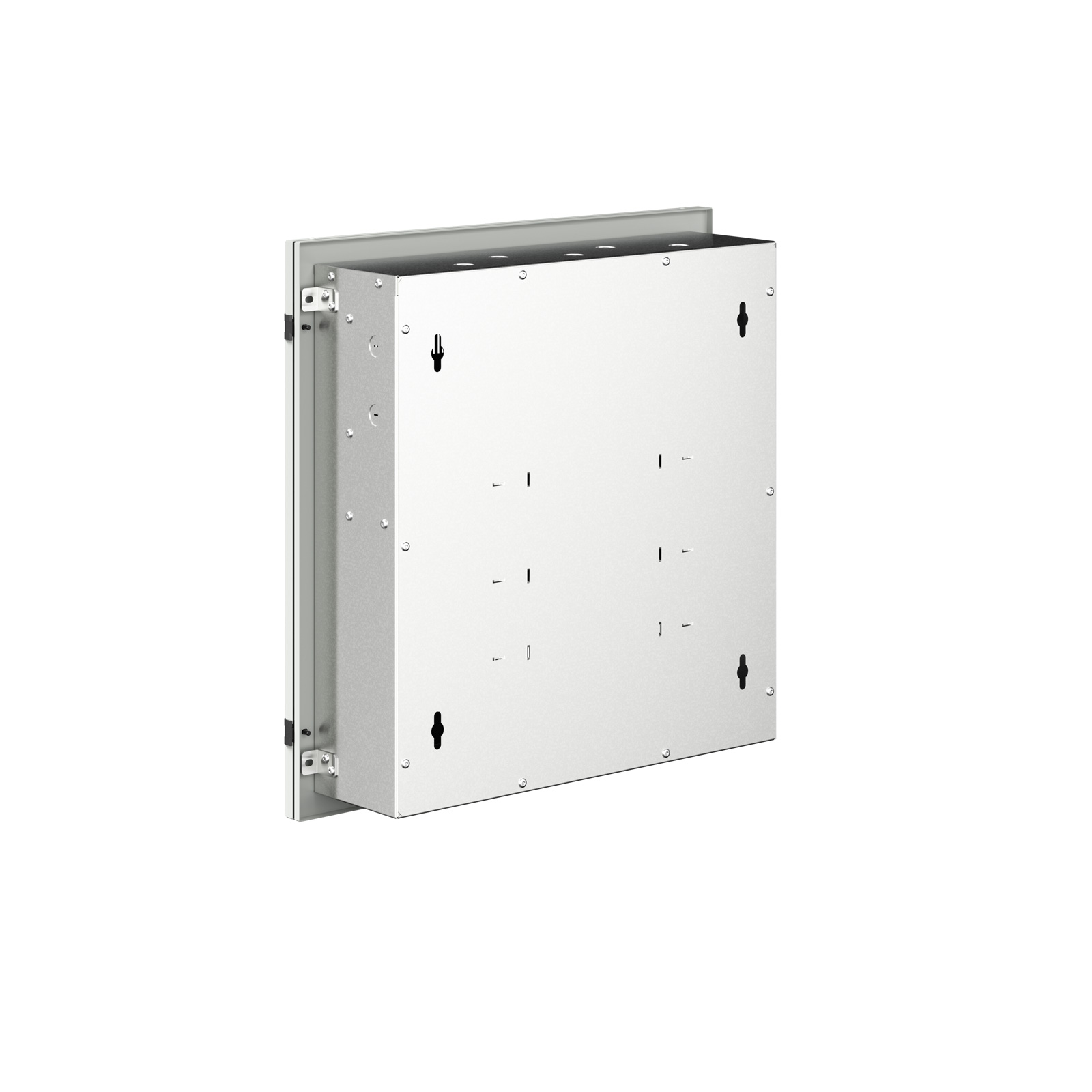

The SOHO In-Wall ACP (19") series cabinets are designed for use in homes and small offices. As the only built-in option in CONTEG’s portfolio, they are installed directly into the wall, which makes them an elegant solution for the core of the home network. SOHO In-Wall cabinets are equipped with 19" 4U rails for mounting passive elements and 19" 2U rails for active elements. It can accommodate patch panels, binding panels and other 19" elements (max. depth 300 mm). Binding panels and other cable management elements ensure a clear and structured routing of all types of cabling (copper, optics) even in the limited internal space of the ACP cabinet.
| Product line name |
SOHO In-Wall ACP |
|---|---|
| Height (mm) |
550
|
| Width (mm) |
530
|
| Tiefe (mm) |
140
|
| Konstrukce |

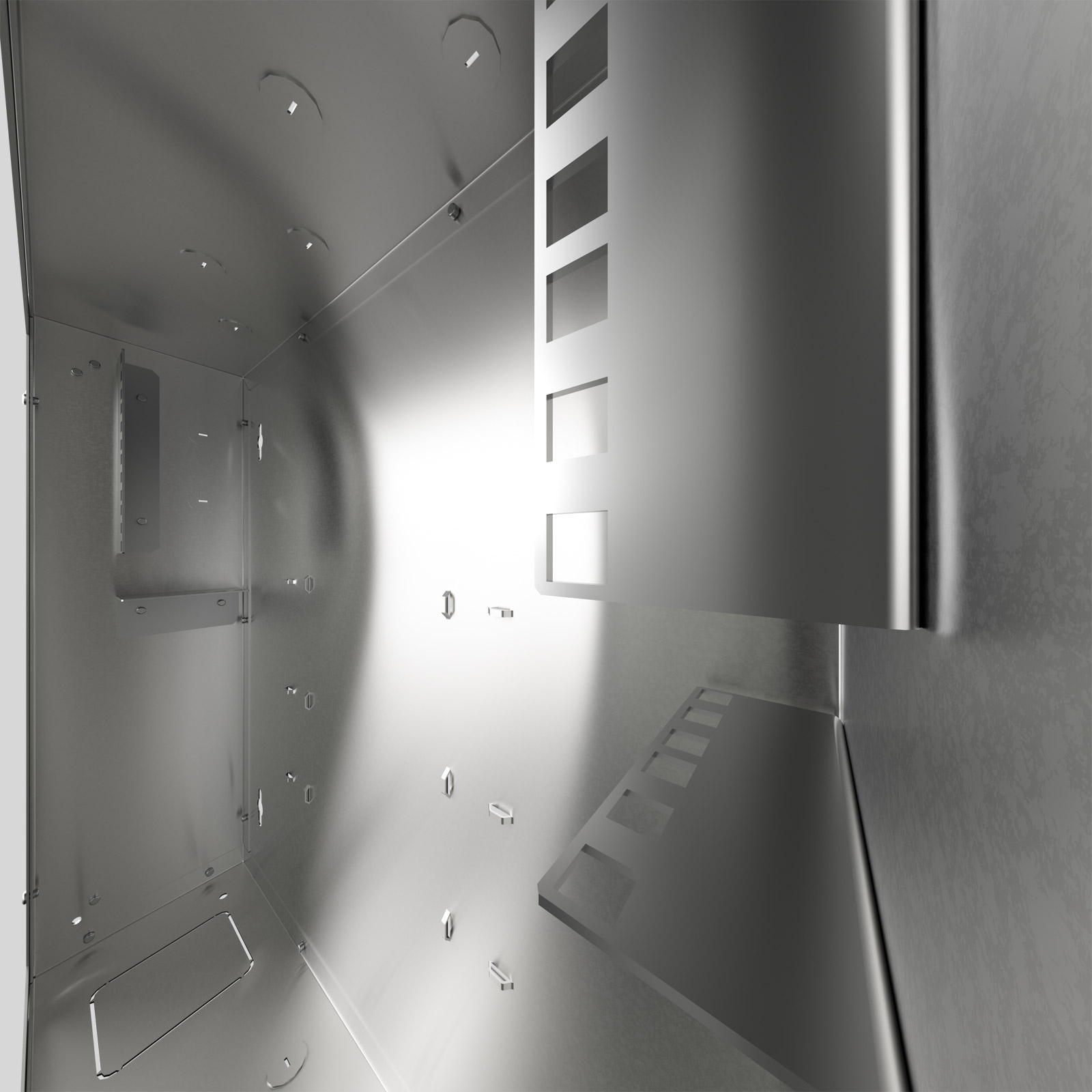

Galvanized chassis made of 1.25mm, 1.5mm and 2mm sheet metal |
| Color design |
Standard RAL 7035 (other colors upon request) |
| Standard configuration |
1 pair of fixed 19"" vertical rails (4U) |
Binding panels with plastic loops are used for installation and horizontal routing of cables within the cabinet.
Plastic binding ducts are intended for placement and horizontal routing of cables in rack cabinets, wall-mounted and SOHO cabinets.
Binding panel with metal loops, single-sided design only
Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.
Optical trays are used to terminate optical cables in the cabinet. We also offer various types of modular panels and other optical accessories.
All CONTEG cabinets include a basic grounding kit in the standard configuration.
Patch panels are attached to 19" vertical rails and allow the termination of data or telephone cables to different types of modules.
3 types of patch panels
Accessories for SOHO Mini REH - binding panel.
