Löschsystem LES-RACK

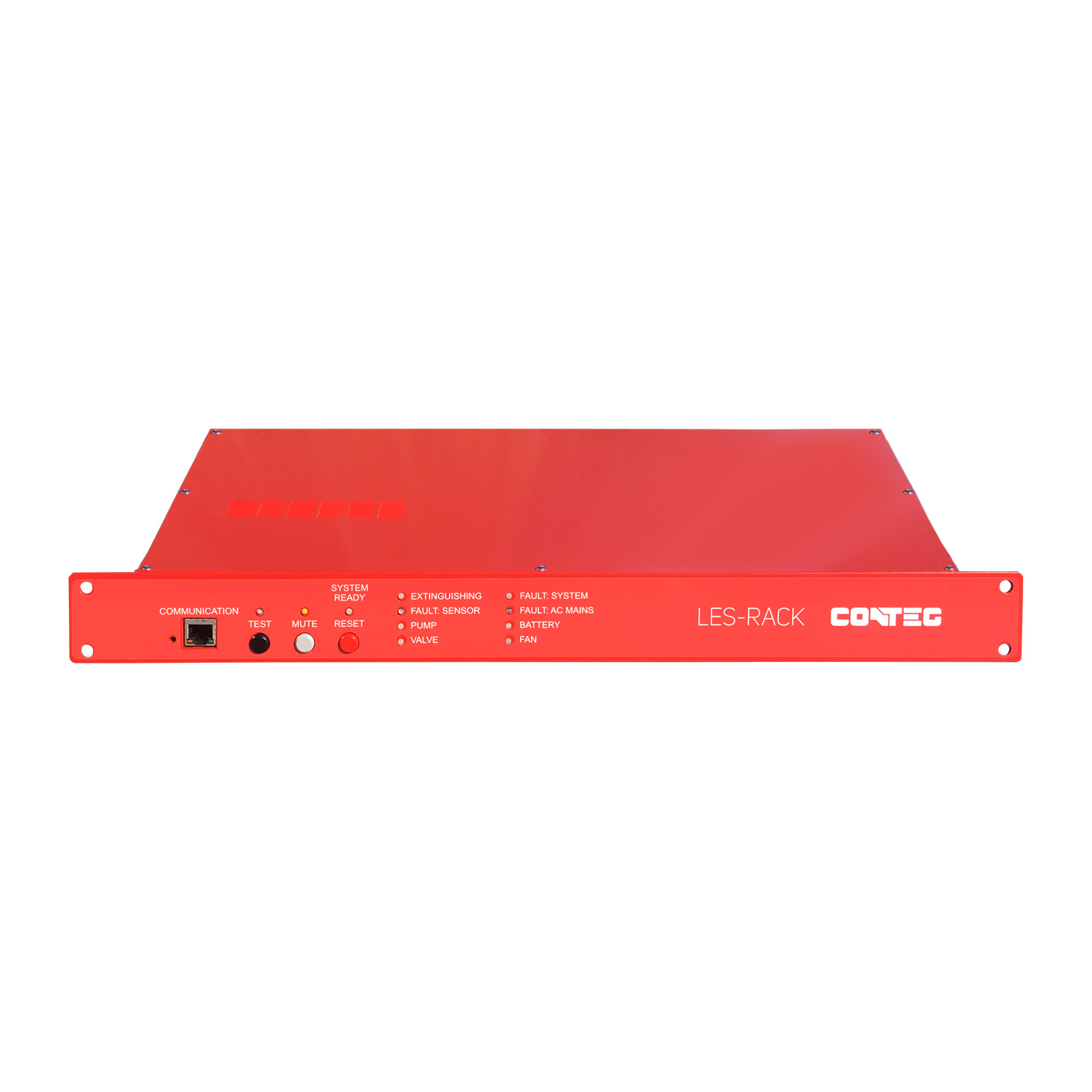

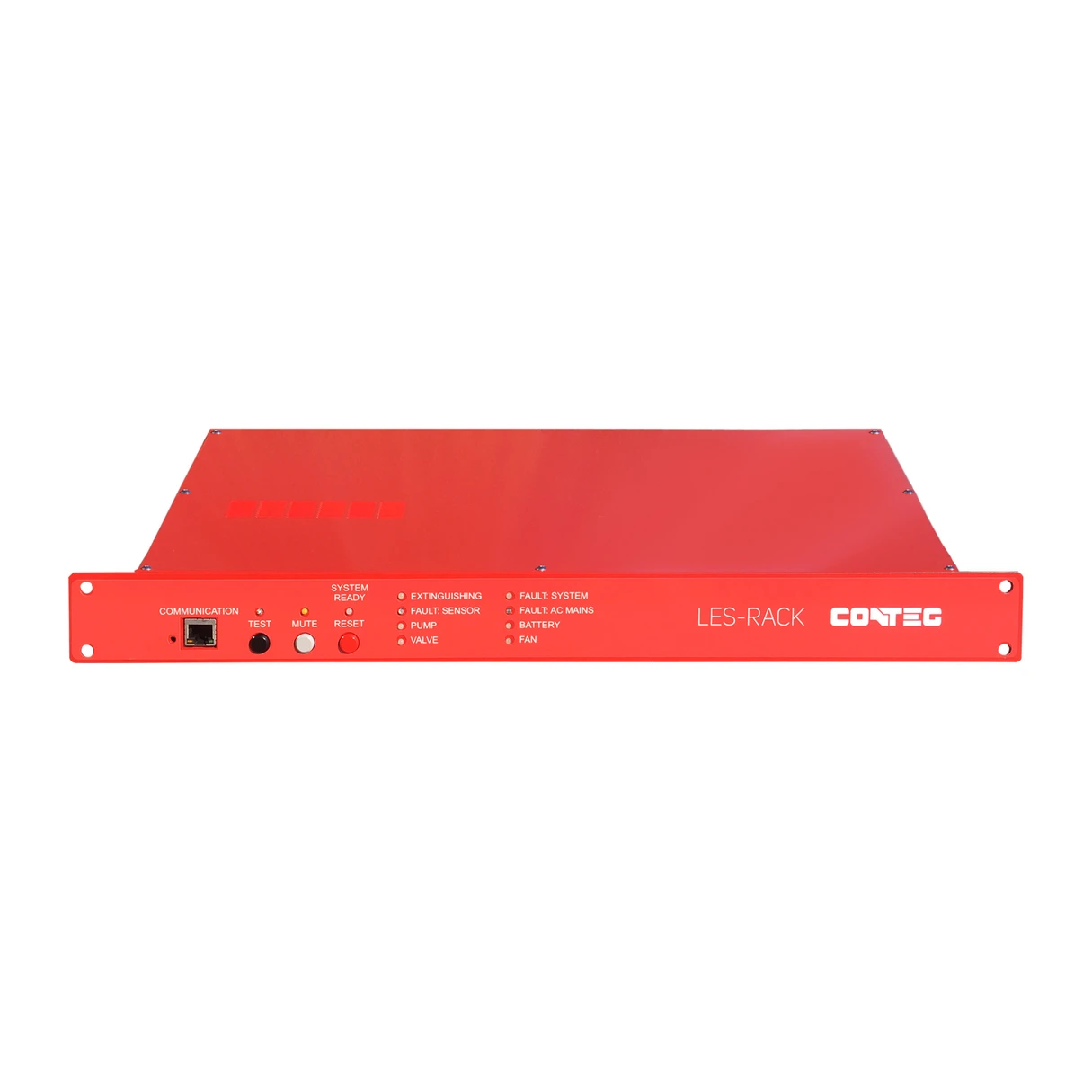

LES-RACK is a self-contained, fully automatic detection and fire protection system, designed for direct installation in 19" cabinets with IP30 protection or higher.
Produkteinführung
LES-RACK is a self-contained, fully automatic fire detection and protection system designed for direct installation in 19"" racks with IP30 protection or higher, offering a highly effective and efficient solution for server, telecommunications and control racks/cabinets.

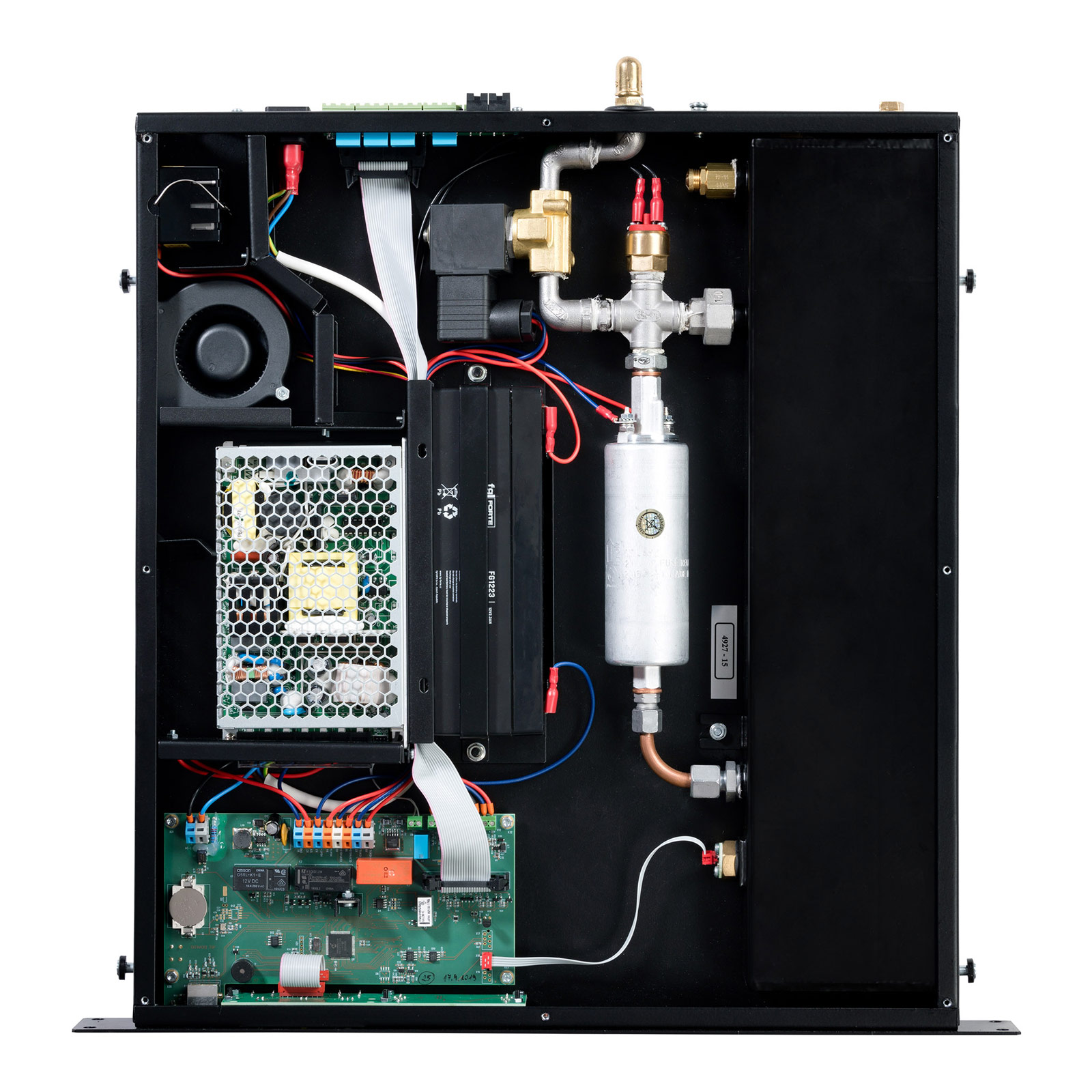

The LES-RACK-M1 unit offers a comprehensive fire detection, control, assessment, communication and extinguishing system. Larger server racks and adjacent cabinets can be protected with additional LES-RACK-M1 units. LES-RACK floods the protected area with clean gas until the fire is completely extinguished. The unit includes a reservoir with FK-5-1-12 agent, in compliance with TÚPO (Technical Institute of Fire Protection, authorized person 221). The non-pressurized solution enables air transport. After activation, the device can be filled with extinguishing agent at the installation site. For fire detection, each LES-RACK system is equipped with an optical fire detector connected to the assessment and control unit. The integrated control unit indicates the current status in the system, checks and assesses the operation of the fire extinguisher. The LES-RACK M1 system supports communication with the building’s fire alarm control panel (FACP).
The ideal fire protection solution for compact units completely isolated from the surrounding environment inside data halls and server rooms. More about Compact Data Centers - a scalable non-IT infrastructure solution.
Ordering code: LES-RACK-M1
Hauptvorteile des Produkts
- Immediate fire detection and extinguishing
- Does not damage the affected equipment
- Fully automatic

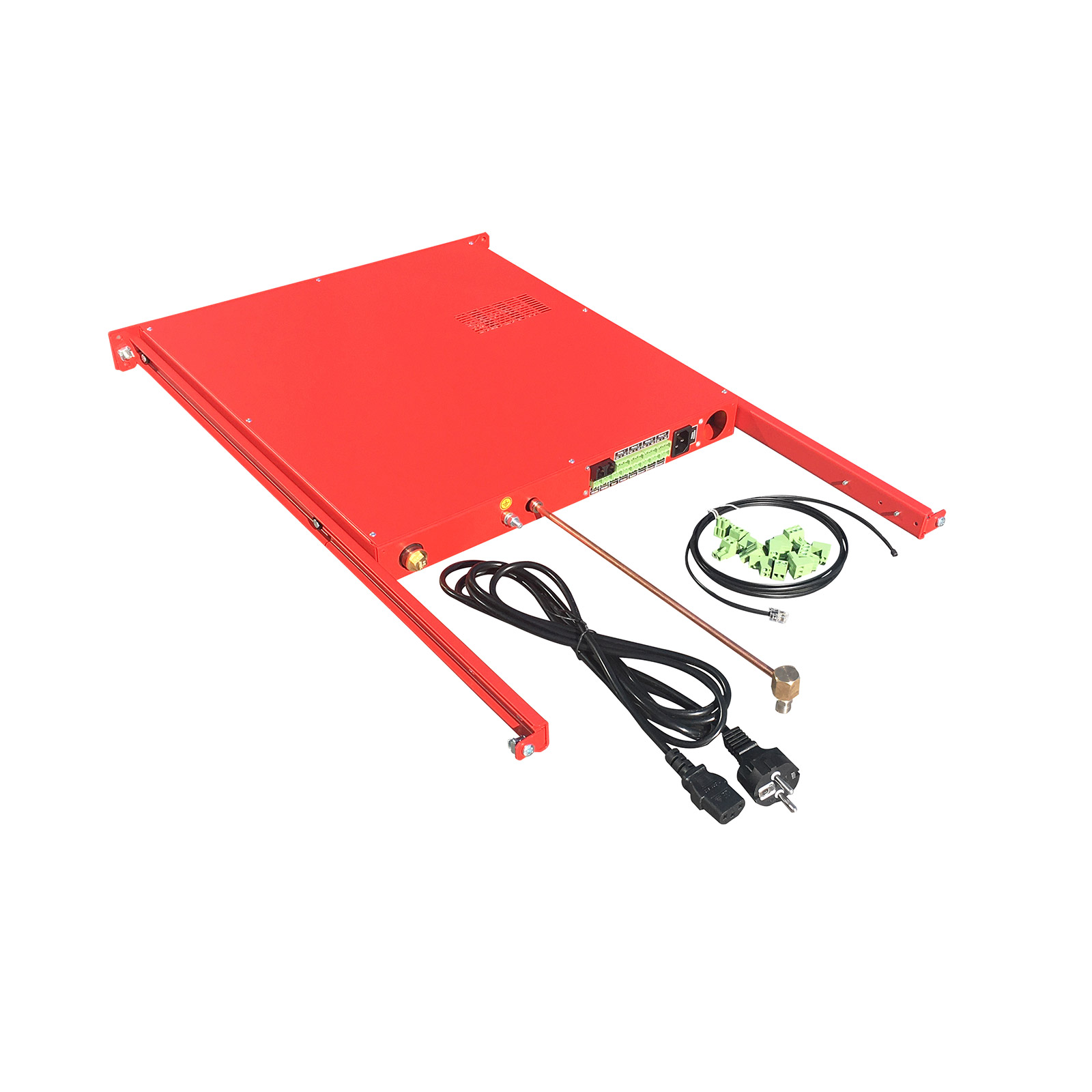

- Easy installation with guide rails
- Extinguishing agent can be refilled at the installation site
- Remote access via HTML to view device status and parameter settings
- Supports communication with the building’s fire system
Information
Hauptmerkmale
| Product line name |
LES-RACK fire extinguishing system |
|---|---|
| Height (mm) |
45 mm / 2.5U
|
| Width (mm) |
483 mm / 19"
|
| Tiefe (mm) |
495
|
| Hmotnost bez hasiva |
11 |
| Hmotnost hasiva |
2 |
| Užitná hloubka (mm) |
Max. 860 |
| Hasivo |
FK-5-1-12 |
| Klasifikace prostředí |
3 k5 |
| Třída prostředí |
A |
| Power |
110-240 V AC |
| Input power |
max. 200 VA |
| Frekvence |
50/60Hz |
| Provozní poloha |
Horizontal |
| Provoz |
Continuous |
| IP rating |
IP30 |
| Relativní vlhkost vzduchu |
90% non-condensing |
| Ostatní |
Detectors located inside the cabinet immediately detect a fire in its initial phase |
| Operating temperature |
from +5 °C to +40 °C |
zum Herunterladen
Broschüre: Komplexe Lösungen für Rechenzentren
Produktkatalog: Daten und Telekommunikation Lösungen und Schränke
