Flutmelder mit Erkennungsseil und Lokalisierung
Hauptvorteile des Produkts
- Water rope sensor with localization is a type of detector capable of determining a specific point of contact with water. The water rope sensor with localization can be connected to the Ramos Optimax or Ramos Ultra monitoring system using intelligent ports (RJ-45).

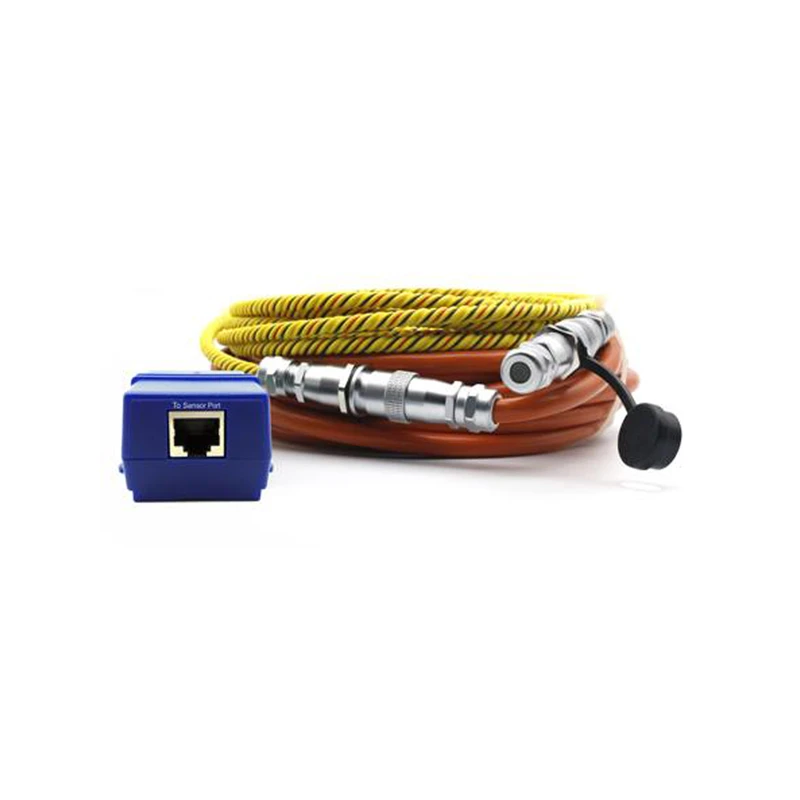

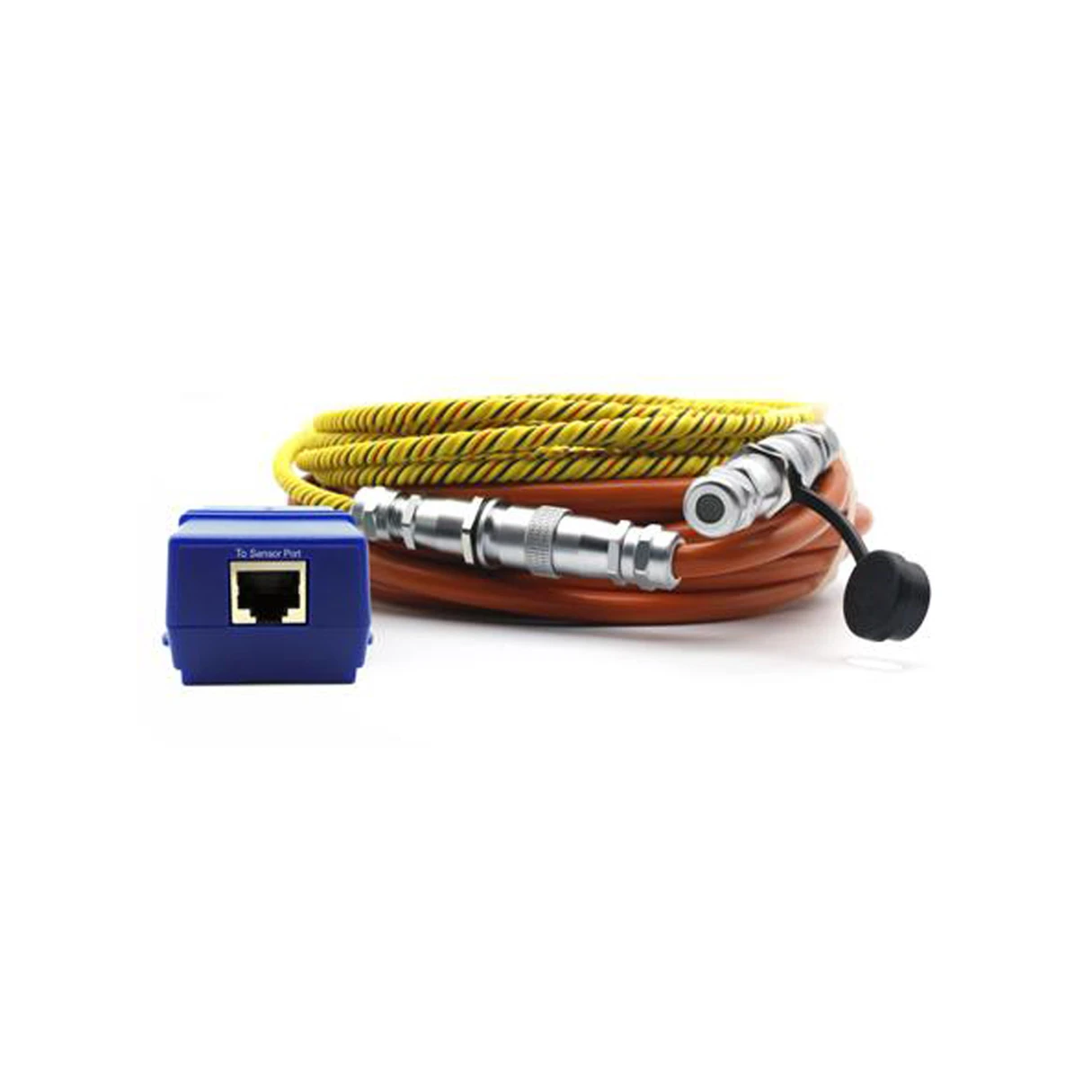

- The sensor includes: a 3m detection rope that can be extended using a 3m extension detection cable, a durable 6m cable to connect the detection rope and the detection module, the main detection module that can be connected to an intelligent port using a CAT 5/6 patch cable.
- The detection cable can be extended with 3 m long extension detection cables up to a total length of 50 m.
- Order code: RMS-I-DE-07
Information
Hauptmerkmale
| Name der Produktlinie |
Water rope sensor with localization |
|---|---|
| Technische Informationen |
Powered from RAMOS Optimax, Plus or Ultra main units. Does not require external power. Auto-detection, both devices are able to detect the connection of the water rope sensor with localization Able to detect water leakage location Requires detection rope length adjustment for accurate localization The sensor is fully assembled and includes the following parts: 3m long detection rope (extendable with 3m extension parts RMS-I-DE-07-EXT3), durable 6m cable to connect the detection rope and detection module, main detection module to connect to an intelligent port using a patch cable LED indication on the main module is activated in the event of contact with water. The main module reports a critical condition if it is disconnected or the integrity of the rope is compromised |
