RAMOS ACS

Biometrisches Türlesegerät zur Gesichtserkennung mit Multiformat-RFID-Leser

Door wall-mounted biometric reader for face recognition with multi-format RFID reader.

Mehr erfahren

Wo kaufen?

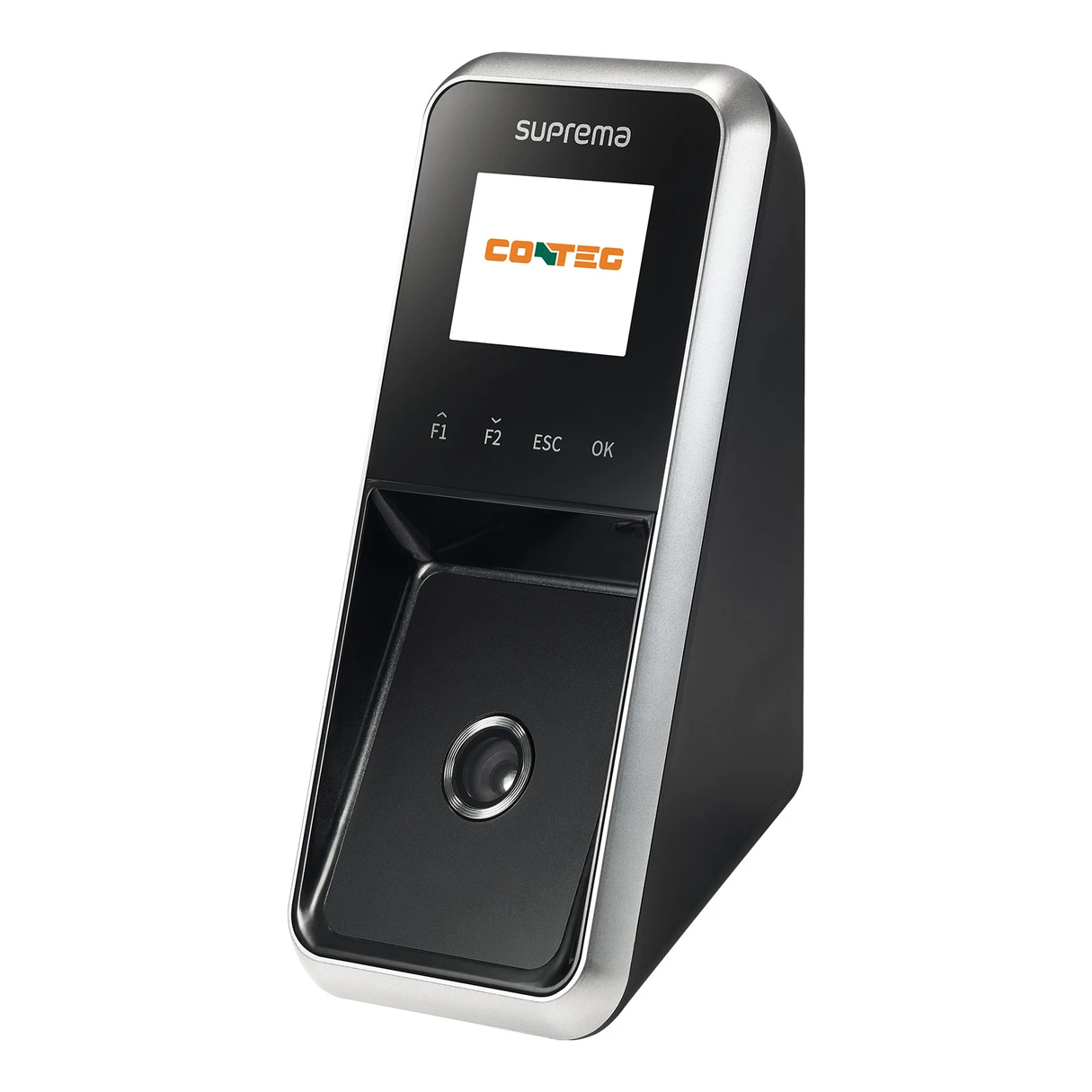

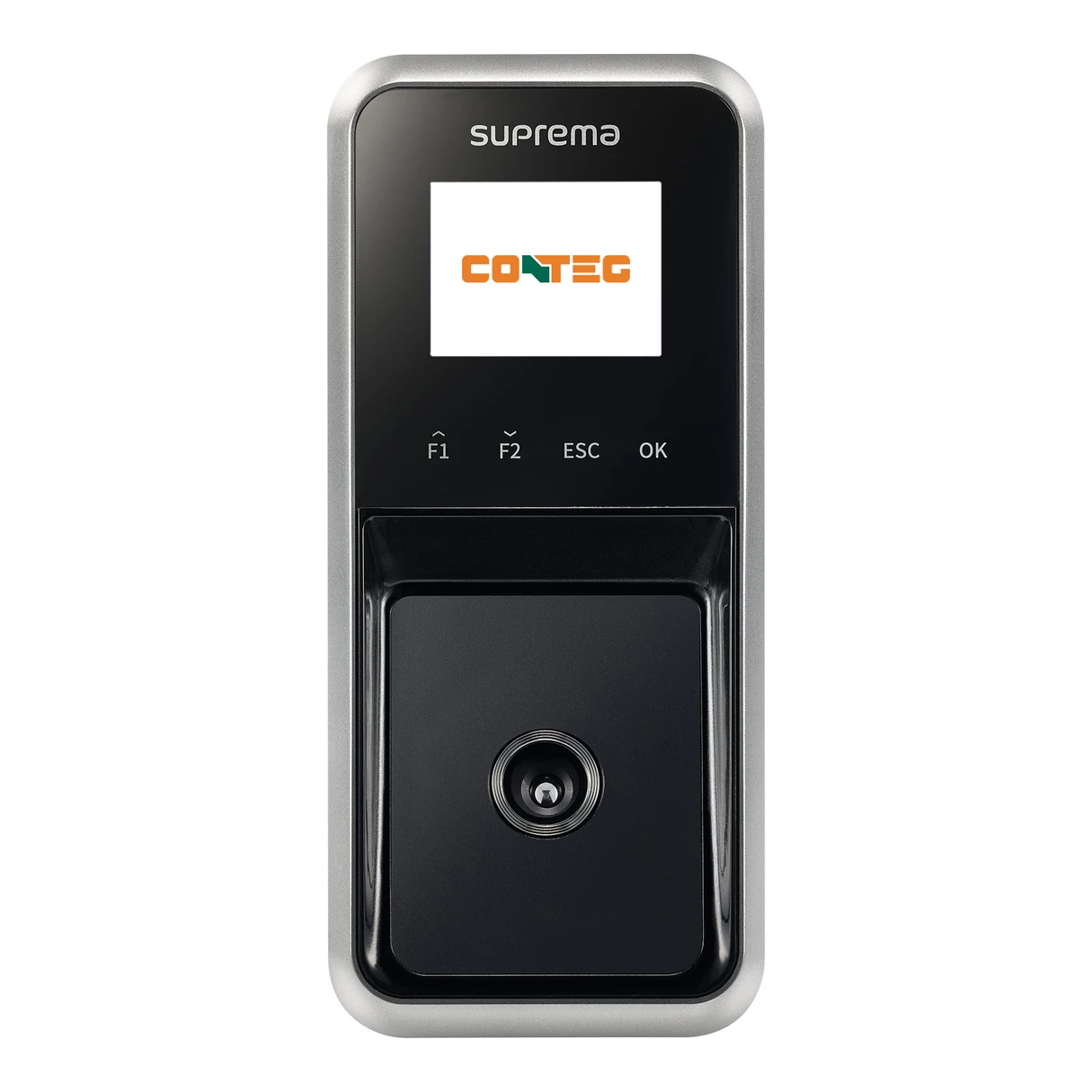

Biometric Reader for Face Recognition With Multi-Format RFID-Reader

Biometric Reader for Face Recognition With Multi-Format RFID-Reader_angle

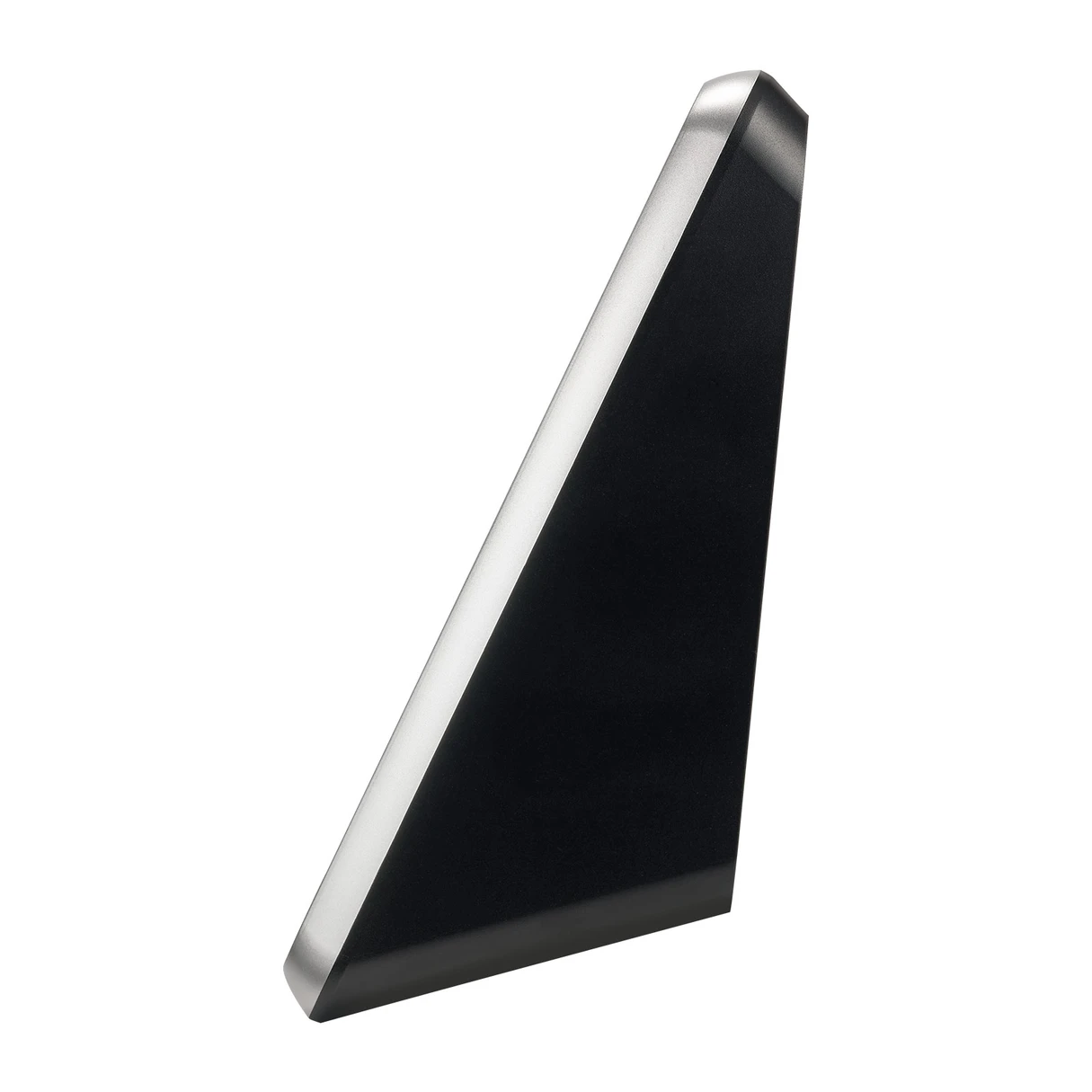

Biometric Reader for Face Recognition With Multi-Format RFID-Reader_side

Produkteinführung

The door-mounted biometric face reader with multi-format RFID reader can perform authentication in three different ways: using facial geometry recognition, or face recognition in combination with an RFID medium, or RFID medium only.

The integrated multi-format RFID reader supports RFID media at both 125 kHz and 13.56 MHz bands (e.g. MIFARE® media).

Operating lighting of the terminal with a range from 0 lx to 25,000 lx allows the device to work reliably even in total darkness in the installation area.

An IR camera for face detection prevents fake identity (printed photos or image on a LCD display). The device is connected to the RAMOS ACS access system over the Wiegand protocol.

Ordering code: RMS-ACS-U-FACE

Information Video zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Biometric reader for facial recognition
Code	RMS-ACS-U-FACE
Technische Informationen	2"" TFT LCD color display Facial geometry matching evaluation speed: 1:3,000 match/s. Match evaluation speed per group: 1:5,000 match/s. Can read EM & HID Prox. (125kHz) EM and MIFARE, MIFARE Plus, DESFire/EV1, FeliCa (13.56MHz) cards/chips Operating lighting: from 0 lx to 25,000 lx Memory: 8GB Flash + 1GB RAM 4 buttons 1x RS-485 - master/slave 1x Wiegand - input/output Ethernet: 10/100Mbps, auto MDI/MDI-X 1x Relay output max. 30VDC/2A Tamper protection IP protection: IP40 Operating temperature: -20 °C to 50 °C Dimensions: 80 x 160.3 x 71.8 mm Included in the package: 24VDC/2.5A power supply in a distribution box with power cable and connection cable, wall mounting kit
