Freistehende Serverschränke

Bodenpaneele und Dachbleche für PREMIUM-Serverschränke

The Premium series cabinets were designed as a flexible solution, enabling variability and exchangeability of all parts of the cabinet casings, including the top and bottom cover.

Datenblatt Mehr erfahren

Wo kaufen?

Produkteinführung

The PREMIUM series cabinets provide unlimited flexibility in planning their final appearance - mainly thanks to the exchangeability of the top and bottom cover. The portfolio includes 3 types of top covers and 9 types of partial bottom covers. This makes it possible to customize the location and types of openings for the entry of cabling into the cabinet. The covers create a unique interface between the cable routing and management systems outside and inside the cabinet. All the covers can be used for PREMIUM Cabling RDF and PREMIUM Server RSF series cabinets. They can be delivered installed on the cabinet or as a separate item (supplied in a cardboard box).

TOP COVERS

The top covers are undivided, in three different designs. They are delivered either installed on the cabinet or separately in a cardboard box. Covers are delivered complete with plugs for the cable inputs.

BOTTOM COVERS

The bottom covers are designed as multi-part. The complete bottom cover of the cabinet consists of 3 or 4 covers (parts). They are delivered either as installed in the cabinet or separately (individual parts) in a box. Covers are delivered complete with plugs for the cable inputs.

Information zum Herunterladen

Information

Hauptmerkmale

Product line name	Covers for PREMIUM series cabinets
Technical information	Covers are specified in the order matrix of RSF/RDF cabinets. A suitable combination is indicated for each type - when ordering, make the appropriate change in the cabinet code. Here is an overview of the standard combinations: Code Description A Top cover – P design, bottom cover – X design, both covers are single-piece, support IP54 C Without top cover, bottom cover – X design, ready for installation of rooftop AC unit E Upper cover – F design single-piece, bottom cover - segmented (600x800: BFB, 600x1000: BHB, 600x1200: BFFB, 800x800: CFC, 800x1000: CHC, 800x1200: CFFC) F Top cover - F design (one-piece), without bottom cover - ready for installation on double floor or plinth H Upper cover – I design (one-piece), lower cover – segmented (800x800: CFC, 800x1000: CHC, 800x1200: CFFC) I Top cover - I design (one-piece), without bottom cover - ready for installation on a double floor or plinth X Without top and bottom cover If option X is chosen or a different combination is requested, the order codes must be altered as follows: CO-TU-60/80-X-Y – for the top cover with the design of your choice, supplied separately in a box. The dimensions must match the width and depth of the cabinet. Insert the desired design code (B, F, I) in the X position. CO-BU-60-XY – for the bottom cover with the design of your choice, supplied separately in a box. The dimensions must match the width of the cabinet. Insert the required design (code A to I) in the X position. Bottom covers need to be ordered for the entire cabinet by part.

Product line name

Covers for PREMIUM series cabinets

Technical information

Covers are specified in the order matrix of RSF/RDF cabinets. A suitable combination is indicated for each type - when ordering, make the appropriate change in the cabinet code.

Here is an overview of the standard combinations:

Code Description
A Top cover – P design, bottom cover – X design, both covers are single-piece, support IP54
C Without top cover, bottom cover – X design, ready for installation of rooftop AC unit
E Upper cover – F design single-piece, bottom cover - segmented (600x800: BFB, 600x1000: BHB, 600x1200: BFFB, 800x800: CFC, 800x1000: CHC, 800x1200: CFFC)
F Top cover - F design (one-piece), without bottom cover - ready for installation on double floor or plinth
H Upper cover – I design (one-piece), lower cover – segmented (800x800: CFC, 800x1000: CHC, 800x1200: CFFC)
I Top cover - I design (one-piece), without bottom cover - ready for installation on a double floor or plinth
X Without top and bottom cover
If option X is chosen or a different combination is requested, the order codes must be altered as follows:

CO-TU-60/80-X-Y – for the top cover with the design of your choice, supplied separately in a box. The dimensions must match the width and depth of the cabinet. Insert the desired design code (B, F, I) in the X position.

CO-BU-60-XY – for the bottom cover with the design of your choice, supplied separately in a box. The dimensions must match the width of the cabinet. Insert the required design (code A to I) in the X position. Bottom covers need to be ordered for the entire cabinet by part.

zum Herunterladen

Produktkatalog: Daten und Telekommunikation Lösungen und Schränke

Kataloge und Broschüren

Dateigröße: 54.33 MB

Hochgeladen: 2. 7. 2025

Herunterladen: de / Anzeigen: de

Language versions:

cs , en , fr

Datenblatt: PREMIUM Schrankserien Paneele

Datenblatt

Dateigröße: 1.41 MB

Hochgeladen: 8. 6. 2025

Herunterladen: de / Anzeigen: de

Language versions:

cs , en , fr

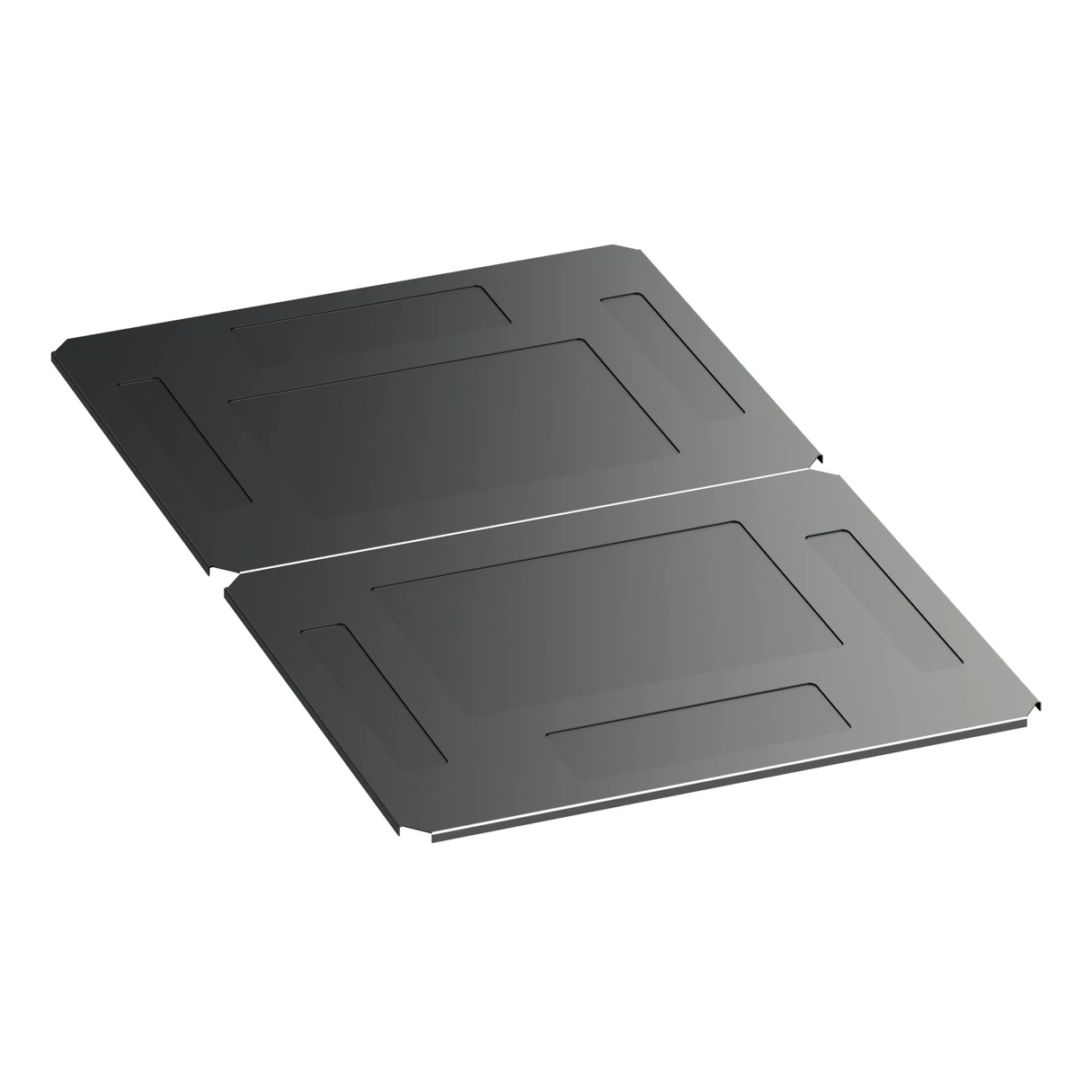

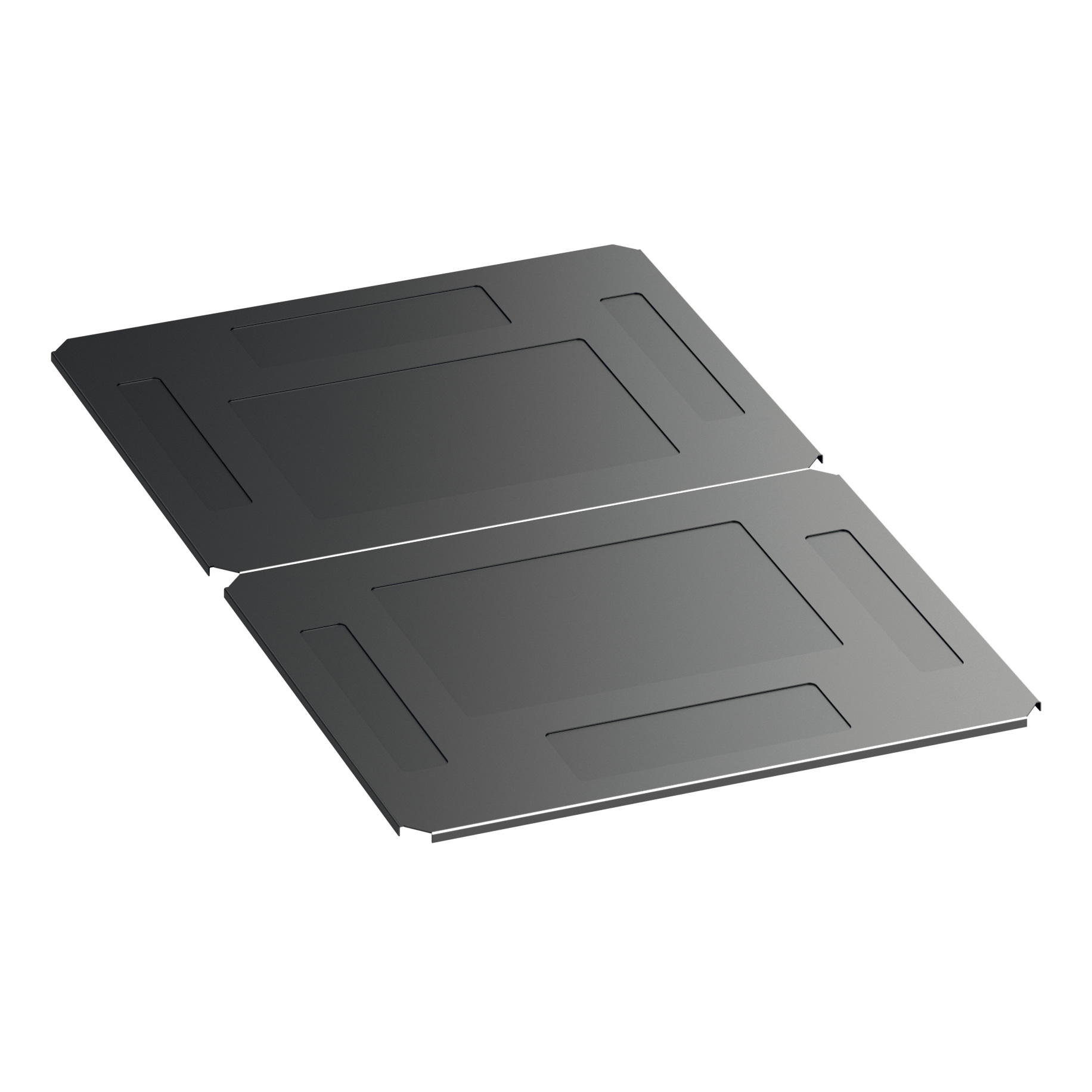

horni-kryt-b-800x1200_top

Bilder

Dateigröße: 187.74 kB

Hochgeladen: 24. 2. 2025

Herunterladen

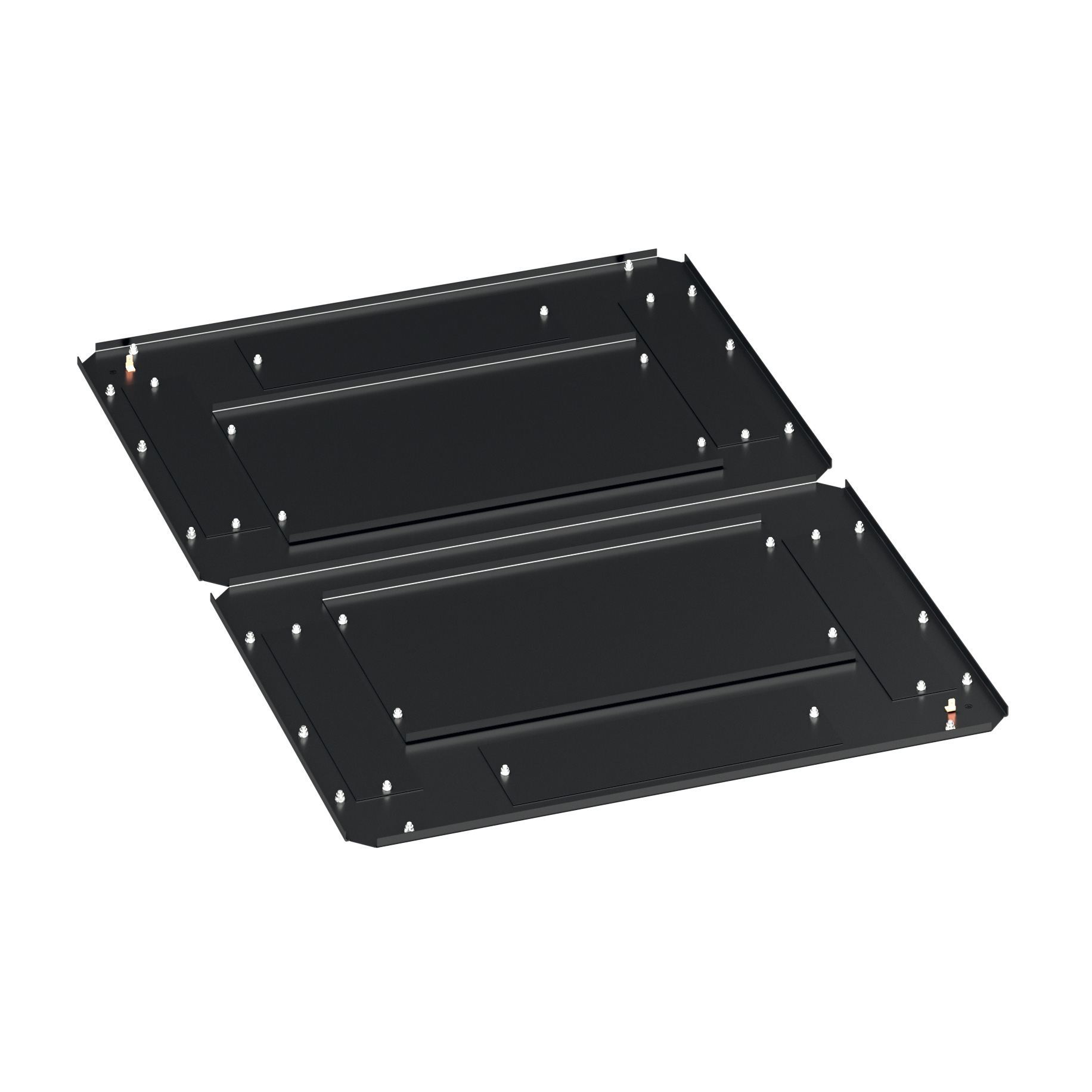

horni-kryt-b-800x1200_bottom
