Desktop-Gehäuse für Elektronik

Elbox

Suitable for control, testing or inspection applications with front/rear display.

Mehr erfahren

Wo kaufen?

Produkteinführung

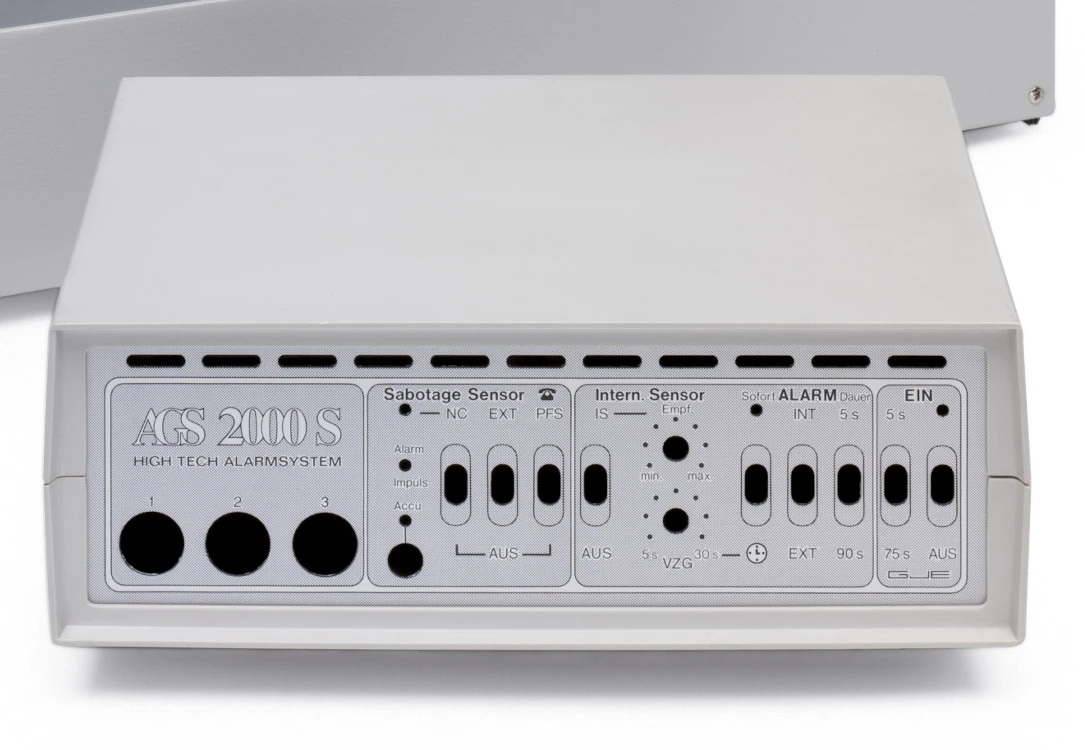

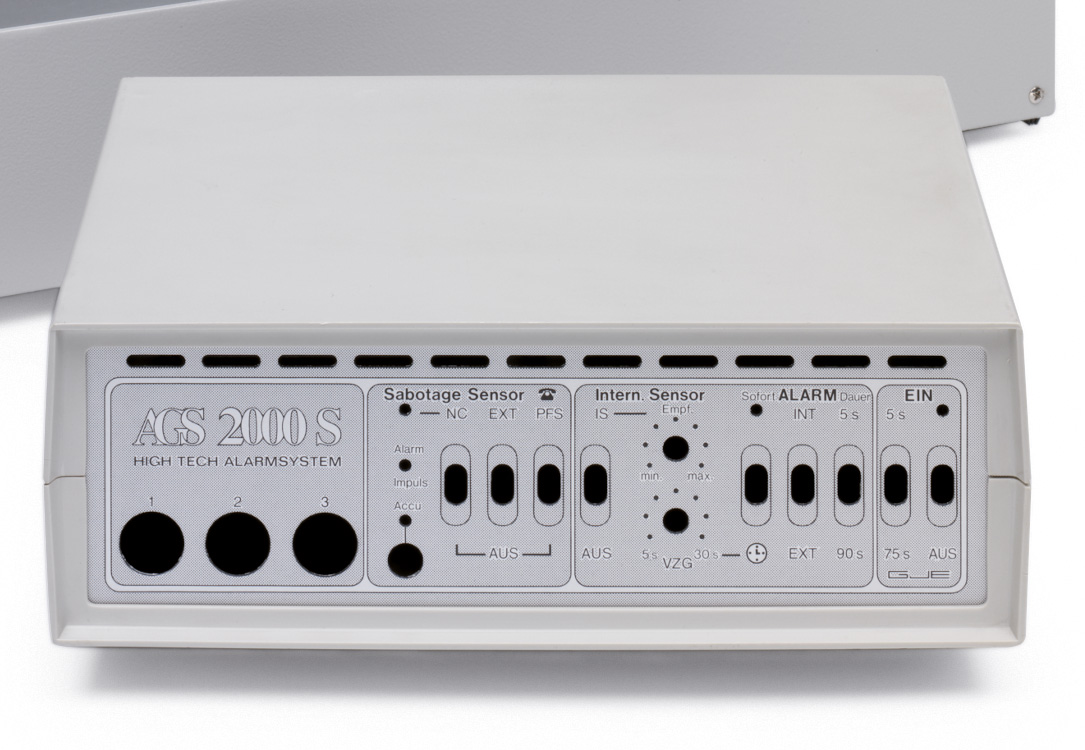

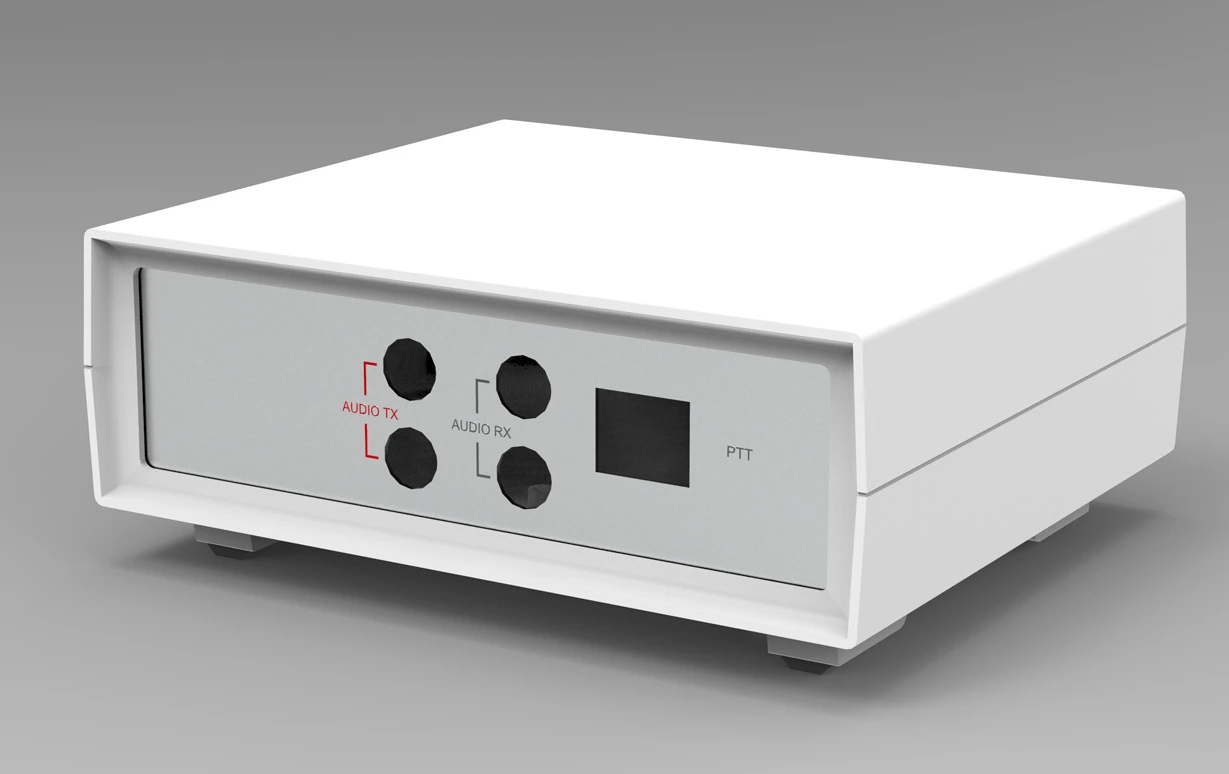

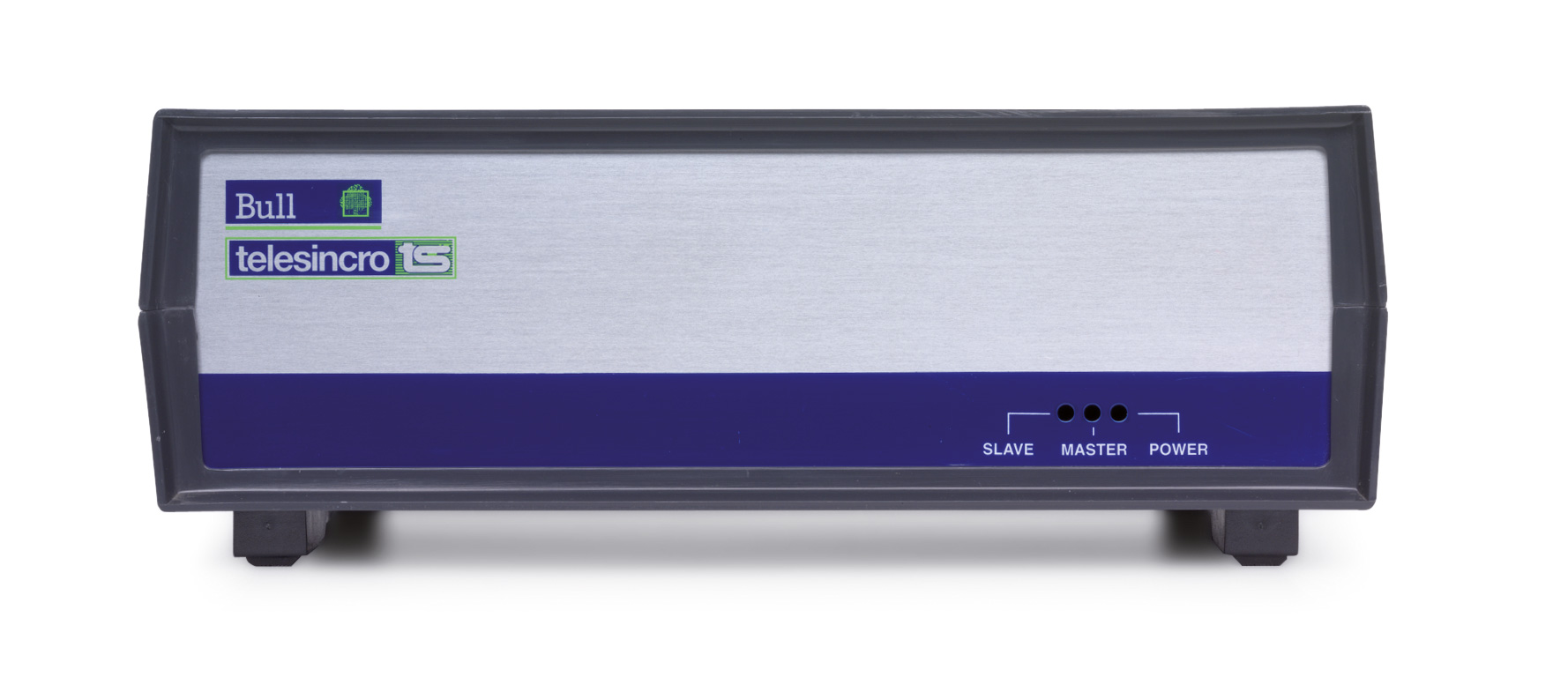

Elbox electronics desktop boxes are suitable for control, testing or inspection applications with front/rear display.

Information zum Herunterladen

Information

Hauptmerkmale

Product line name	Elbox
Technical information	DESCRIPTION Designed for optimal use of interior space Base with holes for mounting of printed circuit boards. Type 3 units are also suitable for cards compliant to IEC 60297 (Eurocards) The basic internal structure of the box: double-sided metal chassis The lid and the base cover this structure to protect the device. The rails are drilled for secure mounting of cards or other components There are vents in the base and on the back panel Type 3 units are supplied with hinged feet Resistant to temperatures up to 85 °C (plastic parts) Type 3 basic units include: lid, base, front and back panels, two metal side rails, a pair of hinged feet plus two fixed feet, screws MATERIALS AND SURFACE TREATMENT Lid and base - high-quality injection molded ABS; light gray color similar to RAL 7032 or black color similar to RAL 9004 Panels - 1,2 mm aluminum, grade 1070, with anodized silver finish OPTIONAL Box without side rails, special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel based, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Product line name

Elbox

Technical information

DESCRIPTION

Designed for optimal use of interior space
Base with holes for mounting of printed circuit boards. Type 3 units are also suitable for cards compliant to IEC 60297 (Eurocards)

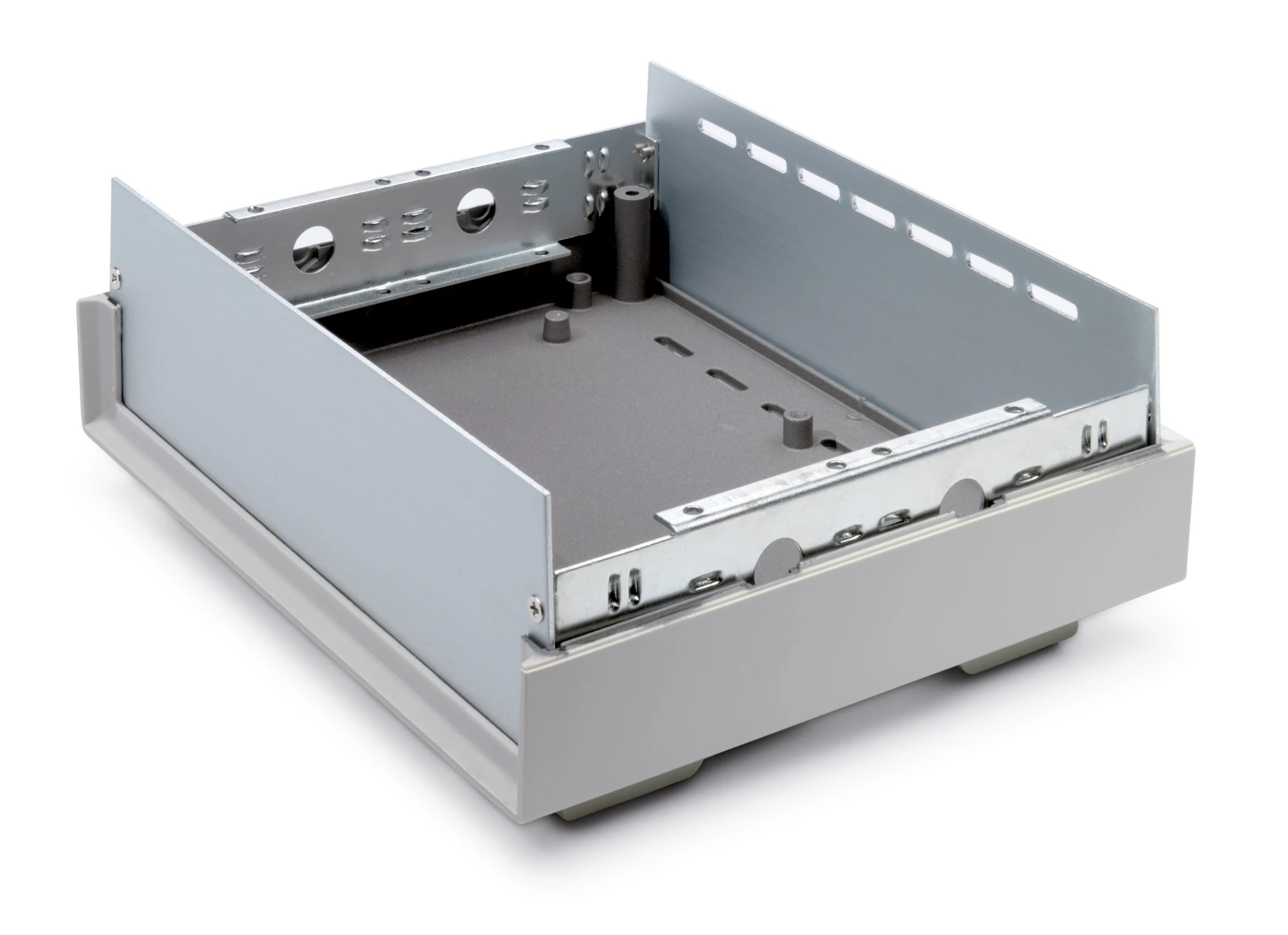

The basic internal structure of the box: double-sided metal chassis
The lid and the base cover this structure to protect the device. The rails are drilled for secure mounting of cards or other components
There are vents in the base and on the back panel

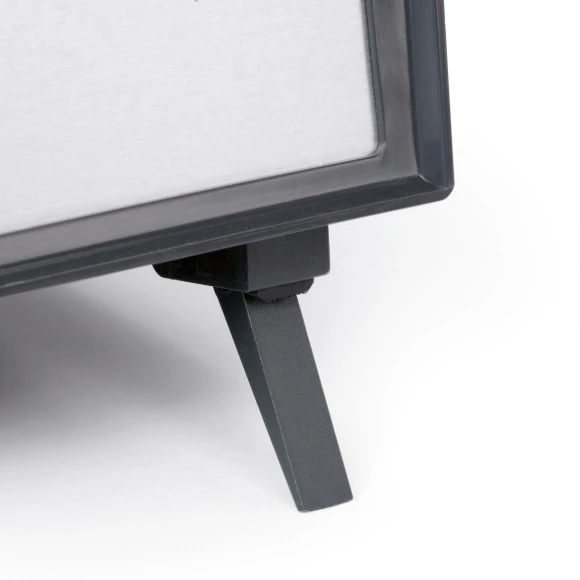

Type 3 units are supplied with hinged feet
Resistant to temperatures up to 85 °C (plastic parts)
Type 3 basic units include: lid, base, front and back panels, two metal side rails, a pair of hinged feet plus two fixed feet, screws

MATERIALS AND SURFACE TREATMENT

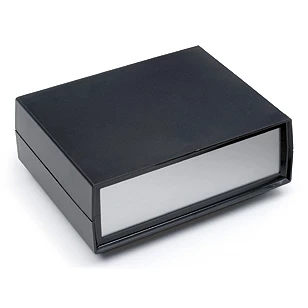

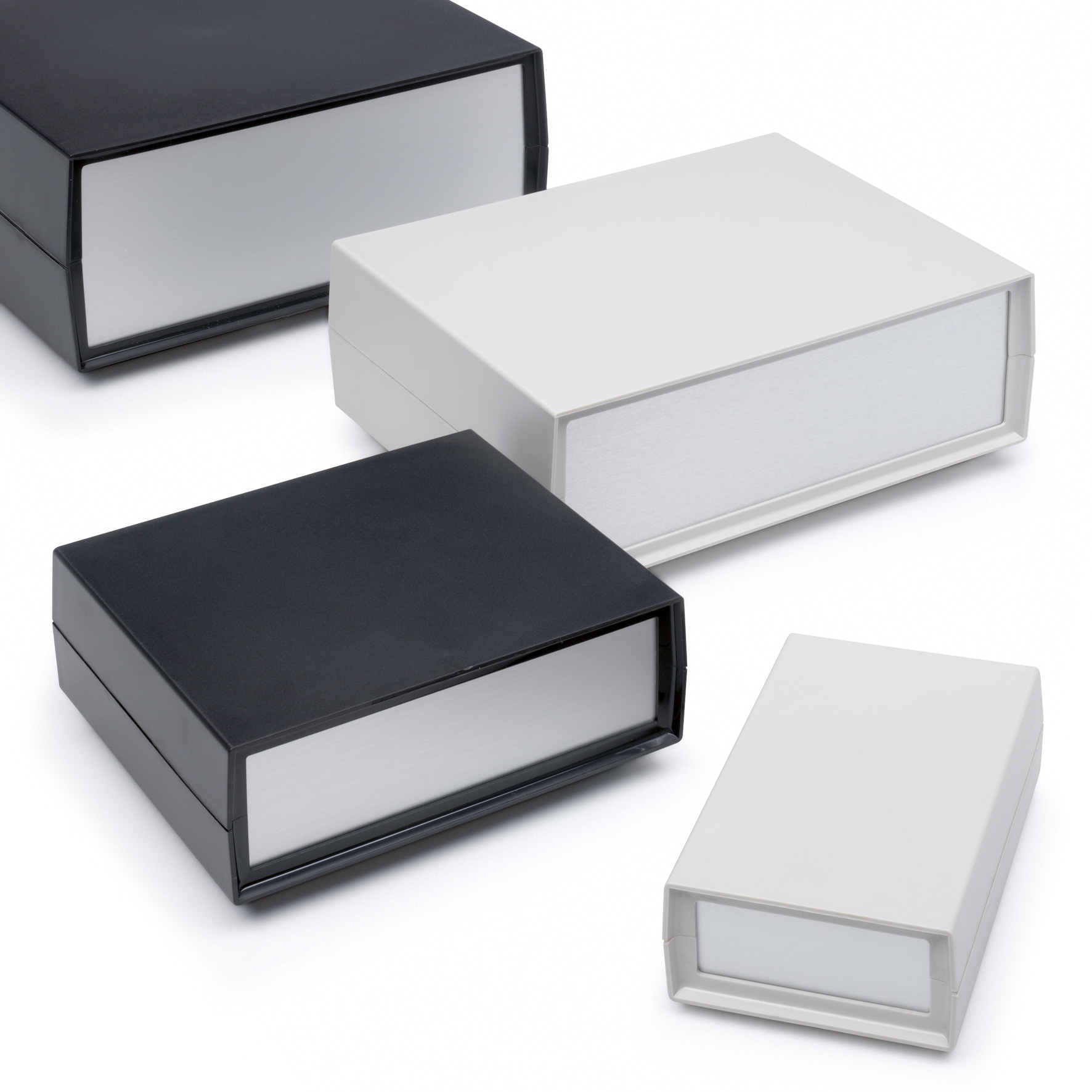

Lid and base - high-quality injection molded ABS; light gray color similar to RAL 7032 or black color similar to RAL 9004
Panels - 1,2 mm aluminum, grade 1070, with anodized silver finish

OPTIONAL

Box without side rails, special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel based, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
