Ventilationseinheiten

High-End-Lüftungseinheiten mit EC-Lüftern und Thermostat

Geringer Energieverbrauch

Ventilation units and fans are used to cool the equipment in the cabinet using air drawn from the room, being notable primarily for their low power consumption.

Mehr erfahren

Wo kaufen?

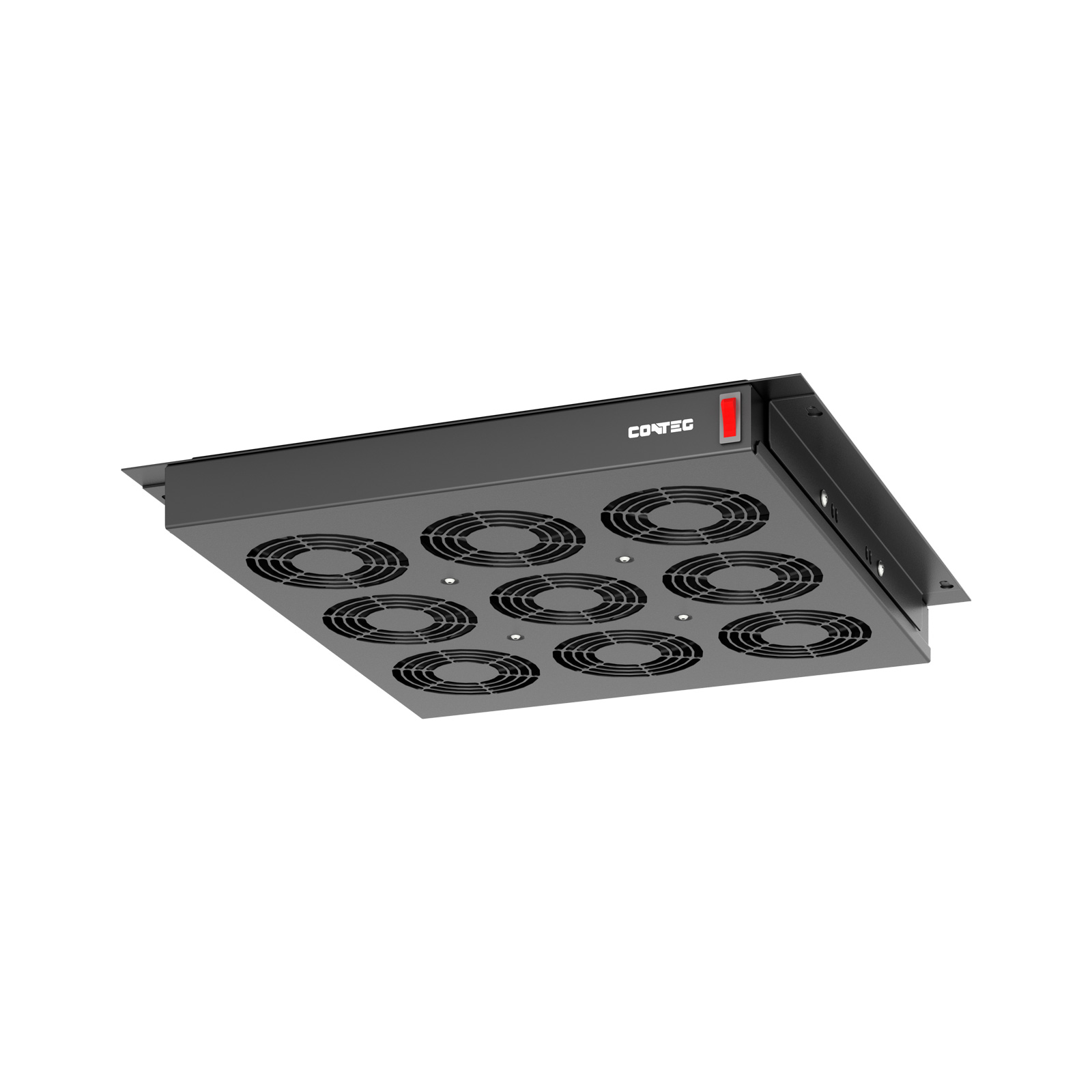

DP-VEC-09-plus-DP-VER-091F_bottom-front-web

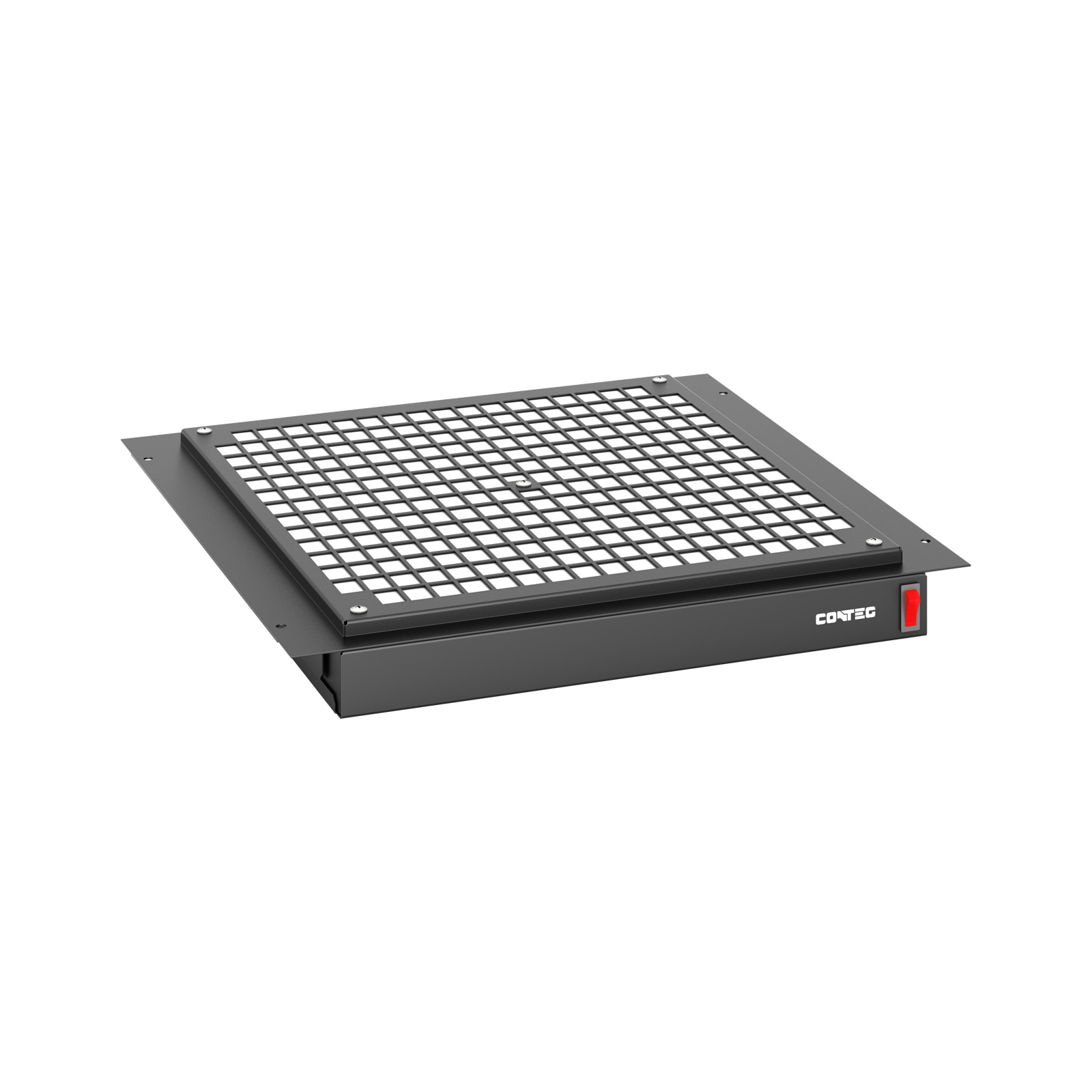

DP-VEC-09-plus-DP-VER-091F_top-front-web

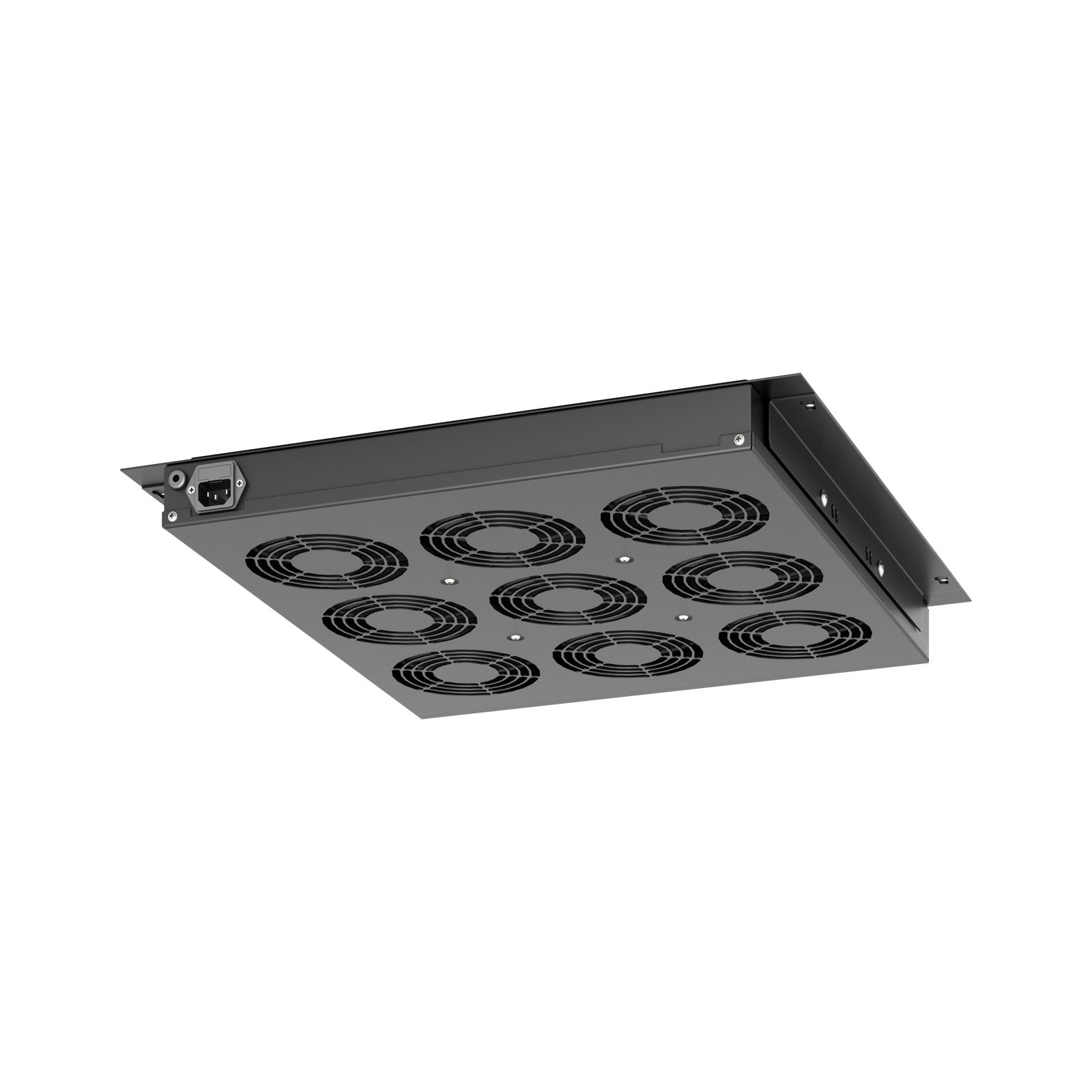

DP-VEC-09-plus-DP-VER-091F_bottom-back-web

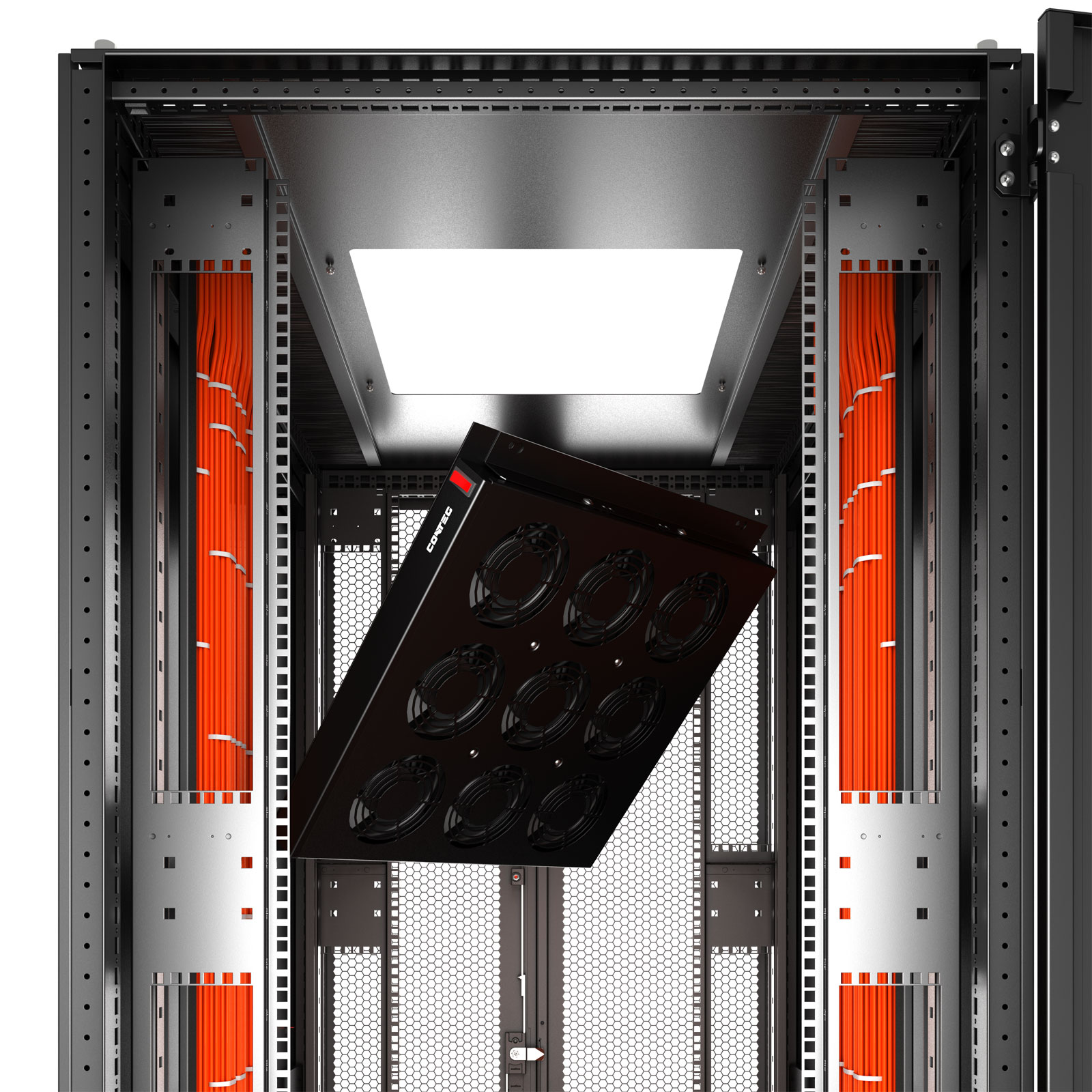

DP-VEC-09-plus-DP-VER-091F_installation1-web

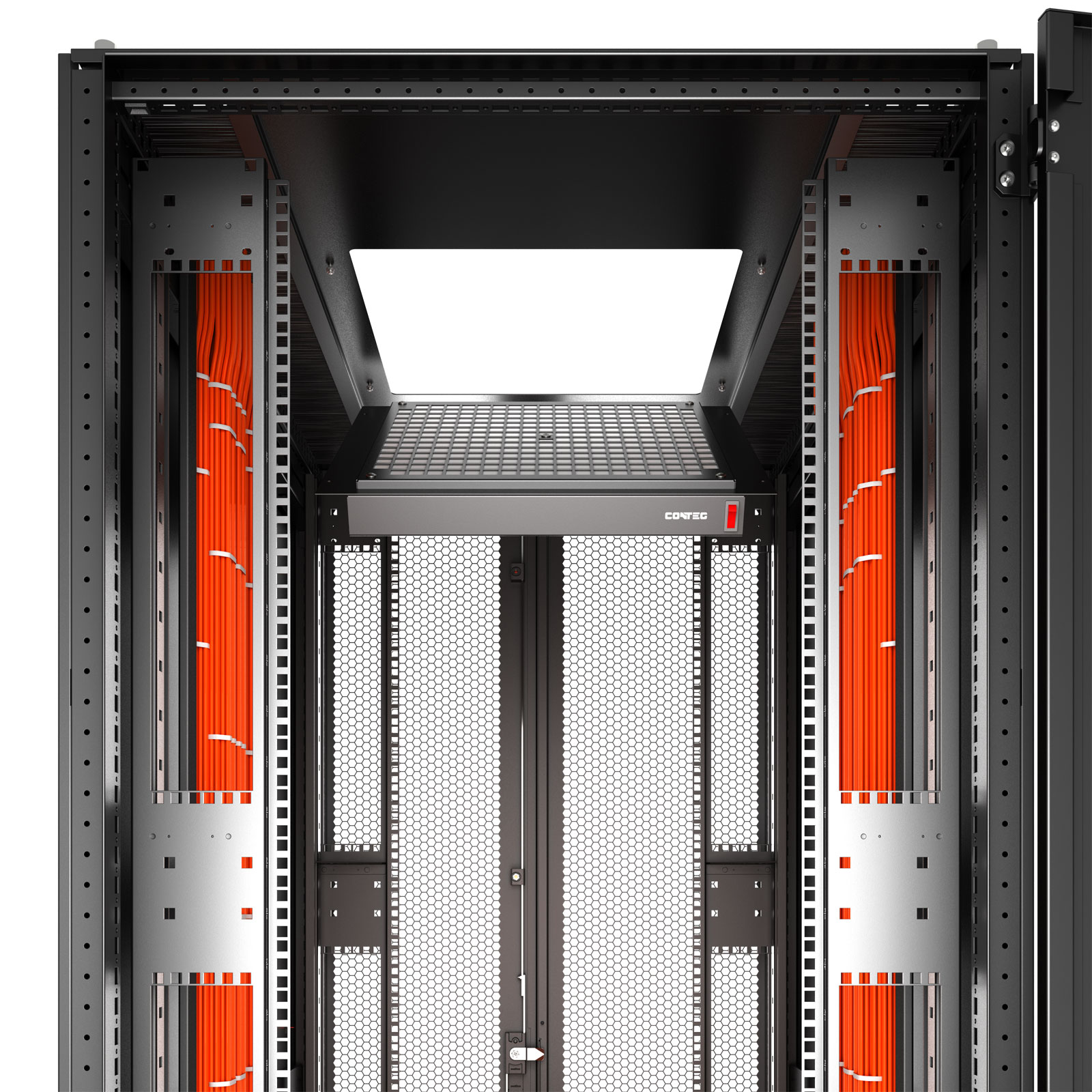

DP-VEC-09-plus-DP-VER-091F_installation2-web

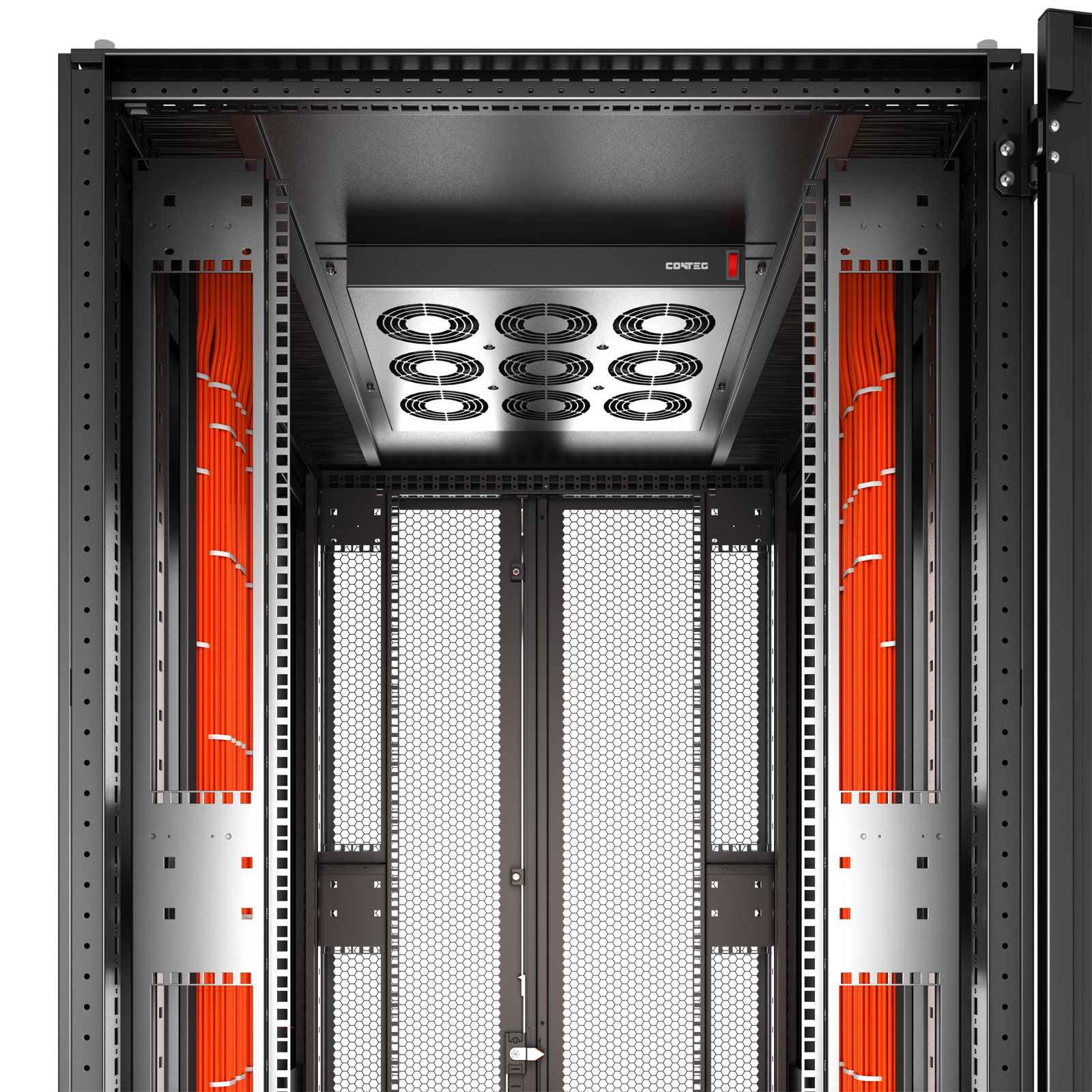

DP-VEC-09-plus-DP-VER-091F_installation3-web

Produkteinführung

Ventilation units and fans are used to cool the equipment installed in the cabinet using air drawn from the room. They mount either on 19" vertical rails (horizontally) or in the upper or lower frame of the cabinet (installation frame required). Units with up to 9 fans available. Effective, environmentally friendly, economical! New modern ventilators are powered by electronically commutated synchronous drives commonly referred to as “EC”. A major advantage of this technology, in comparison with AC technology, is its low power consumption. For example, our new VEC ventilation units have seven times lower power consumption at the same air flow rates. In addition, VEC fans offer air output up to 60% greater than DP-VEN.

Information Video zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	EC fans with thermostat
Technische Informationen	Ventilation units: DP-VEC-03, DP-VEC-06, DP-VEC-09 2-9 fans Installation options: to 19"" rails - horizontally, or into the upper or lower frame of the rack cabinet An installation frame is required to install the ventilation unit in the upper or lower frame Temperature range -10°C to +55°C Thermostat with a range of 0-60 °C included in the delivery; can be supplied without the thermostat Voltage 230V/50Hz (optionally 48V DC) Protection IP20 according to EN 60 529 Surface finish - RAL powder paint (standard color RAL 9005) Modern version with highly efficient EC fans DP-VEC units are compatible with all Conteg products.

Name der Produktlinie

EC fans with thermostat

Technische Informationen

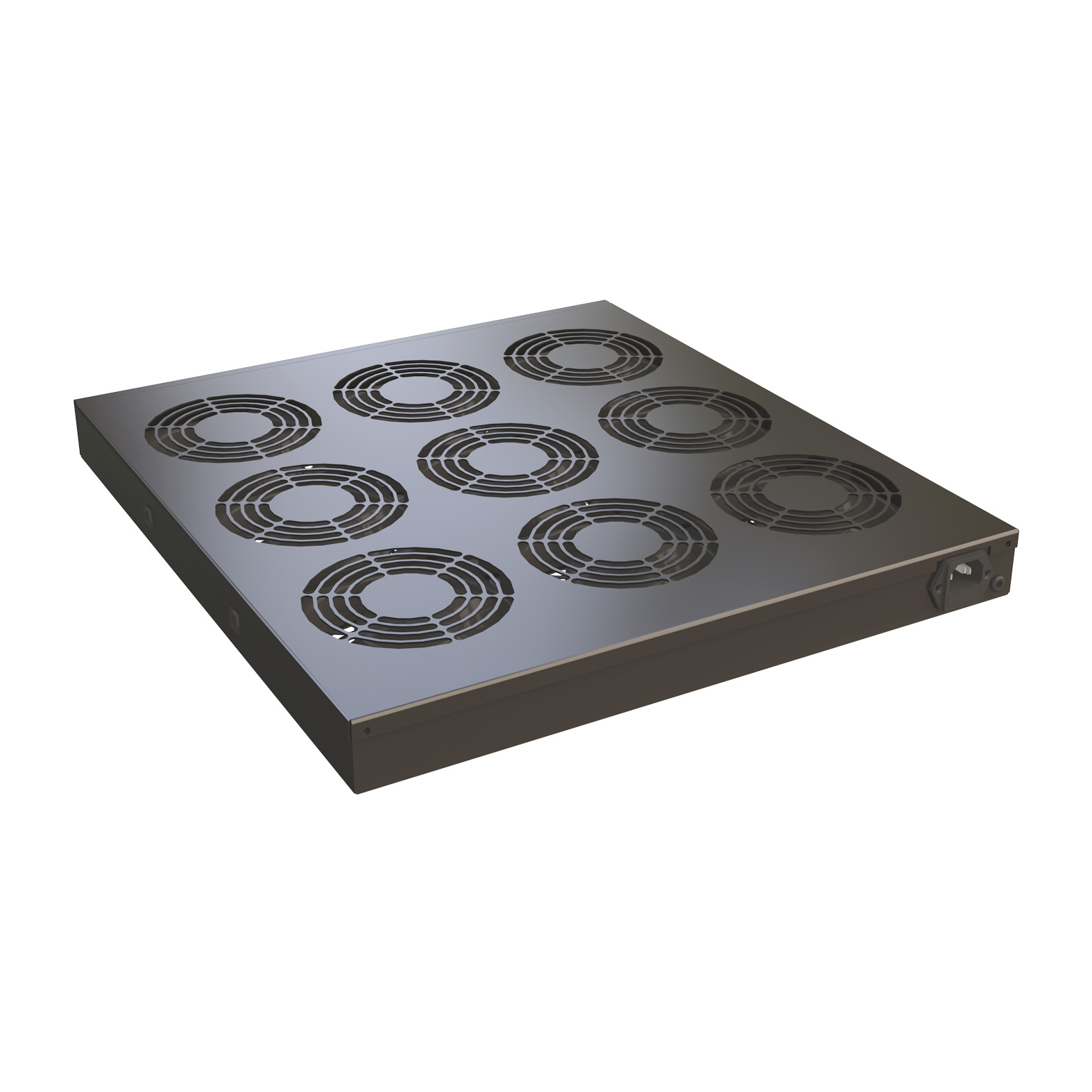

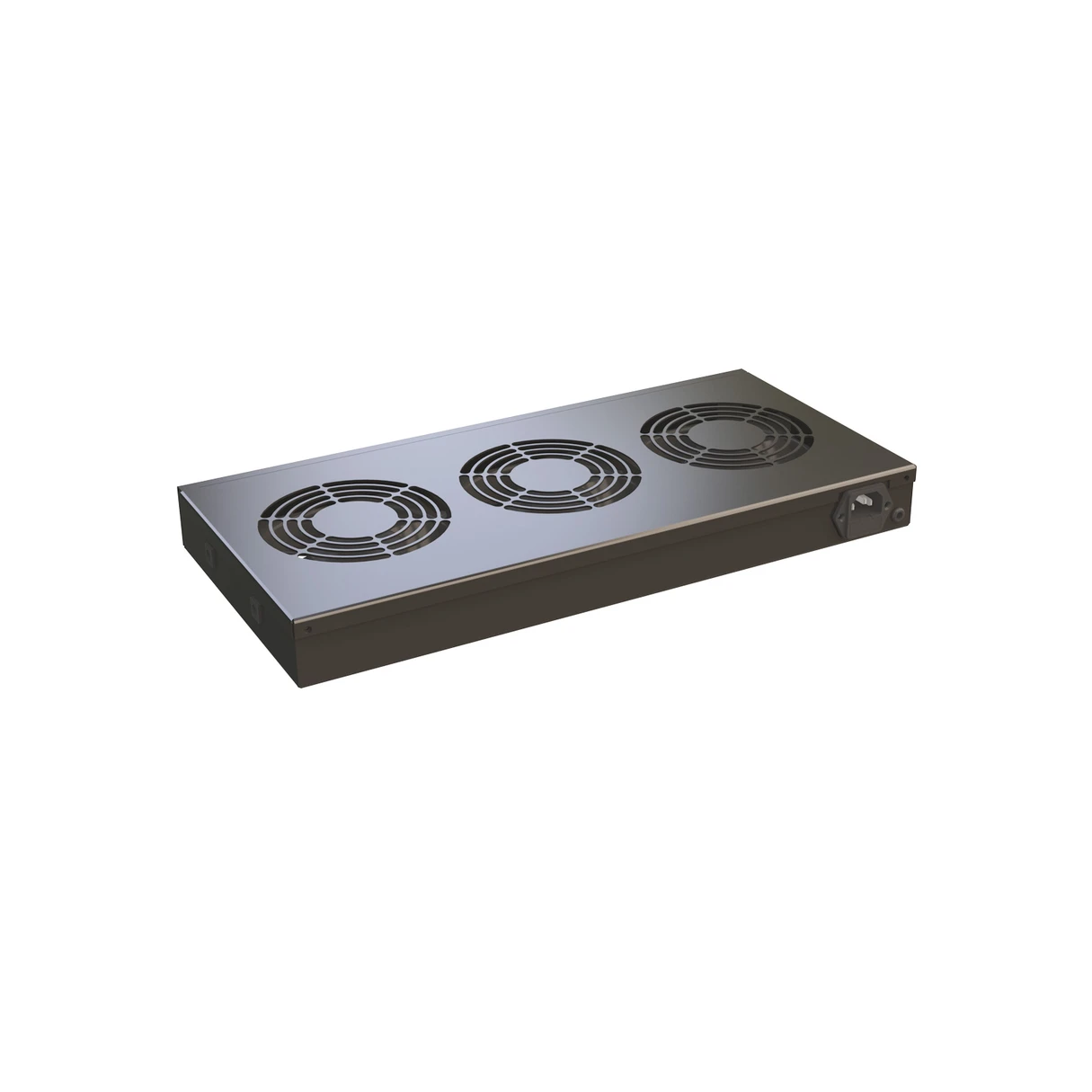

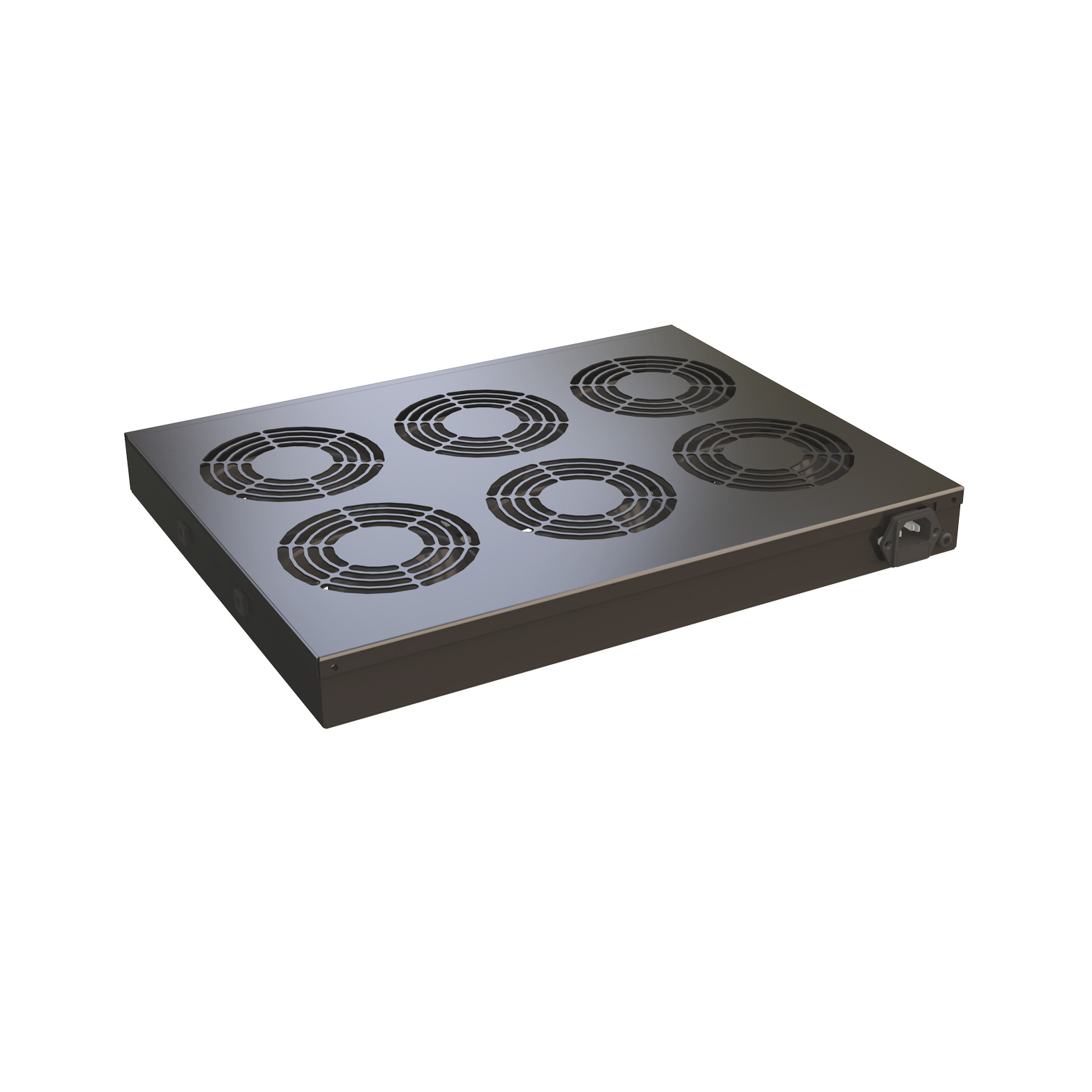

Ventilation units: DP-VEC-03, DP-VEC-06, DP-VEC-09

2-9 fans
Installation options: to 19"" rails - horizontally, or into the upper or lower frame of the rack cabinet
An installation frame is required to install the ventilation unit in the upper or lower frame
Temperature range -10°C to +55°C
Thermostat with a range of 0-60 °C included in the delivery; can be supplied without the thermostat
Voltage 230V/50Hz (optionally 48V DC)
Protection IP20 according to EN 60 529
Surface finish - RAL powder paint (standard color RAL 9005)
Modern version with highly efficient EC fans
DP-VEC units are compatible with all Conteg products.
