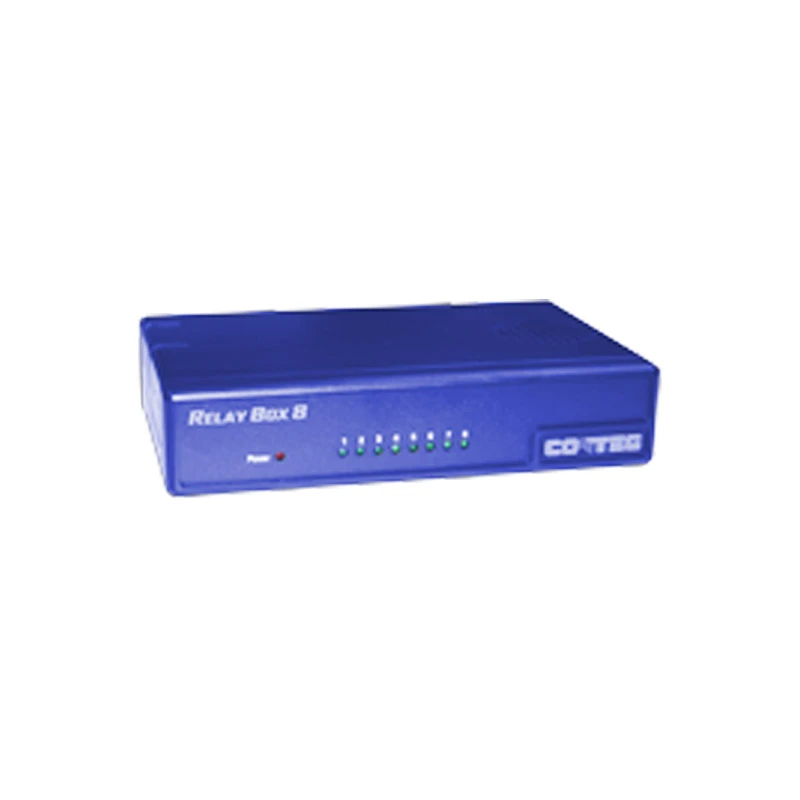

Relaisbox 8
Produkteinführung
Relay Box 8 is a multi-port relay designed specially for advanced process control with 8 changeover relay contacts for manual control or control through notifications. Relay Box 8 is easy to control using sensors or detectors. The relay can respond automatically to changes of the sensor state. Relay Box 8 is simple to set up with built-in auto detection capability and a user-friendly web interface.Automatic response to sensor signals gives users more flexibility in responding to changes in the environment. Automatic response eliminates the need for user intervention in emergency, as it can prevent damage, e.g., by activating relevant safety devices.
Power control
On/Off control of cooling devices
Alarm activation
Process management
Power management systems
The device is suitable for RAMOS Ultra, RAMOS Plus and RAMOS Optimax.
Requires external 7.5 VDC (RMS-UPW) power supply.
Information
Hauptmerkmale
| Name der Produktlinie |
Relay Box 8 |
|---|---|

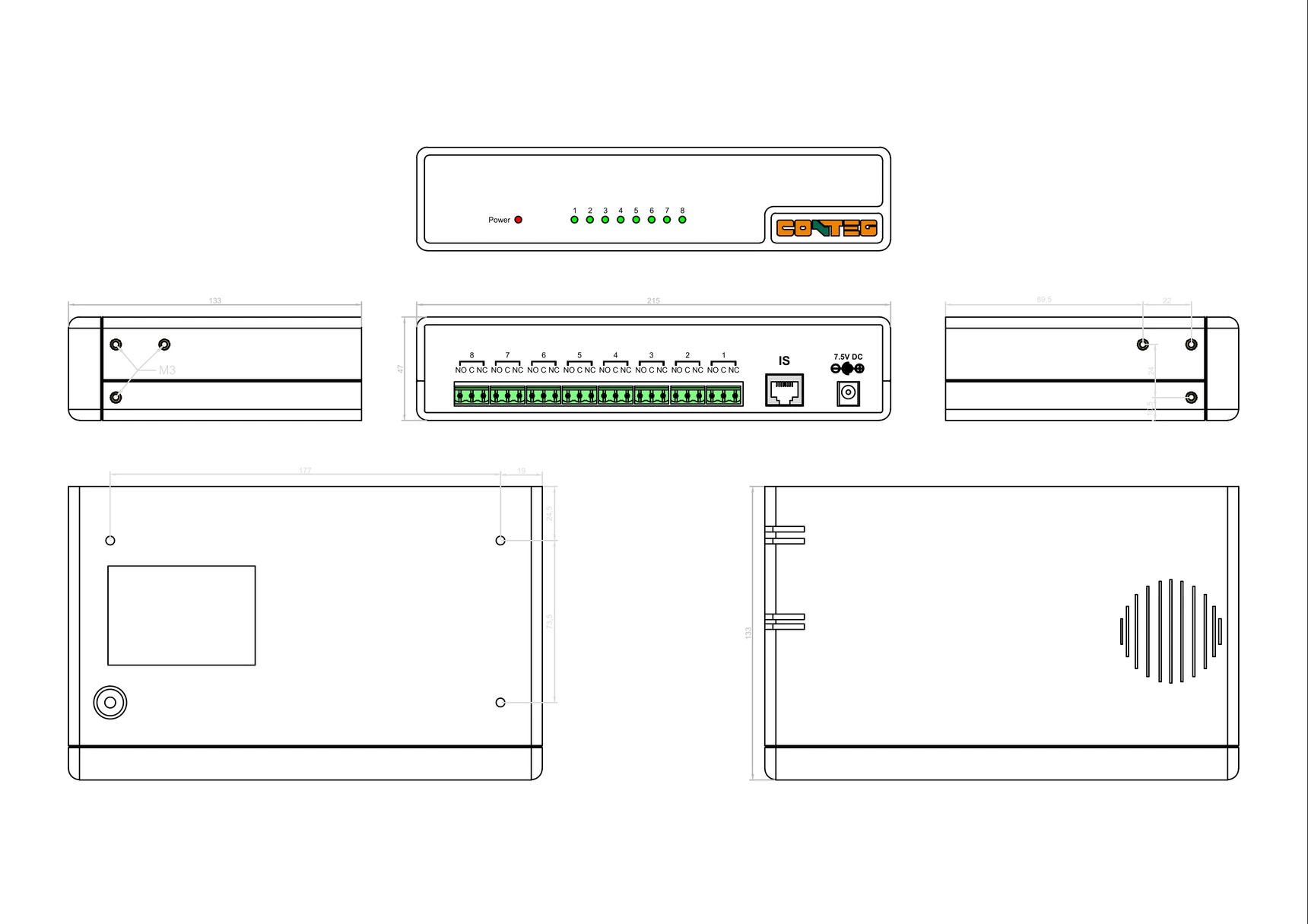

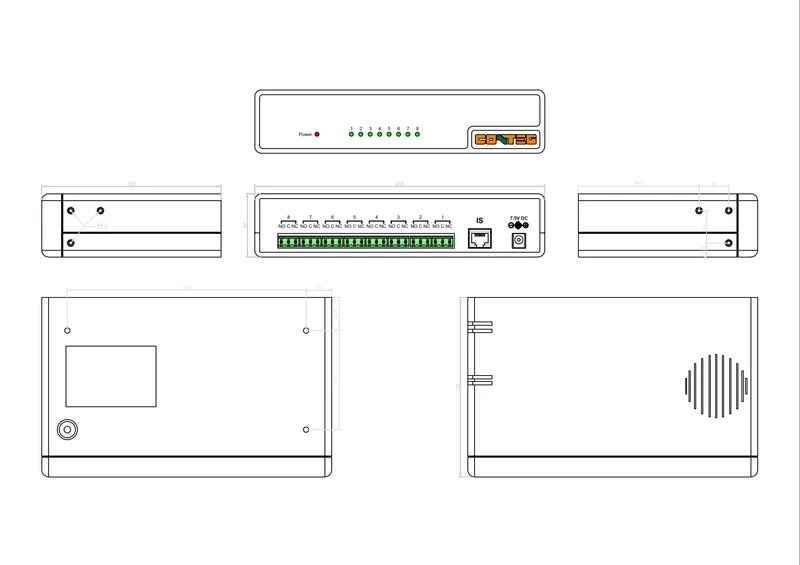

| Abmessungen (B×H×T, in mm) |
216x138x46 mm |
| Im Paket enthalten |
1.5 m CAT 5 patch cable, brackets for mounting in a 19" cabinet |
|
8 switching relay contacts |
|
| LED-Indikator |
8 LED relay status indicators and 1 LED power indicator |
| Ideal für |
RAMOS Ultra, RAMOS Plus and RAMOS Optimax |
| Betriebstemperatur |
-40 °C - 85 °C |
|
380 VAC, 125 VDC |
|
|
4,000 VA, 480W with resistive load 2,000 VA, 240 W with inductive load ( PF = 0.4 ) |
|
| Stromverbrauch (W) |
Typical 2.475 Watt, 0.495 A |
|
-40 °C - 85 °C |
|
| Andere |

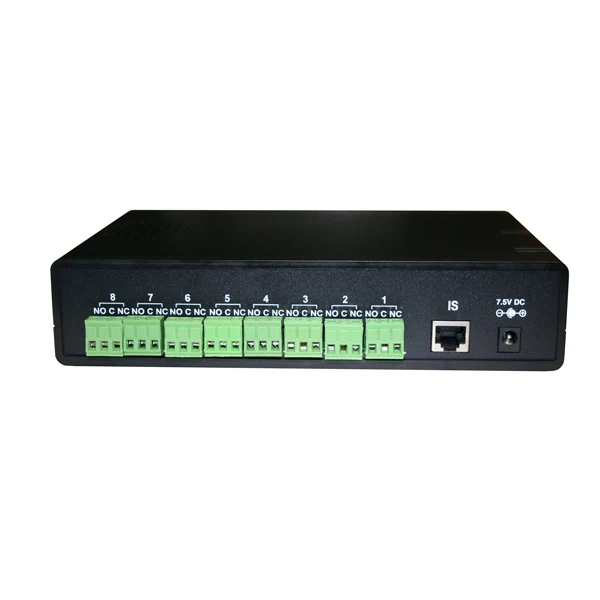

Each relay has 3 terminals (NO - closing, NC - opening and COM - common contact) PCB, connector and contacts maximum load 5A 30VDC, 1A 220VAC Up to 64 (8 relays on one intelligent port) relays on a single RAMOS Ultra device Requires external 7.5VDC power supply (RMS-U-PW) Load capacity of relay contacts: AgCdO contact material Automatic device recognition Connection with a standard CAT5/6 patch cable |
| Maximalstrom (A) |
16 A |
| Technische Informationen |
Ordering code RMS-U-RB-8 |
