Handgehäuse für Elektronik

Betabox

Suitable for various types of handheld devices.

Mehr erfahren

Wo kaufen?


Produkteinführung

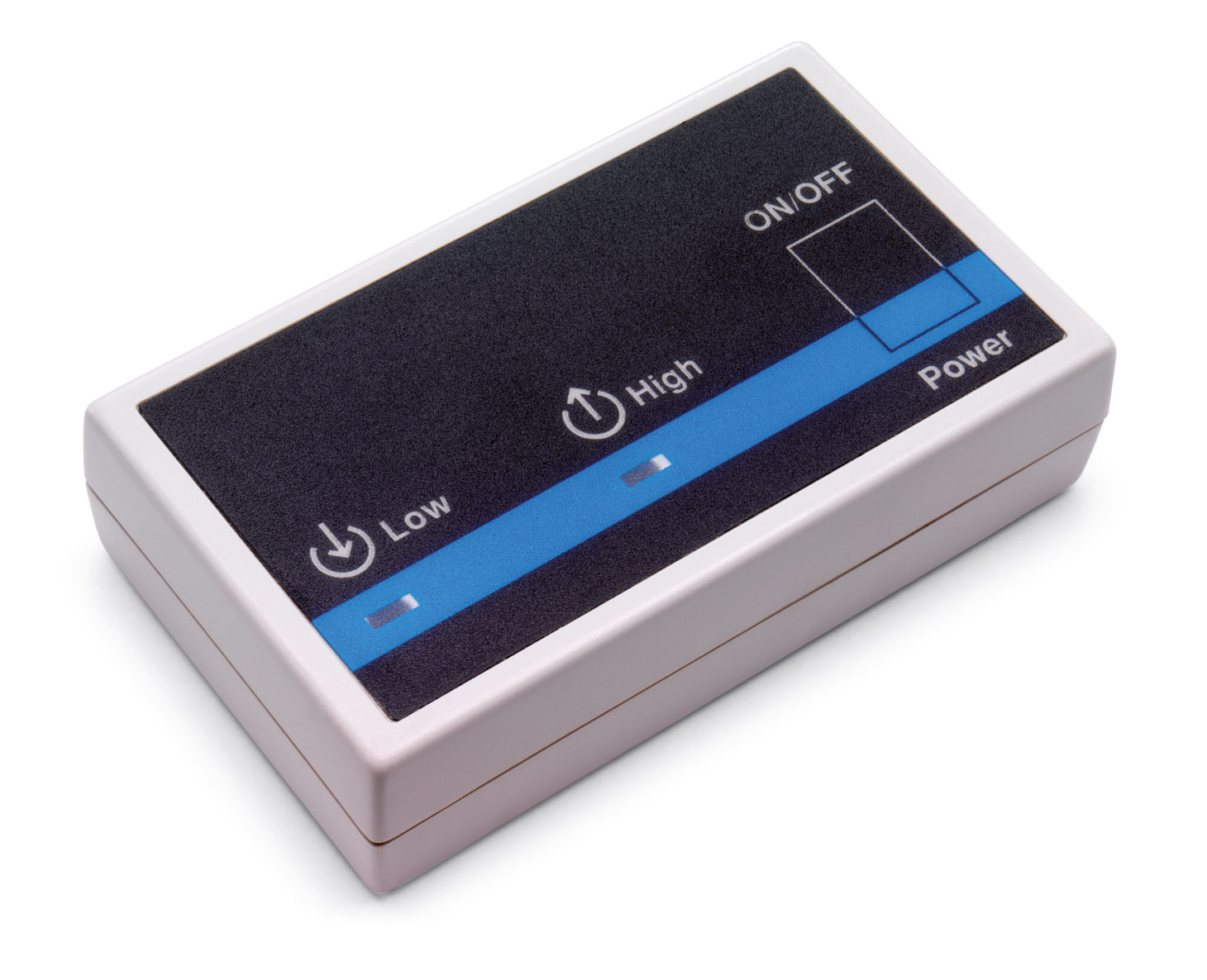

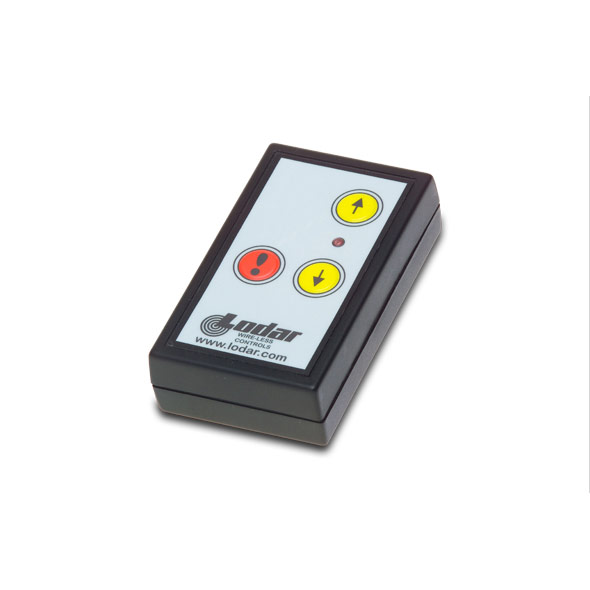

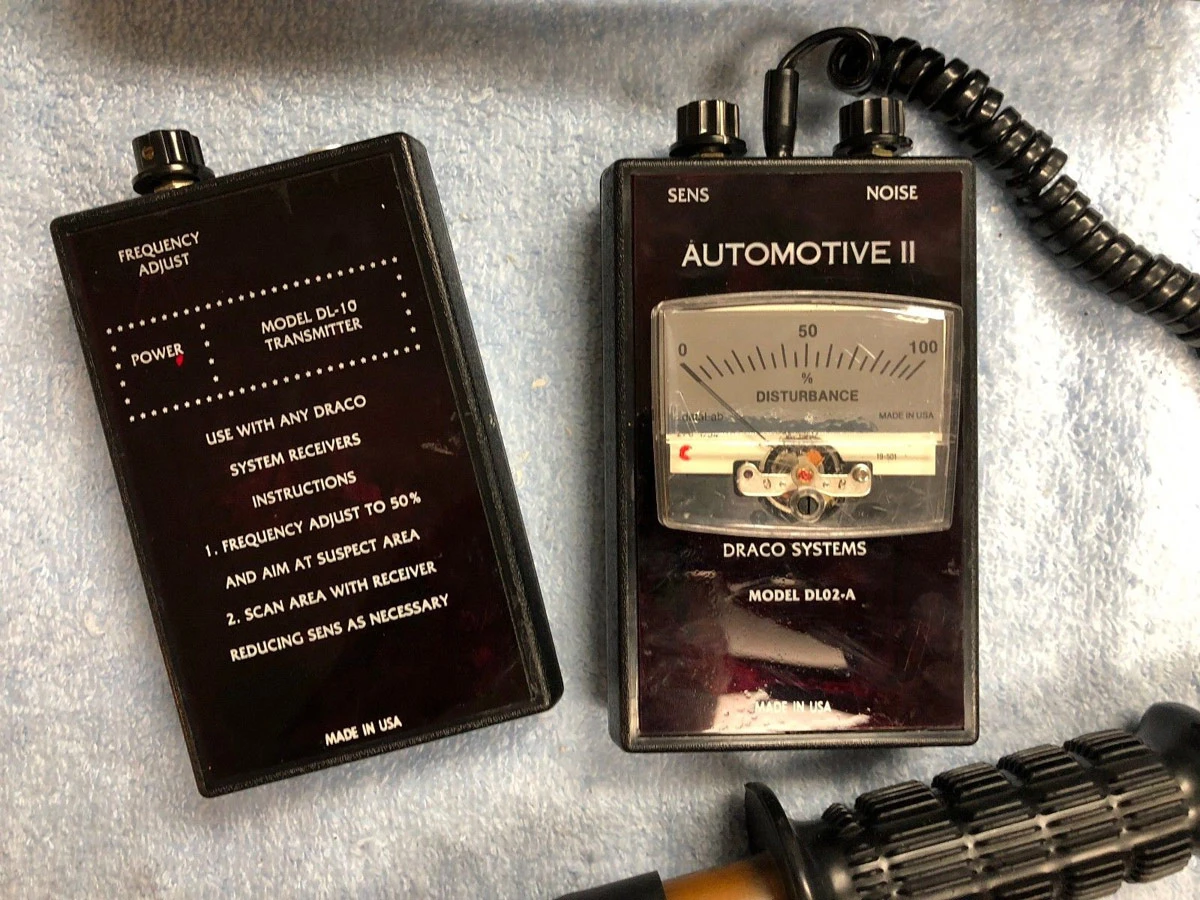

Betabox small portable electronics boxes are suitable for various portable or handheld devices.

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Betabox
Technische Informationen	DESCRIPTION Two sizes of ABS boxes with 3 mm thick walls that ensure high impact resistance The base includes a battery compartment that is accessible via a snap-on lid at the back. Both box sizes hold two AA batteries, two AAA batteries or one PP3 battery Integrated holes in the base for mounting printed circuit boards; screws are included Resistance to temperatures up to 85 °C Basic unit includes: lid, base, battery compartment cover, box screws and printed circuit board screws MATERIALS AND SURFACE TREATMENT Lid and base made of high-quality injection-molded ABS with a thickness of 3 mm Standard color: light gray - similar to RAL 9004, black - similar to RAL 7032 OPTIONAL Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request

Name der Produktlinie

Betabox

Technische Informationen

DESCRIPTION

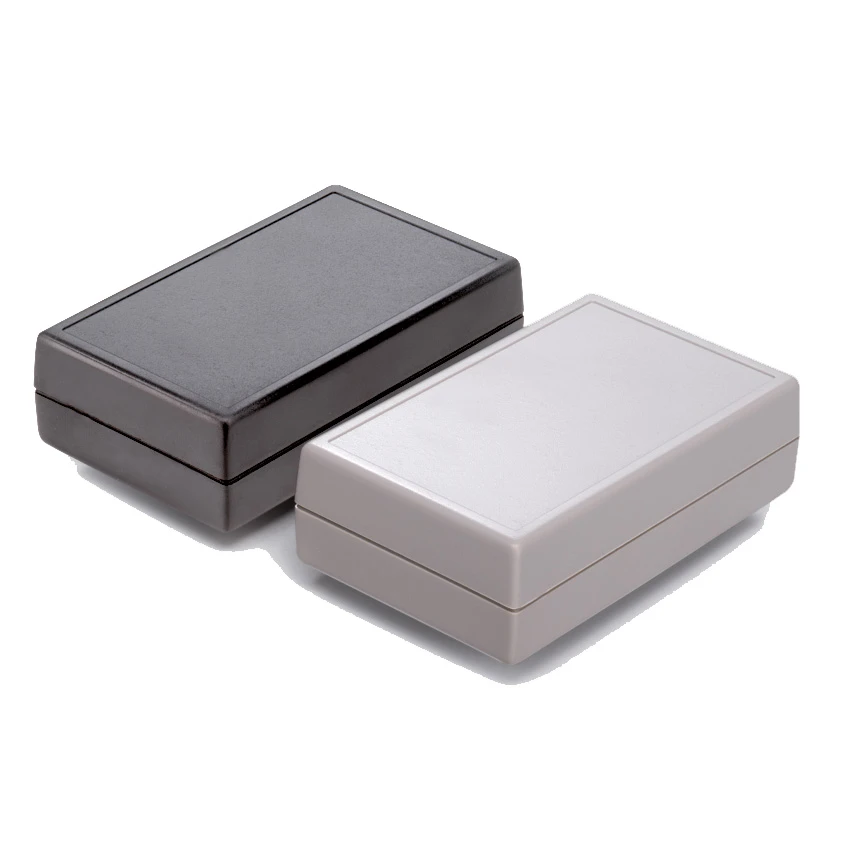

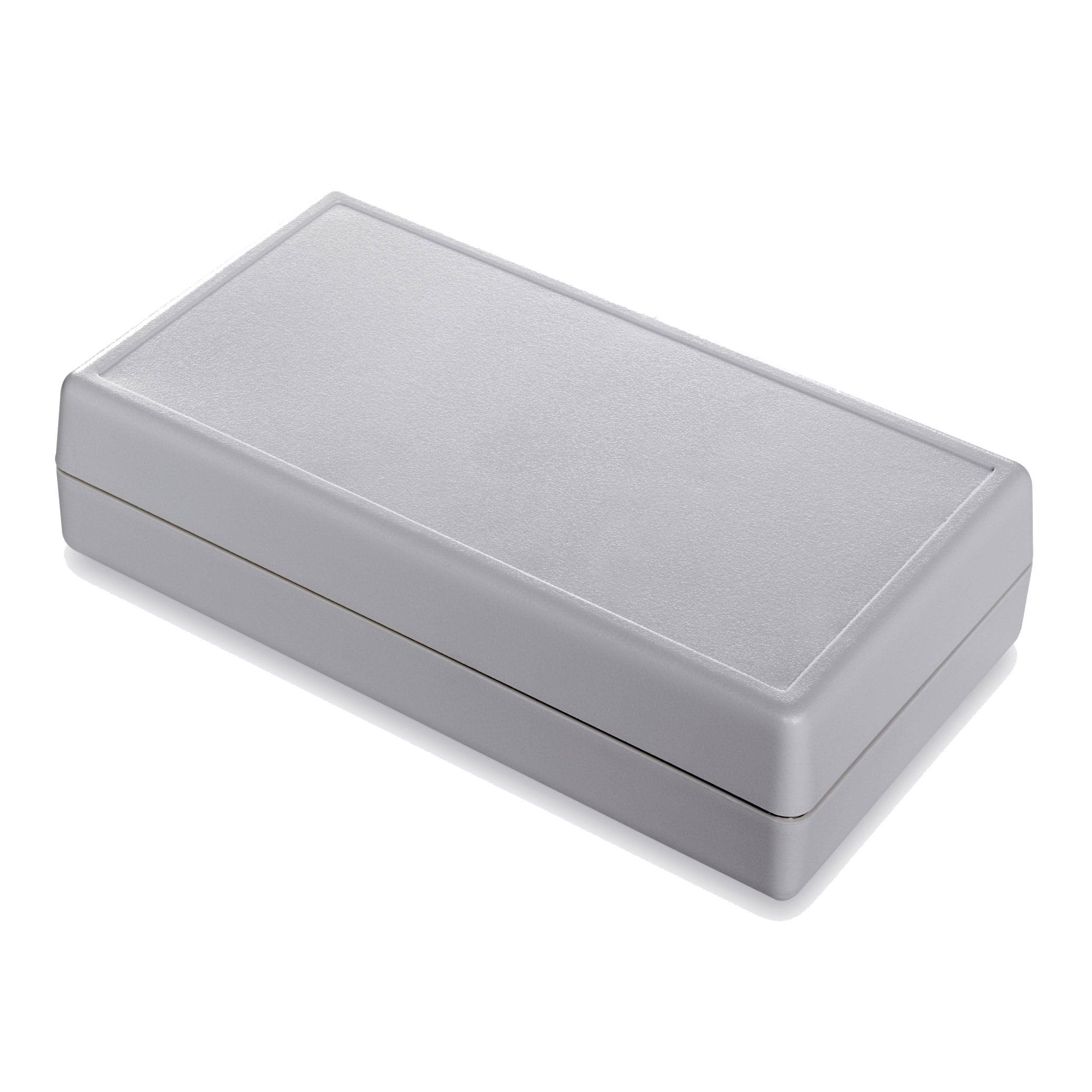

Two sizes of ABS boxes with 3 mm thick walls that ensure high impact resistance
The base includes a battery compartment that is accessible via a snap-on lid at the back. Both box sizes hold two AA batteries, two AAA batteries or one PP3 battery

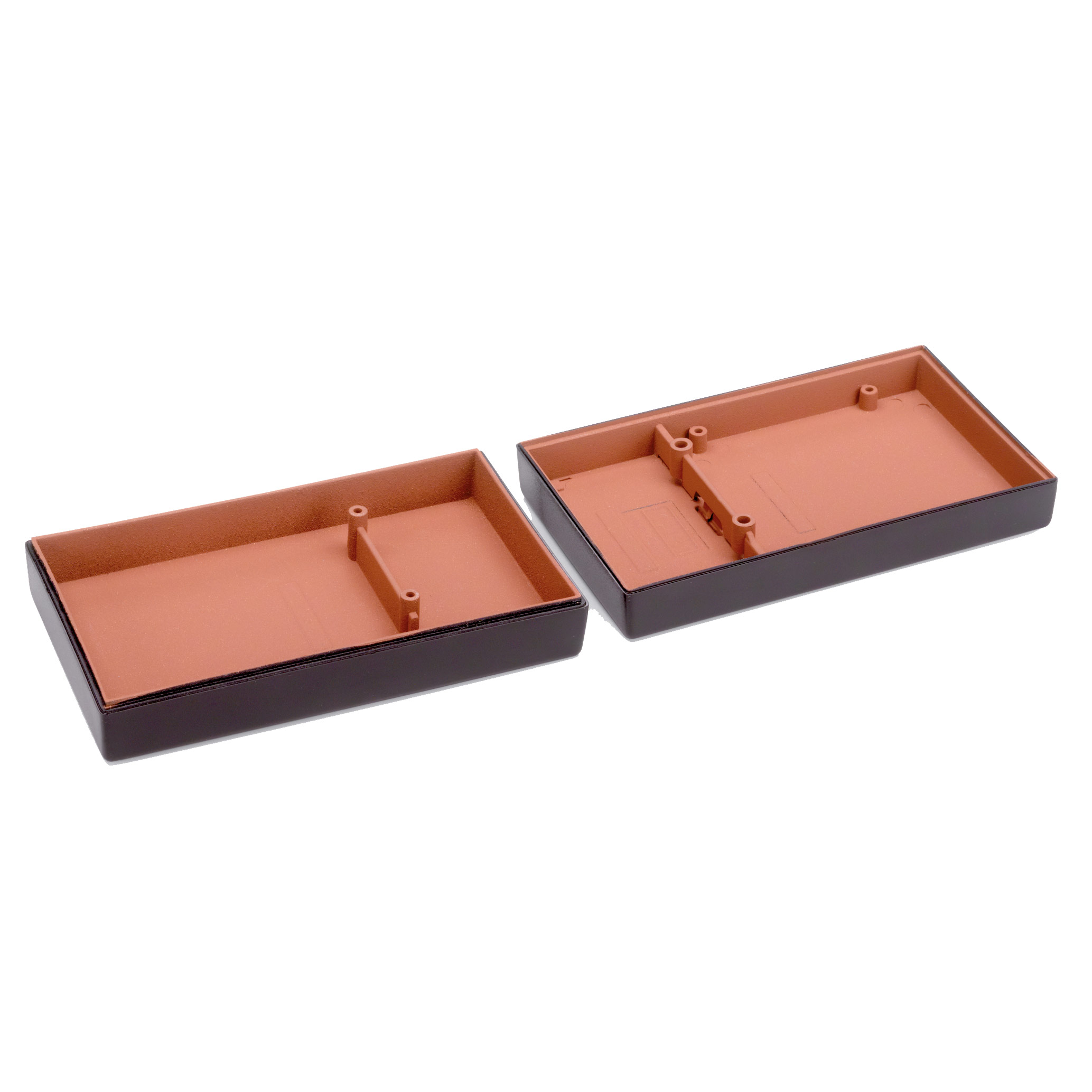

Integrated holes in the base for mounting printed circuit boards; screws are included
Resistance to temperatures up to 85 °C
Basic unit includes: lid, base, battery compartment cover, box screws and printed circuit board screws

MATERIALS AND SURFACE TREATMENT

Lid and base made of high-quality injection-molded ABS with a thickness of 3 mm
Standard color: light gray - similar to RAL 9004, black - similar to RAL 7032

OPTIONAL

Special custom drilling, screen printing, internal coating for EMI/RFI shielding (graphite, copper or nickel base, depending on the shielding level required), self-extinguishing material ABS UL 94 V0, other colors upon request
