Elektronisch gesteuertes Türgriff mit EM 125kHz Kartenleser, Türkontakt, 2× RFID EM Karte
including the door contact, enables direct connection to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit.
Produkteinführung

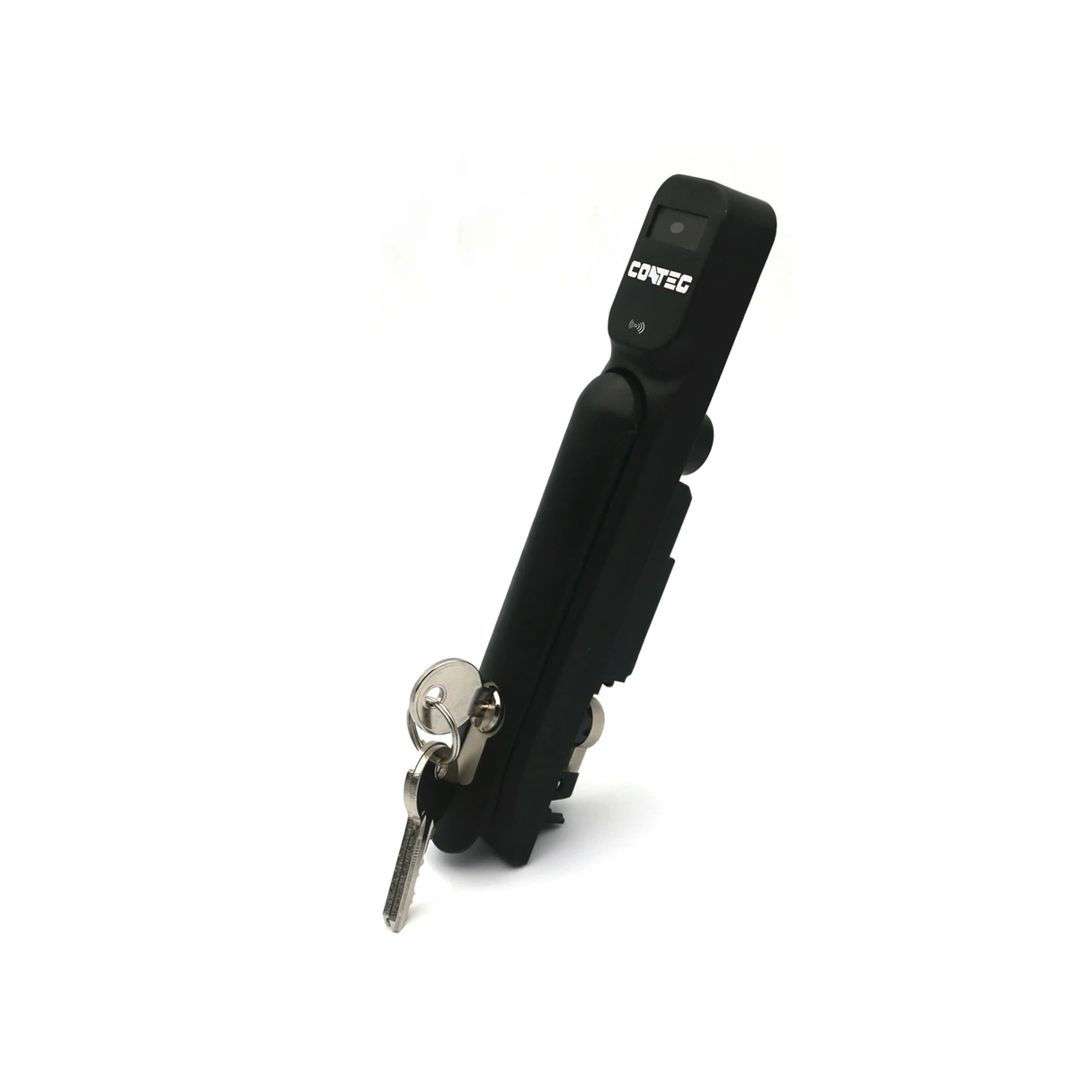

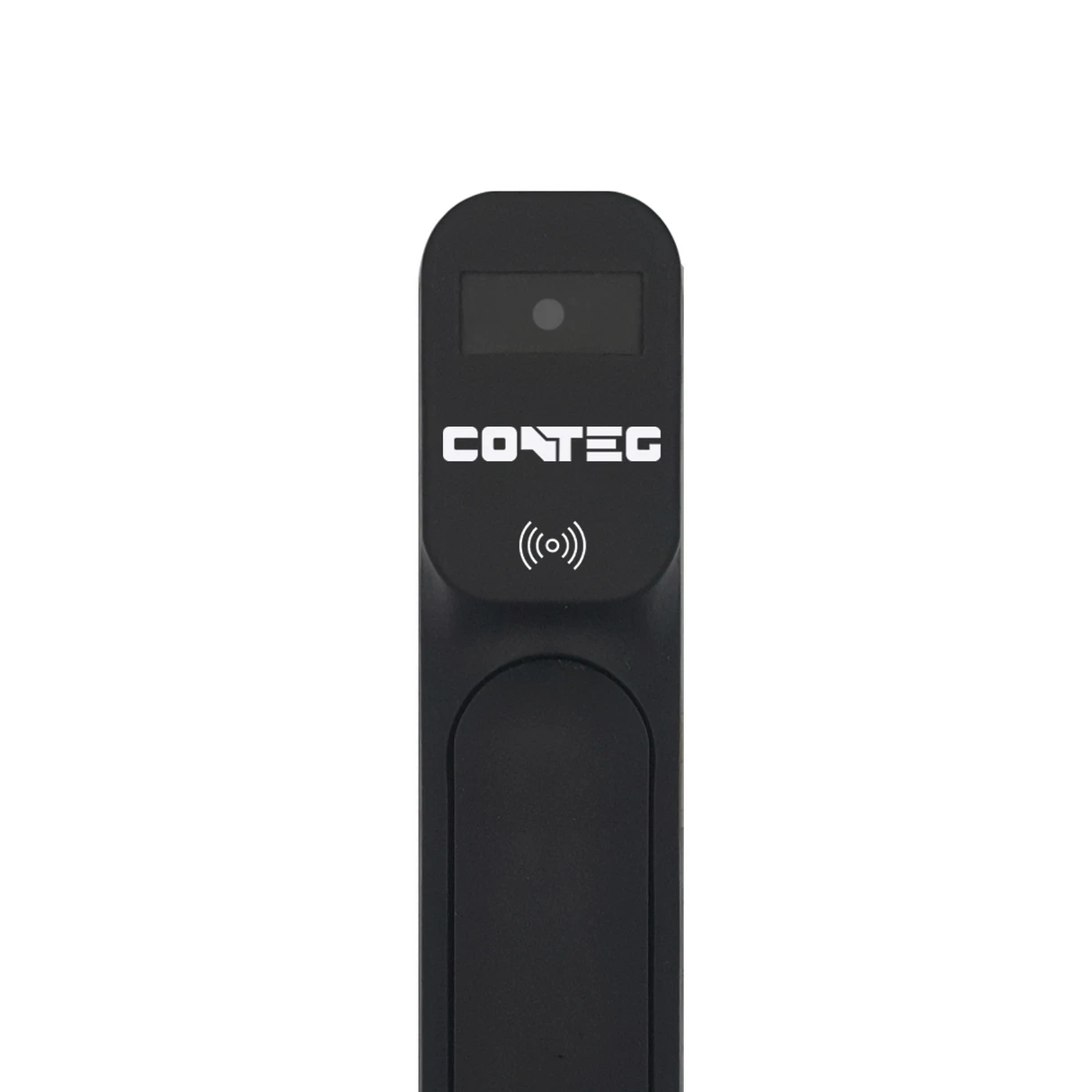

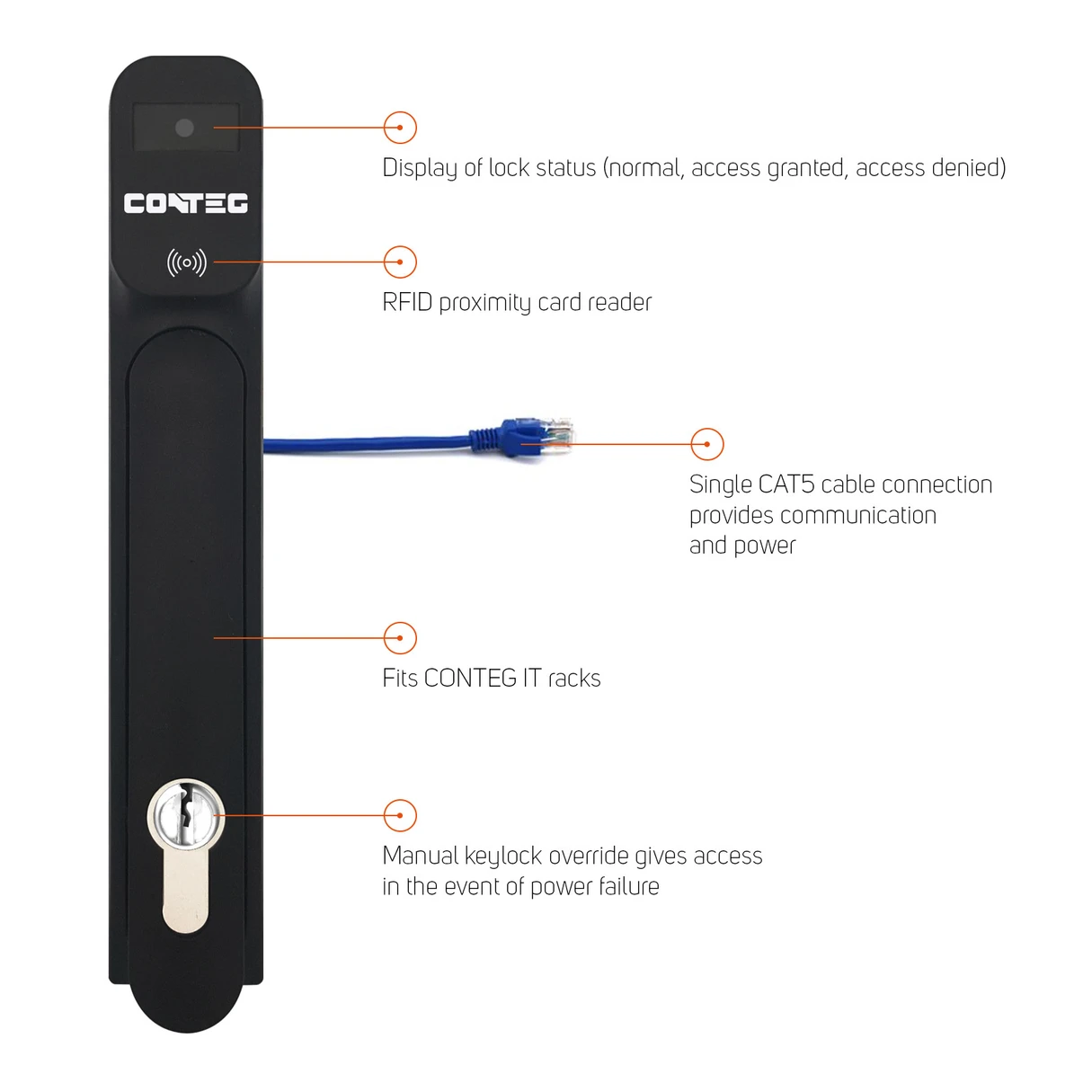

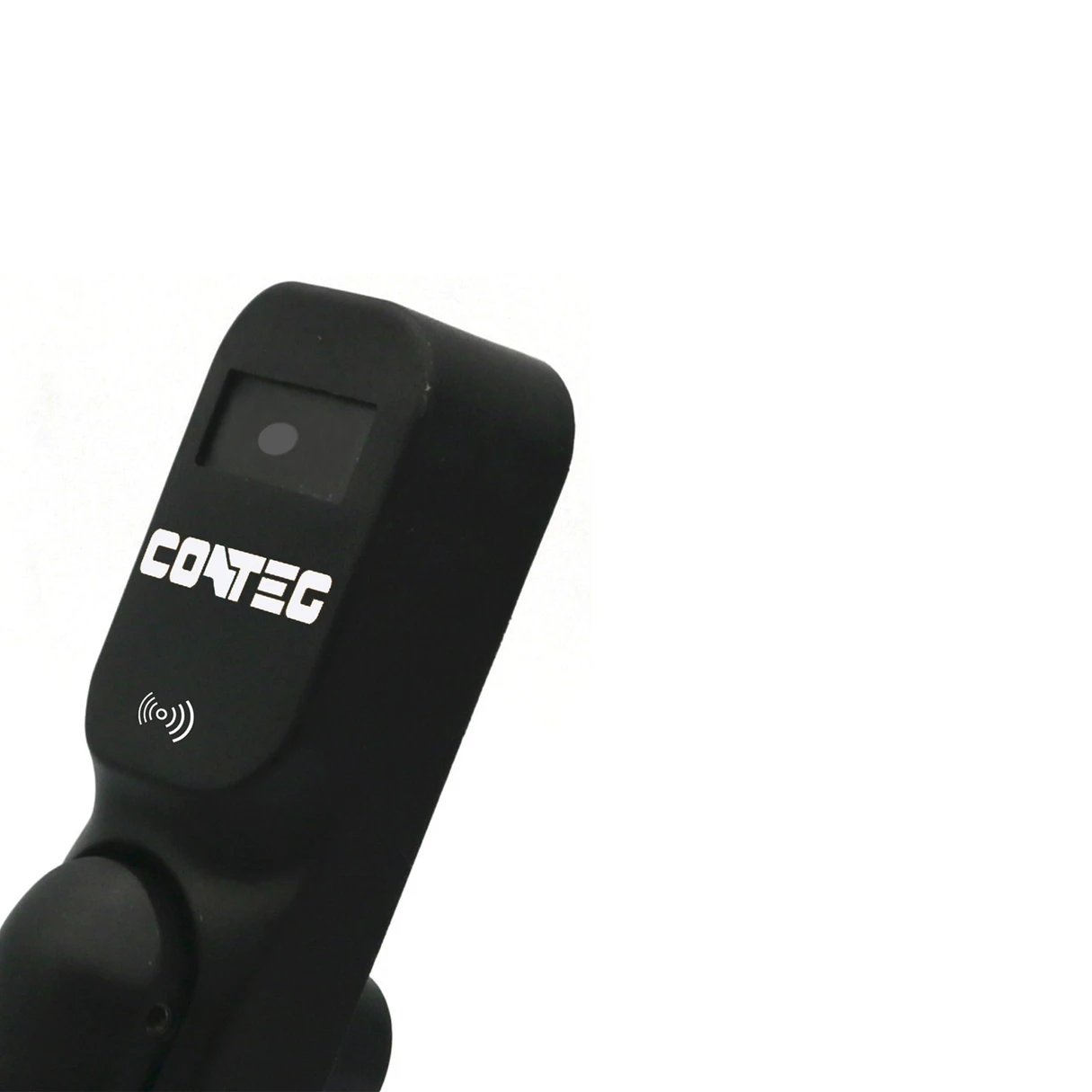

The electronic handle with a built-in reader including a door contact enables connection directly to the intelligent port of the RAMOS Optimax or RAMOS Plus main monitoring unit. This handle is intended for CONTEG cabinets with a 25x150mm handle cut-out. It is possible to control up to 8 handles with RAMOS Optimax and up to 4 handles with RAMOS Plus without the need for additional hardware.The electronic handle is also compatible with doors equipped with a multi-point locking mechanism. 2 EM cards are included with each handle.
Order code: RMS-ACS-EL1
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Name der Produktlinie |
Electronic handle with card reader |
|---|---|
| Stromversorgung (V/Ph/Hz) |
Powered by RAMOS Optimax or RAMOS Plus smart port (main monitoring unit only) |
| Im Paket enthalten |
2 EM cards |
| LED-Indikator |
Color RGB LED |
| Ideal für |
RAMOS Plus and RAMOS Optimax |
| Betriebstemperatur |
from -25 °C to +75 °C |
| Betriebsfeuchtigkeit |
10% - 90% |
|
EM cards with a frequency of 125kHz 26bit, K4100/EM4100/EM4200/T5577 |
|
|
0-3 cm |
|
|
Remote opening and closing from the main monitoring unit via web interface, SNMP and CONTEG Pro Server application |
|
|
5V DC |
|
| Stromverbrauch (W) |
Standard 0.35 mW, 70 A in operation up to 1.75 W, 3500 mW |
