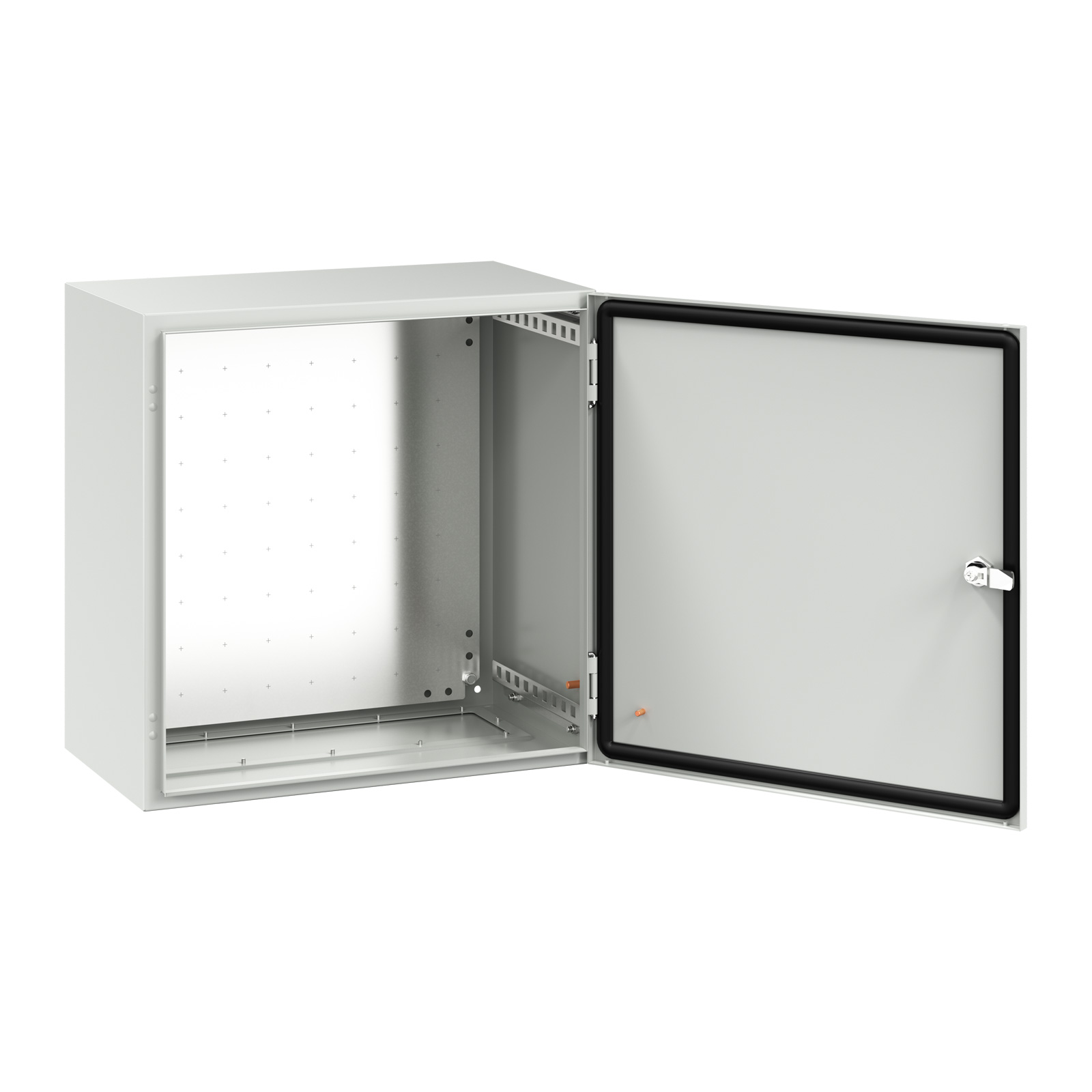

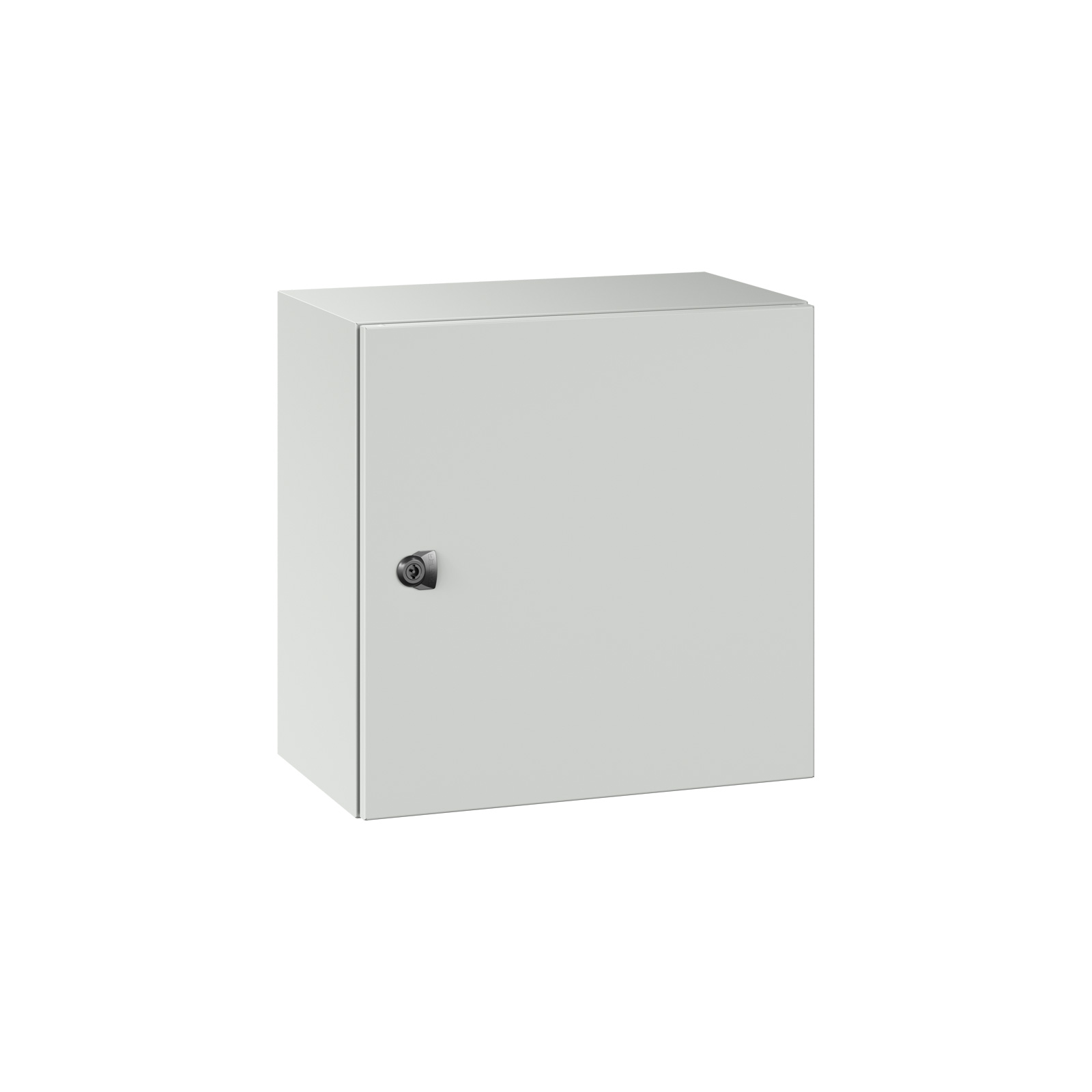

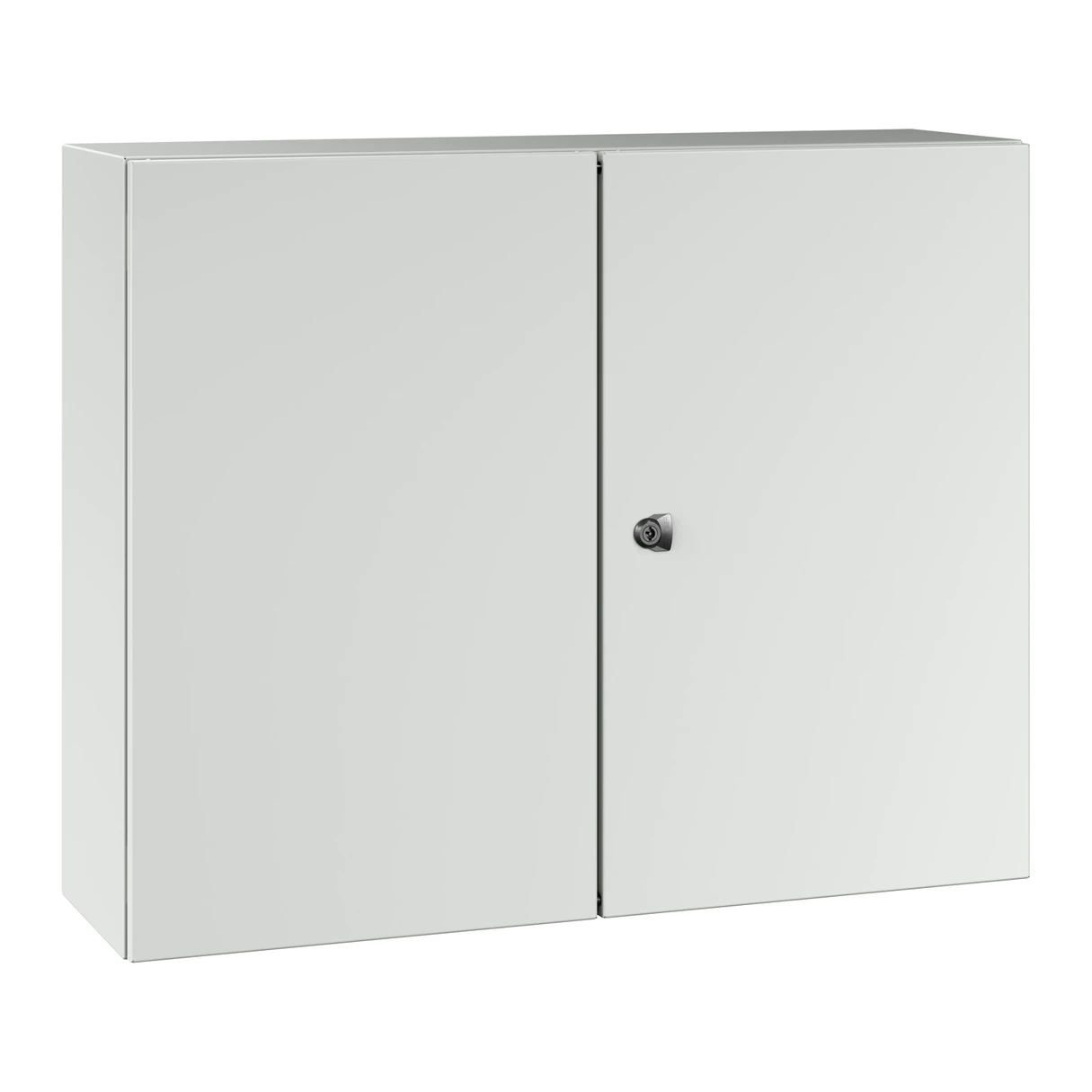

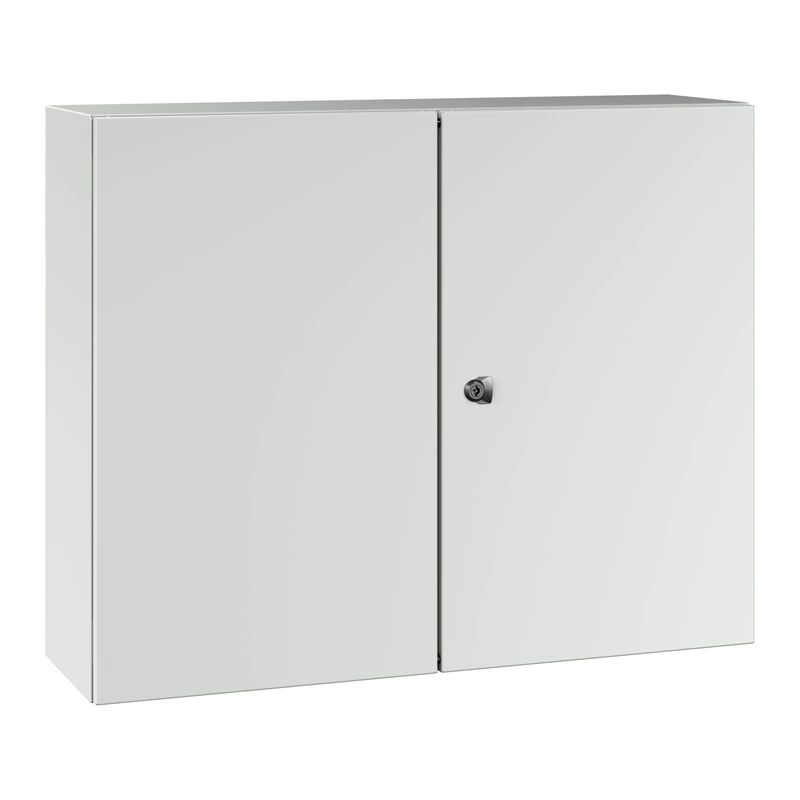

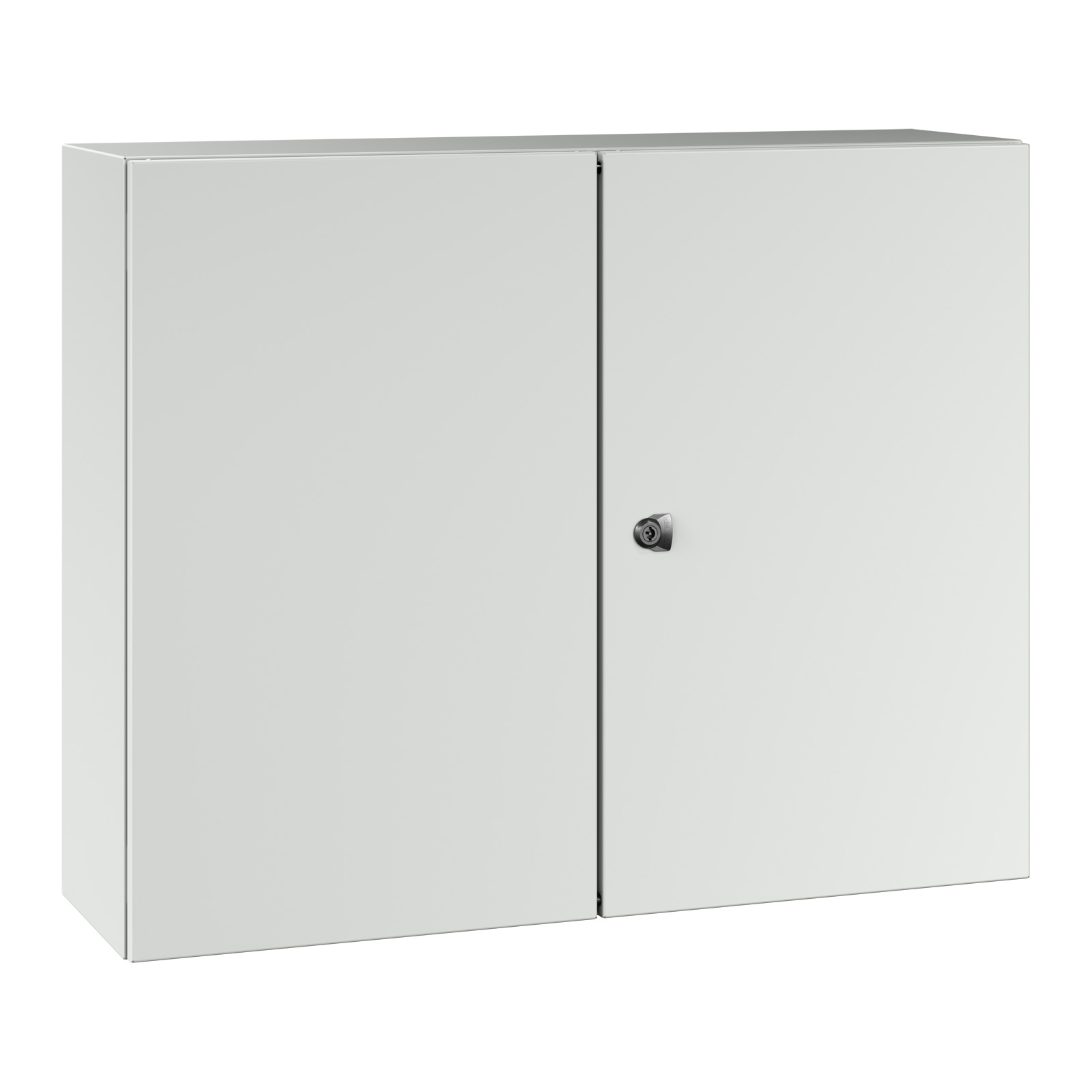

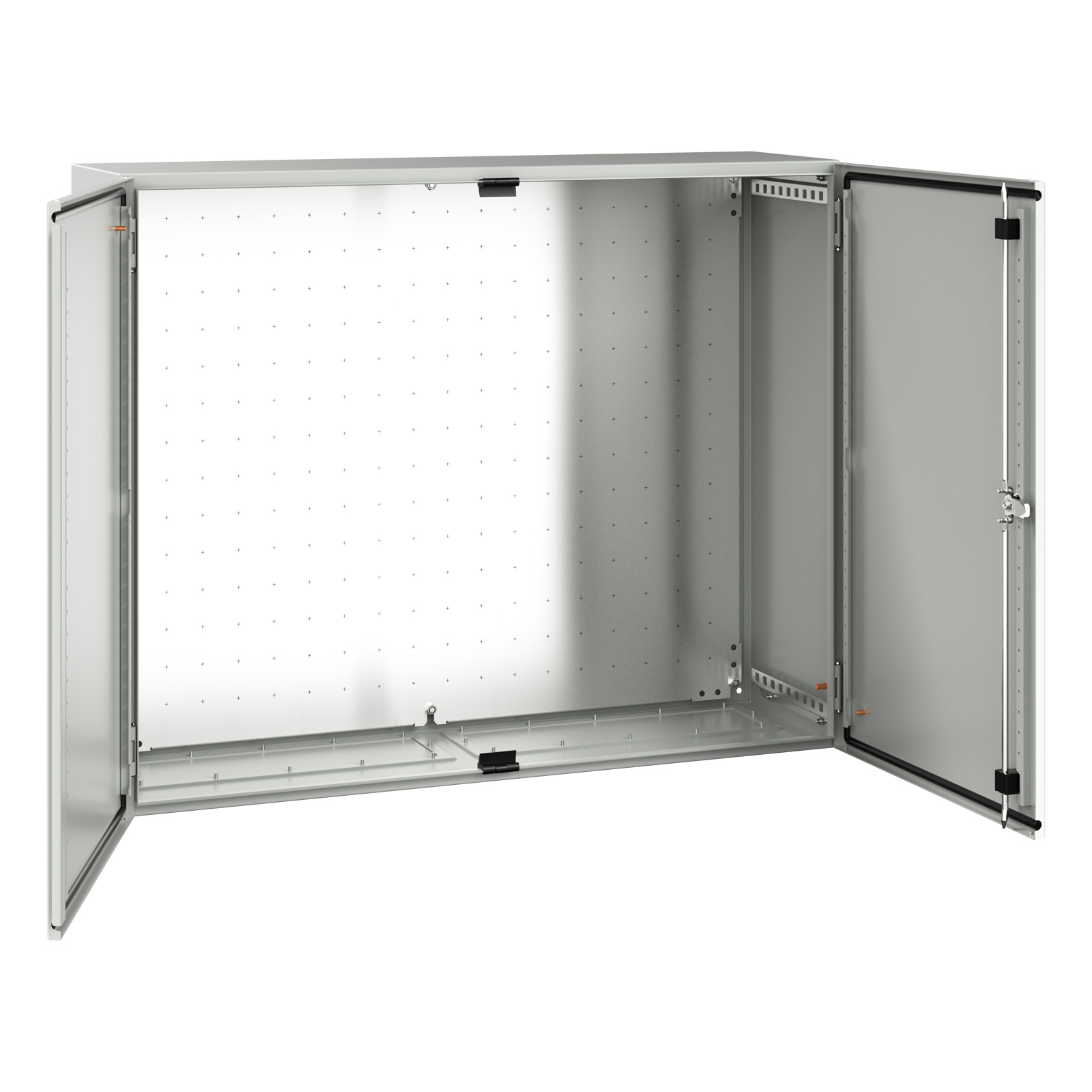

The standard version of the cabinets is made of sheet steel with an epoxy-polyester powder paint finish in RAL 7035 color. One- and two-door versions.
WME’s compact sheet steel enclosures are suitable for a wide range of indoor use cases in industry and electrical engineering.
Our extensive offer of cabinet sizes, both with solid doors and glass doors, in single and double-door designs, is complemented by a wide range of accessories. The design of this series offers high rigidity not only of the rear panel, but also of the entire cabinet. Laser welding technology gives the cabinets clean design.
Upon request, we will make cutouts and threads in WME-X cabinets for your installations.
| Product line name |
WME - sheet steel |
|---|---|
| IP rating |
IP66 single-door design / IP55 double-door design according to EN 60529 (the degree of protection may decrease after mounting certain accessories) |
| Color design |
RAL 7035 for interior use, other colors upon request |
| Material |
Cabinet - sheet steel |
| Surface treatment |
Epoxy polyester powder coating |
| Mechanical resistance |
IK10 according to IEC 62262 |
Replacement mounting plate with 50x50 mm grid marking
Brackets for positioning of the mounting plate in the cabinet.
The inner door separates the control elements from the live parts inside the cabinet.
A door to provide access to control elements that may be installed on the cabinet’s full door.
We offer various types of locks and lock cylinders.
100 mm plinth as a fixed base for both indoor and outdoor cabinets.
Locks the door in the open position
Self-adhesive pouch for storing A4 documentation inside the cabinet.
LED lighting of the interior of the cabinet.
Glands ensure secure cable passage where high IP protection level and mechanical resistance are required.
Replacement metal cable tray for customizable cable routing in cabinets.
Perforated metal cable tray with pass-through frame.
Vertical perforated mounting rails for component installation.
Internal 19" fixed rails for installation of IT/telco equipment.
Perforated horizontal door bar for attaching cabling etc.
Suitable for outdoor installations to increase resistance to the effects of the outdoor environment.
Designed for connecting WME series cabinets into rows while maintaining IP protection.
Perforated metal cable tray with round frame.
Complete assembly for attaching the cabinet to a pole.
Mounting kits for direct installation of the cabinet on the wall.
A complete set of grounding cables for cabinets
Metal perforated cable tray with membrane entry plate.
