In-Row Kühleinheiten

CoolTeg Plus XC

Breite nur 30 cm

Direct evaporation-based inter-cabinet cooling unit. The compressor is integrated in the indoor unit, which is connected to its external condenser.

Mehr erfahren

Wo kaufen?

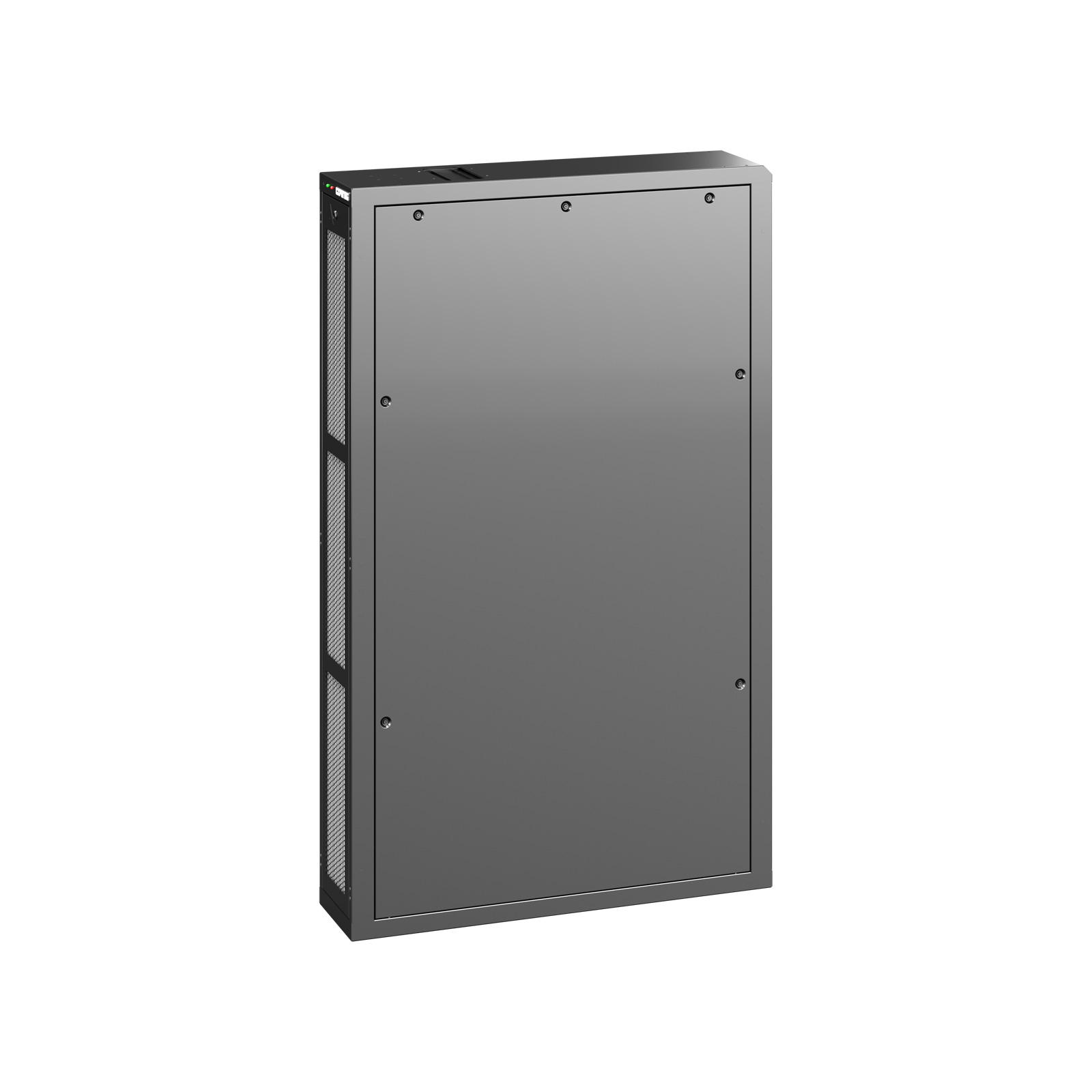

CoolTeg-Plus-XC_AC-TXC-42-30-back-left-WEB

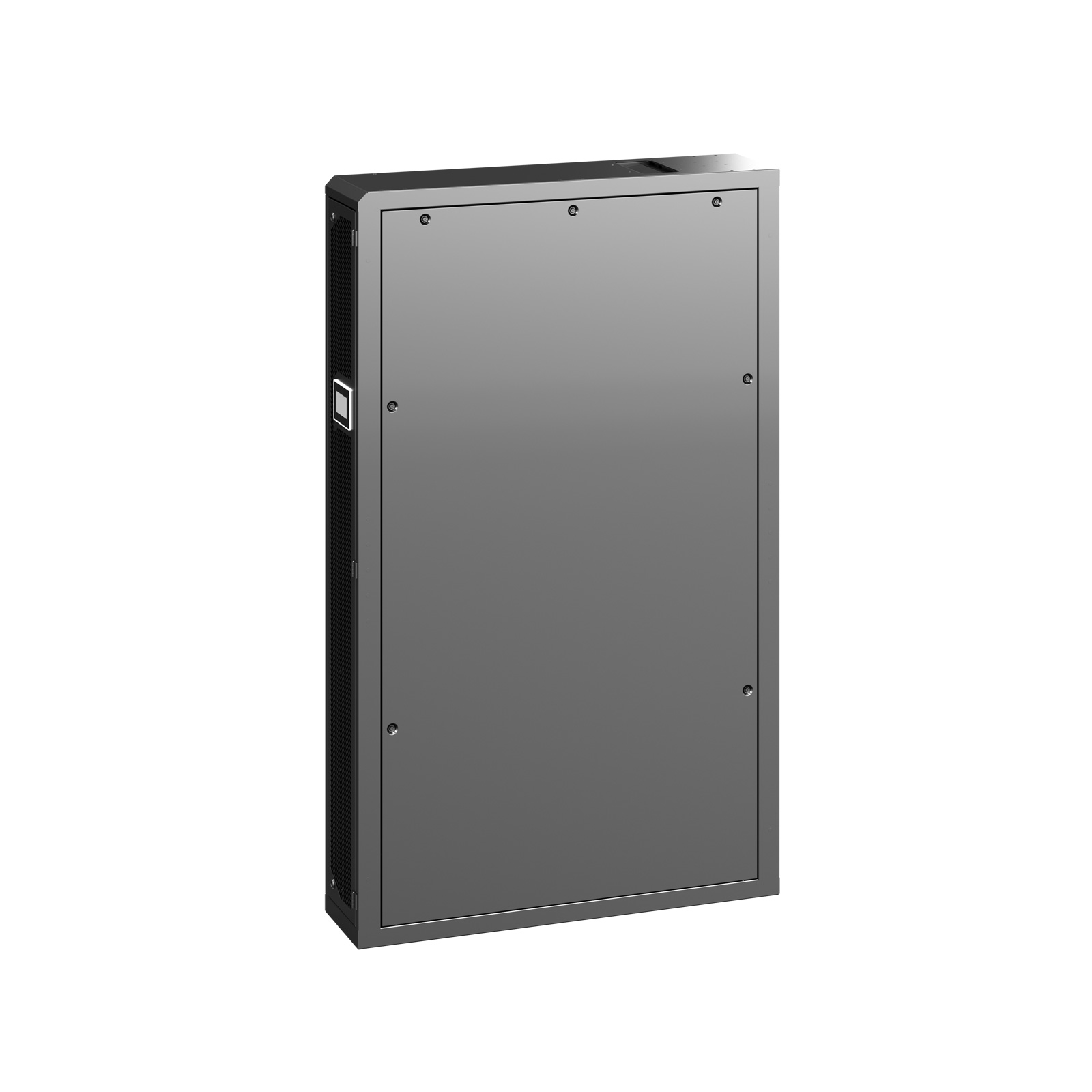

CoolTeg-Plus-XC_AC-TXC-42-30-front-right-WEB

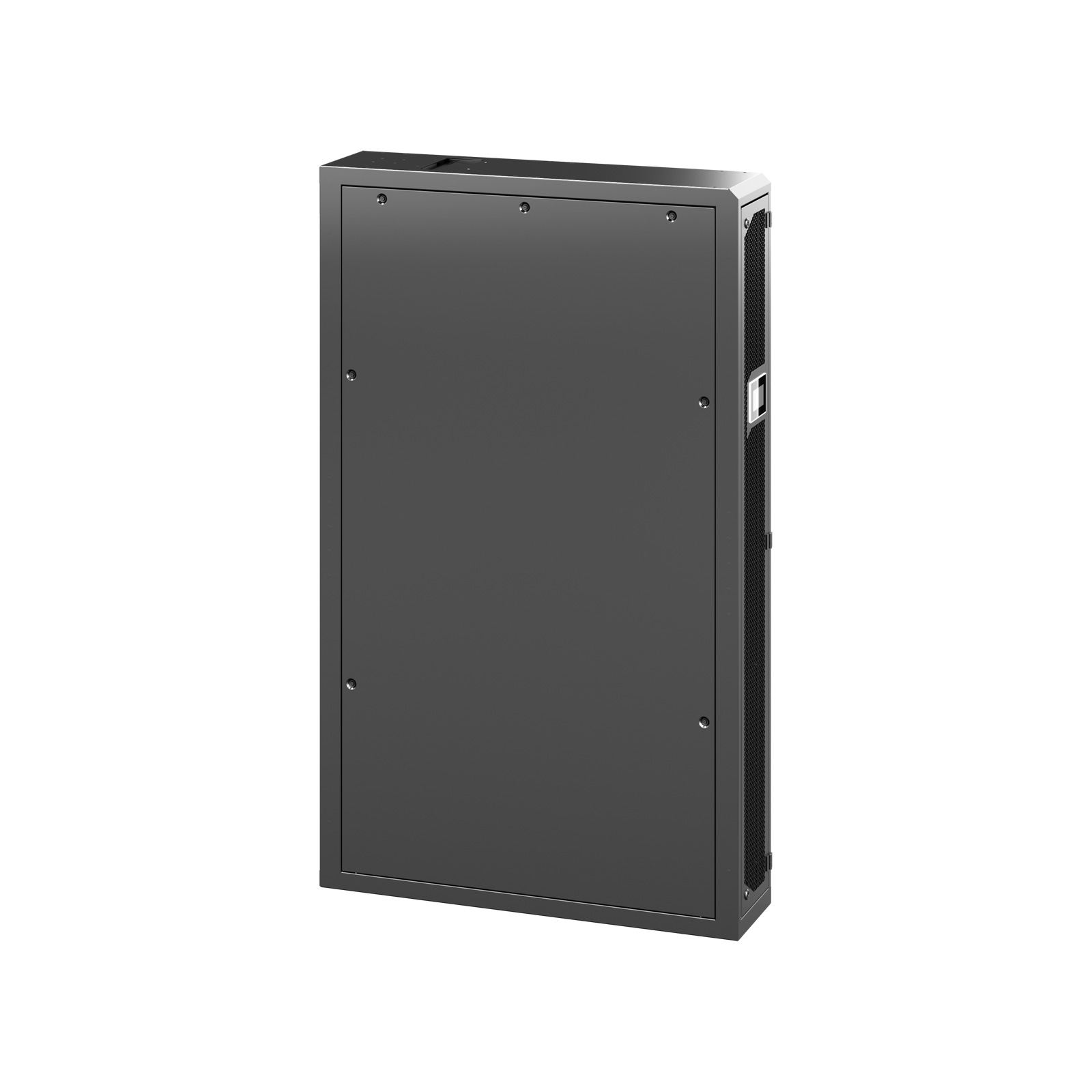

CoolTeg-Plus-XC_AC-TXC-42-30-left-front-WEB

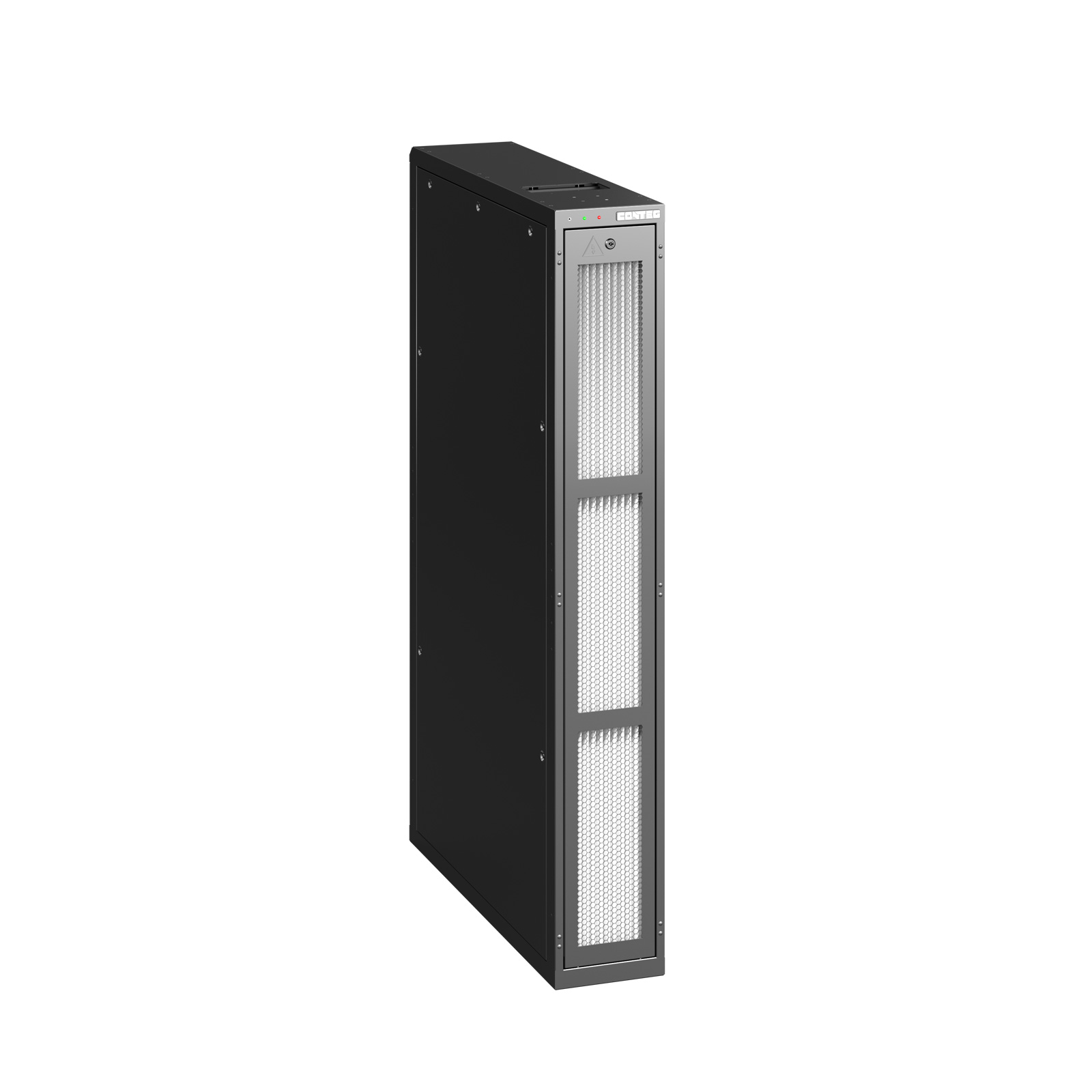

CoolTeg-Plus-XC_AC-TXC-42-30-right-back-WEB

Produkteinführung

CoolTeg Plus XC is a series of inter-cabinet cooling units based on the direct refrigerant evaporation principle. The compressor is located in the indoor unit and is connected to the outdoor air cooled condenser. The distance between the indoor and outdoor unit may be no longer than 60 m. Such arrangement protects all important components from climatic phenomena (heat, frost, rain, snow, desert storms) and allows cooling to operate independently of the ambient conditions within a temperature range of -40 to + 50 °C.

CoolTeg Plus XC30 - this unique cooling unit with a width of mere 30 cm and maximum power of up to 22 kW features a two-piston rotary compressor and BLDC control, which enables smooth adjustment of cooling power in the range from 10% to 100%. This extremely versatile unit is particularly suitable for smaller data centers or any use case where powerful cooling units would be oversized in terms of performance and price.

Only 30 cm wide
Cooling capacity between 10% and 100%
Maximum power up to 22 kW

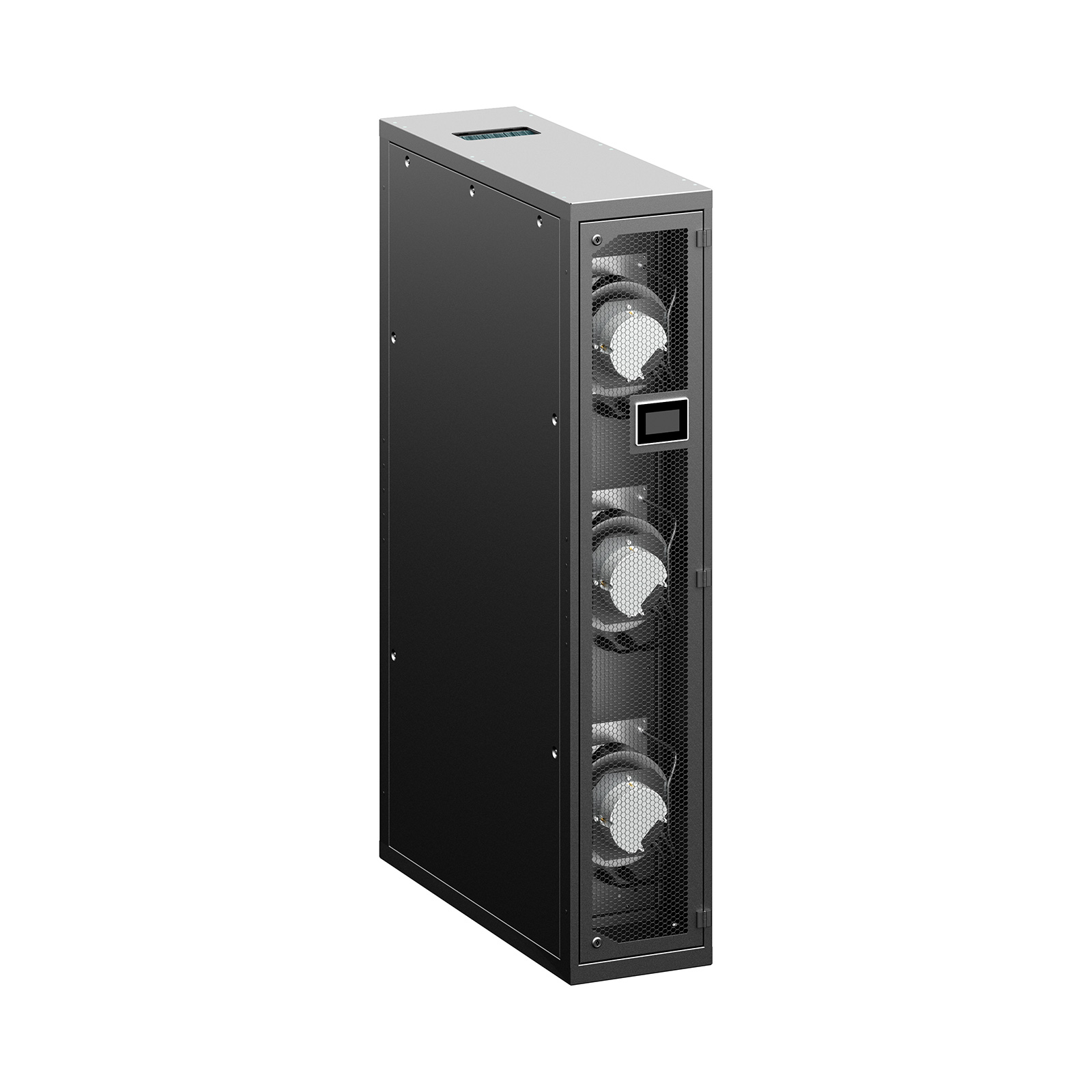

CoolTeg Plus XC40 - this cooling unit provides output up to 42 kW at a width of 40 cm. Currently the most efficient compressor is inverter-controlled and built into the indoor unit with an electronically controlled expansion valve and advanced control logic. The cooling capacity can be smoothly adjusted in the range from 20% to 100%. This powerful cooling unit is suitable for large data centers and wherever high cooling performance is required.

40 cm wide
Cooling capacity between 20% - 100%
Maximum power up to 42 kW

Information Video zum Herunterladen

Information

Hauptmerkmale

Product line name	CoolTeg Plus XC
Technical information	CoolTeg Plus XC30 No water in the data center The compressor is safely located inside the data center High energy efficiency and smooth power regulation Low noise outdoor unit Variable design and size of the outdoor unit Operation in a wide range of outdoor temperatures R410A environmentally friendly coolant Highly efficient twin-piston rotary compressor BLDC compressor located inside the unit R410A environmentally friendly coolant Electronic expansion valve and advanced control logic Smooth power regulation from 10 to 100% Low vibrations Low pressure and high pressure safety switches Shut-off valves for easy maintenance Operating outdoor temperatures between -40 °C and +55 °C Distance between indoor and outdoor unit up to 60 m Outdoor unit The indoor CoolTeg Plus XC30 unit is compatible with any variable airflow condenser. The outdoor unit should be designed with respect to the condensing temperature of the refrigerant, plus a typical max. ambient temperature. For the correct design of the outdoor unit, use the CoolTool selection software or contact our team of experts. CoolTeg Plus XC40 No water in the data center The compressor is safely located inside the data center High energy efficiency and smooth power regulation Low noise outdoor unit Variable design and size of the outdoor unit Operation in a wide range of outdoor temperatures Perfect oil management for complex piping R410A environmentally friendly coolant Highly efficient scroll compressor Frequency-controlled compressor located inside the unit R410A environmentally friendly coolant Electronic expansion valve and advanced control logic Smooth power regulation from 20 to 100% Oil separator and Trax-oil inside the unit Low pressure and high pressure safety switches Shut-off valves for easy maintenance Operating outdoor temperatures between -40 °C and +55 °C Distance between indoor and outdoor unit up to 60 m Outdoor unit The indoor CoolTeg Plus XC unit is compatible with any variable airflow condenser. The outdoor unit should be designed with respect to the condensing temperature of the refrigerant, plus a typical max. ambient temperature. For the correct design of the outdoor unit, use the CoolTool selection software or contact our team of experts. Local conditions determine whether to use a dry or wet (adiabatic) Conteg outdoor cooler. Conteg is currently developing a new adiabatic outdoor cooling unit, EcoCool (compatible with CoolTeg Plus XC), to reduce the overall consumption of the cooling system.

Product line name

CoolTeg Plus XC

Technical information

CoolTeg Plus XC30
No water in the data center

The compressor is safely located inside the data center

High energy efficiency and smooth power regulation

Low noise outdoor unit

Variable design and size of the outdoor unit

Operation in a wide range of outdoor temperatures

R410A environmentally friendly coolant

Highly efficient twin-piston rotary compressor

BLDC compressor located inside the unit

R410A environmentally friendly coolant

Electronic expansion valve and advanced control logic

Smooth power regulation from 10 to 100%

Low vibrations

Low pressure and high pressure safety switches

Shut-off valves for easy maintenance

Operating outdoor temperatures between -40 °C and +55 °C

Distance between indoor and outdoor unit up to 60 m

Outdoor unit
The indoor CoolTeg Plus XC30 unit is compatible with any variable airflow condenser. The outdoor unit should be designed with respect to the condensing temperature of the refrigerant, plus a typical max. ambient temperature. For the correct design of the outdoor unit, use the CoolTool selection software or contact our team of experts.

CoolTeg Plus XC40
No water in the data center

The compressor is safely located inside the data center

High energy efficiency and smooth power regulation

Low noise outdoor unit

Variable design and size of the outdoor unit

Operation in a wide range of outdoor temperatures

Perfect oil management for complex piping

R410A environmentally friendly coolant

Highly efficient scroll compressor

Frequency-controlled compressor located inside the unit

R410A environmentally friendly coolant

Electronic expansion valve and advanced control logic

Smooth power regulation from 20 to 100%

Oil separator and Trax-oil inside the unit

Low pressure and high pressure safety switches

Shut-off valves for easy maintenance

Operating outdoor temperatures between -40 °C and +55 °C

Distance between indoor and outdoor unit up to 60 m

Outdoor unit
The indoor CoolTeg Plus XC unit is compatible with any variable airflow condenser. The outdoor unit should be designed with respect to the condensing temperature of the refrigerant, plus a typical max. ambient temperature. For the correct design of the outdoor unit, use the CoolTool selection software or contact our team of experts. Local conditions determine whether to use a dry or wet (adiabatic) Conteg outdoor cooler. Conteg is currently developing a new adiabatic outdoor cooling unit, EcoCool (compatible with CoolTeg Plus XC), to reduce the overall consumption of the cooling system.
