19" Feste Fachböden bis 20 kg Tragfähigkeit

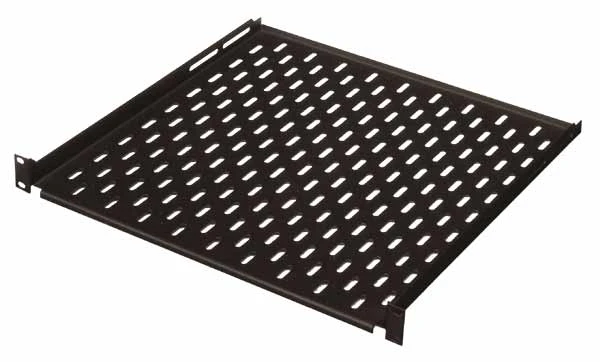

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Produkteinführung
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow and are available in the RAL 9005 color.
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Name der Produktlinie |
Fixed shelves, lightweight version, with a load capacity of 20 kg |
|---|---|
| Technische Informationen |

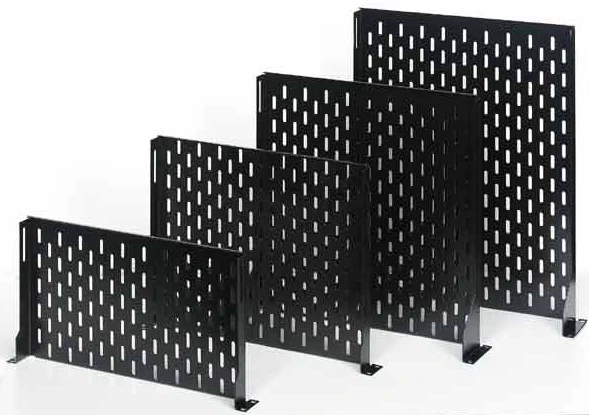

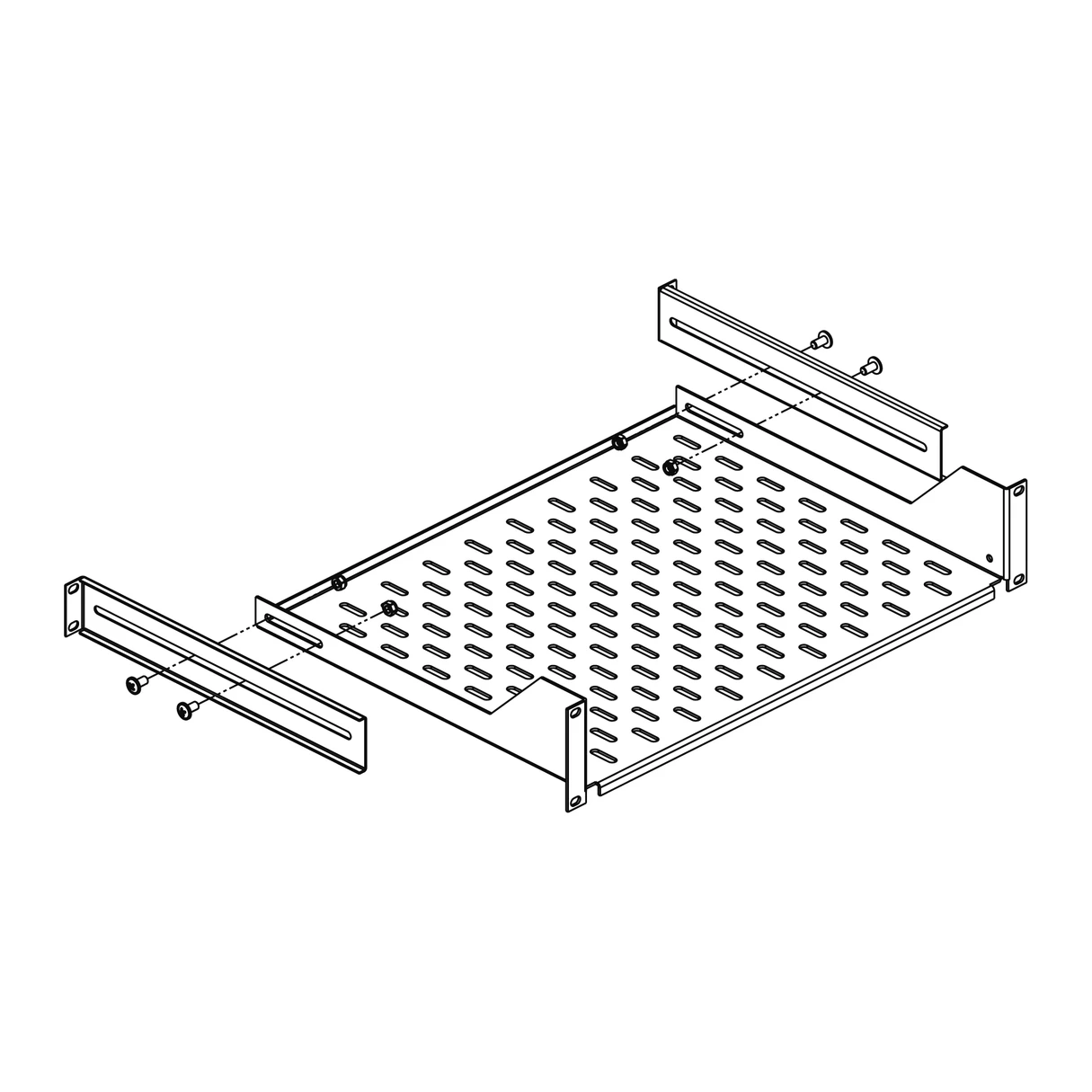

Fixed lightweight shelves - DP-PT Made of 1.5 mm sheet metal Rear supports included Load capacity max. 20 kg (even load); the load capacity is reduced to 25% of the nominal value if attached only to the front pair of rails Available in the following widths: 150, 250, 350, 450, 550, 650, 750 and 850 mm |
zum Herunterladen
Produktkatalog: Daten und Telekommunikation Lösungen und Schränke
Kataloge und Broschüren
Dateigröße: 54.33 MB
Hochgeladen: 2. 7. 2025
