RAMOS ACS

USB-Kartenleser

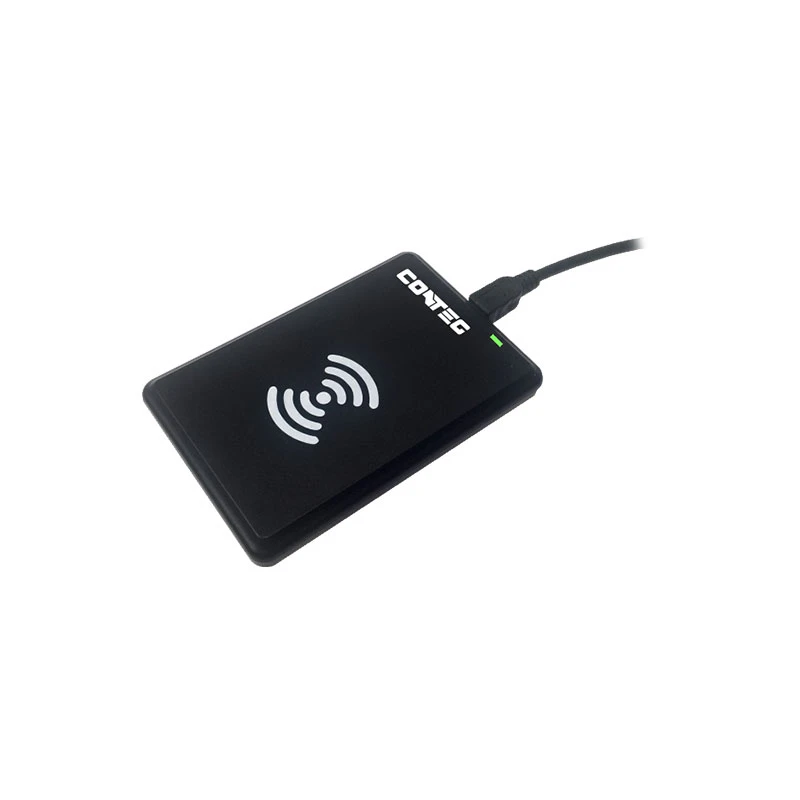

Desktop USB card reader for RAMOS ACS access and monitoring system.

Produkteinführung

The dual desktop reader for PC is a useful accessory for the administration of user cards in the CONTEG Pro Server application. Supports 125 kHz and 13.56 MHz bands. SUpports 125 kHz access ID media. Features a LED indicator and a buzzer. Connects to a USB port in a PC, from which it is also powered.

Ordering code: RMS-ACS-DCR

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	USB card reader
Technische Informationen	Reads EM and HID Prox 125kHz cards Typical reading distance 3.5 cm Relative humidity: Max 80%, without condensation equipped with a LED indicator and a buzzer Communication interface: USB 2.0 (USB 1.1 compatible) Powered over USB USB cable length 0.5 m Dimensions: 105 x 70 x 13 mm Operating temperature: -10°C – +40°C Weight: 0.055 kg Supported operating systems: Windows 7 (32 and 64-bit) Windows XP (32 and 64-bit) Windows Vista (32 and 64-bit) Windows XP Embedded Windows CE (4.2, 5.0 a 6.0) Mac OS-X Linux (3.2 and higher) Android

Name der Produktlinie

USB card reader

Technische Informationen

Reads EM and HID Prox 125kHz cards
Typical reading distance 3.5 cm
Relative humidity: Max 80%, without condensation
equipped with a LED indicator and a buzzer
Communication interface: USB 2.0 (USB 1.1 compatible)
Powered over USB
USB cable length 0.5 m
Dimensions: 105 x 70 x 13 mm
Operating temperature: -10°C – +40°C
Weight: 0.055 kg
Supported operating systems:
Windows 7 (32 and 64-bit)
Windows XP (32 and 64-bit)
Windows Vista (32 and 64-bit)
Windows XP Embedded
Windows CE (4.2, 5.0 a 6.0)
Mac OS-X
Linux (3.2 and higher)
Android
