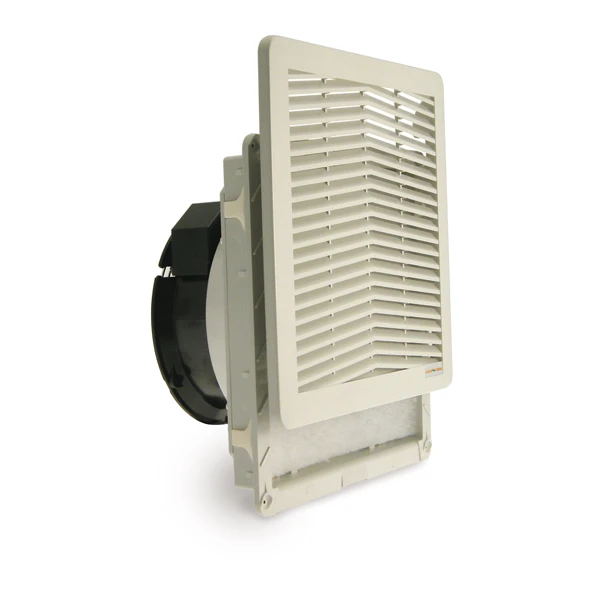

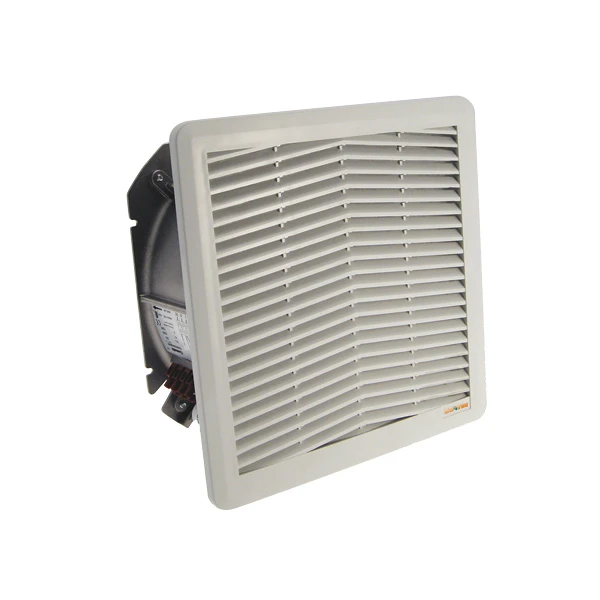

Ventilationseinheiten mit Filter

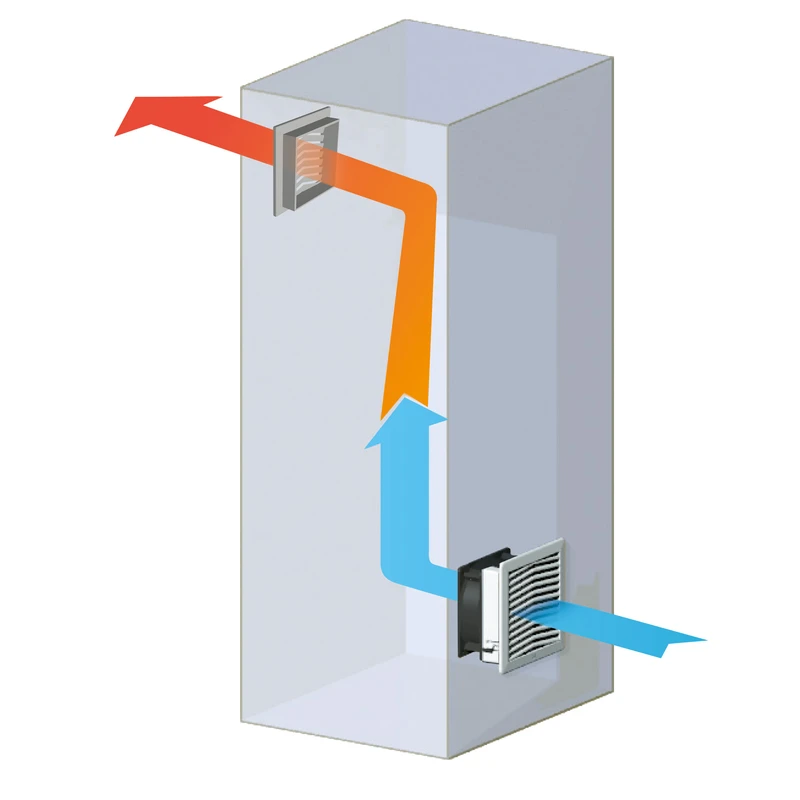

Ventilation unit help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.
Produkteinführung
Fans help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.Hauptvorteile des Produkts

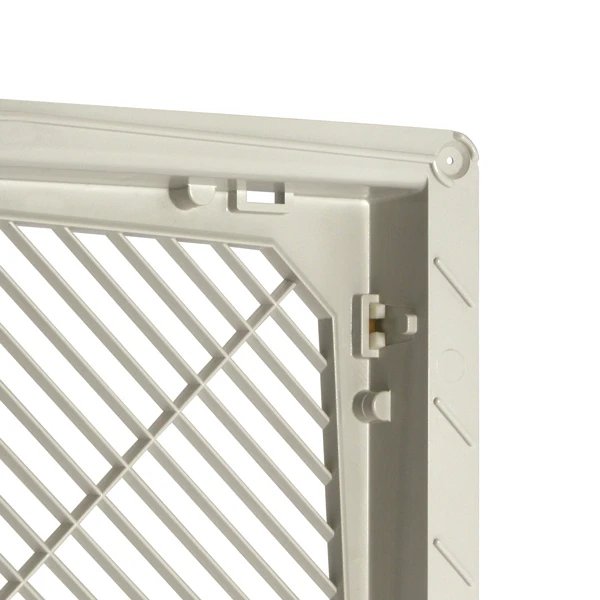

- quick installation without screws and tools by fixing of the unit simply into a square cut-out with highly elastic clips

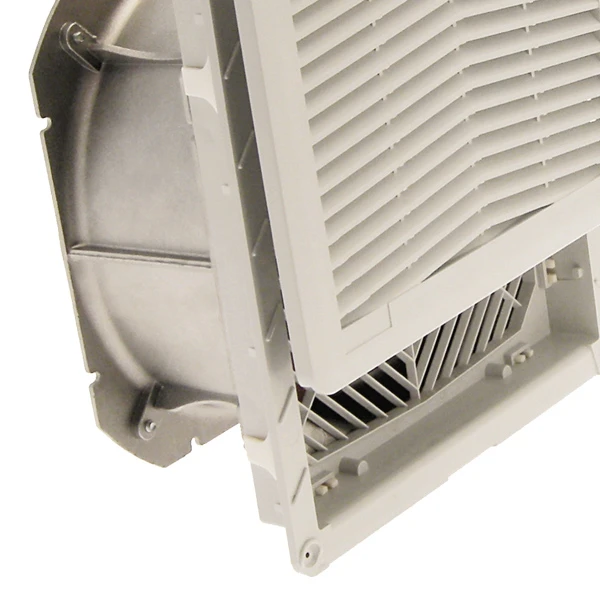

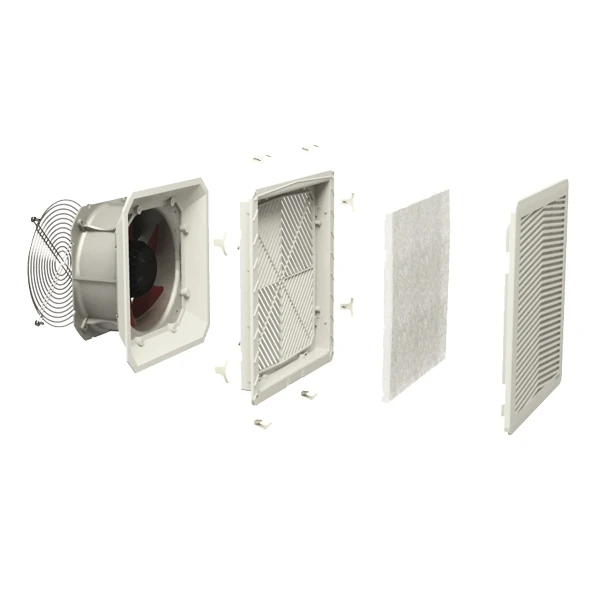

- easy replacement of the filter insert from the outside without tools
- air flow direction can be reversed
- air flow up to 800 m3/h
- can be installed in cabinets with sheet metal shell thickness of 1-2.5 mm
- IP 54 protection as a standard
- side or roof installation
- operating temperature range -10 °C to +70 °C
- polyurethane foam seal all around
- UV resistant
- installation cutouts made upon request at the CONTEG Modification Center
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Name der Produktlinie |
Ventilation unit with filter |
|---|---|
| Material |
plastic parts made of ABS/PC; all parts are self-extinguishing according to UL 94V-0 |
| IP-Schutzart |
standard protection level IP54 according to EN 60529 and NEMA 12 according to UL 50 IP55 optional (according to EN 60529) IP56 with a splash guard |
| Farbe |
Standard color RAL 7035 (other colors upon request) |
| Montáž/Instalace |
Filter inserts |
|
Made of synthetic fibers class G3 according to EN 779 and class G4 according to EN 779 and UL 900 class 2 self-extinguishing class F1 according to DIN 53 438 Can be cleaned by rinsing in water, by compressed air or by mechanical tapping |
|
| Andere |
Encapsulated ball bearings |
| Hinweis |
EMC version available upon request |
