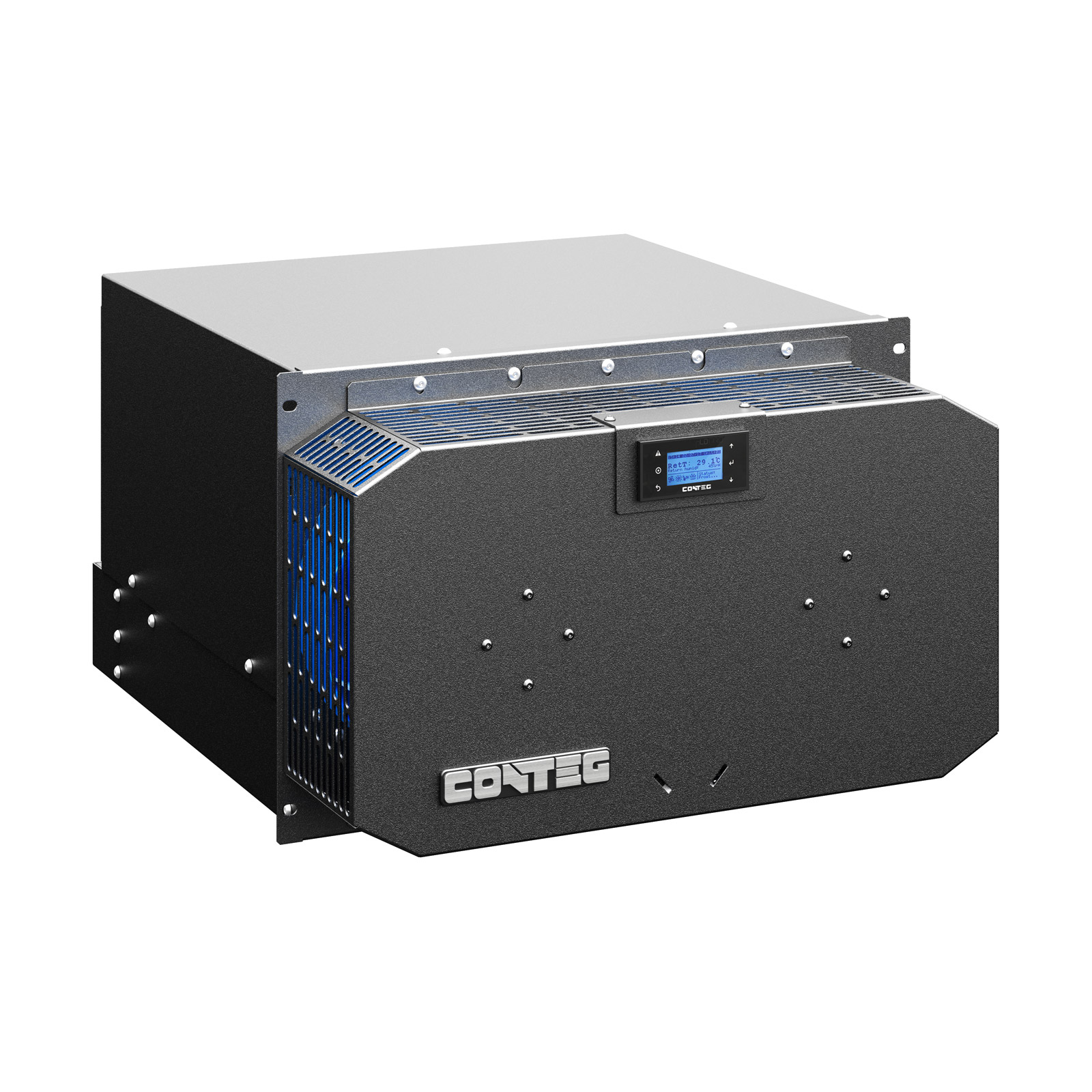

CoolSeven
Produkteinführung

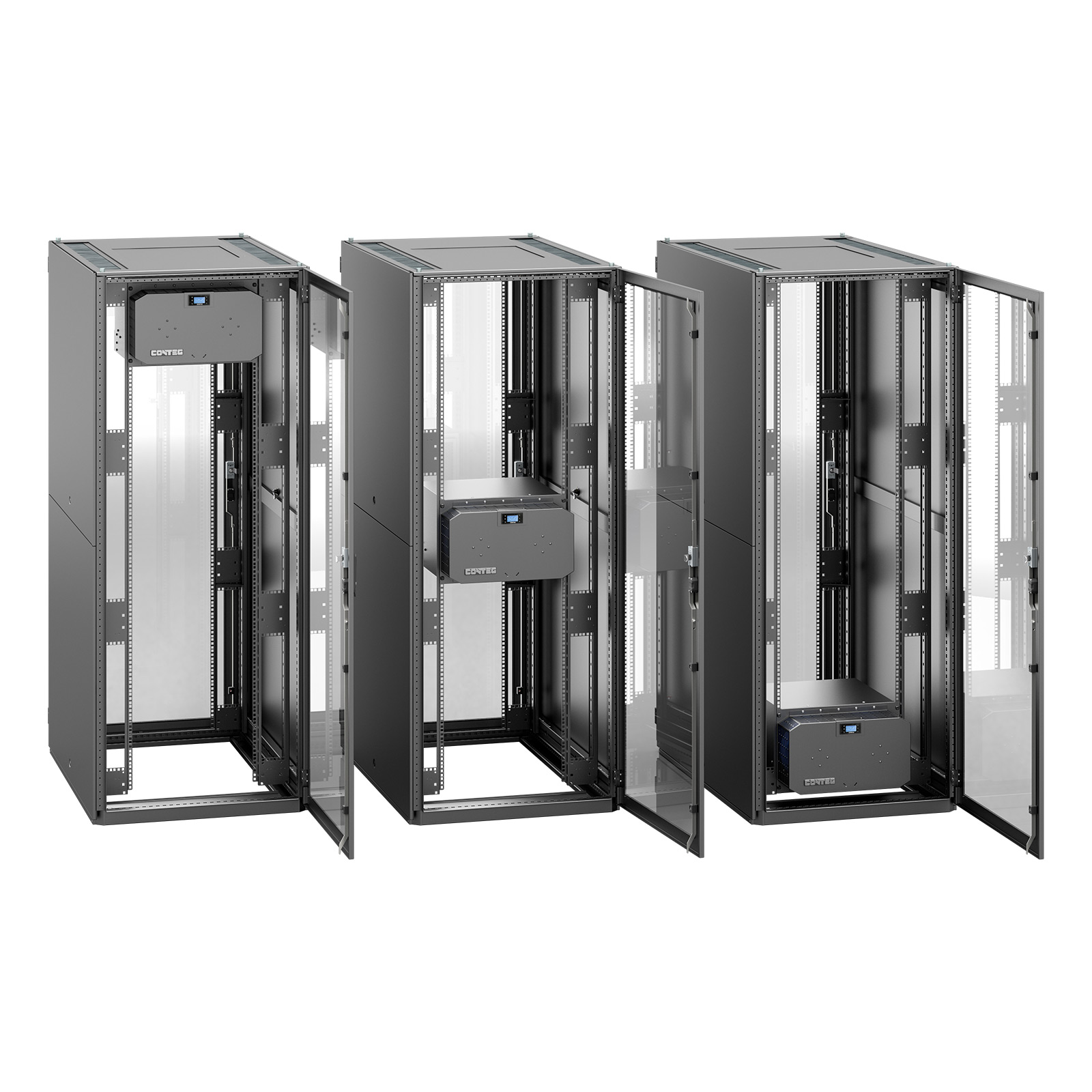

CoolSeven is a type of direct vaporization unit for precision cooling inside cabinets. CoolSeven is a 7U high indoor unit installed on rails inside in a 19' cabinet and is based on a split cooling system, which consists of two parts - an indoor unit and an outdoor unit.Hauptvorteile des Produkts
- Precise control of cooling performance based on actual air temperature
- Compatible with all 19"" IT cabinets
- Individual control of cooling at the cabinet level
- Very low energy consumption thanks to EC fans
- Heat is removed directly from the cabinet to the outdoor environment
- An outdoor unit version for very low outside temperatures available
- Filterless operation
- Wide range of accessories
- Ready for communication with a monitoring system (e.g. CONTEG Pro Server)
- Emergency door opening function when the emergency temperature is exceeded. Compatible with CONTEG EOS emergency opening system.
Information
Hauptmerkmale
| Name der Produktlinie |
CoolSeven |
|---|---|
| Höhe (HE) |
7
|
| Stromversorgung (V/Ph/Hz) |
AC-ODX-07-xxxxx |
| Höhe (mm) |
311 (installation in 7U)
|
| Gewicht (kg) |
without filter |
| Breite (mm) |
482.6 mm (installation in 19")
|
| Tiefe (mm) |
624
|
| Anwendung |
Open/Closed |
| Eingangsleistung (W) |
The CoolSeven unit is based on the direct evaporation principle with the refrigerant circulating between one indoor unit and one outdoor unit. The outdoor compressor unit is equipped with an inverter-controlled BLDC compressor that enables automatic regulation of the cooling power (up to 8 kW maximum). Thanks to the separation of the indoor and outdoor units, there is no need for additional room ventilation. The CoolSeven unit is designed for direct installation in 19"" cabinets, where it occupies the height of seven rack units (7U). In addition to the refrigerant piping, power and communication lines, the unit must also be connected to the condensate drain. The highly efficient evaporator of the internal cooling unit is treated with a special hydrophilic coating that minimizes the risk of condensate escaping, while the fans are extremely power-efficient thanks to EC technology. Air flow and cooling performance are automatically controlled thanks to a built-in controller with special CONTEG software. The unit is equipped with a compact LCD display for setting and checking cooling parameters. For communication with BMS systems, the unit is equipped with an integrated MODBus RTU interface. Optionally, the unit can be equipped with a network card (SNMP, WEB server, Logger, E-mail, FTP PUSH, MODBus TCP/IP, BACnet...). The CoolSeven unit is extremely user-friendly and simple to set up while also offering more complex advanced functions. The first start-up and subsequent operation of the unit is therefore very easy and efficient. |
| Wasserfluss |
2.7 A |
| Maximalstrom (A) |
8.1 kW |
| Leistungsregelung |
230 V, 1 ph, 50-60 Hz |
| Nennwert netto Kühlleistung (kW) |
Office space Data cabinets or halls with a closed architecture Cabinets with no or insufficient cooling Dusty environment |
| Architektur |
AC-C7-DX-xxxxxxx |
| Betriebsstrom (Werte in kW bei konstanten 80% Leistung) |
11–100 % |
| Ventilatormotorentechnologie |
Direct evaporation |
| Nomineller Stromverbrauch (Werte in W bei konstanten 80% Leistung) |
7.5 kW |
| Maximaler Luftstrom (m3/h) |
2.6 A |
| Anzahl der Ventilatoren |
613 W |
| Kältemitteltyp |
1791 m3/h |
| Filterklasse |
2 pcs |
| Schalldruck Lw(A) |
R410A |
| Durchmesser und Typ des Zuleitungsrohrs (mm) |
30-52 dB |
| Wasseranschluss |
12 mm |
| Durchmesser und Typ des Rücklaufrohrs (mm) |
29.8 kg |
| Wasserdruckverlust |
16 mm |
zum Herunterladen
Broschüre: Mini‑ und Micro‑Rechenzentren
Broschüre: Kühlung für IT
Produktkatalog: Daten und Telekommunikation Lösungen und Schränke

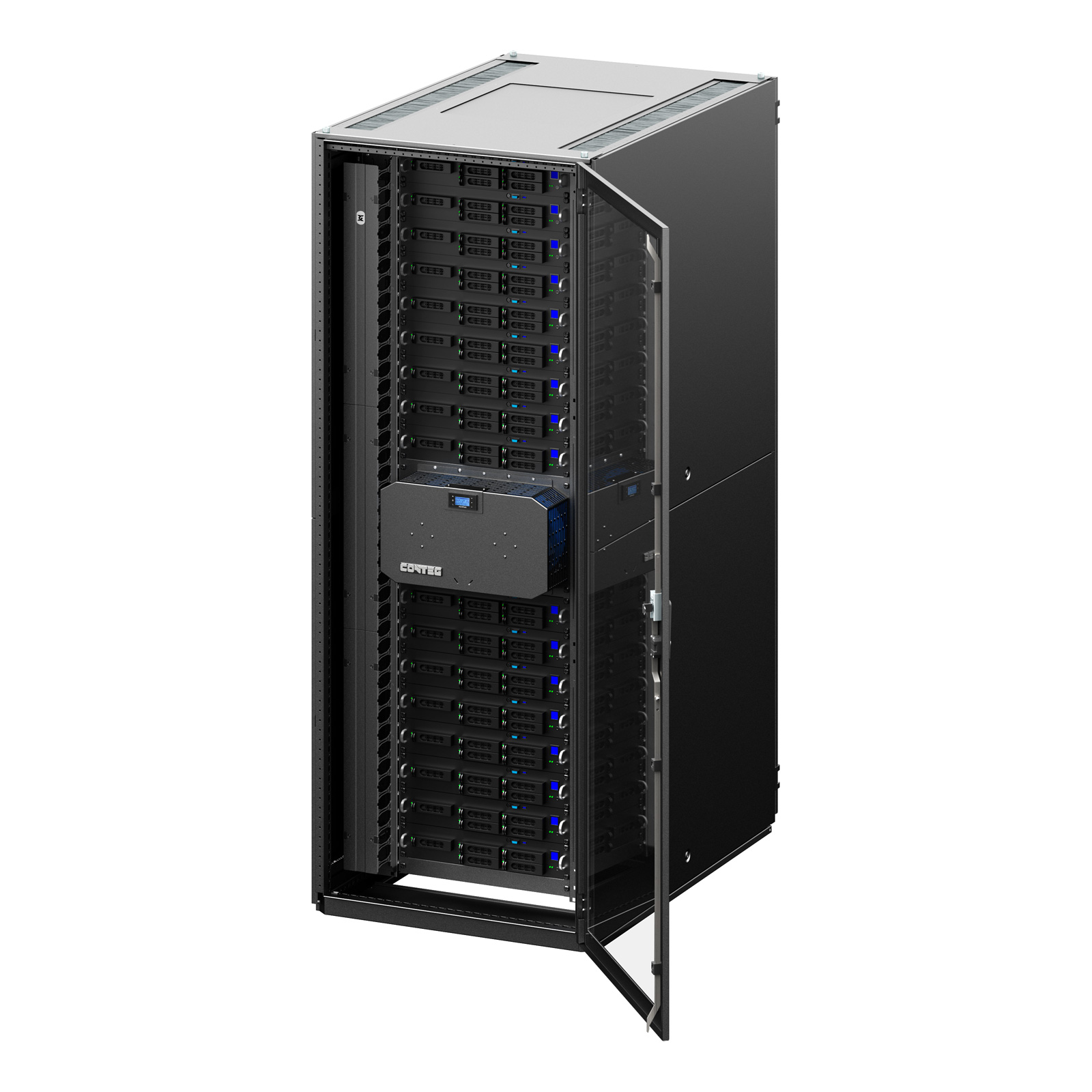

RF1-42U-800x1200-A_coolseven-sklo-HDWM
