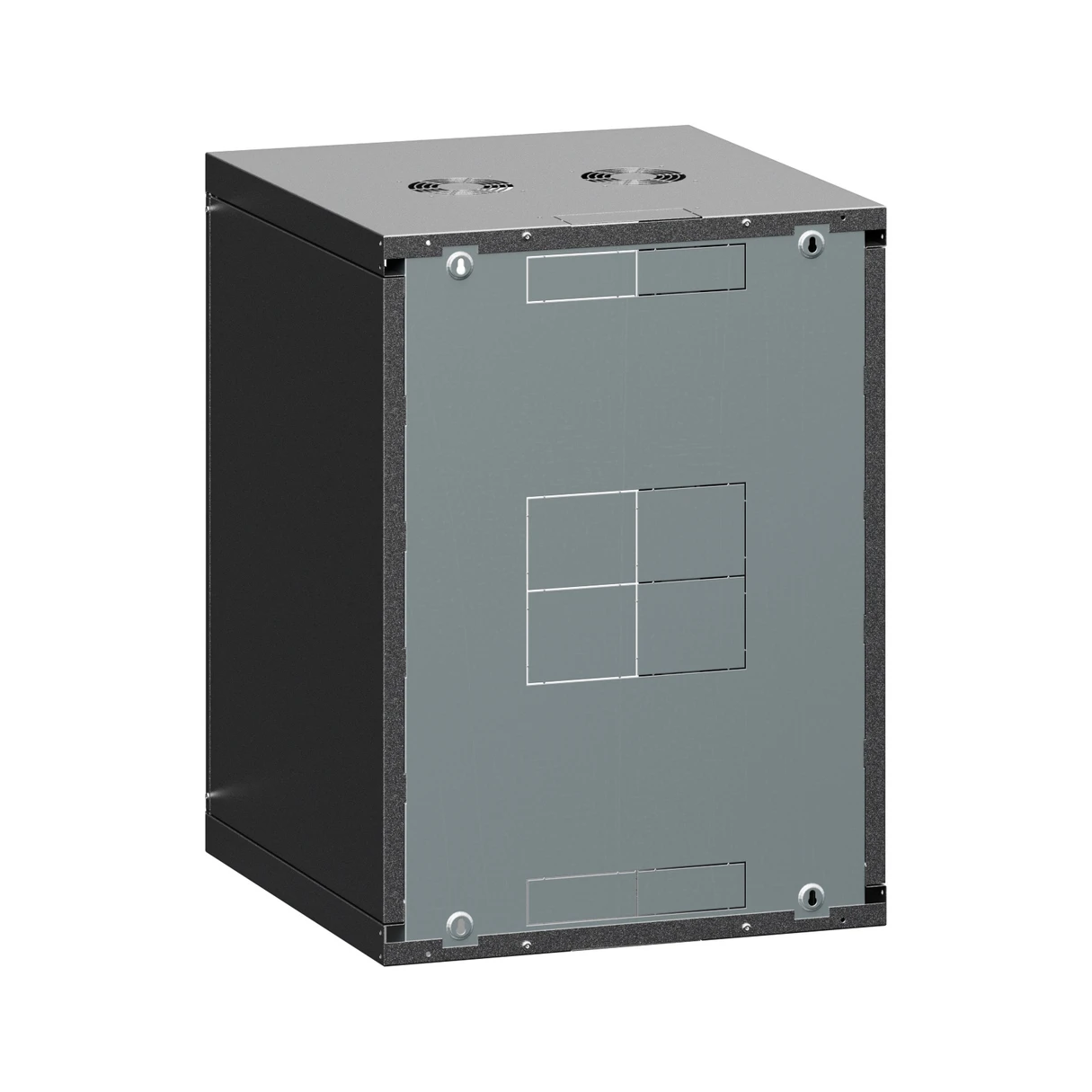

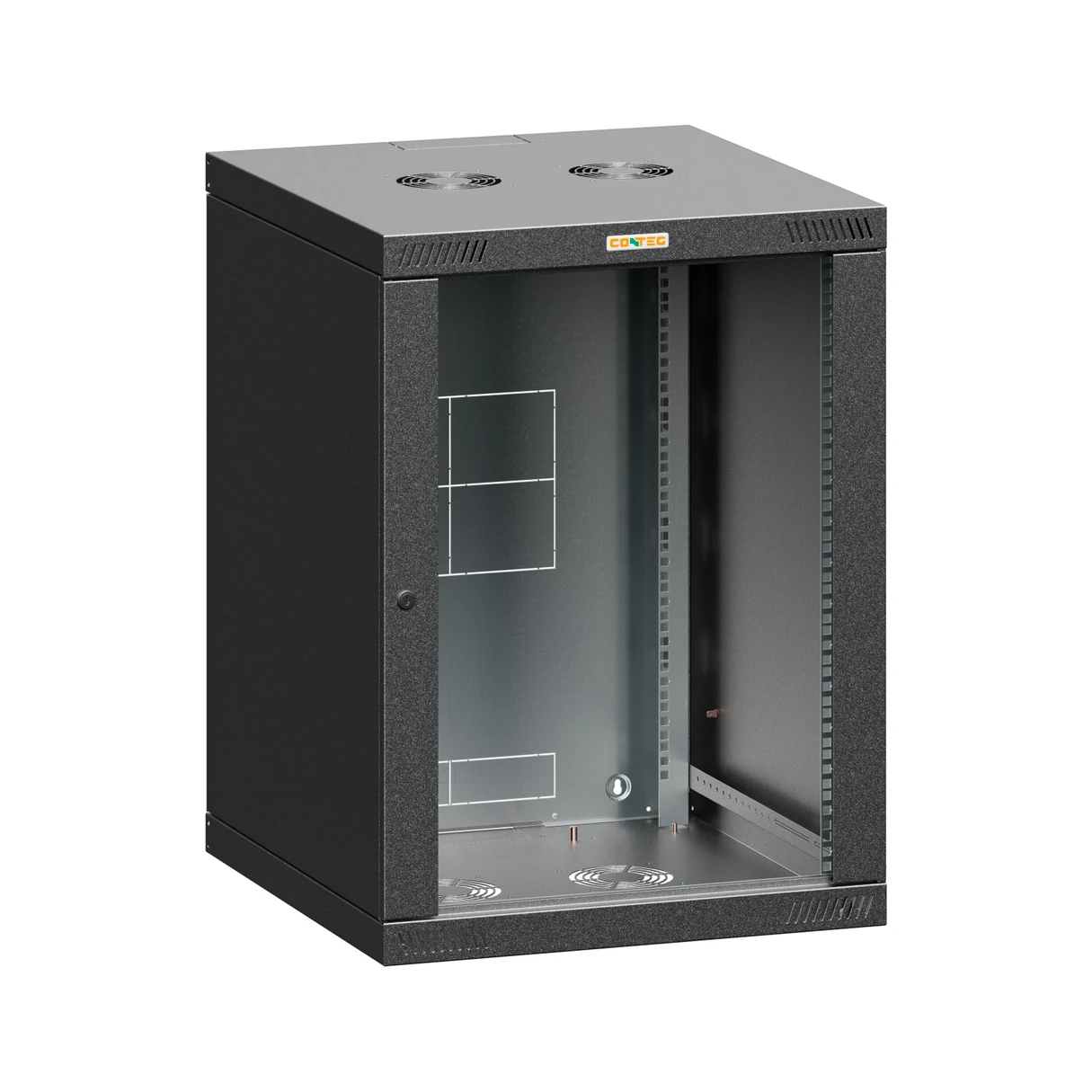

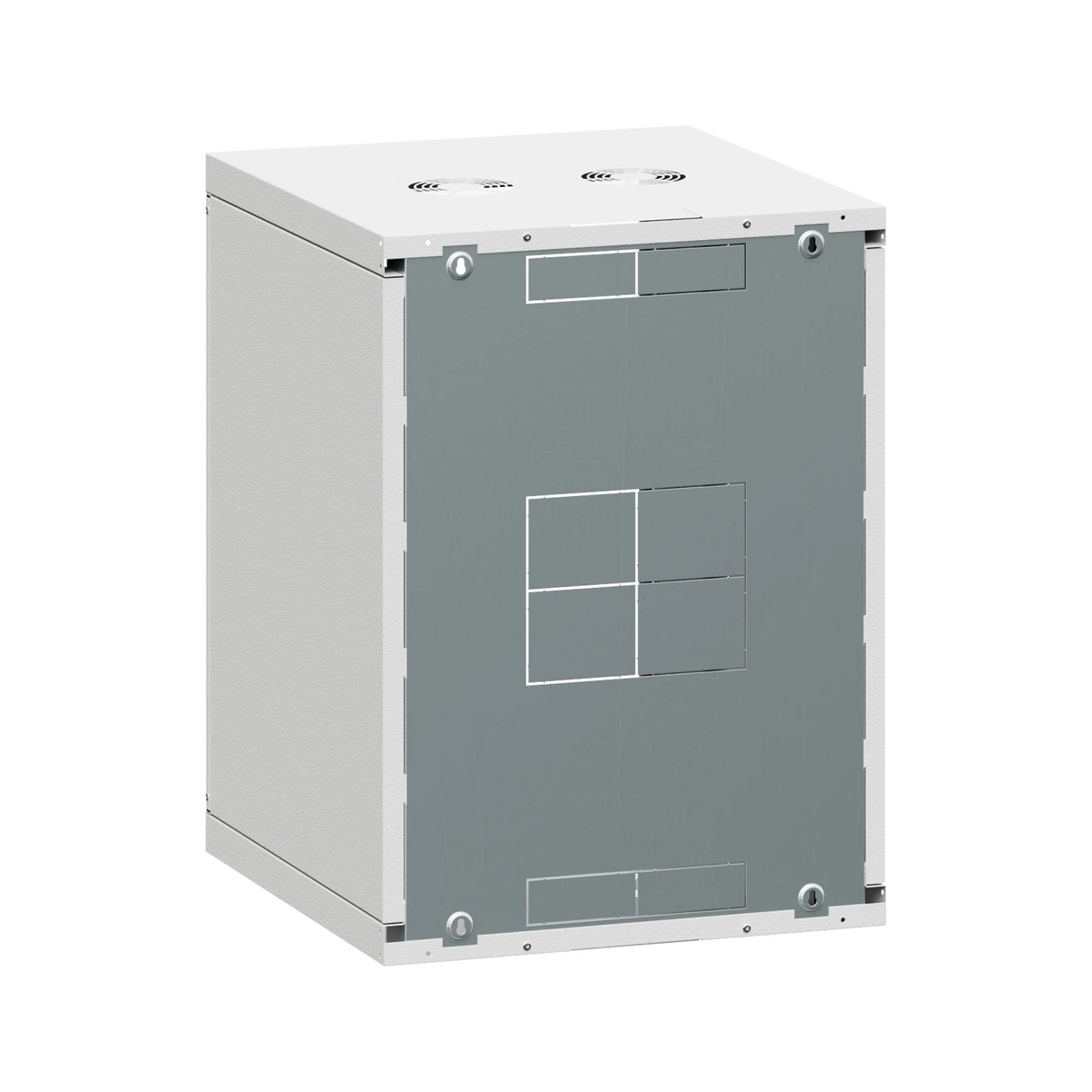

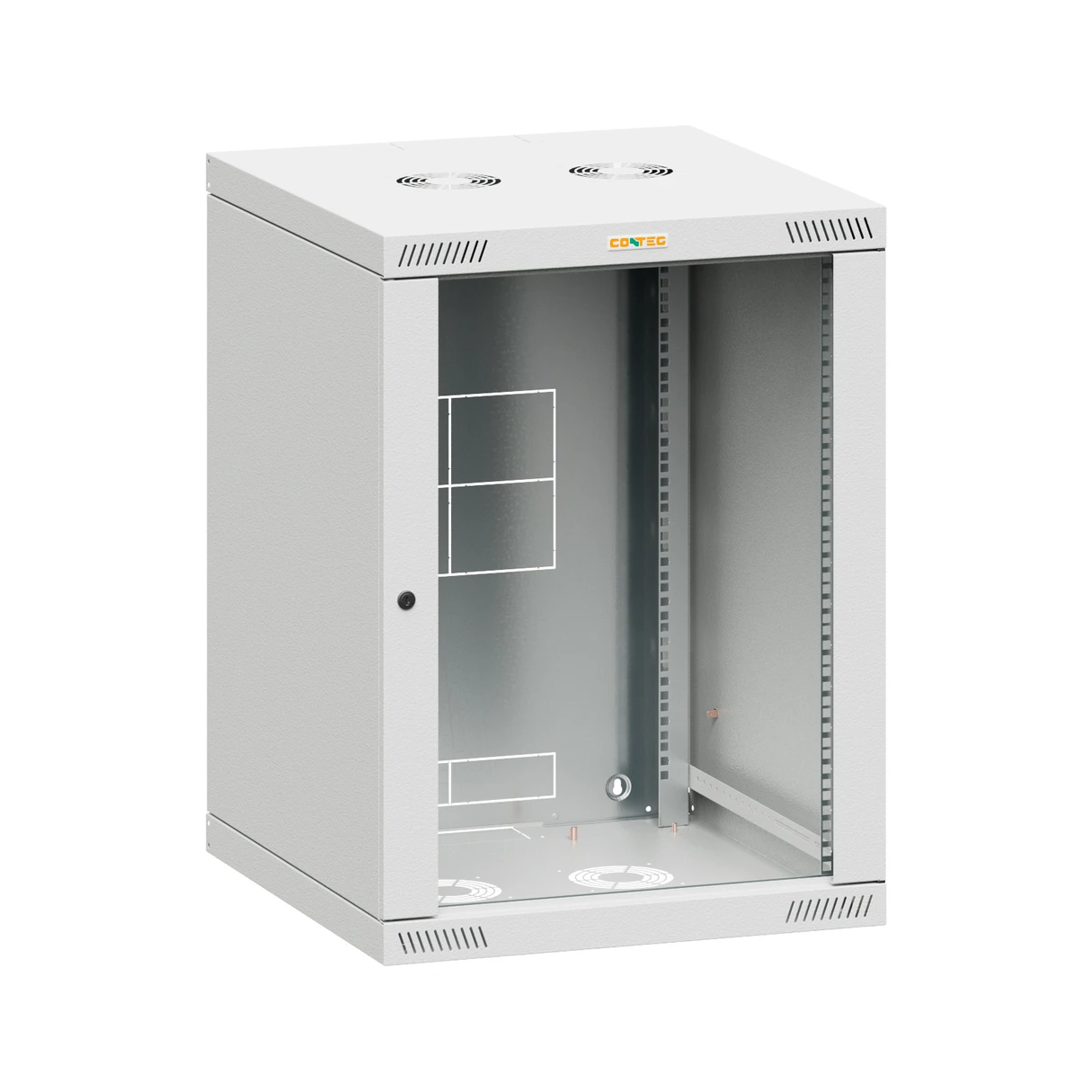

Access through the front door, the cabinet is newly fitted with a rear panel with cable inlet, load capacity 50 kg, height from 6U to 15U.
The iSEVEN REN (19") series wall-mounted cabinets are intended for local data networks. This cost-effective type of wall cabinet offers a basic level of access to the installed technology through the front door.
| Product line name |
iSEVEN REN |
|---|---|
| Height (U) |
15, 21, 6, 9, 12, 18
|
| Height (mm) |
374, 507, 640, 773, 907, 1 040
|
| Výška s obalem (mm) |
150, 220 |
| Width (mm) |
572
|
| Šířka s obalem (mm) |
590 |
| Tiefe (mm) |
600, 450
|
| Tiefe verpackt (mm) |
455, 540, 670, 805, 940, 1 070 |
| Konstrukce |
|
| Load capacity (kg) |
Standard 50 (even load) |
| Front door |
|
| Back door |
Zadní panel |
| IP rating |
Standard IP30 |
| Color design |
Powder color RAL 7035 |
| Air conditioning |
|
| Standard configuration |
1 pair of sliding 19"" vertical rails |
| Kabelové vstupy |
|
Binding panels with plastic loops are used for installation and horizontal routing of cables within the cabinet.
Plastic binding ducts are intended for placement and horizontal routing of cables in rack cabinets, wall-mounted and SOHO cabinets.
Binding panel with metal loops, single-sided design only
Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.
Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow.
Optical trays are used to terminate optical cables in the cabinet. We also offer various types of modular panels and other optical accessories.
All CONTEG cabinets include a basic grounding kit in the standard configuration.
All CONTEG cabinets include a basic grounding kit in the standard configuration.
The mounting kit is used to attach 19" technology to vertical rails with this spacing.
Patch panels are attached to 19" vertical rails and allow the termination of data or telephone cables to different types of modules.
3 types of patch panels
Accessories for SOHO Mini REH - binding panel.
