19"-fixierte LWL-Spleißbox

Optical trays are used to terminate optical cables in the cabinet. We also offer various types of modular panels and other optical accessories.

Mehr erfahren

Wo kaufen?

Produkteinführung

Optical trays are used to terminate optical cables in the cabinet. In addition to fixed and extendable optical trays, the portfolio includes also a full range of modular panels and other optical accessories.

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Optical trays
Technische Informationen	Fixed and extendable optical tray - ORPM-01 and ORVM-01 Height 1U Modular panels are not part of the delivery, need to be oredered separately Panels are available in the following versions: ST, SC, FC, FCD in 8, 12, 16 or 24 positions format for FO couplings DSC in 8, 12 or 16 positions format for FO couplings Holes for cable entry in the back, ready for PG grommets Unused holes for couplings and grommets can be blinded Installation in 19"" rails using two sliding brackets Optical cartridge installation mount Finish - powder paint RAL 9005 Optical accessories Optical cartridges PG grommets PG hole plugs Front and back organizers

Name der Produktlinie

Optical trays

Technische Informationen

Fixed and extendable optical tray - ORPM-01 and ORVM-01

Height 1U
Modular panels are not part of the delivery, need to be oredered separately
Panels are available in the following versions:

ST, SC, FC, FCD in 8, 12, 16 or 24 positions format for FO couplings
DSC in 8, 12 or 16 positions format for FO couplings
Holes for cable entry in the back, ready for PG grommets
Unused holes for couplings and grommets can be blinded
Installation in 19"" rails using two sliding brackets
Optical cartridge installation mount
Finish - powder paint RAL 9005
Optical accessories

Optical cartridges
PG grommets
PG hole plugs
Front and back organizers

zum Herunterladen

Produktkatalog: Daten und Telekommunikation Lösungen und Schränke

Kataloge und Broschüren

Dateigröße: 54.33 MB

Hochgeladen: 2. 7. 2025

Herunterladen: de / Anzeigen: de

Language versions:

cs , en , fr

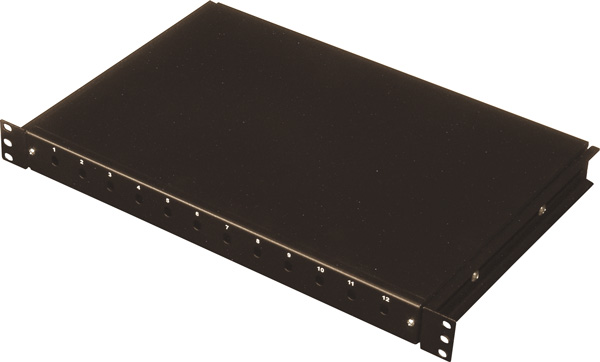

ORPM-01-with-front-panel

Bilder

Dateigröße: 29.17 kB

Hochgeladen: 12. 3. 2025

Herunterladen

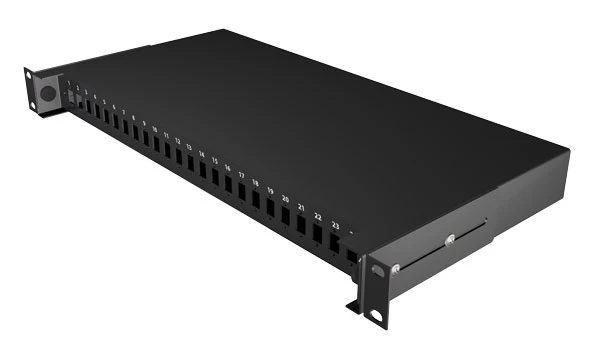

ORVE-01-250
