Wandmontage und SOHO Serverschränke

PREMIUM Split RUD

The highest possible level of access through the front door, through removable lockable side panels as well as from the back; load capacity 50 kg, height from 6U to 18U.

Mehr erfahren

Wo kaufen?

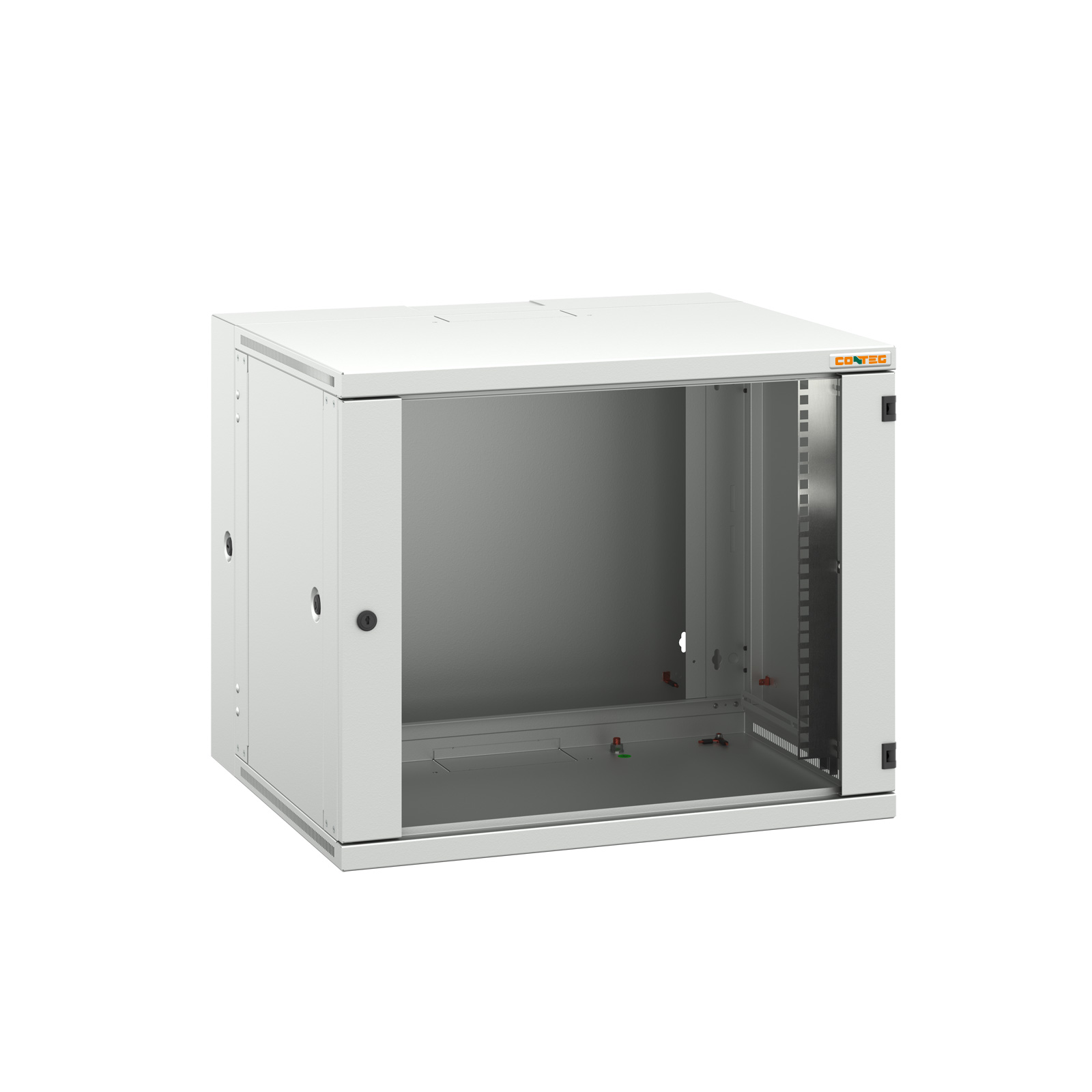

PREMIUM-Split-RUD-09-60_50-main2021x-WEB

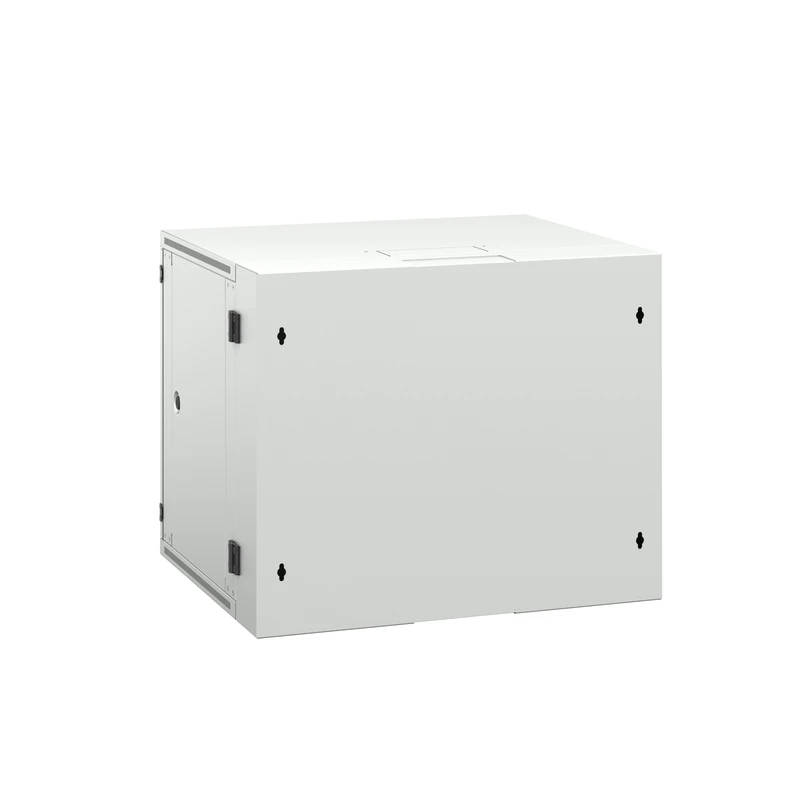

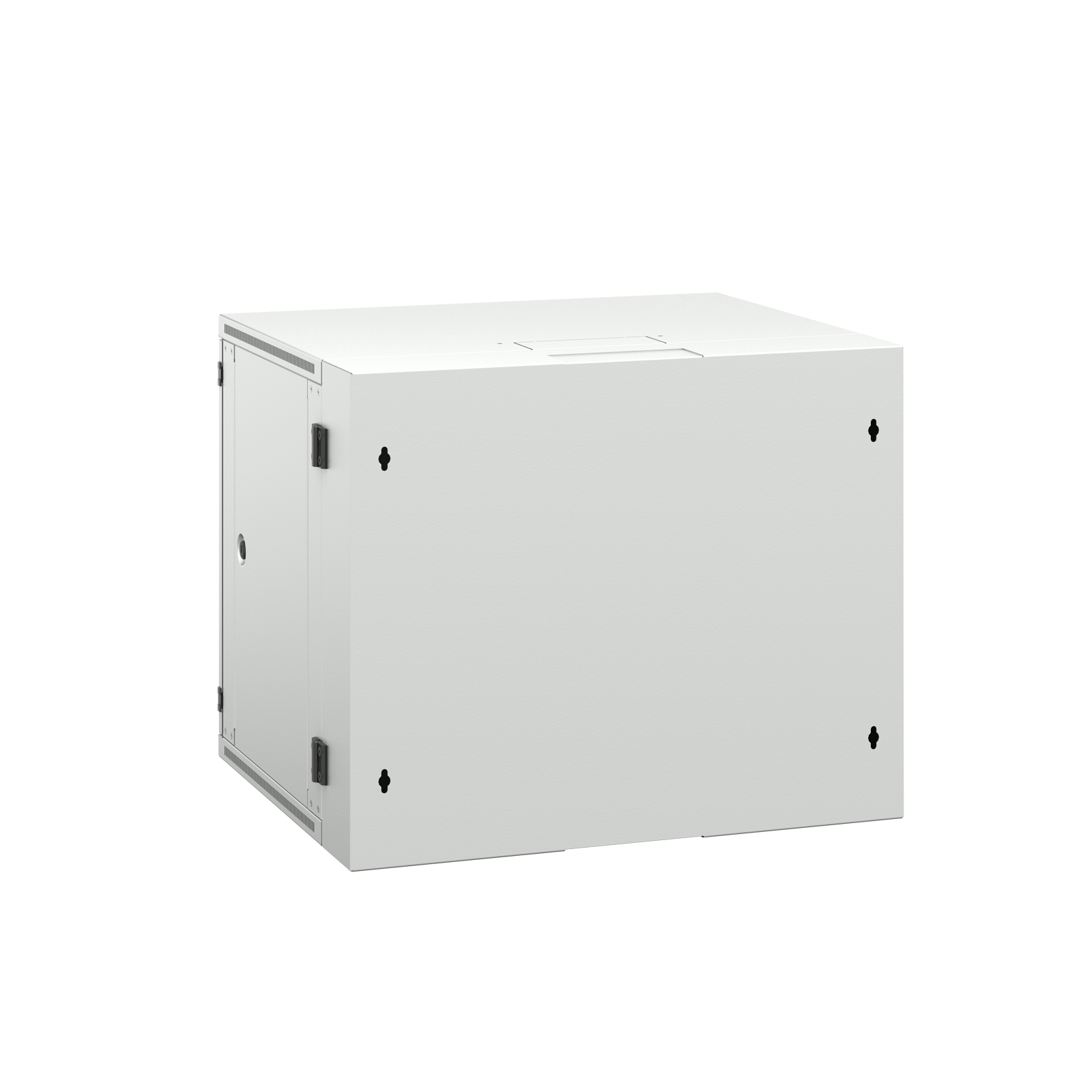

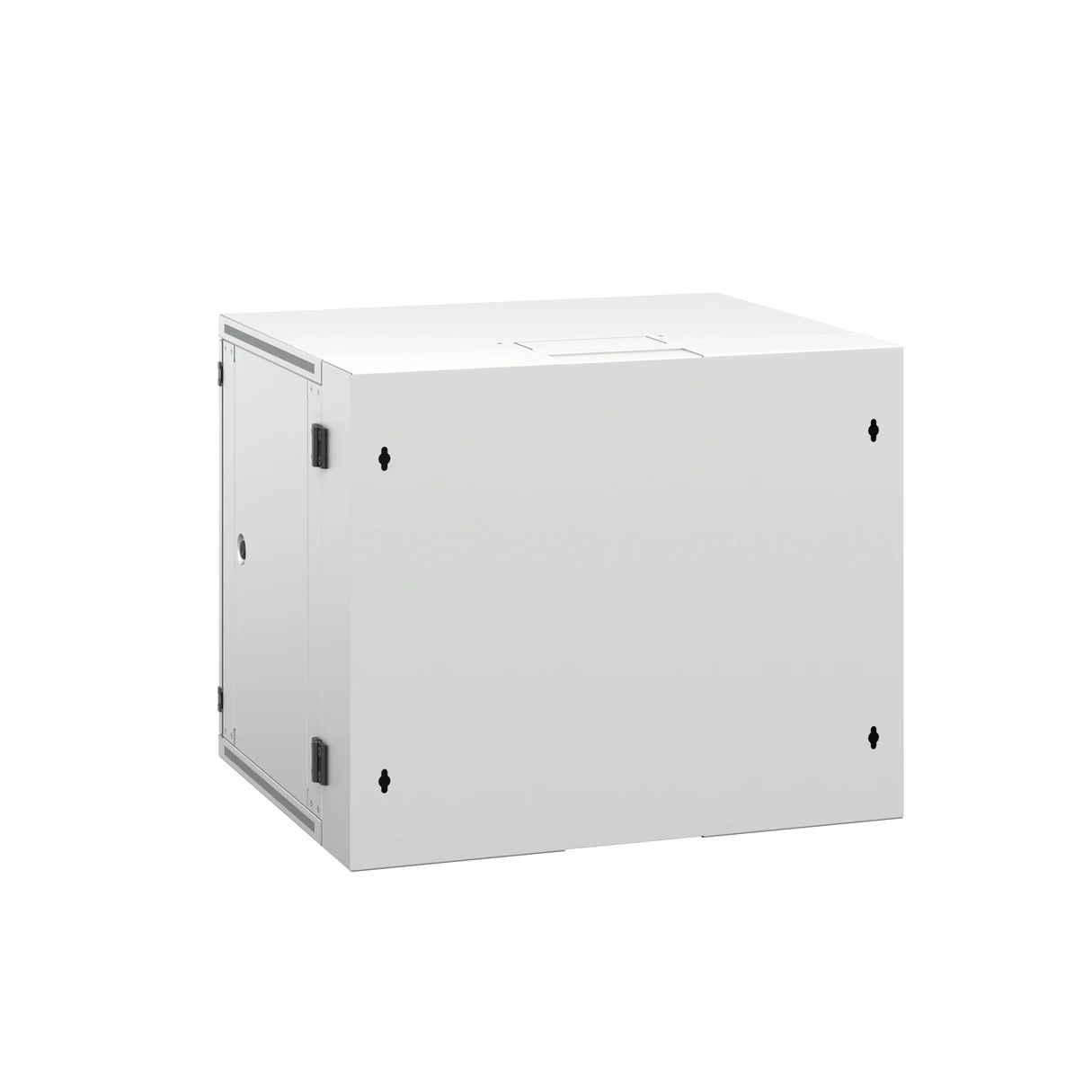

PREMIUM-Split-RUD-09-60_50-right-back2021-WEB

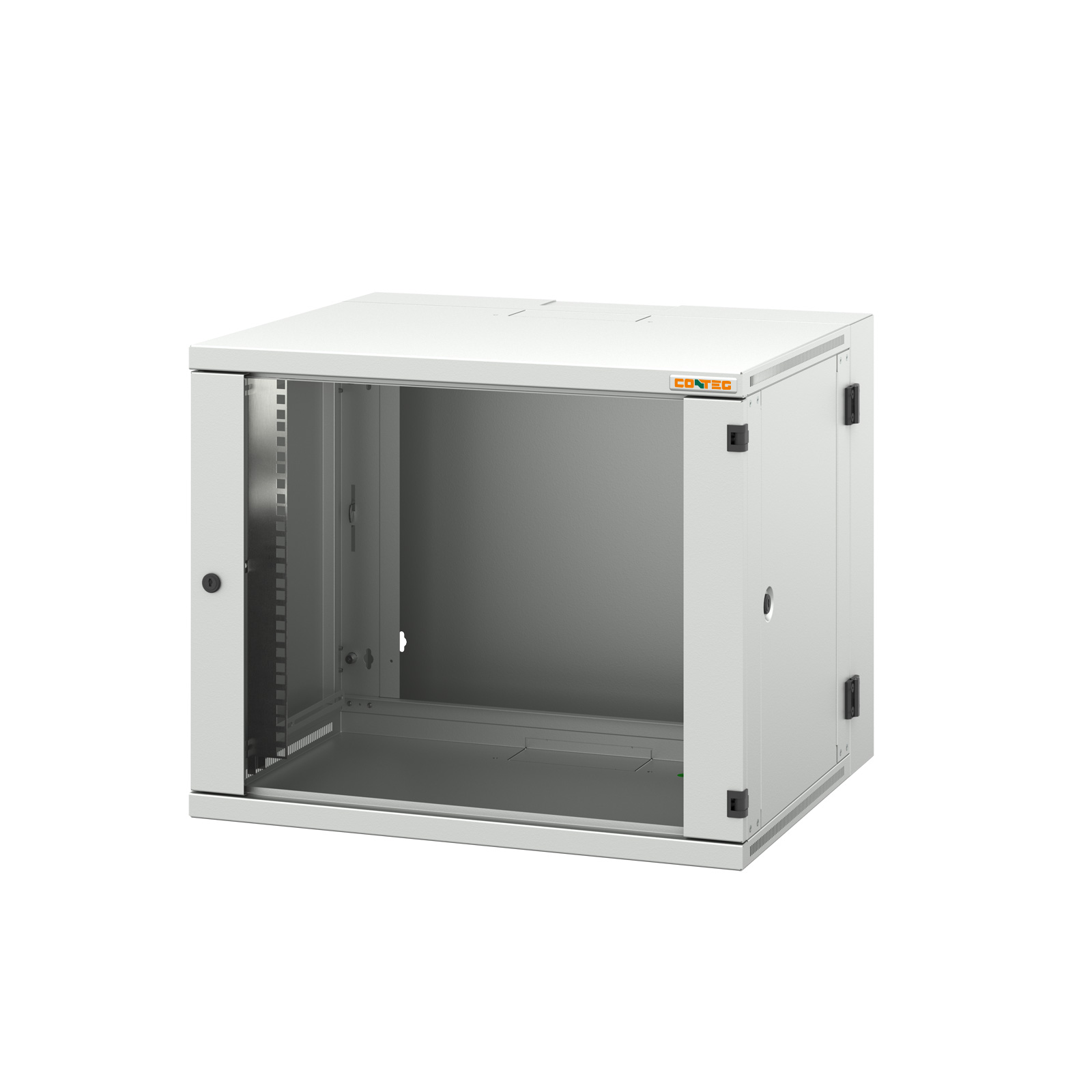

PREMIUM-Split-RUD-09-60_50-front-right2021-WEB

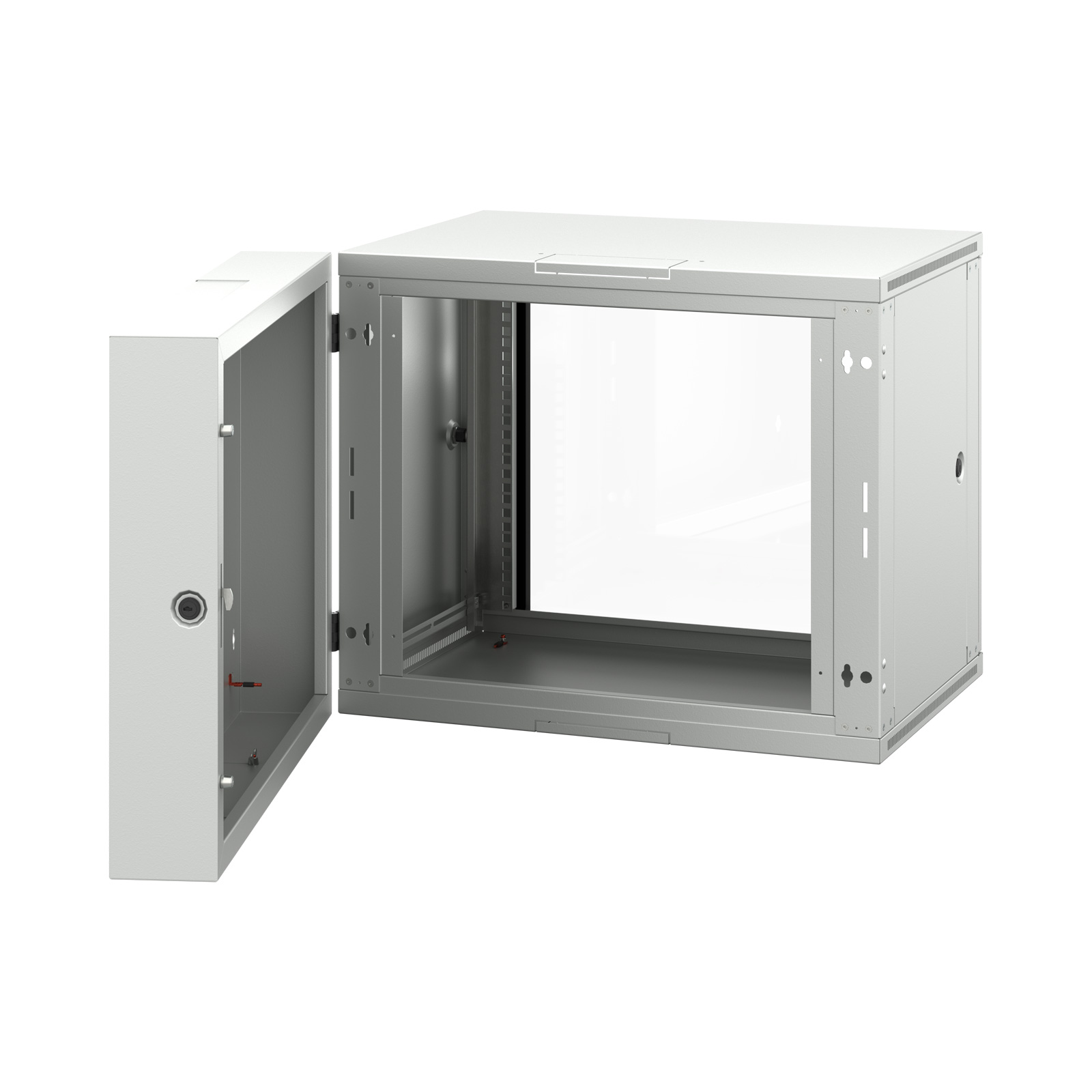

PREMIUM-Split-RUD-09-60_50-back-left-open2021-WEB

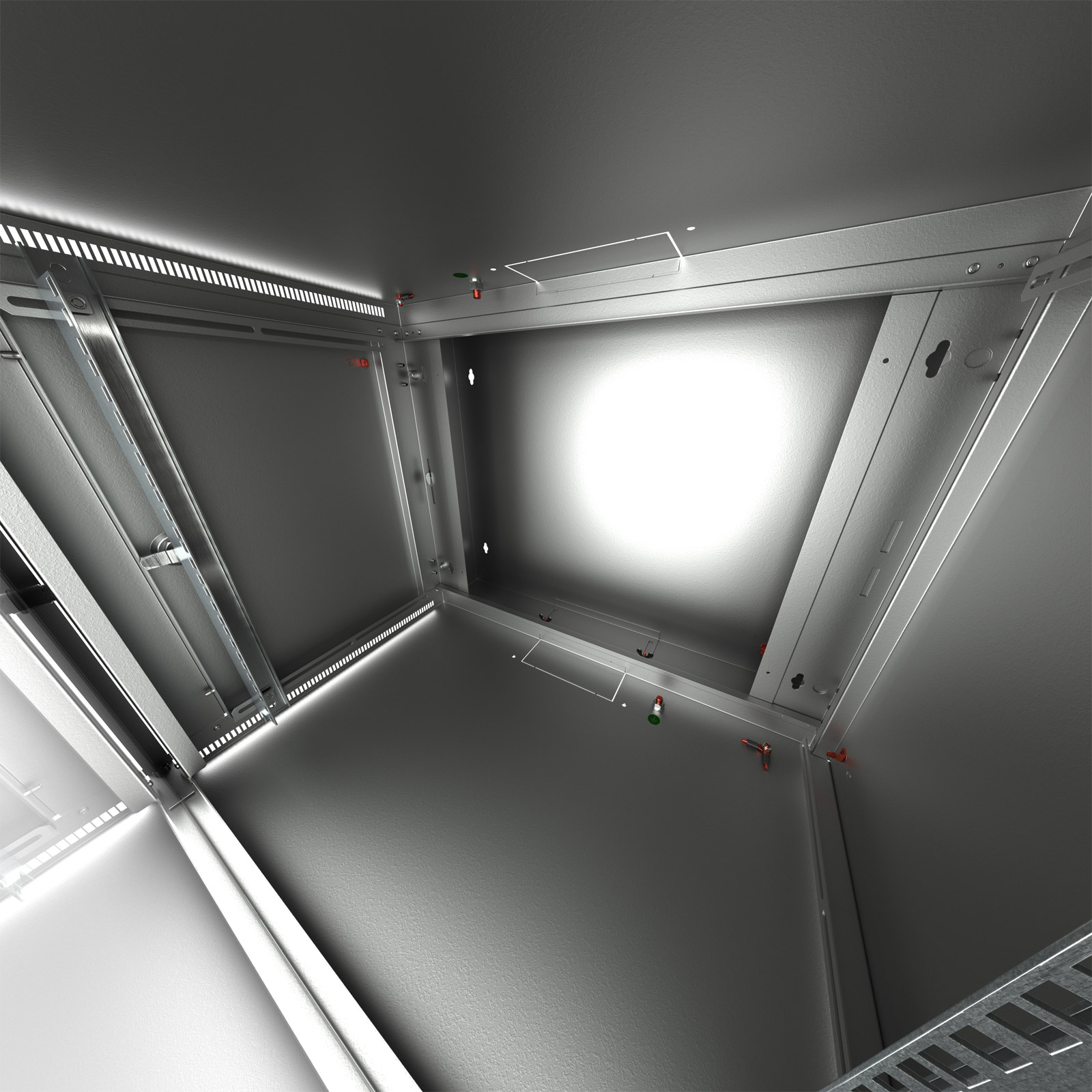

PREMIUM-Split-RUD-09-60_50-inside-extrusions2021-WEB

Produkteinführung

Wall-mounted 19" PREMIUM Split RUD cabinets are designed as wall-mounted with extended access.

Hauptvorteile des Produkts

Designed for superior strength
Free access to the installed devices from the front, rear and sides
Lockable side panels
Lockable rear section
Split construction
Load capacity up to 50 kg

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	PREMIUM Split RUD
Höhe (HE)	15, 6, 9, 12, 18
Breite (mm)	600
Tiefe (mm)	800, 500
Tragfähigkeit (kg)	Standard 50 (even load)
IP-Schutzart	Standard IP30
Farbe	Powder color RAL 7035
Standard-Konfiguration	1 pair of sliding 19"" vertical rails 2 removable side panels with lock 1 door with lock and safety tempered glass (EN 12150-1) GND/ grounding kit

Accessories

19" Kabel-Bindepanels mit Kunststoffbügeln

Binding panels with plastic loops are used for installation and horizontal routing of cables within the cabinet.

Produktdetails

19" Kabel-Bindepanels mit Kunststoff-Kanälen

Plastic binding ducts are intended for placement and horizontal routing of cables in rack cabinets, wall-mounted and SOHO cabinets.

Produktdetails

19" Kabel-Bindepanels mit Metall-Bügeln

Binding panel with metal loops, single-sided design only

Produktdetails

Basis-PDUs

Basic power panels are used for power supply and its distribution to individual IT devices in cabinets.

Produktdetails

19" Feste Fachböden bis 20 kg Tragfähigkeit

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.

Produktdetails

19" Feste Fachböden bis 60 kg Tragfähigkeit

Fixed shelves are the basic option for equipment that is not fitted with 19" mounts. The shelves are perforated over their entire surface for effective air flow.

Produktdetails

19" Ausziehbare Fachböden bis 25 kg Tragfähigkeit

Pull-out shelves can hold equipment without 19" mounts. The pull-out system makes the equipment easily accessible. The shelves are perforated over their entire surface for effective air flow.

Produktdetails
