Inline-Messgerät

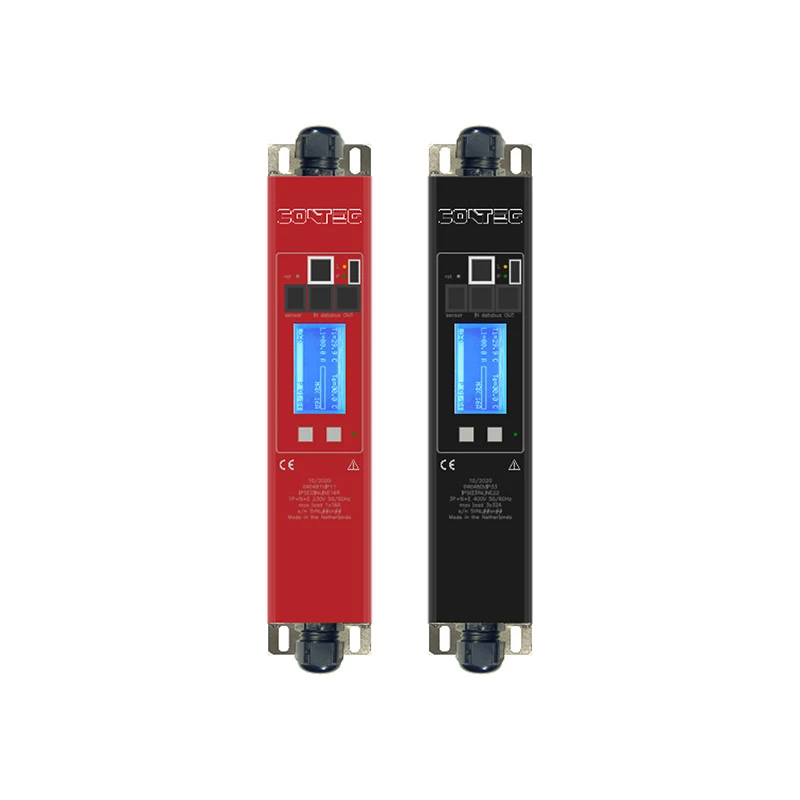

A 1-phase or 3-phase inline power meter with a backlit display is suitable for measuring parameters at the input of the basic power supply panel.
Produkteinführung
The 1-phase or 3-phase inline power meter with backlit display is suitable for measuring parameters at the input of the basic power panel. Easily plugs into existing circuits.A built-in web server allows to remotely monitor real-time output, current (A), voltage (V), power consumption (kWh) and load power factor.
In addition, the device can connect a temperature and humidity sensor (IP-S-PDU-SENSOR).
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Name der Produktlinie |
Inline meter |
|---|---|
| Höhe (mm) |
65
|
| Im Paket enthalten |
Inseparable 3m input cable with EN60309 plug, inseparable 0.5m output cable with EN60309 socket. |
| Tiefe (mm) |
52.5
|
|
Data bus: 2x RJ45 data bus connectors RS-485 |
|
| Länge (mm) |
280 mm |
| Ideal für |
Basic PDU |
| Material |
1.5mm anodized aluminum with anti-oxidation coating with stainless steel brackets |
|
1-phase 230V AC, or 3-phase 230/400V AC; 16A or 32A |
|
| Farbe |
Black, red |
|
Vertical |
|
| Anzeige |
Backlit LCD |
