Desktop-Gehäuse für Elektronik

Abox

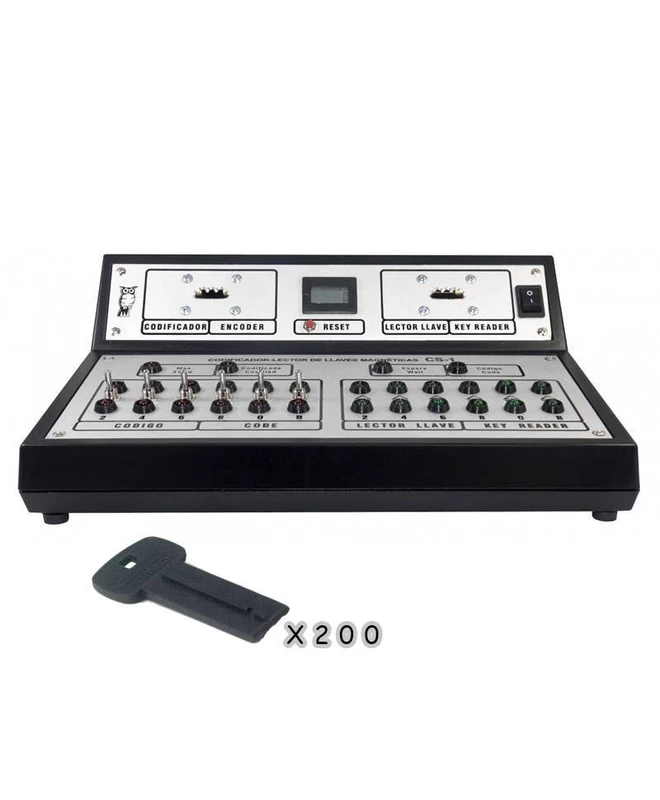

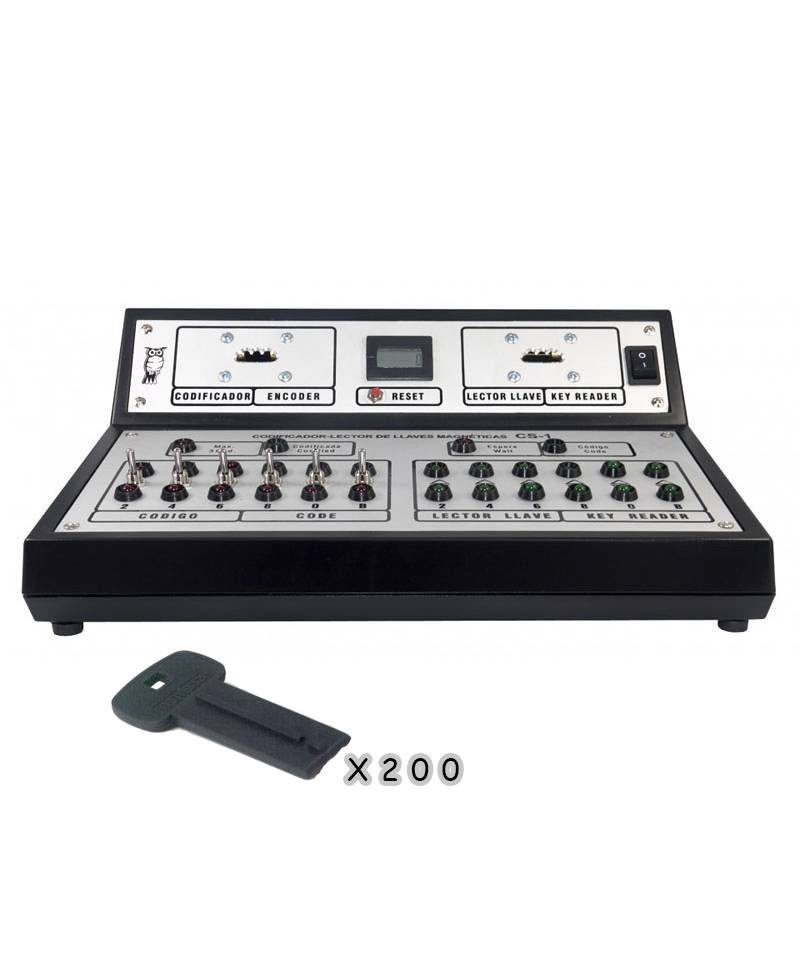

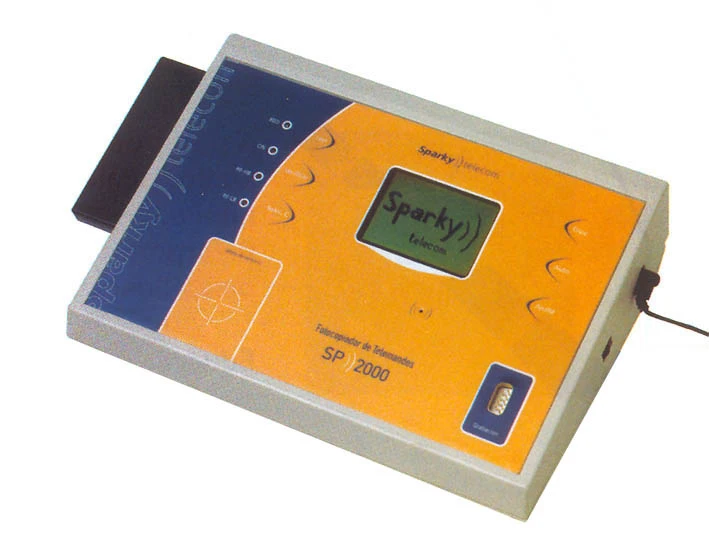

Suitable as consoles for control and visualization. Designed specially for devices such as intercoms, displays, testing or control units.

Mehr erfahren

Wo kaufen?


Produkteinführung

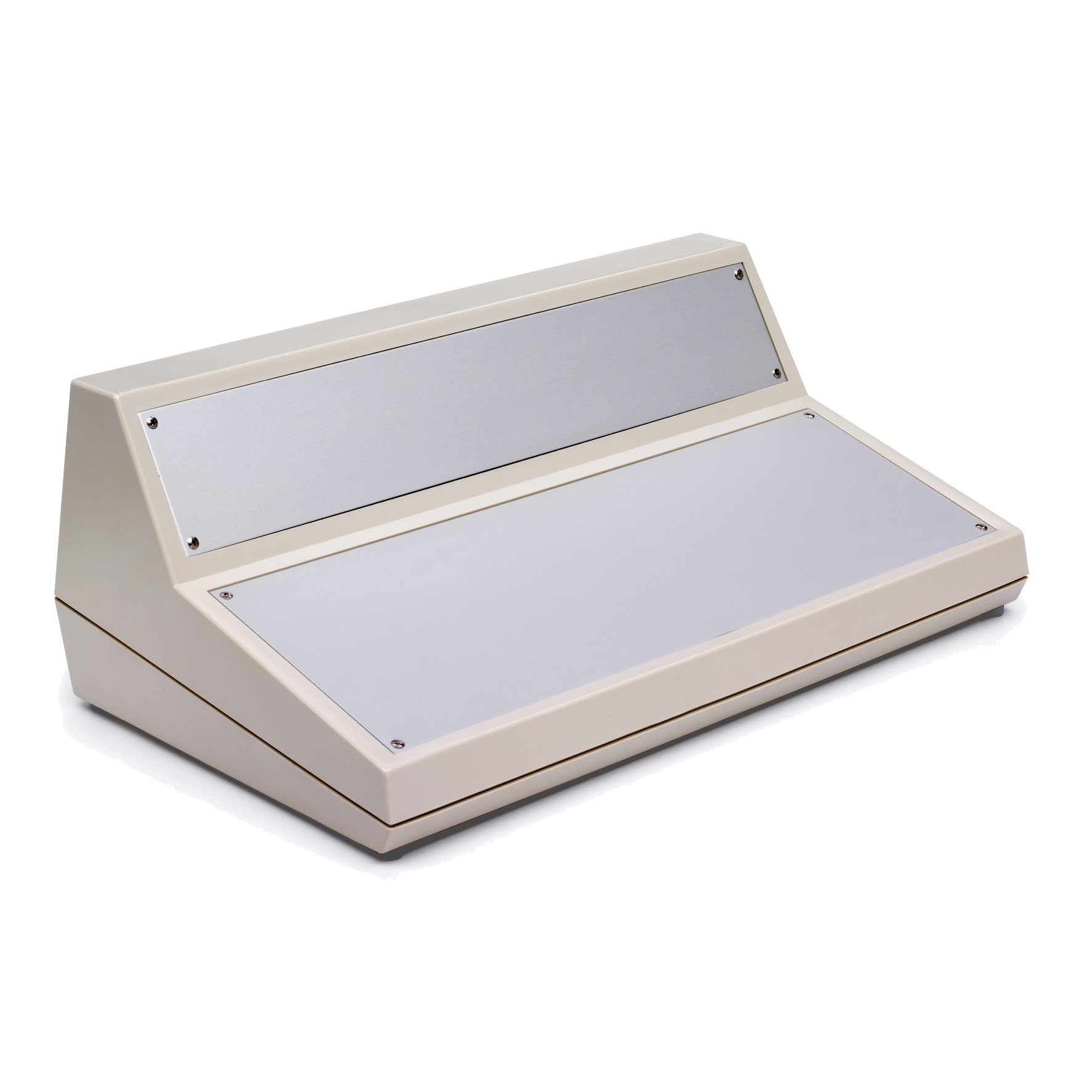

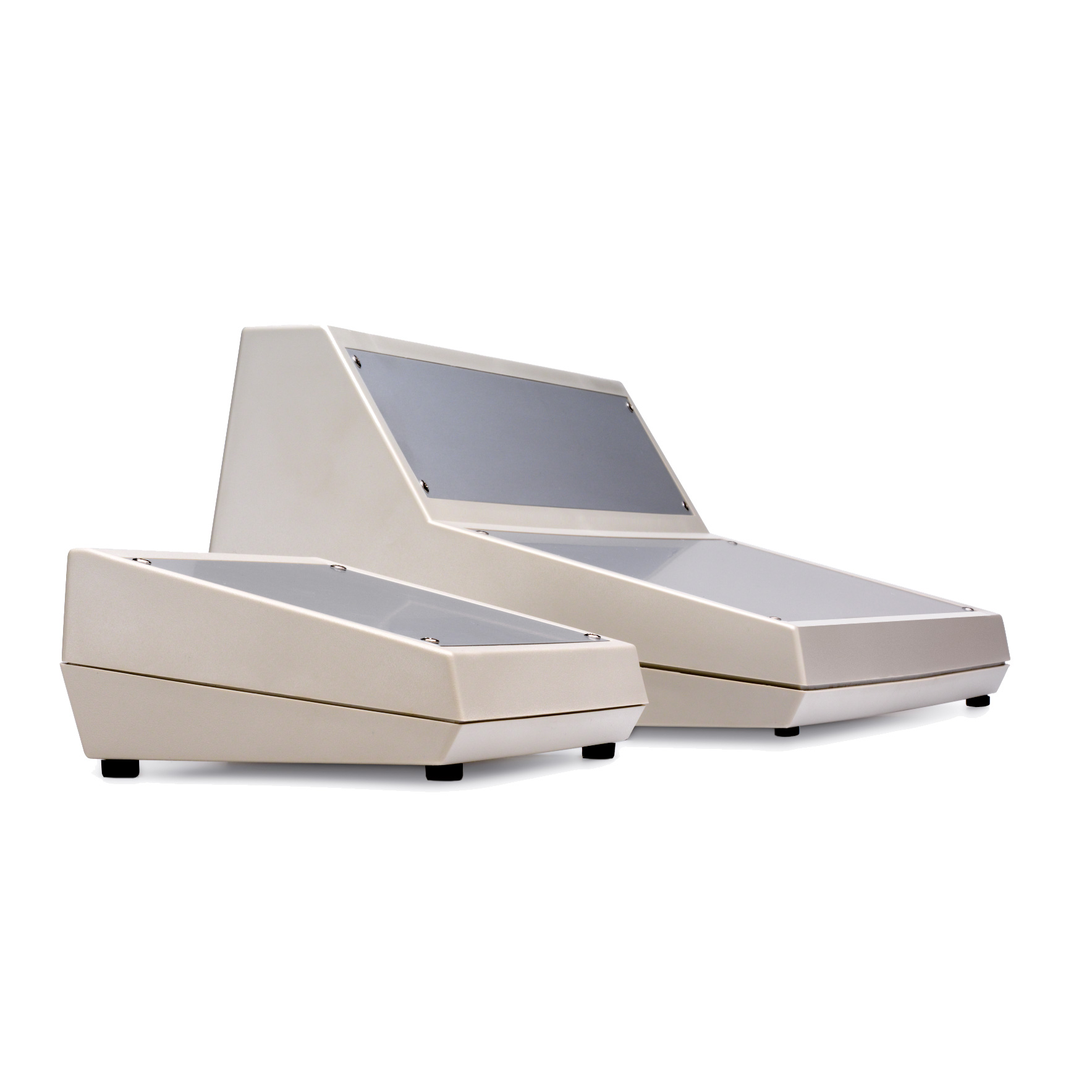

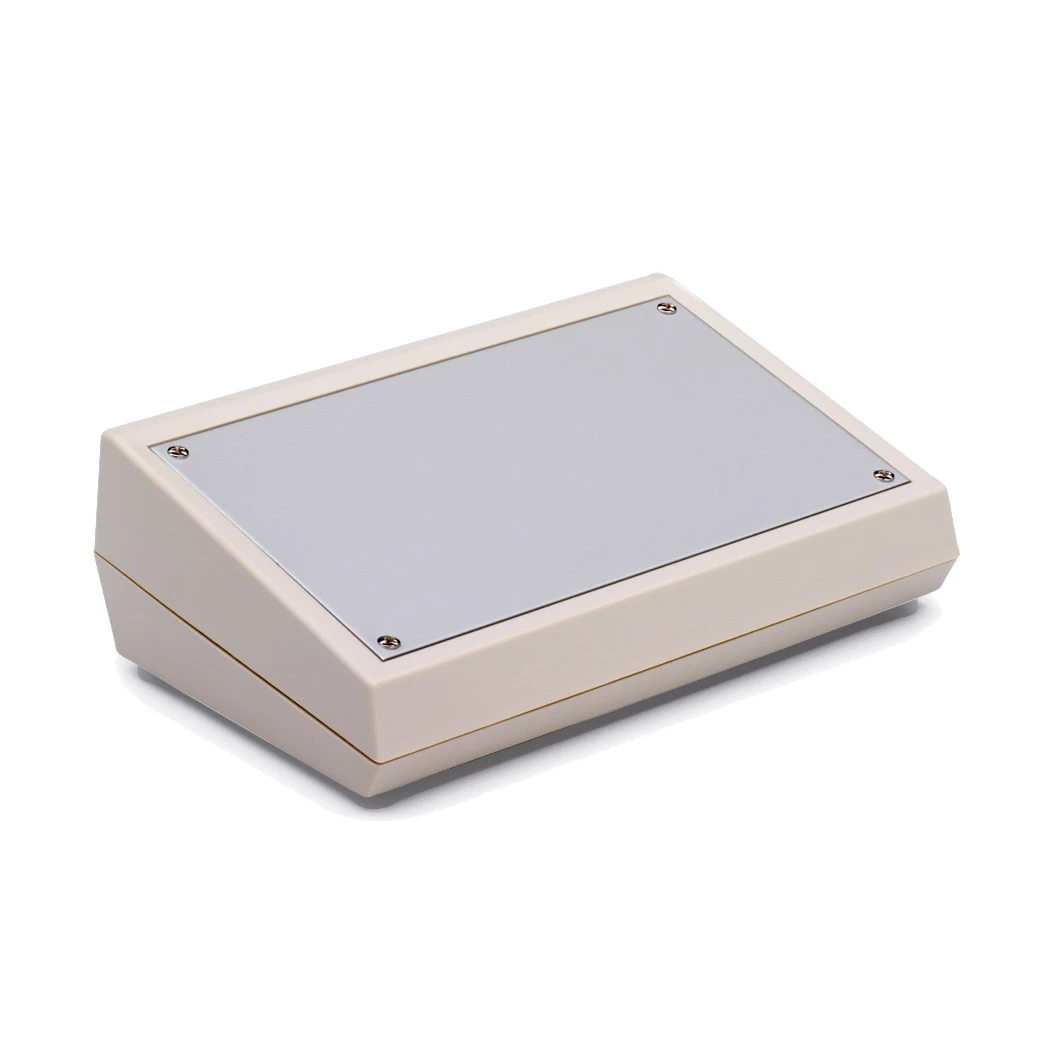

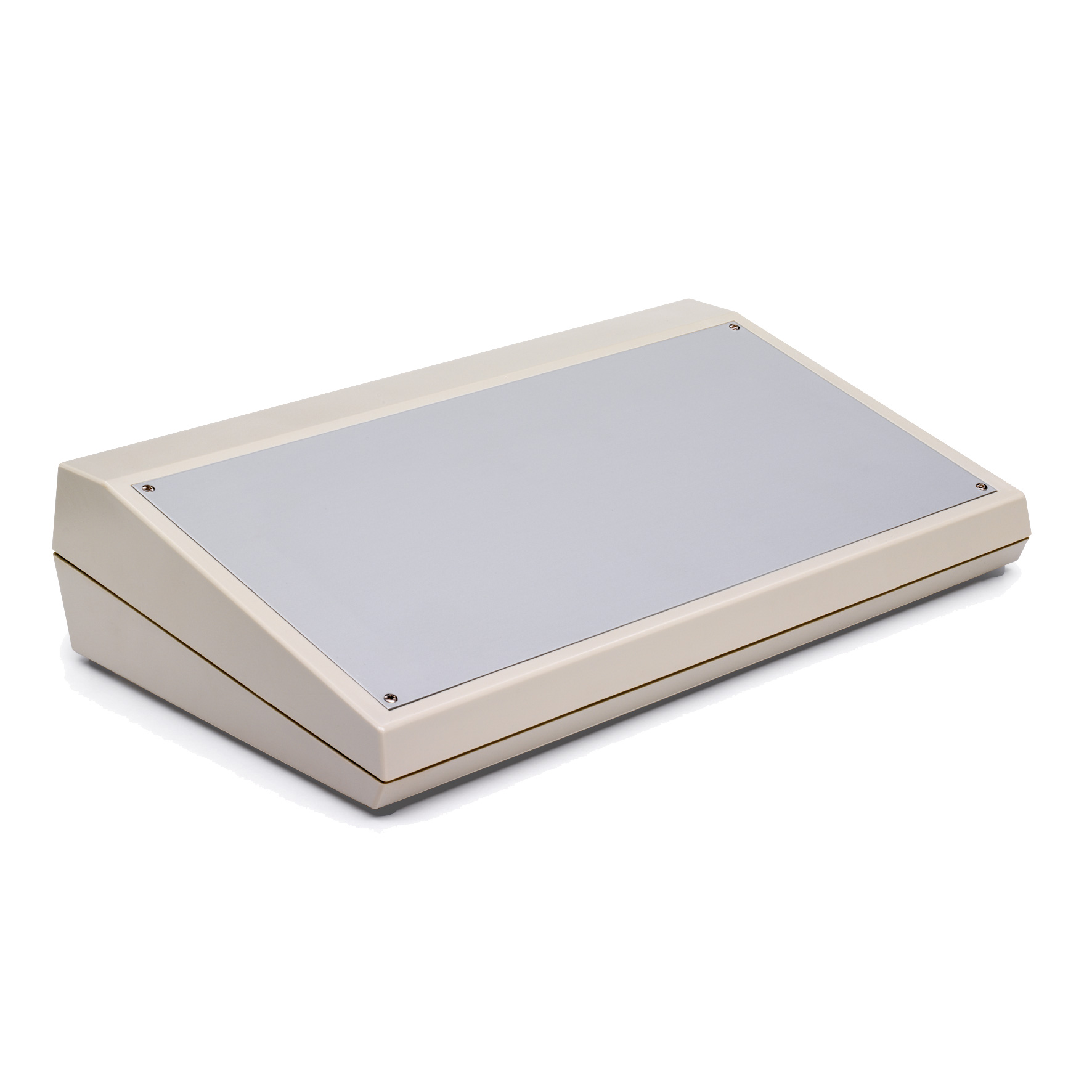

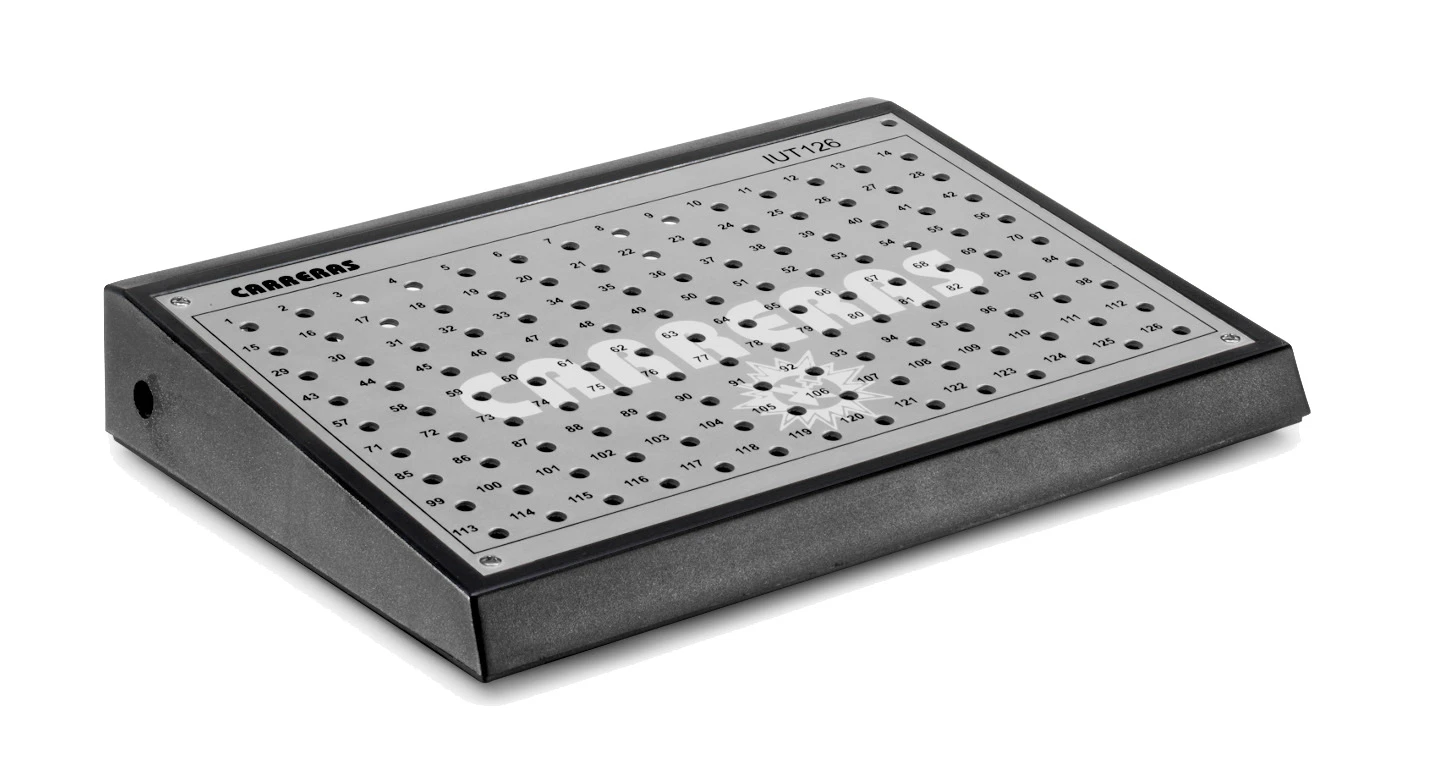

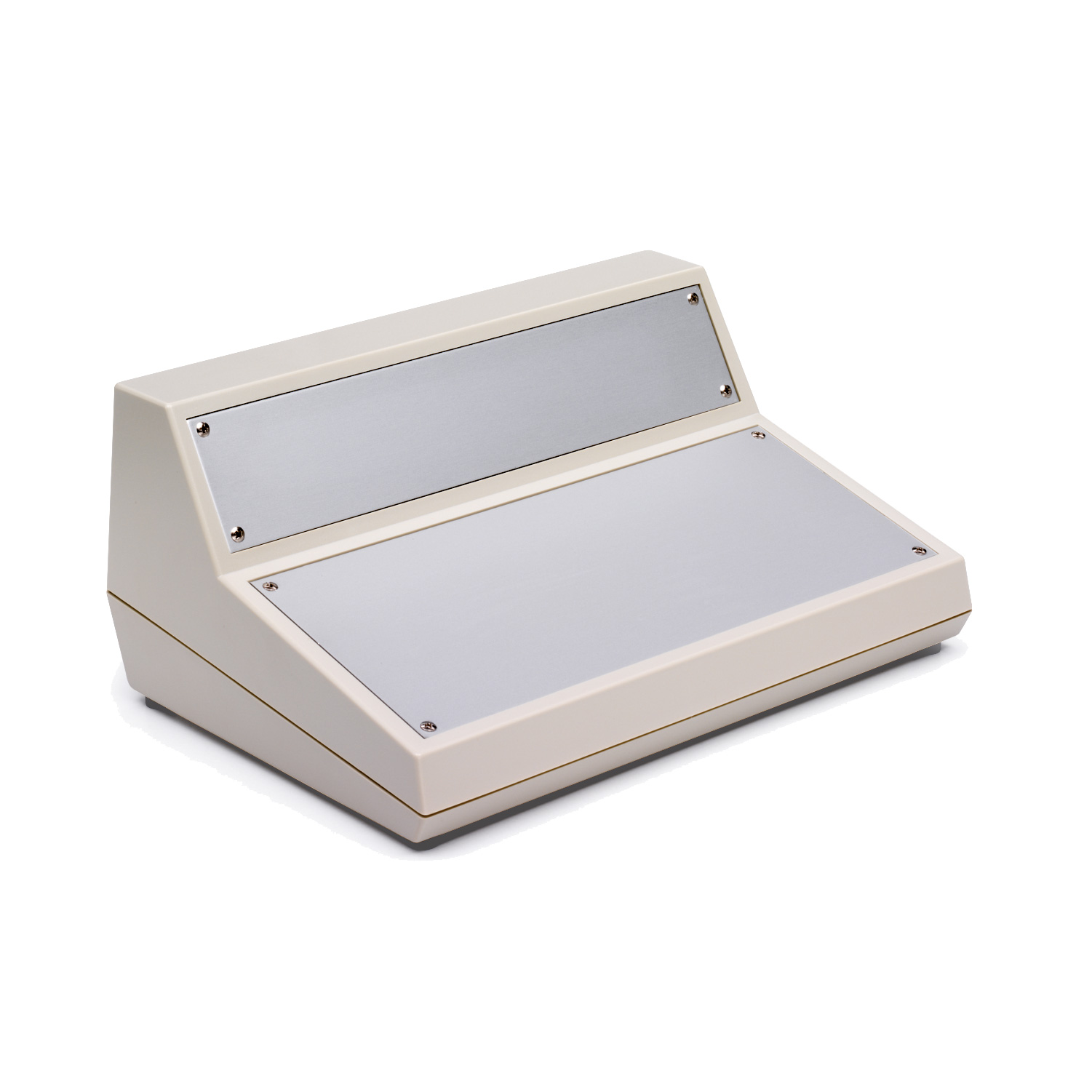

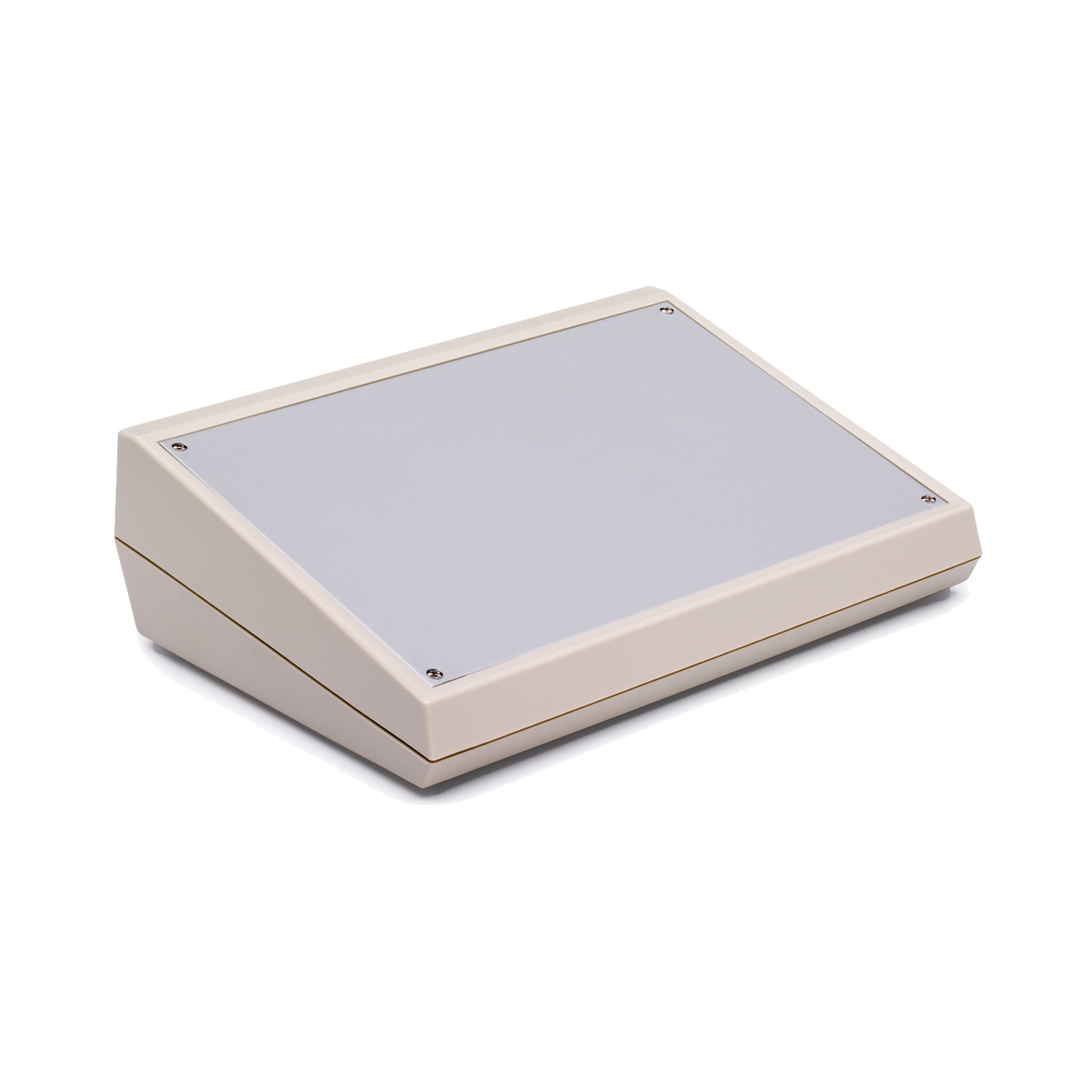

Abox tabletop electronics boxes are suitable as consoles for control and visualization. Designed specially for devices such as intercoms, displays, testing or control units. Available in two configurations. One of them is designed as an inclined unit - see types 1, 2 and 4. The other configuration is designed as an inclined unit with an angled panel for display purposes - see types 3 and 5.

Information zum Herunterladen

Information

Hauptmerkmale

Name der Produktlinie	Abox
Technische Informationen	DESCRIPTION Protrusions (types 1, 2 and 4) or rabbets (types 3 and 5) for mounting of printed circuit boards. Also suitable for cards according to the IEC 60297 standard (Eurocards) of all sizes Includes four non-slip feet Resistant to temperatures up to 85 °C (plastic parts) Main units of type 1, 2 and 4 include: lid, base, one aluminum panel, four non-slip feet and mounting screws Main units of type 3 and 5 include: lid, base, two aluminum panels, four non-slip feet and mounting screws MATERIALS AND SURFACE TREATMENT Lid and base - high-quality injection molded ABS; light gray color similar to RAL 7032 or black color similar to RAL 9004 Panels - 2 mm aluminum, grade 1070, with anodized silver finish OPTIONAL Custom drilling, screen printing, other colors upon request

Name der Produktlinie

Abox

Technische Informationen

DESCRIPTION

Protrusions (types 1, 2 and 4) or rabbets (types 3 and 5) for mounting of printed circuit boards. Also suitable for cards according to the IEC 60297 standard (Eurocards) of all sizes
Includes four non-slip feet
Resistant to temperatures up to 85 °C (plastic parts)
Main units of type 1, 2 and 4 include: lid, base, one aluminum panel, four non-slip feet and mounting screws
Main units of type 3 and 5 include: lid, base, two aluminum panels, four non-slip feet and mounting screws

MATERIALS AND SURFACE TREATMENT

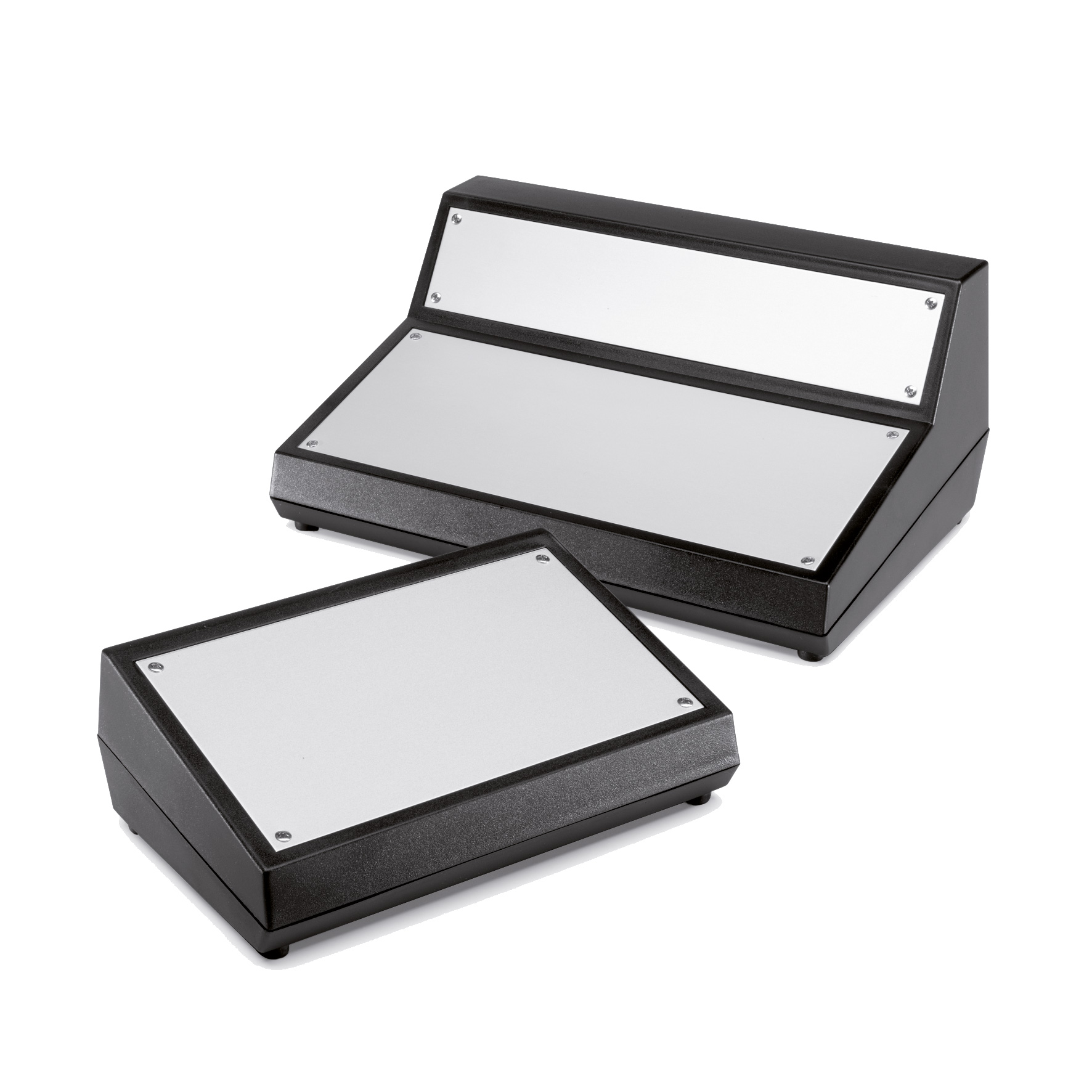

Lid and base - high-quality injection molded ABS; light gray color similar to RAL 7032 or black color similar to RAL 9004
Panels - 2 mm aluminum, grade 1070, with anodized silver finish

OPTIONAL

Custom drilling, screen printing, other colors upon request
