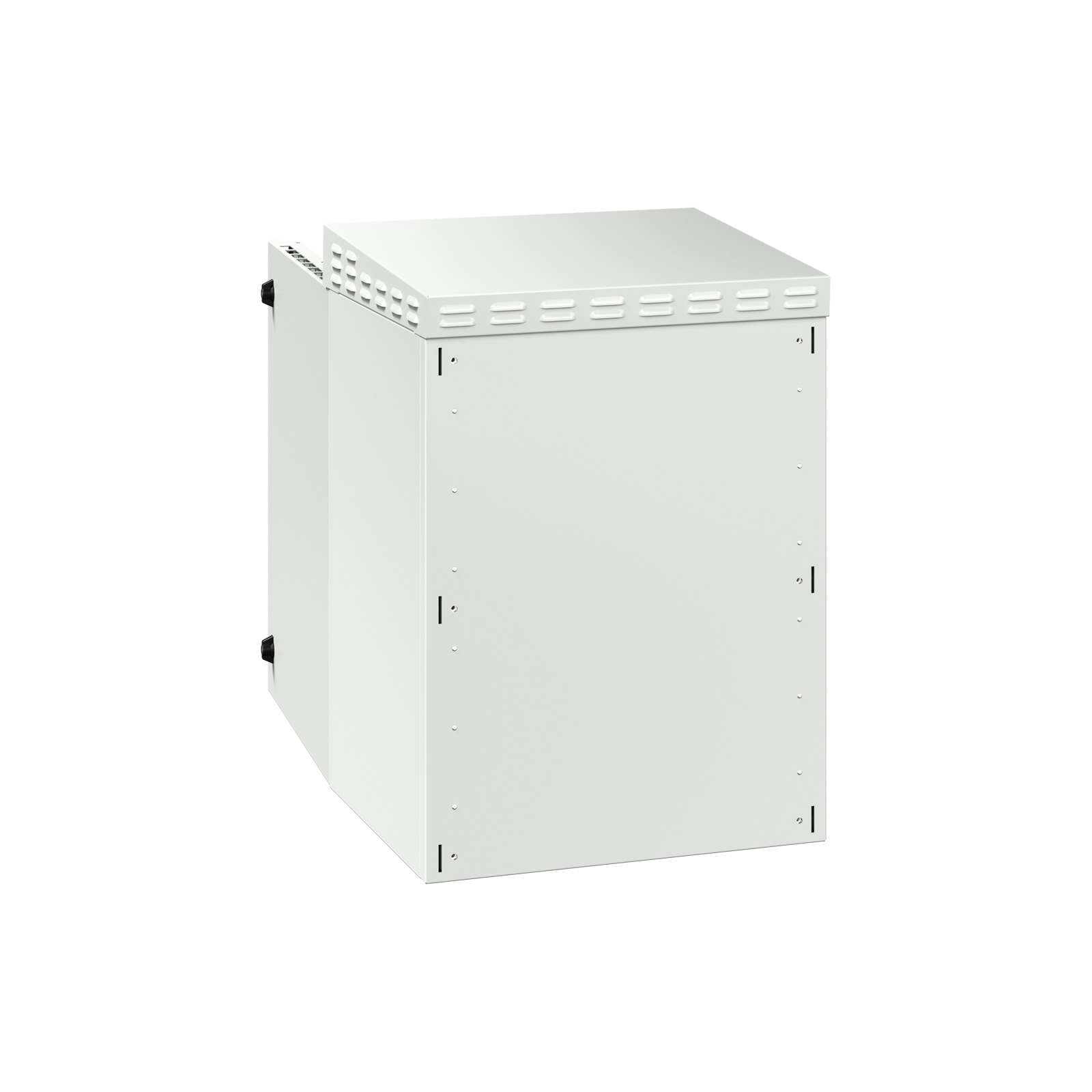

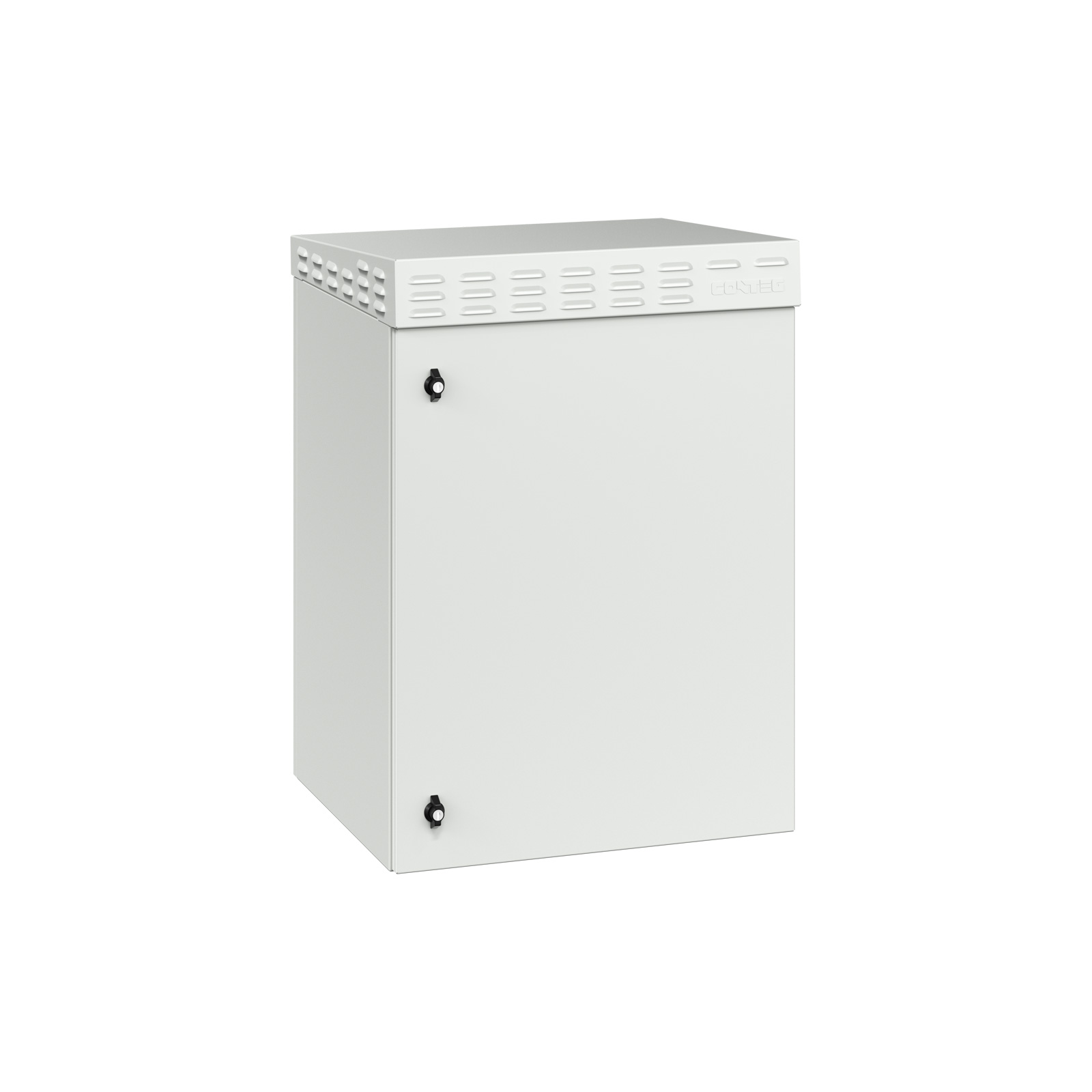

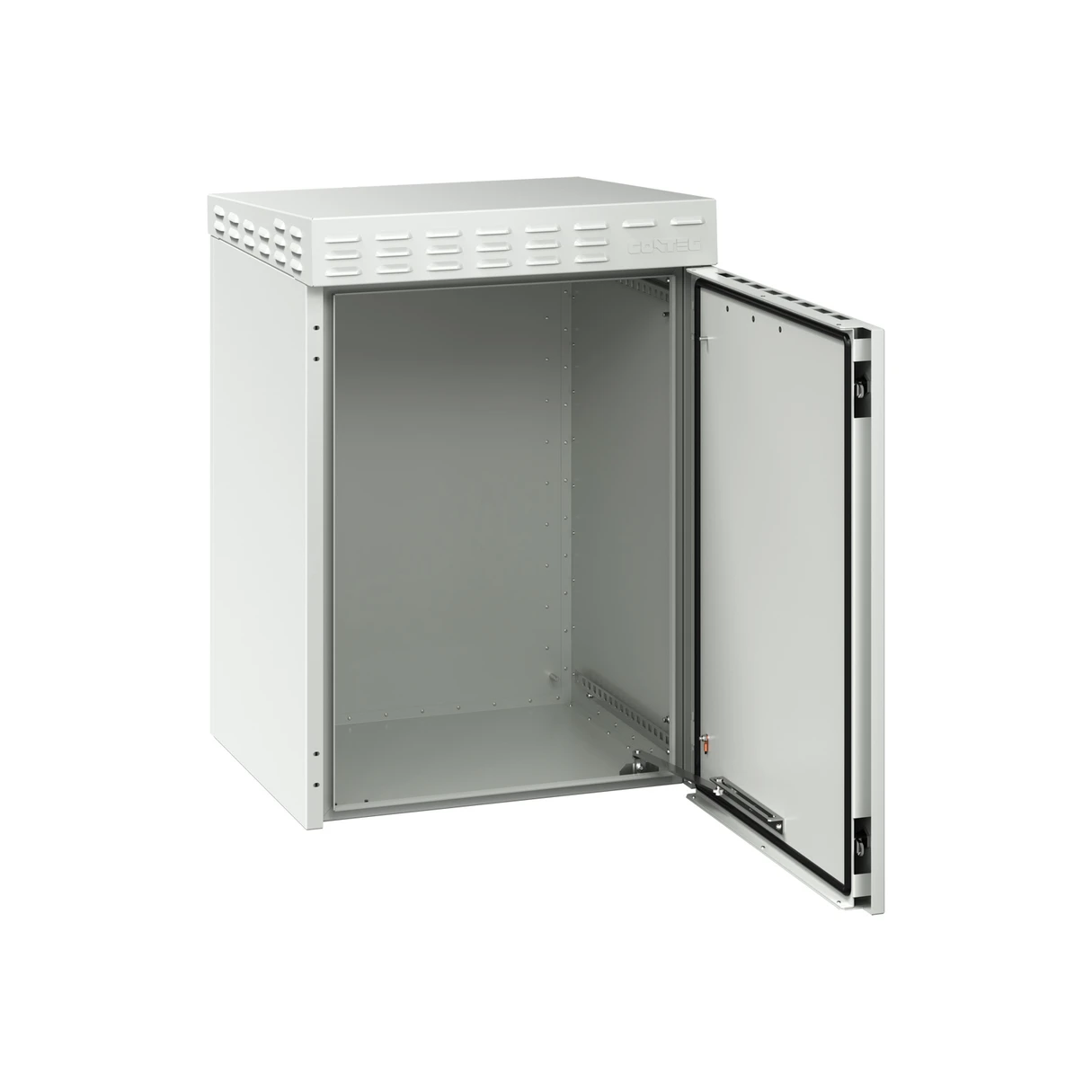

The outdoor cabinet with a compact and light double-shell construction, suitable for pole or wall mounting, offers the maximum possible protection against corrosion.
The outTEG OMR LITE outdoor cabinets are an ideal solution for projects where a stable climate inside the cabinet is the topmost priority.
With a compact design that prevents dismantling from the outside, the double-shell cabinet will protect the installed components not only from the weather conditions, but also from vandalism.

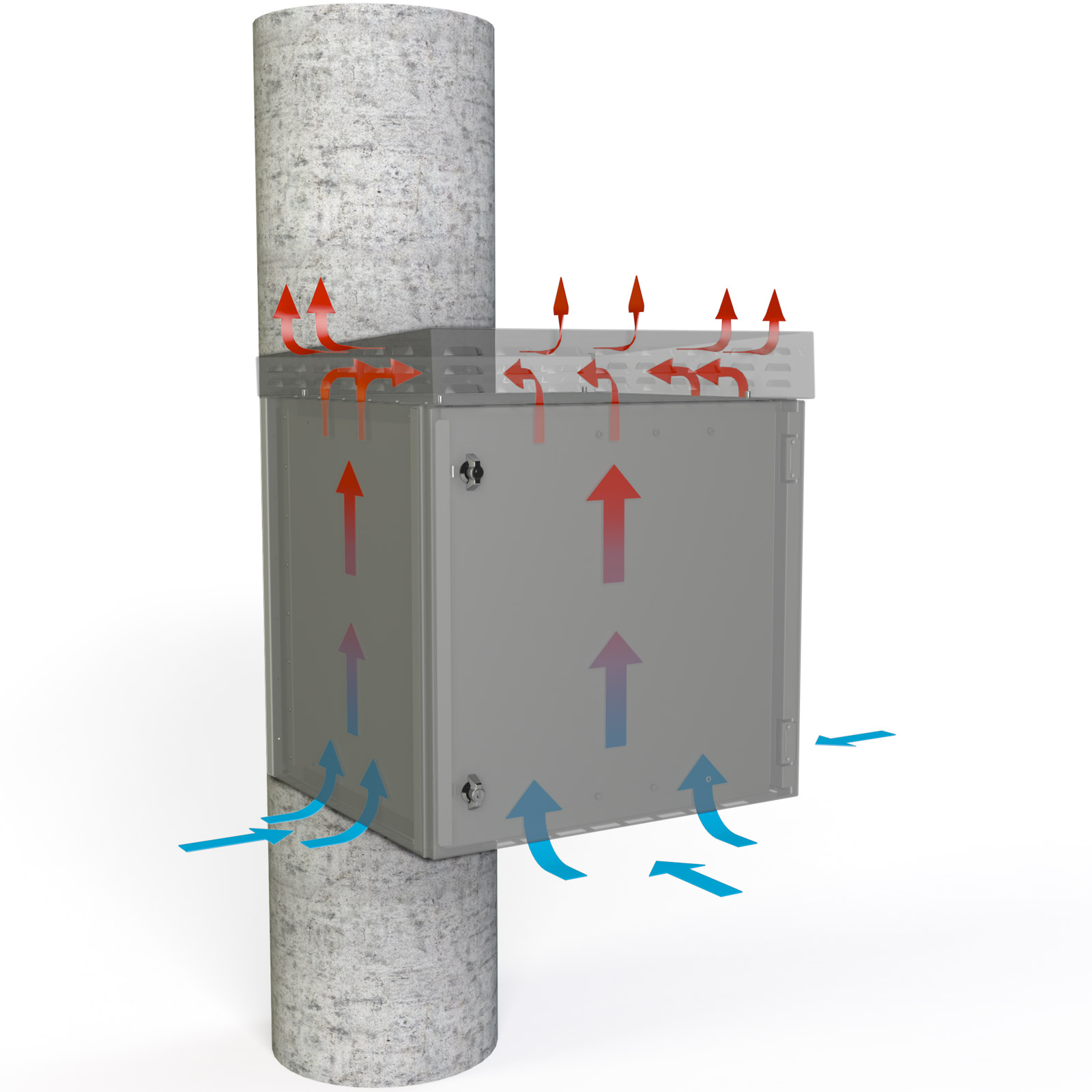

For demanding climatic conditions, the side panels can be modified for the installation of fans or air conditioning units. Weather resistance is ensured primarily by the use of aluminum and magnesium alloy and an additional surface treatment - polyester powder coating with UV protection.
These cabinets can also be used as free-standing units, ideally with an additional plinth. The ouTEG OMR LITE cabinets have certain limits if fitted with cable glands, ventilation and other accessories. In such cases, we recommend double-shell ouTEG OMR cabinets instead.
| Product line name |
outTEG OMR LITE for pole mounting |
|---|---|
| Bestseller |
Compact design |
| IP rating |
IP65 (the degree of protection may decrease after mounting certain accessories) |
| Color design |
RAL 7035, optionally RAL 7046 for the roof |
| Material |
Aluminum AlMg3 |
| Surface treatment |
Polyester epoxy coating |
| Mechanical resistance |
IK10 according to IEC 6226 |
| Rozsah dodávky |
Double-shell assembled outdoor cabinet with a perforated roof |
Resistance heating units maintain positive temperatures inside cabinets.

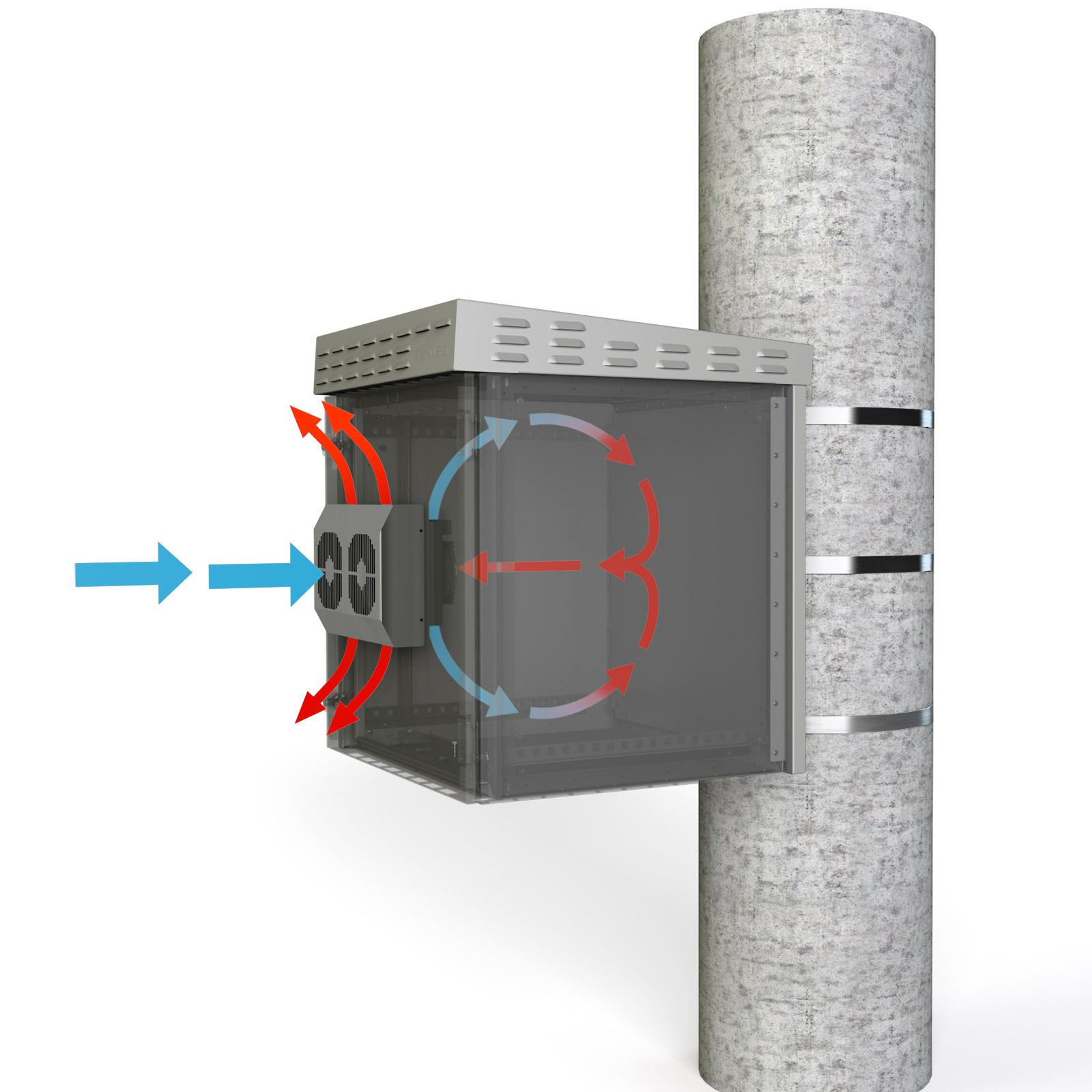

The technology is based on the Peltier phenomenon, where current passes through a circuit with two different conductors connected in series. As a result, one of the surfaces cools down while the other heats up.
Self-adhesive pouch for storing A4 documentation inside the cabinet.
Vertical perforated mounting rails for component installation.

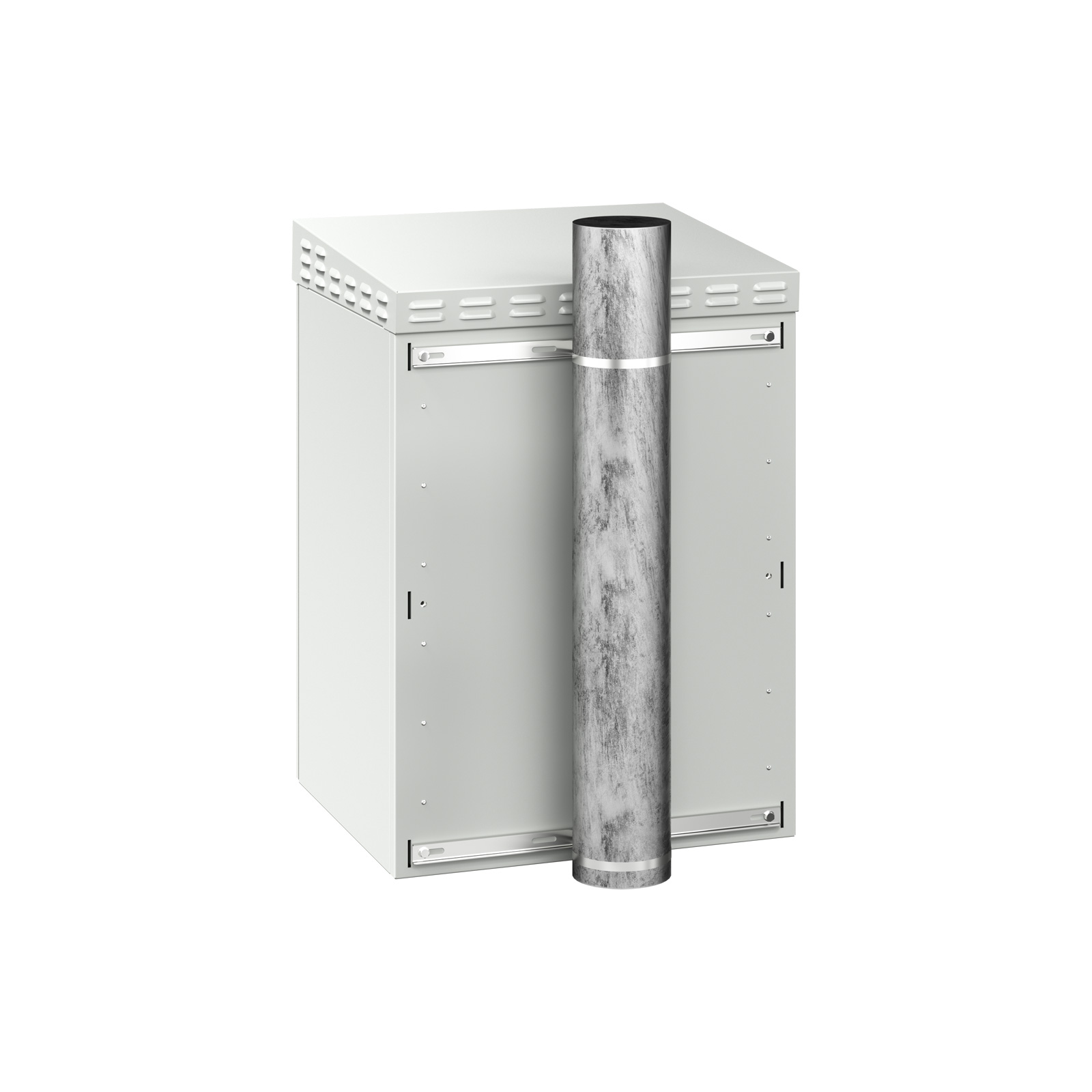

Complete assembly for attaching the cabinet to a pole.
Mounting kits for direct installation of the cabinet on the wall.
Luminaire with rocker switch for lighting the interior of FSE and FSM cabinets
Internal 19" fixed rails for installation of IT/telco equipment.
Door switch for lighting, fan or air conditioning control, for FSE and FSM cabinets
Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail
A device for compensating the pressure building inside the cabinet due to ambient temperature fluctuations.
Accessories for condensate drainage in use cases with great fluctuations in ambient temperatures.
