Thermostat für Kühlung und Heizung
Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN rail
Produkteinführung

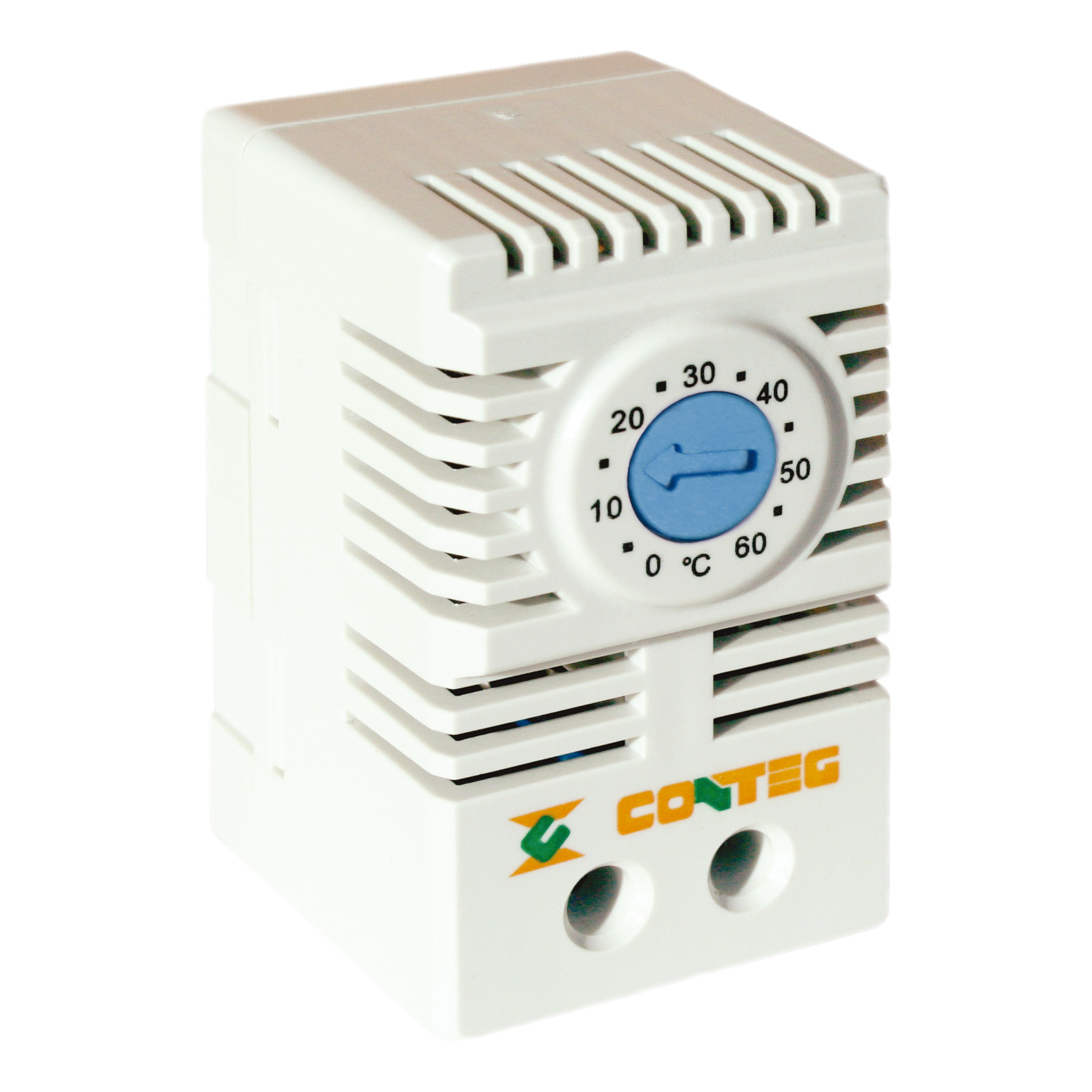

Bimetal thermostat for cooling and heating with temperature range of 0 to 60 °C, mounted on a DIN railThermostat for cooling - for fan regulation. The thermostat switches on the ventilation unit when the set temperature is reached.

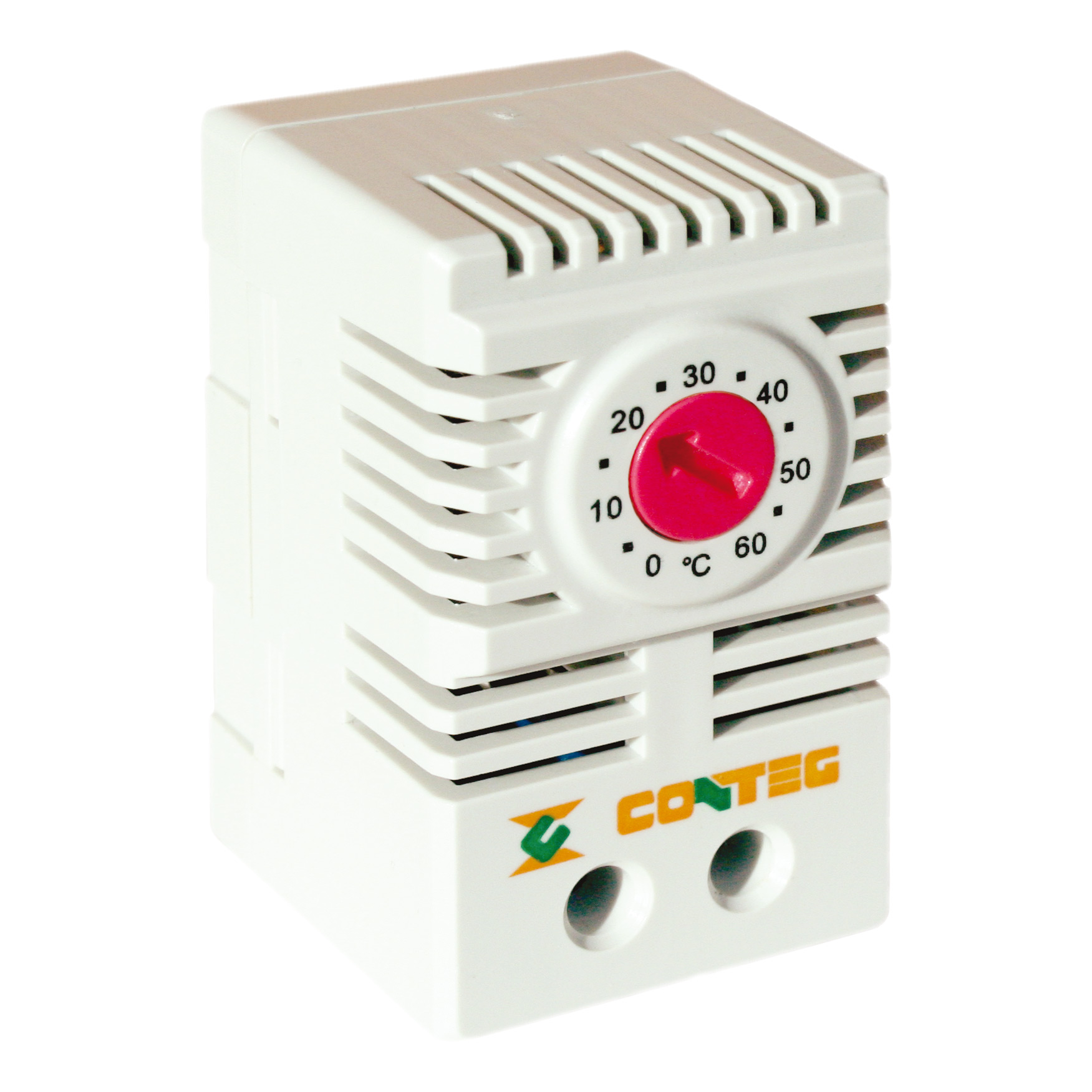

Thermostat for heating - for regulating heating units. The opening contact switches off the heating element when the set temperature is reached.
A combination of both thermostats is possible, provided that the temperature difference between the set temperatures is at least 5 °C.
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Name der Produktlinie |
Thermostat for cooling and heating |
|---|---|
| Abmessungen (B×H×T, in mm) |
55x33x43 mm |
| Gewicht (kg) |
40 g |
| Betriebstemperatur |
-45 °C to +80 °C |
|
The unit is ready for installation |
|
|
15 A (2 A), 120 V AC |
|
| IP-Schutzart |
IP20 |
|
to a 35 mm DIN rail |
|
|
± 4K |
|
| Maximalstrom (A) |
AC 16 A for 10 sec. |
|
Bi-metal thermostat |
|
| Technische Informationen |
Operating temperature |
|
|
|
|
2-pole terminal (wire 2.5 mm2) |
|
|
0 °C to 60 °C (41 °F to 104 °F) |
