Freistehende Außenschaltschränke

FSM-O

Edelstahl, integrierte Seitenpaneele

Free-standing FSM-O outdoor cabinets are made of stainless steel.

Mehr erfahren

Wo kaufen?

Produkteinführung

Free-standing FSM cabinets made of sheet steel with integrated side panels in the frame withstand even the harshest conditions in industrial environments. The welded cabinet chassis is made of profiled side panels joined with cross profiles. This production technology meets the highest requirements for rigidity and 700 kg load capacity of the cabinet. The design of the lower frame makes it possible to use FSM without an additional plinth. To create a variety of mounting surfaces and planes, we offer a wide range of system accessories designed for optimal use of the frame profile. We also supply components for controlling the internal environment of cabinets, such as heating units, fans with filters, and active cooling units.

Hauptvorteile des Produkts

Welded cabinet chassis with integrated side panels - powder paint finish
Load capacity 700 kg
Single-door version of the cabinet
Cabinet can be installed without an additional plinth
Design flip handle – standard for all types of cabinets
Door closes easily thanks to a special locking system
Maximum utilization of the internal space - mounting plate can be placed between the rear pillars
Side panels integrated in the frame
17 sizes from 1,400 x 600 x 300 mm to 2,000 x 1,000 x 400 mm
A wide range of accessories
Tailor-made solutions – cutouts according to customer requirements before or after the final surface treatment

Information zum Herunterladen

Information

Hauptmerkmale

Farbe	RAL 7035 for indoor use
IP-Schutzart	IP55 according to the EN 60529 standard (the level of protection may decrease after mounting certain accessories)
Name der Produktlinie	FSM-O cabinets - stainless steel, integrated side panels
Zitat	We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring. Ask for an initial remote consultation for your project. Suggest a time and we will send you a meeting invitation via Microsoft Teams by e-mail.
Höhe verpackt (mm)	Ask for an initial remote consultation for your project. Suggest a time and we will send you a meeting invitation via Microsoft Teams by e-mail.
Material	Cabinet casing material: Sheet steel Mounting plate material: Hot-dip galvanized steel sheet
IK-Stoßfestigkeitsgrad gemäß IEC 62262	IK10 according to IEC 6226
	Epoxy polyester powder paint
	Welded cabinet chassis with integrated side panels Full door with hinged handle (single/double door), the door is equipped with a four-point locking system Door hinges are located on the right-hand side of the single-door cabinet (opening direction can be changed to left) Rear and roof panel Multi-part cabling bottom Grid mounting plate
Höhe (mm)	We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring., We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring., We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring., We will recommend not only a suitable type of outdoor cabinet size, but also cooling, heating, and monitoring.

Accessories

Ventilationseinheiten mit Filter

Ventilation unit help maintain appropriate temperature inside the cabinet by forced ventilation, where heated air inside is being replaced with cold air from outside the cabinet.

Produkteinführung

Hauptvorteile des Produkts

Accessories

Broschüre: Außenschaltschränke

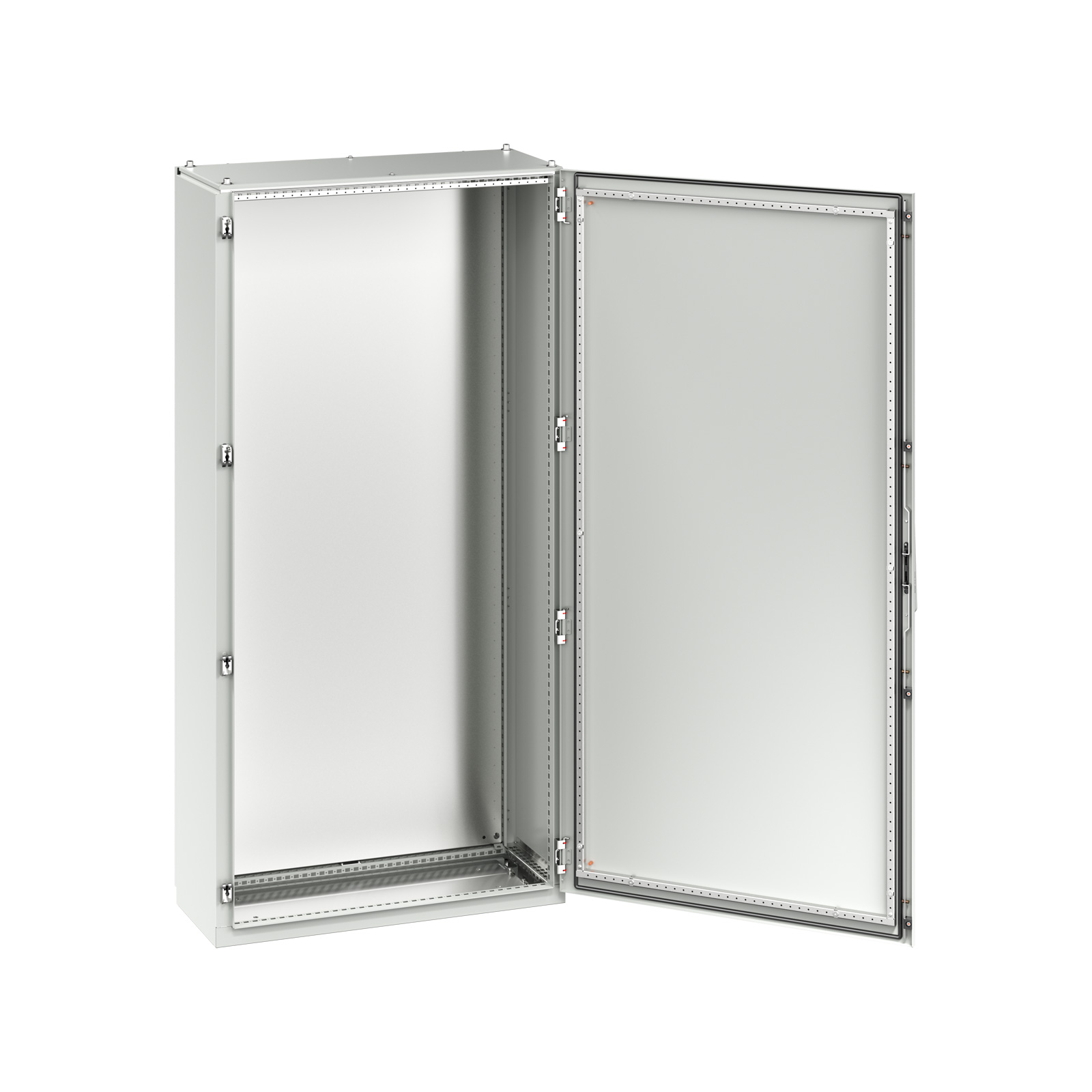

FSM-O-201004_opened

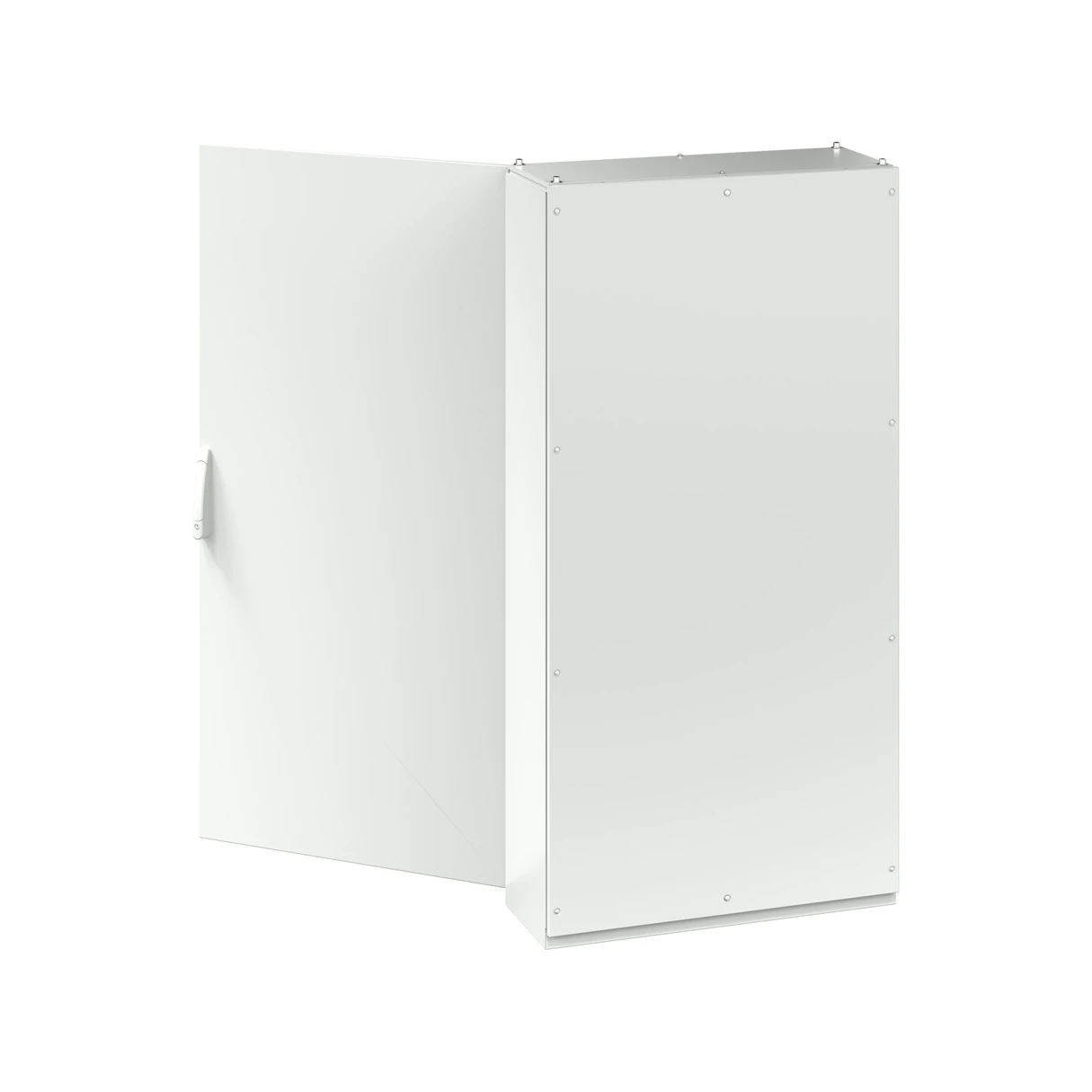

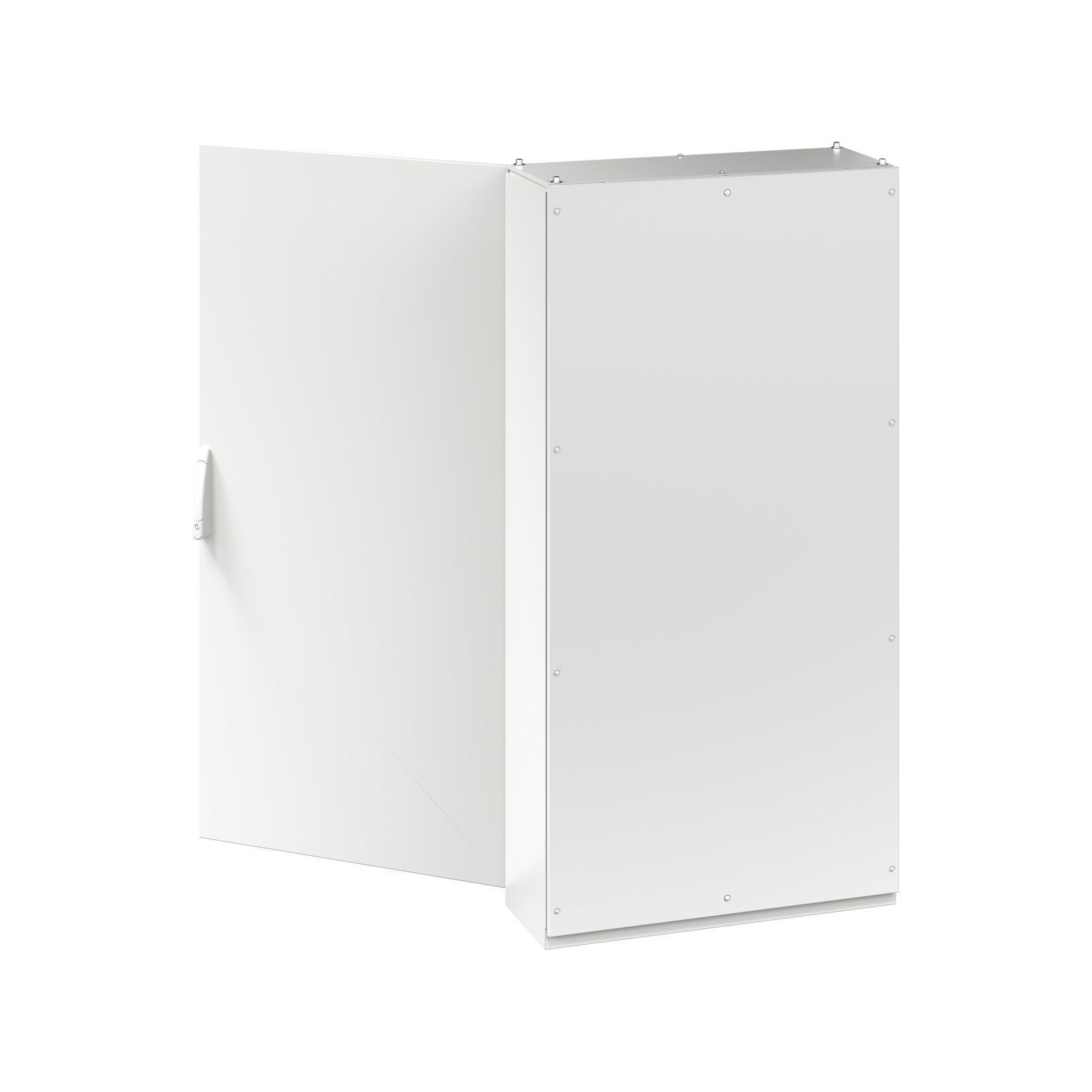

FSM-O-201004_back

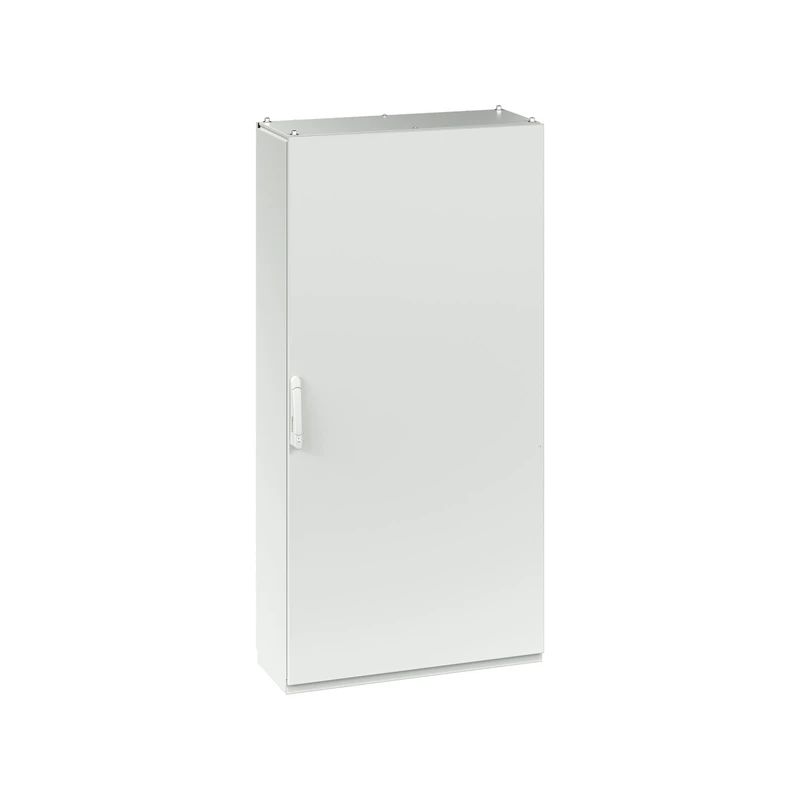

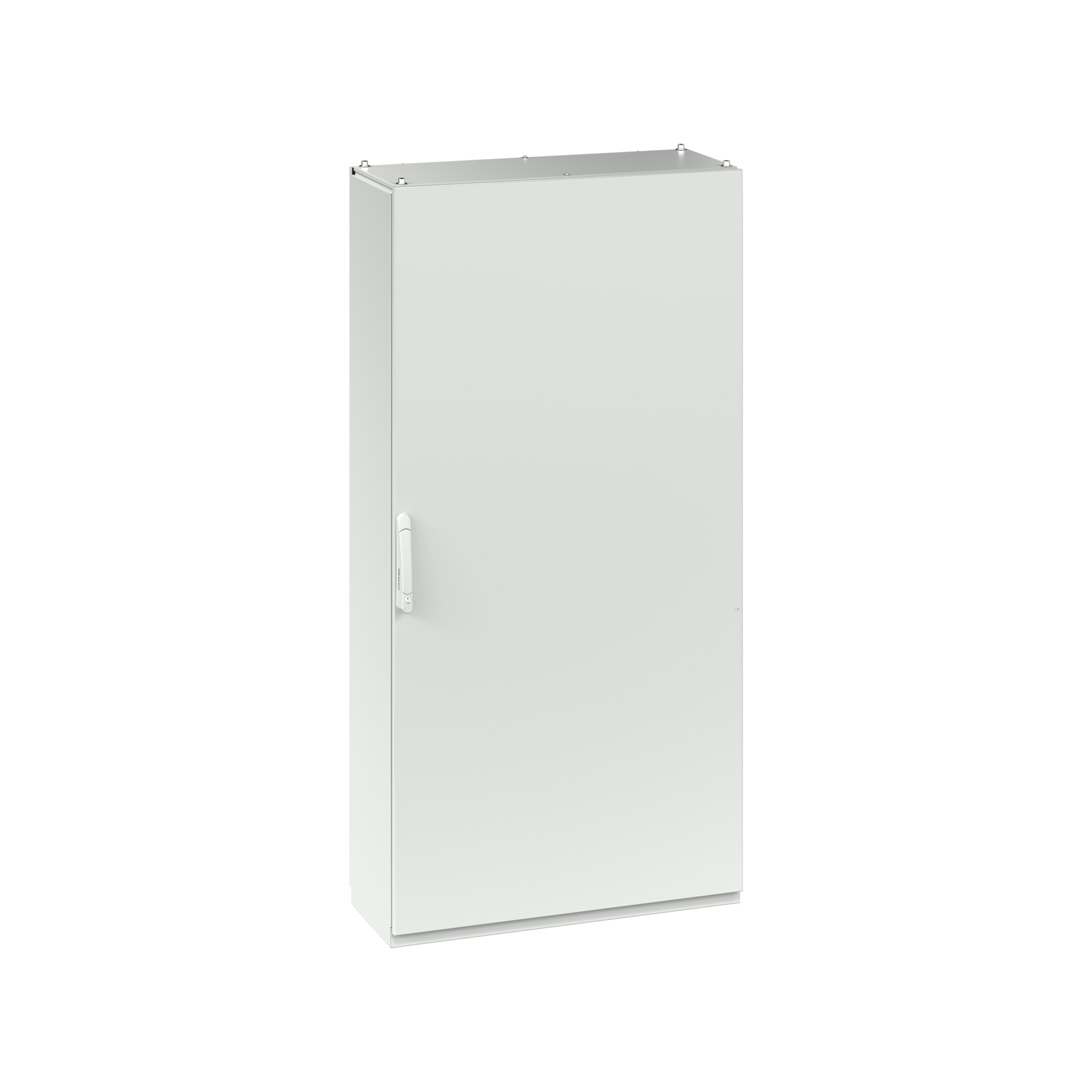

FSM-O-201004
