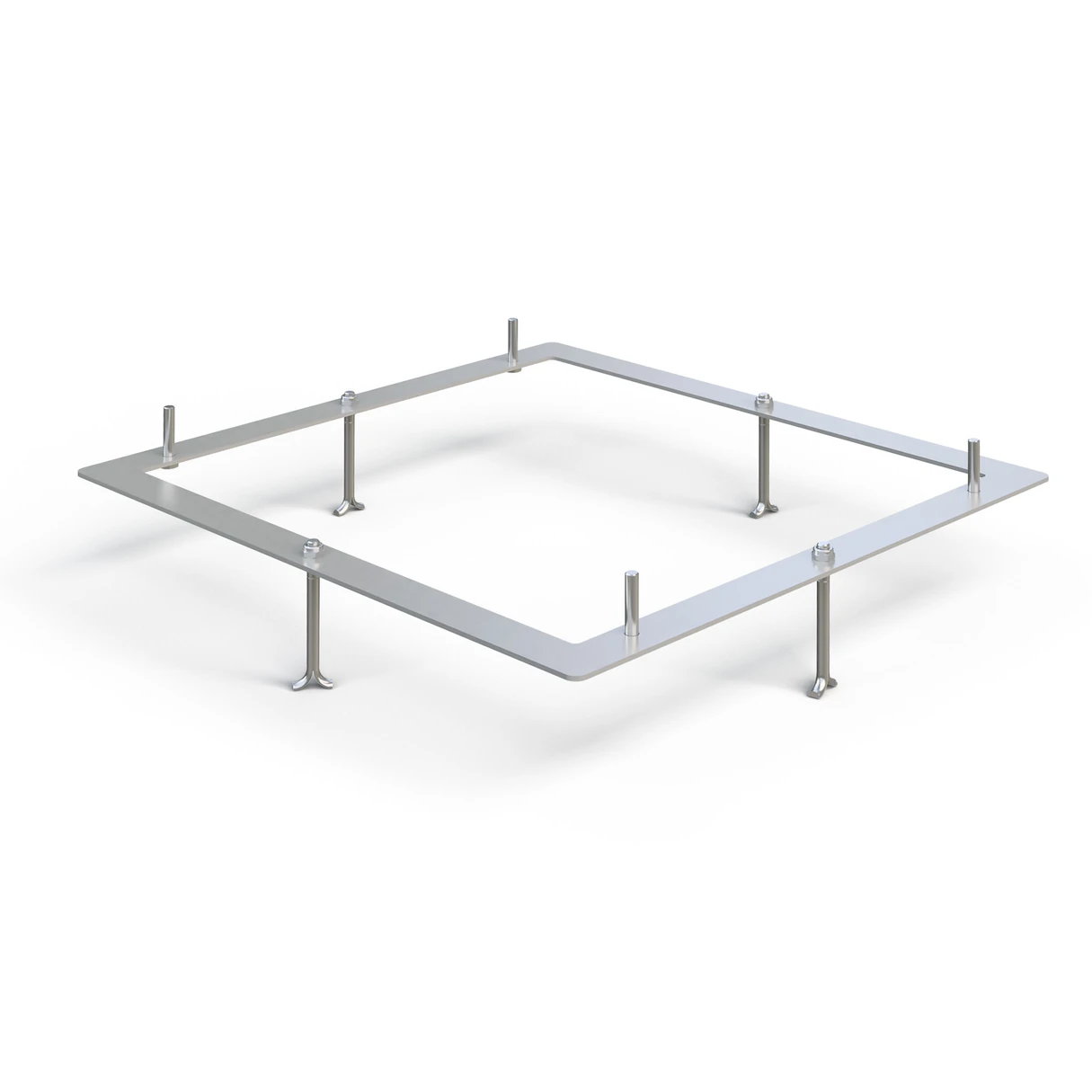

Fixing Frame for Cast Concrete Base
Welded frame to be set in a concrete plinth.
Produkteinführung
Welded frame intended for setting into a concrete plinth (complete with anchors and screws). If used correctly, ensures precise positioning of the cabinet on the concrete plinth, aligning the position of the screws on the frame and the holes in the bottom of the cabinet base. Remove the bottom cable tray to secure the cabinet with nuts on the inside of the stainless steel base.
Information
zum Herunterladen
Um ein Produkt zu Ihrer Bestellung hinzuzufügen, müssen Sie Anmelden/Registrieren
Information
Hauptmerkmale
| Product line name |
Fixing frame for anchoring to a concrete base |
|---|---|
| Application |
in combination with OMR-xx-xxxx cabinets |
| Material |
4 mm hot-dip galvanized steel sheet |
| Rozsah dodávky |
including mounting accessories |
zum Herunterladen

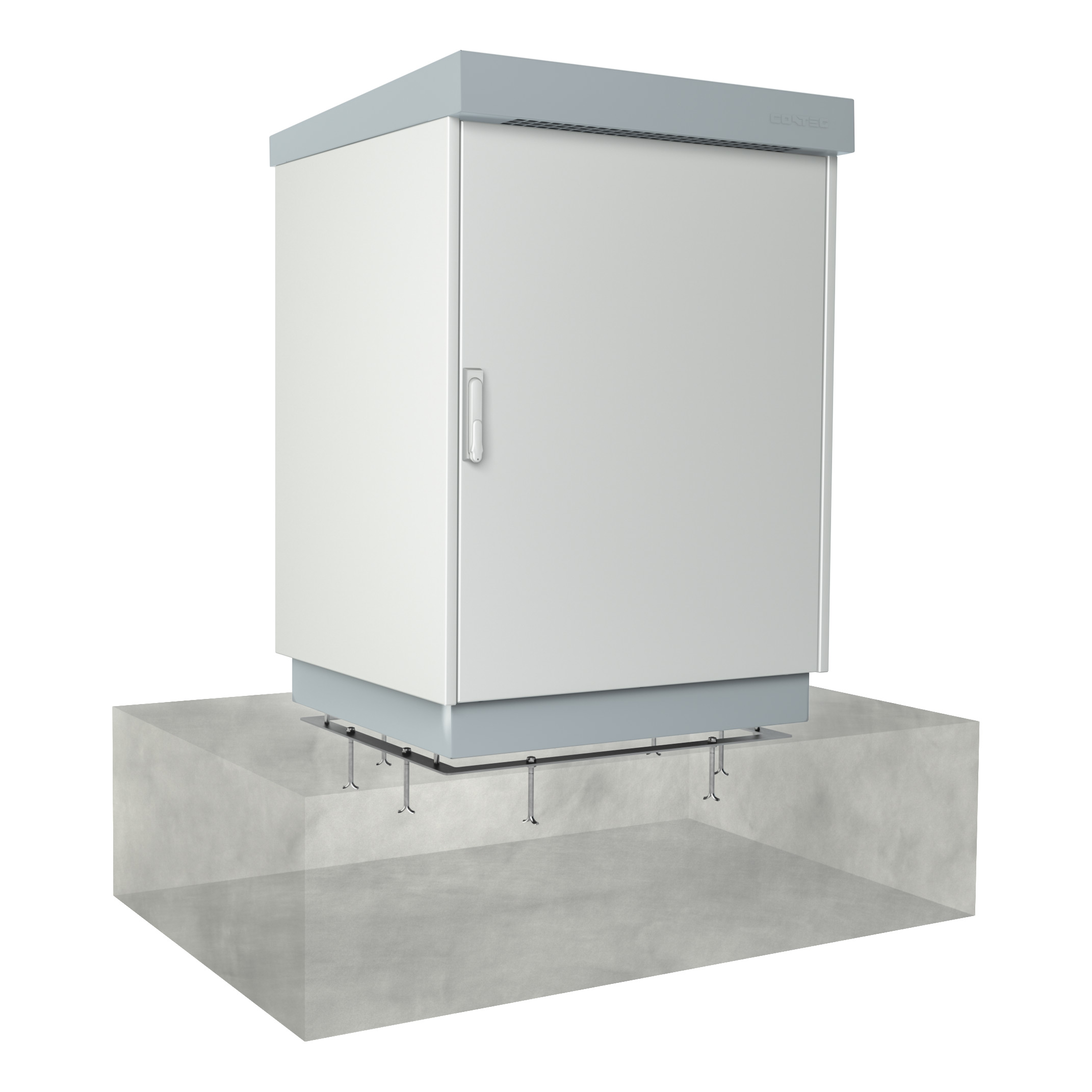

Fixing Frame for Cast Concrete Base_OMR-DW-1000x800x700_IDO-MF-P1008
Bilder
Dateigröße: 230.66 kB
Hochgeladen: 9. 3. 2025

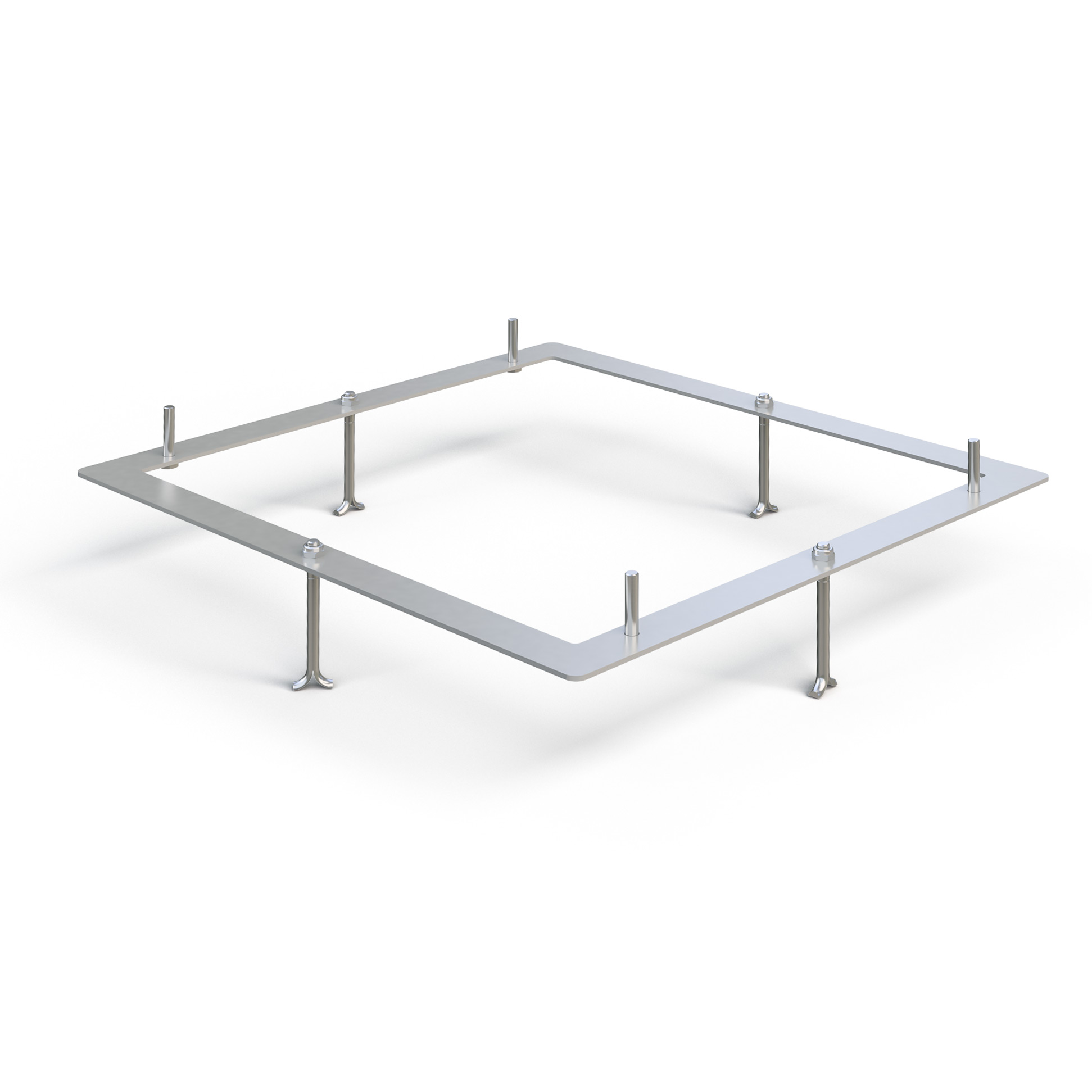

Fixing Frame for Cast Concrete Base-650x600_IDO-MF-P6506
Bilder
Dateigröße: 141.59 kB
Hochgeladen: 9. 3. 2025
