Solutions

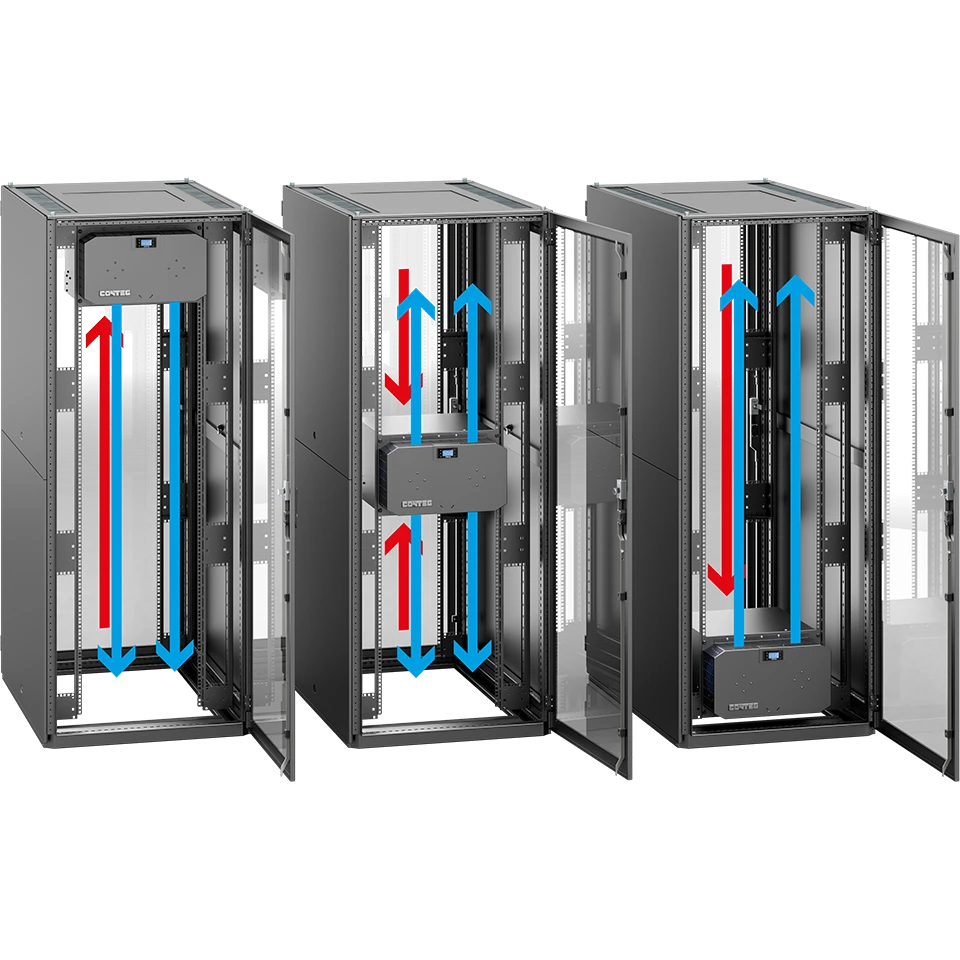

19" IT cabinets with small air conditioning units

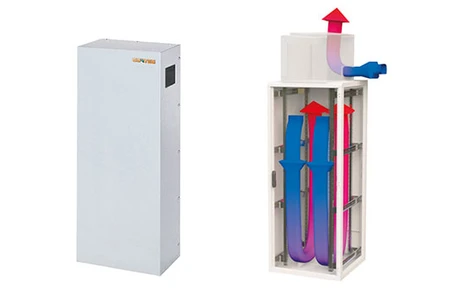

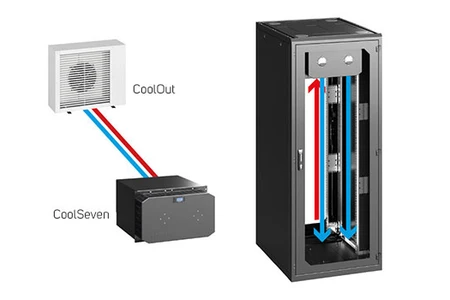

Small CoolSpot and CoolSeven air conditioning units are designed for low and medium heat loads and represent a group of precision cooling units within the PREMIUM and OPTIMAL series.
We offer two different types of units: with water cooling (CW) for connection to the cold water system in the building, and with direct evaporation (DX). CoolSeven cooling units are particularly cost- and power-efficient.
| Cooling unit parameters | CoolSeven with CoolOut | CoolSpot |
|---|---|---|
| Cooling performance | DX: 0.8 kW - 7 kW |
DX: from 0.32 kW to 5.2 kW CW: from 2.2 kW to 6.7 kW |
| Minimum cooling capacity |
✔ From 11% (Hot Gas Bypass: lower cycling tendency) ✔ EC fans (controlled from 20% of max. speed) ✔ Separation of cold and hot zone by separation frame and plugs |
from 30% (frequent short compressor cycles) Standard AC fans (without speed control) Cools the entire space of the cabinet. |
| Power control |
✔ Smooth air control (inverter-based compressor control) ✔ Fan speed control |
Temperature control on the air conditioning unit’s display |
| Remote unit monitoring |
YES |
NO |
| Unit placement |
Inside the cabinet on rails (7U) |
Outside on the roof or on the side of the switchboard |
| Recommended placement |
For closed and open rooms ✔ Heat dissipated through the pipe to the outside of the room Ideal for smaller server rooms and office buildings |
For a ventilated room with forced air flow Heat dissipates into the room* Ideal for production halls |
* for a DX solution. In a CW solution, the heat is dissipated through a pipe to the chiller.
Just tell us what you need. Wherever possible, we will be at your service.
We are the only data center supplier with whom you can easily agree on very specific conditions.
Our products will help you reduce your energy consumption and carbon footprint.
